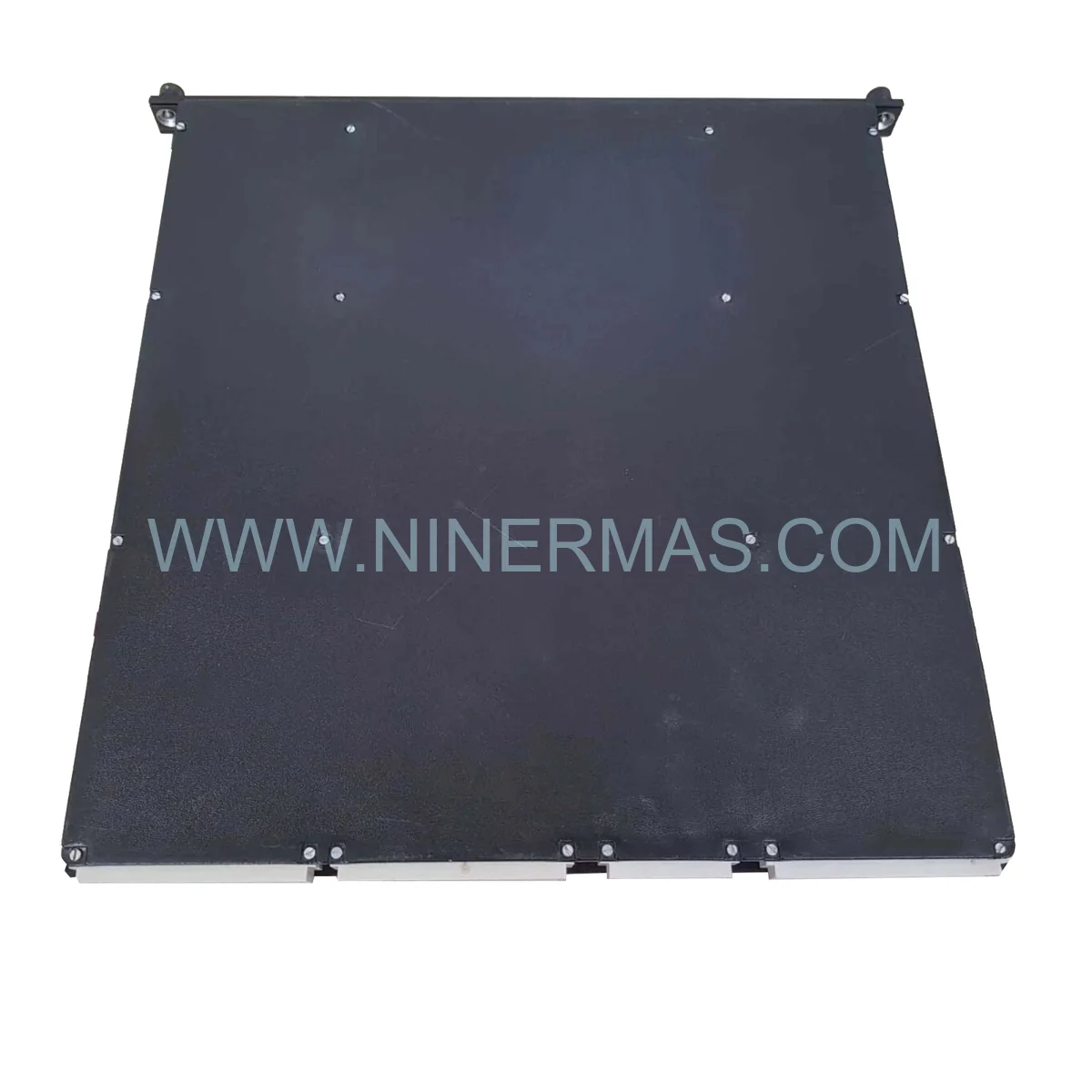

Triconex 3505E | TMR 24VDC Digital Input Module SIL 3

Triconex 3505E – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Triconex 3505E represents a cornerstone component in maintaining the operational integrity of safety instrumented systems (SIS) across high-consequence industrial environments. The 3505E module’s Triple Modular Redundancy (TMR) architecture eploying three independent input channels per discrete point with 2-out-of-3 voting logic nsures that no single-channel anomaly can propagate into a system-level failure, a fundamental requirement under IEC 61508 SIL 3 and IEC 61511 compliance frameworks. This design philosophy directly supports Asset Optimization by eliminating unplanned downtime attributable to input module faults.

Within the context of Industry 4.0 and evolving digital transformation strategies, the Triconex 3505E sustains long-term compatibility with Tricon and TriStation control architectures, enabling seamless integration into both legacy and modernized plant environments. Its 32-channel, 24 VDC low-threshold input configuration accommodates a broad spectrum of field instrumentation, from conventional discrete sensors to advanced smart devices, ensuring System Performance continuity across extended operational lifecycles. Lifecycle Management strategies built around this module benefit from its hot-swap capability, which permits in-service replacement without process interruption critical advantage in continuous-operation facilities.

As a certified Original Equipment component, the Triconex 3505E carries Original Documentation traceable to factory quality control records, providing auditors and compliance officers with the evidentiary chain required under global process safety management (PSM) regulations. Its deployment as a genuine, factory-sealed unit ather than a refurbished or third-party substitute s the single most impactful decision an asset manager can make to preserve Safety Integrity across the full system lifecycle.

Compliance & Safety Benchmarks

✅ IEC 61508 SIL 3 Certified: Independently verified to meet the highest Safety Integrity Level for discrete input acquisition in safety-critical loops.

✅ IEC 61511 Process Safety Compliance: Fully aligned with functional safety requirements for the process industries, supporting rigorous HAZOP and SIL verification workflows.

Triple Modular Redundancy (TMR) Architecture: Three-channel voting logic provides fault tolerance against single-point failures, sustaining Compliance Standards even under degraded operating conditions.

✅ Channel-to-Channel Isolation: Galvanic isolation between input channels and logic circuitry prevents fault propagation and ensures Standard Adherence in electrically noisy environments.

Continuous Self-Diagnostics: Onboard diagnostic routines execute in real time, detecting latent faults and reporting anomalies before they compromise system availability prerequisite for Operational Excellence in safety-regulated facilities.

✅ Extended Temperature Durability: Rated for operation from -40°C to +70°C, the module maintains full Certification validity across extreme ambient conditions encountered in offshore, arctic, and desert installations.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: Ultra-clean process environments demand input modules with zero tolerance for spurious trips. The Triconex 3505E’s low-threshold 24 VDC inputs interface precisely with cleanroom interlock systems, gas cabinet safety circuits, and chemical delivery monitoring loops, enabling process engineers to achieve the sub-millisecond response times required for yield-critical operations.

Pharmaceutical & Biotech Production: FDA 21 CFR Part 11 and GAMP 5 compliance frameworks require fully documented, validated safety system components. The 3505E’s Original Documentation package ncluding factory test records and material certifications treamlines validation protocols and reduces IQ/OQ/PQ cycle times, directly supporting Asset Optimization in regulated manufacturing environments.

Chemical & Petrochemical Processing: Emergency Shutdown (ESD) and High-Integrity Pressure Protection Systems (HIPPS) in ATEX/IECEx-classified zones rely on the 3505E’s TMR voting logic to maintain Safety Integrity during abnormal process excursions. Its compatibility with SIL 3 safety loops ensures that Lifecycle Management programs can extend module service intervals without compromising functional safety targets.

Power Generation & Utilities: Turbine protection, boiler safety, and grid-connected control systems require input modules capable of sustaining System Performance across decades of continuous operation. The 3505E’s robust construction and Triconex’s proven quality control system make it the preferred choice for long-term asset management in baseload and peaking power facilities.

Oil & Gas Upstream/Midstream: Subsea and topside safety systems operating under API 670 and IEC 61511 mandates benefit from the 3505E’s fault-tolerant architecture, which maintains process safety management compliance even when individual input channels are subjected to harsh subsea or offshore environmental stressors.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Triconex 3505E unit dispatched from our inventory is supplied in its original factory-sealed packaging, accompanied by Original Documentation including test certificates and material traceability records. This ensures that the module’s Safety Integrity rating remains uncompromised from point of manufacture to point of installation.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, the Americas, and the Middle East, we provide expedited shipping with full export documentation compliance. Priority dispatch is available for emergency maintenance scenarios where system downtime carries significant operational or safety risk.

12-Month Quality Guarantee for Legacy Systems: Recognizing that many facilities operate Triconex platforms well beyond their original design life, our 12-Month Quality Guarantee is specifically structured to support legacy system Lifecycle Management. In the event of a verified manufacturing defect, replacement units are dispatched on a priority basis to minimize mean time to repair (MTTR).

Technical Support: Our engineering team omprising certified functional safety professionals rovides pre-sales compatibility verification, installation guidance, and post-commissioning technical assistance. We support customers through firmware version validation, SIL verification documentation review, and integration consulting for both greenfield and brownfield projects.

Expert Technical FAQ

Q1: How does the Triconex 3505E achieve SIL 3 compliance, and what documentation is required for a SIL verification audit?
A: The Triconex 3505E achieves SIL 3 compliance through its TMR architecture, which provides a Probability of Failure on Demand (PFD) consistent with IEC 61508 SIL 3 thresholds. For a SIL verification audit, the required documentation includes the module’s Safety Manual, Failure Modes and Effects Analysis (FMEA) report, and factory test certificates ll of which are included in the Original Documentation package supplied with each unit.

Q2: What are the installation compliance requirements for deploying the 3505E in ATEX/IECEx-classified hazardous areas?
A: The 3505E itself is installed within the Triconex controller chassis, which must be housed in an appropriate enclosure rated for the specific hazardous area classification (Zone 1, Zone 2, etc.). Field wiring entering the classified area must comply with ATEX/IECEx installation standards, including the use of certified cable glands, barriers, or isolators as specified in the system’s area classification documentation and the Triconex installation manual.

Q3: How does the module’s environmental adaptability support operations in extreme climate conditions?
A: The Triconex 3505E is rated for an operating temperature range of -40°C to +70°C, making it suitable for arctic upstream facilities, desert petrochemical plants, and high-humidity tropical environments. Its galvanic channel isolation also provides inherent protection against ground loops and electrical noise common in industrial field environments, ensuring consistent System Performance across diverse climatic conditions.

Q4: What firmware version compatibility checks are required before installing the 3505E in an existing Triconex system?
A: Prior to installation, the TriStation programming software version and the main processor module firmware revision must be verified against the 3505E’s compatibility matrix, available in the module’s Original Documentation. Mismatched firmware versions can affect diagnostic reporting and voting logic behavior. Our technical support team can assist with compatibility verification as part of the pre-installation compliance review.

Q5: Can the 3505E be used in a partial stroke testing (PST) configuration for final element proof testing?
A: While the 3505E is a digital input module and does not directly execute PST commands, it plays a critical role in acquiring the position feedback signals from final elements (e.g., valve limit switches) during PST sequences. Proper configuration of the input channels ncluding debounce timing and diagnostic masking during test windows ust be documented in the facility’s Safety Management System to maintain Compliance Standards during proof test intervals.

Q6: What distinguishes a genuine factory-sealed Triconex 3505E from refurbished or third-party alternatives in terms of Safety Integrity?
A: A factory-sealed Triconex 3505E carries an unbroken chain of custody from Triconex’s quality control system, including component-level traceability and calibration records. Refurbished or third-party units cannot provide equivalent Original Documentation, which means their PFD values cannot be independently verified critical gap in any SIL 3 safety loop. Deploying non-original components in a certified safety system may also void the system’s overall SIL certification and expose the operating company to regulatory liability.
