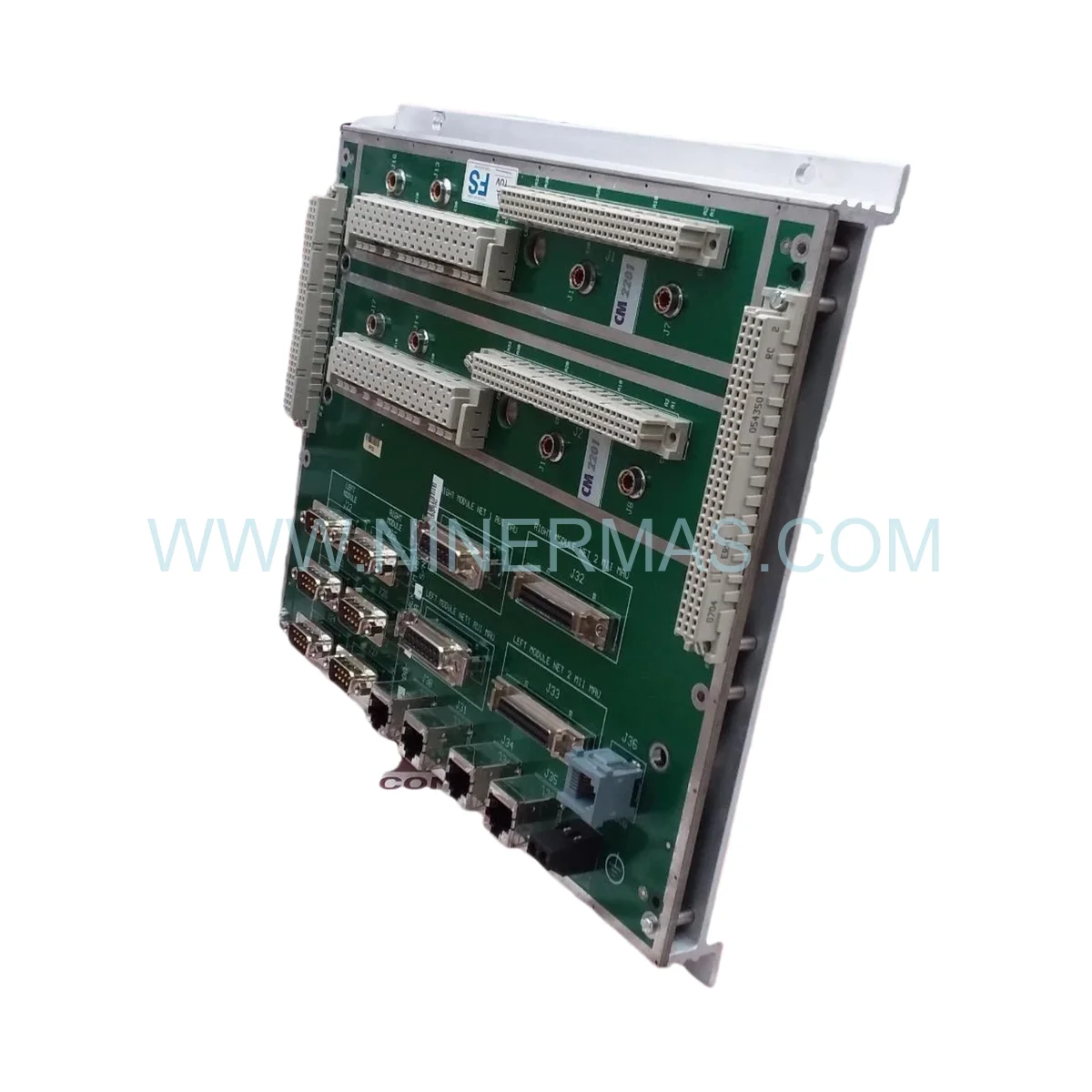

Triconex 2201 Communication Module (Modbus RTU/TCP) — New & Original

Triconex 2201 Communication Module | Reliable Automation Component for Safety-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical process infrastructure, the Triconex 2201 Communication Module stands as a cornerstone of system availability in safety instrumented environments. The Triconex 2201 delivers deterministic Modbus RTU and Modbus TCP/IP connectivity between Trident safety controllers and supervisory SCADA or DCS platforms — ensuring that real-time process data flows without interruption even under peak load conditions. Its role in process optimization cannot be overstated: uninterrupted data exchange directly translates to faster operator response and reduced unplanned downtime.

Engineered for deployment in harsh industrial environments — including offshore platforms, petrochemical complexes, and power generation facilities — this module demonstrates exceptional resilience across wide thermal ranges (-40°C to +70°C). During installation, engineers should verify backplane slot compatibility within the Trident chassis and confirm TriStation 1131 firmware version alignment prior to commissioning. Optical isolation rated at 2500 VAC on serial ports protects the safety bus from ground loop interference, a common failure vector in legacy plant wiring infrastructures.

As a strategic spare part, the Triconex 2201 is indispensable for any maintenance inventory supporting Trident-based safety systems. End-of-life (EOL) procurement timelines for legacy automation components can extend to 6-18 months through OEM channels; securing verified original stock in advance is a proven operational excellence strategy that eliminates production line stoppage risk.

Key Operational Features

Dual-Protocol Support: Simultaneous Modbus RTU (RS-485) and Modbus TCP/IP (Ethernet) operation for redundant communication paths
High Availability Design: Hot-swappable module replacement without disrupting active safety functions — zero-downtime maintenance
Seamless System Integration: Auto-synchronizes with Trident backplane upon insertion; inherits network configuration from controller memory
Broad Baud Rate Range: 1200 to 115200 bps (RS-485) with 10/100 Mbps auto-negotiation on Ethernet port
High Data Throughput: Up to 2048 registers per transaction with <50 ms typical response time
Flexible Network Topology: Supports master/slave modes; compatible with star, ring, and daisy-chain architectures
Standard Function Code Coverage: FC01 C06, FC15 C16 for seamless I/O Modules and third-party device interoperability

Maintenance & Performance Benchmarks

The Triconex 2201 is architected to integrate into both small-scale safety relay networks and large distributed control architectures spanning multiple plant units. In compact installations, a single module can serve as the primary Modbus gateway, polling up to 247 slave devices on a single RS-485 segment. In enterprise-scale deployments, multiple 2201 modules can be distributed across Trident chassis to segment network traffic, reduce polling latency, and provide path redundancy — a critical requirement for Operational Excellence in continuous process industries.

Cyclic redundancy checks (CRC) on every Modbus frame, combined with configurable timeout and retry parameters, ensure data integrity across noisy industrial cable runs. The module’s diagnostic LED array provides immediate visual feedback on power status, TX/RX activity, and fault conditions — reducing mean time to repair (MTTR) during field troubleshooting. Integration with TriStation 1131 allows engineers to map safety logic variables directly to Modbus register addresses, streamlining system integration workflows and eliminating manual address translation errors.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Triconex 2201 unit dispatched from our warehouse is sourced directly from authorized distribution channels and ships in original factory packaging with full traceability documentation. For time-sensitive plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for in-stock units upon order confirmation before the daily cut-off time.

We maintain a dedicated global supply pipeline for EOL and legacy automation components — including discontinued Triconex modules that are no longer available through standard OEM channels. Our inventory management system tracks stock across multiple international warehouses, enabling worldwide express logistics with typical delivery windows of 3-7 business days to major industrial hubs in North America, Europe, the Middle East, and Asia-Pacific. All shipments include commercial invoice, packing list, and certificate of conformance for customs clearance and quality audit purposes.

Engineering Support & FAQ

Q1: What are the installation steps for the Triconex 2201 in an existing Trident chassis?
A: Power down is not required for hot-swap installation. Align the module with the target backplane slot, slide firmly until the ejector levers click into place, and verify the Power LED illuminates green. Open TriStation 1131, navigate to the chassis configuration, and confirm the 2201 appears in the assigned slot. Download the updated project to activate the new module’s register mappings.

Q2: Which TriStation 1131 firmware versions are compatible with the 2201?
A: The Triconex 2201 is compatible with TriStation 1131 versions 4.x and later. For installations running firmware below v4.0, a firmware upgrade is strongly recommended prior to module commissioning to ensure full function code support and diagnostic reporting capability.

Q3: Can the 2201 operate as both Modbus master and slave simultaneously?
A: No. The operating mode (master or slave) is configured per-project in TriStation 1131 and applies to the module globally. However, multiple 2201 modules can be installed in the same chassis with different mode assignments to achieve concurrent master and slave functionality across separate network segments.

Q4: How is the warranty claim process handled?
A: Contact our technical support team via email at sale@ninermas.com with your order number, module serial number, and a description of the observed fault. Our engineers will conduct a remote diagnostic assessment within 24 hours. If a hardware defect is confirmed under the 12-month warranty, a replacement unit will be dispatched via express courier at no additional cost.

Q5: Is the Triconex 2201 suitable for SIL 2 and SIL 3 safety applications?
A: The 2201 functions as a communication interface module within the Trident safety system architecture, which is certified for SIL 2 and SIL 3 applications per IEC 61508. The module itself does not independently carry a SIL rating but operates within the certified system boundary when installed and configured per Triconex engineering guidelines.

Q6: What termination resistance is required for RS-485 wiring?
A: A 120-ohm termination resistor must be installed at both physical ends of the RS-485 bus segment. Failure to terminate correctly results in signal reflections that cause intermittent communication errors, particularly at baud rates above 19200 bps or on cable runs exceeding 300 meters.
