TRACO POWER HIER466513P0221 T1023-06C Service-Ready Spare Part

TRACO POWER HIER466513P0221 T1023-06C Service-Ready Spare Part for Industrial Maintenance

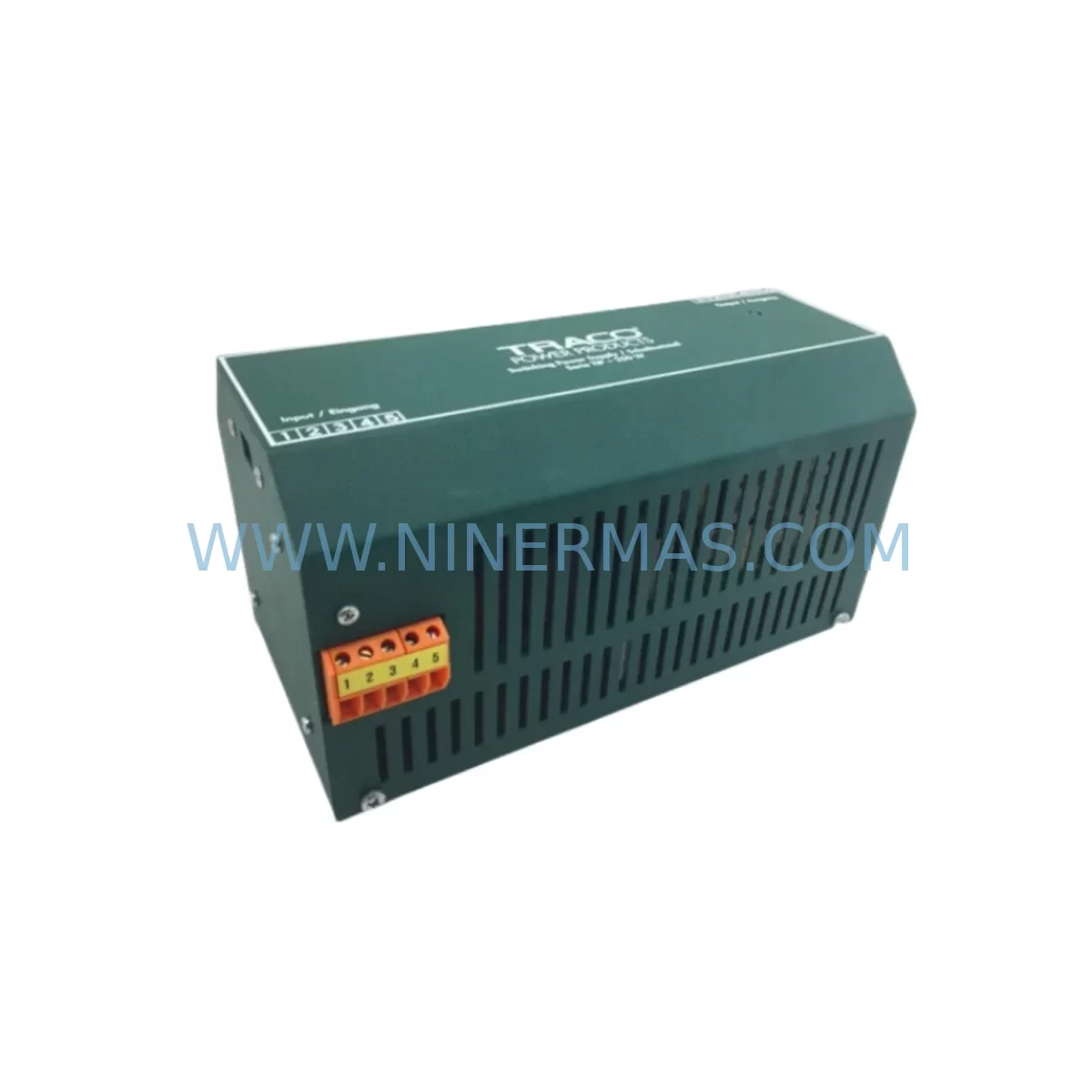

The TRACO POWER HIER466513P0221 T1023-06C is a ruggedized industrial power supply module engineered for continuous operation in demanding automation environments. As a direct service-ready spare part, this unit is stocked and tested to support rapid replacement during scheduled maintenance windows, emergency shutdowns, and annual overhaul cycles. Sourced as an original component, it delivers the electrical stability and thermal resilience required by control cabinet engineers managing legacy PLC and DCS systems across process industries, discrete manufacturing, and critical infrastructure.

Maintenance engineers working with TRACO POWER HIER466513 series installations understand that power supply reliability is the foundation of every control loop. When the HIER466513P0221 T1023-06C reaches end-of-service life or exhibits output voltage drift, ripple anomalies, or thermal shutdown events, immediate like-for-like replacement is the safest path to restoring uptime. This spare part is pre-tested, serialized, and shipped with full documentation to minimize commissioning time on site.

Procurement engineers managing multi-year spare parts programs for automation assets will find this unit suitable for long-term inventory commitment. With a 12-month warranty from date of shipment and verified compatibility with the HIER466513 platform, this module supports lifecycle extension strategies for installed bases that cannot be easily migrated to newer architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIER466513P0221 T1023-06C in a live control cabinet, a thorough inspection of adjacent components is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the upstream AC/DC input feed and checking the primary fuse or circuit breaker protecting the power supply rail — a blown fuse or nuisance trip often indicates a downstream load fault that caused the original module failure.

The 24 VDC output bus feeding downstream I/O modules, relay coils, and field transmitters should be load-tested after the new unit is installed. In TRACO POWER HIER466513 series cabinets, it is common to find TRACO POWER TBL series or TMR series DC/DC converters providing isolated sub-rails for signal conditioning circuits — these should be inspected for output ripple and thermal stress simultaneously. If the cabinet includes a TRACO POWER TSP series or TIS series power filter, verify that the filter capacitors have not degraded, as aging filter stages can mask power quality issues that stress the replacement module.

On the I/O side, inspect the terminal blocks and wiring harnesses connected to the power distribution bus. Loose or corroded terminal connections on Phoenix Contact or Weidmüller-style terminal strips are a frequent cause of intermittent voltage drops that accelerate power supply wear. Signal isolators and loop-powered transmitters drawing current from the 24 VDC rail should be checked for correct load current to ensure the new HIER466513P0221 T1023-06C is not immediately overloaded.

For cabinets integrating Siemens SIMATIC S7 or Allen-Bradley ControlLogix backplanes, confirm that the backplane power budget is within specification after the replacement. Communication modules such as PROFIBUS DP adapters, PROFINET interface cards, or EtherNet/IP bridge modules draw regulated power from the same rail and should be verified for correct operation post-replacement. HMI panels connected to the same power distribution node — particularly Siemens TP700 or similar operator panels — should be power-cycled and checked for display and communication stability.

Relay output modules and safety relay units within the same cabinet should be tested for correct coil voltage and contact integrity as part of the post-replacement commissioning checklist. Signal isolation barriers protecting analog input channels from field noise are also worth inspecting, as power supply instability can cause calibration drift in precision measurement loops. Completing this systematic inspection during the replacement window maximizes the value of the maintenance intervention and reduces the probability of a secondary unplanned outage.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the control cabinet following site LOTO procedures. Confirm zero voltage on the input terminals of the HIER466513P0221 T1023-06C using a calibrated multimeter before proceeding.

Step 2 — Documentation: Photograph the existing wiring configuration, terminal labeling, and DIN rail position before removal. Record the output voltage setting if the unit has an adjustable trim potentiometer.

Step 3 — Removal: Disconnect output load wiring first, then input supply wiring. Release the DIN rail locking tab and slide the module clear. Inspect the vacated rail section for corrosion, debris, or heat discoloration.

Step 4 — Installation: Clip the new HIER466513P0221 T1023-06C onto the DIN rail. Reconnect input wiring to the correct L/N/PE terminals per the original documentation. Reconnect output load wiring, ensuring correct polarity on the 24 VDC bus.

Step 5 — Commissioning: Re-energize under controlled conditions. Measure output voltage at no-load and full-load. Verify ripple is within specification. Confirm all downstream I/O modules, relay coils, and communication devices return to normal operation before releasing the system to production.

Step 6 — Record Keeping: Log the replacement in the maintenance management system (CMMS) with the new unit serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger reorder of a replacement buffer stock unit.

Spare Parts Support FAQ

Q1: Is the HIER466513P0221 T1023-06C a direct drop-in replacement for the original installed unit?
Yes. This is an original TRACO POWER component from the HIER466513 / T1023 series, manufactured to the same specification as the unit it replaces. No firmware changes, parameter adjustments, or mechanical modifications are required for standard like-for-like replacement in existing installations.

Q2: What testing is performed before shipment?
Each unit undergoes output voltage verification, load regulation testing, and visual inspection for physical integrity prior to dispatch. Units are packed in ESD-safe anti-static packaging with protective foam inserts to prevent transit damage. A test report or certificate of conformance is available upon request for quality-controlled procurement programs.

Q3: Can I place a blanket order or long-term supply agreement for this spare part?
Yes. NINERMAS supports annual spare parts programs and blanket purchase orders for critical automation components including the HIER466513P0221 T1023-06C. Long-term supply agreements include priority allocation, fixed pricing for the contract period, and dedicated stock reservation. Contact our team to discuss volume requirements and lead-time commitments.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and output specification non-conformance. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the rated environmental parameters. Warranty claims are processed with return merchandise authorization (RMA) and include replacement or repair at NINERMAS’s discretion.
