Hirschmann RPS80EEC Service-Ready Spare Part for Industrial Maintenance

Hirschmann RPS80EEC Service-Ready Spare Part for Industrial Maintenance

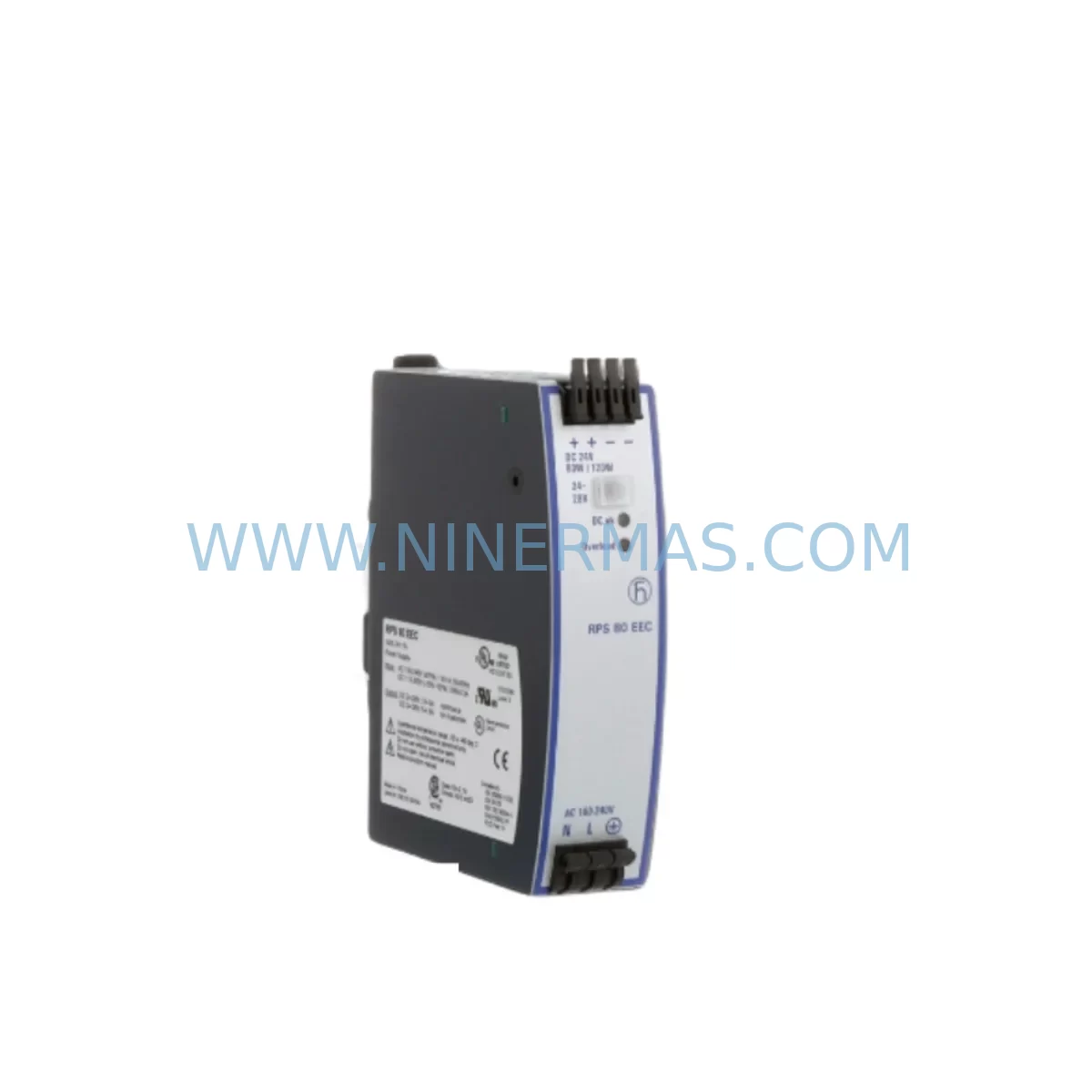

The Hirschmann RPS80EEC is a redundant power supply module engineered for the Hirschmann RPS Series industrial power infrastructure. In mission-critical automation environments — from process control rooms to discrete manufacturing lines — an unplanned power supply failure can cascade into hours of unscheduled downtime. Stocking a verified, service-ready RPS80EEC spare ensures your maintenance team can execute a rapid swap, restore system power, and return the production line to full operation without waiting on extended lead times from the OEM supply chain.

NINERMAS sources original Hirschmann RPS80EEC units through a qualified industrial spare parts network. Every unit undergoes pre-shipment functional verification, is individually packaged to prevent transit damage, and ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. Whether you are building a first-line spare inventory, replacing a failed unit on an emergency basis, or refreshing aging control cabinet components ahead of a scheduled annual shutdown, the RPS80EEC available through NINERMAS is procurement-ready with short lead times and documented traceability.

Maintenance engineers working on Hirschmann RPS Series installations recognize that the RPS80EEC does not operate in isolation. Its reliability is directly tied to the health of the surrounding power distribution and control architecture. A proactive replacement strategy should therefore extend beyond the power supply module itself to encompass the full electrical circuit it supports.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the RPS80EEC, the surrounding control cabinet components should be evaluated concurrently to avoid repeat service calls and secondary failures. The RPS80EEC feeds 24 V DC to the cabinet bus, which in turn powers a range of downstream devices whose condition directly affects system reliability after the power supply is restored.

Begin with the input fusing and circuit protection upstream of the RPS80EEC. Miniature circuit breakers and blade fuses rated for the input current should be inspected for signs of thermal stress or nuisance tripping history. Alongside the power supply, the Hirschmann RPS Series bus bar connector and redundancy module — the component that arbitrates between the primary and backup supply — should be tested for proper current-sharing and fault signalling. A degraded redundancy controller can mask a failing power supply until both units fail simultaneously.

On the 24 V DC output side, inspect the terminal blocks and DIN rail bus bar segments for oxidation, loose clamping torque, or heat discolouration. These are common failure points in high-cycle industrial environments. If the cabinet houses a Hirschmann MICE or SPIDER series managed industrial Ethernet switch, verify that its 24 V DC input connector and power LED are functioning correctly after the RPS80EEC swap, as switch brownouts can corrupt network topology tables and trigger unnecessary PLC fault states.

For cabinets integrating a Siemens SIMATIC S7-300 or S7-400 PLC backplane powered from the same 24 V DC rail, confirm that the CPU module, digital I/O modules (SM321/SM322), and analog I/O modules (SM331/SM332) are receiving stable voltage within the ±1% tolerance required for accurate signal processing. Any signal isolators or signal conditioners on the analog loops should also be checked, as these devices are sensitive to supply ripple introduced by a degrading power supply.

If the installation includes 24 V DC relay output modules or interposing relay bases (such as Phoenix Contact or Weidmüller relay modules), inspect coil resistance and contact condition. Relay coils subjected to undervoltage from a failing RPS80EEC can exhibit accelerated contact wear. Similarly, 24 V DC solenoid valve drivers and motor starter auxiliary contacts in the same circuit should be verified for correct operation after power is restored.

For sites running Profibus DP or Modbus RTU communication networks, check the network repeaters and bus terminators powered from the cabinet rail. A momentary power interruption during the RPS80EEC replacement can cause bus address conflicts that require a manual network restart. Finally, if an operator HMI panel (such as a Siemens TP700 or similar 24 V DC touch panel) is mounted in the same cabinet, verify its power connector and backlight status after the swap to confirm full system restoration before signing off the maintenance record.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed or degraded unit is the RPS80EEC by checking the label on the module face and cross-referencing the cabinet wiring diagram. Measure the output voltage at the bus bar with a calibrated multimeter. A reading outside the 23.5–25.2 V DC range under load confirms the module requires replacement.

Step 2 — Isolation and safety: Isolate the AC input supply to the RPS80EEC via the upstream circuit breaker. Verify isolation with a voltage tester before touching any terminals. If the cabinet has a second RPS module providing redundancy, the 24 V DC bus may remain live — confirm with the site safety plan whether a hot-swap procedure is permitted or whether a controlled shutdown is required.

Step 3 — Module removal: Disconnect the AC input wiring and DC output wiring from the RPS80EEC terminals, labelling each conductor. Release the DIN rail locking tab and slide the module off the rail. Note the orientation and any spacer clips for reinstallation reference.

Step 4 — New unit installation: Mount the replacement RPS80EEC on the DIN rail and engage the locking tab. Reconnect AC input and DC output wiring to the correct terminals per the wiring diagram. Torque all terminal screws to the manufacturer’s specified value (typically 0.5–0.6 Nm for this class of terminal).

Step 5 — Commissioning and handover: Restore the AC input supply and observe the RPS80EEC status LED. Measure output voltage under load to confirm regulation within specification. Verify that the redundancy module shows correct current-sharing status. Document the replacement in the site maintenance log, record the new unit’s serial number, and update the spare parts inventory to trigger a replenishment order for the next RPS80EEC spare.

This structured workflow minimises total downtime to under 30 minutes for a trained technician and ensures system compatibility is maintained without requiring firmware changes or PLC reconfiguration.

Spare Parts Support FAQ

Q1: Is the RPS80EEC available from NINERMAS as an original Hirschmann part, and what does the 12-month warranty cover?
Yes. NINERMAS supplies original Hirschmann RPS80EEC units sourced through a qualified industrial spare parts network. The 12-month warranty covers manufacturing defects and operational failures occurring under normal industrial service conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed directly through NINERMAS with a target response time of 48 hours.

Q2: How do I confirm compatibility before ordering if my cabinet uses an older RPS Series variant?
Provide NINERMAS with your existing module’s full part number (visible on the module label), the cabinet wiring diagram reference, and the nominal output voltage and current requirements. Our technical team will cross-reference the RPS80EEC specification against your installation data and confirm compatibility in writing before the order is placed. For most standard RPS Series installations with a 24 V DC / 80 W requirement, the RPS80EEC is a direct replacement.

Q3: What is the recommended spare parts inventory strategy for the RPS80EEC in a multi-cabinet plant?
For plants operating more than three cabinets containing RPS Series power supplies, NINERMAS recommends maintaining a minimum of one RPS80EEC spare per five installed units, with a reorder trigger set at the last spare. For critical process lines where unplanned downtime cost exceeds the spare part cost within two hours, a one-for-one hot spare strategy is advisable. NINERMAS can support blanket purchase orders with staged delivery to reduce inventory carrying costs while guaranteeing supply availability.

Q4: Does NINERMAS offer long-term supply assurance for the RPS80EEC given Hirschmann’s product lifecycle status?
Yes. NINERMAS specialises in long-term supply of industrial spare parts including end-of-life and last-time-buy components. For the RPS80EEC and related RPS Series modules, we maintain sourcing relationships across multiple qualified distributors and refurbishment partners to ensure continued availability beyond the OEM’s standard product lifecycle. Contact our sales team at sale@ninermas.com to discuss a long-term supply agreement tailored to your plant’s maintenance schedule.
