Toshiba P6581471P4 Retrofit Safety Module for Legacy Systems

Toshiba P6581471P4 Retrofit Safety Module for Legacy Systems

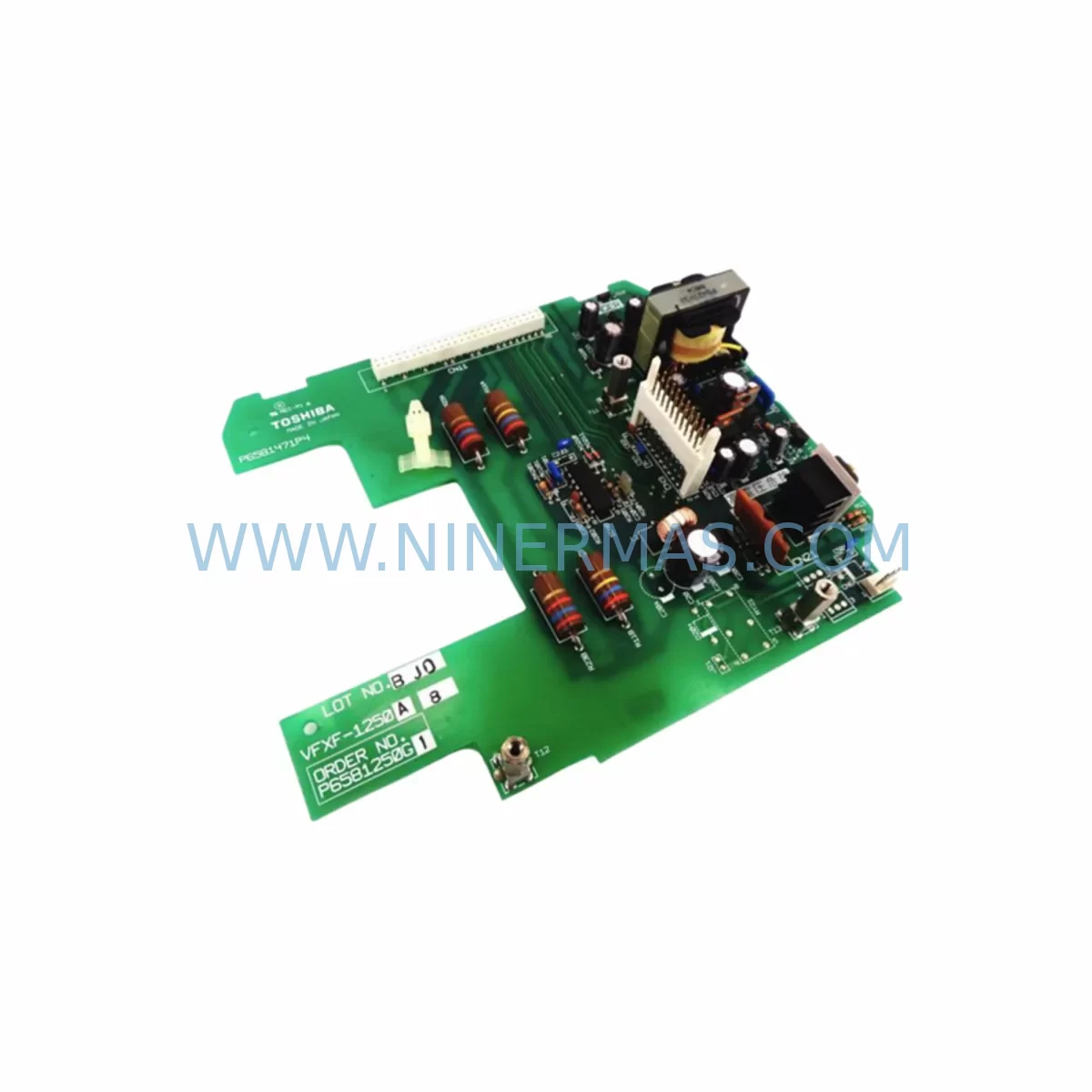

The Toshiba P6581471P4 is a ruggedized circuit board safety module originally designed for the TOSVERT VFXF-1250 series variable frequency drive platform. As Toshiba progressively phases out legacy VFXF-series components, plant engineers and maintenance teams face increasing pressure to source verified replacement boards that maintain full functional compatibility with existing control architectures. This module serves as a direct retrofit-compatible replacement for aging or failed safety circuit boards within the VFXF-1250 drive enclosure, enabling facilities to extend the operational life of their installed base without committing to a full drive replacement or control system overhaul.

Whether you are managing a scheduled maintenance window, responding to an unplanned drive fault, or executing a phased modernization of your motor control center, the P6581471P4 provides a validated path to system restoration. Each unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and component integrity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the P6581471P4 into a running production environment requires careful pre-work across several engineering disciplines. Before removing the failed board, maintenance teams should perform a full parameter backup using the RKP004Z programming keypad, which stores all drive settings including acceleration/deceleration ramps, frequency limits, and PID configurations. This ensures that after the replacement board is seated, the drive can be restored to its exact pre-fault operating state without manual re-entry of parameters.

Within the VFXF-1250 chassis, the safety module interfaces directly with the main control board (P6581406P1) via the internal backplane. Engineers should inspect the backplane connector pins for oxidation or mechanical damage before installing the replacement P6581471P4. If the control board itself shows signs of secondary damage — such as burnt traces or failed optocouplers — it may be necessary to simultaneously replace the P6581406P1 to restore full drive functionality.

Power supply integrity is a critical pre-check. The internal SMPS power board (P6581405P1) feeds regulated DC rails to both the control and safety circuit boards. A degraded P6581405P1 can cause recurring safety module faults even after board replacement, so verifying output voltages on the 5V, 15V, and 24V rails before commissioning the new P6581471P4 is strongly recommended.

For facilities running multiple VFXF-series drives — including the larger VFXF-2150 units in the same motor control center — it is advisable to maintain a small buffer stock of critical boards such as the P6581471P2 and P6581471P3 variants, which serve adjacent safety and interface functions within the same drive family. Cross-referencing your installed base against available spare part variants reduces the risk of extended downtime when multiple drives share the same failure mode.

I/O expansion and signal routing should also be reviewed during the retrofit window. The P6581470P1 I/O board, which manages analog and digital signal distribution within the VFXF platform, should be inspected for connector integrity and signal isolation performance. If the facility is also migrating communication protocols — for example, transitioning from legacy serial links to Modbus RTU or PROFIBUS DP — the P6581472P1 communication option card can be installed during the same maintenance window to modernize the drive’s network interface without additional downtime.

Gate driver board condition (P6581473P1) should be assessed in parallel, particularly in drives that have experienced IGBT overcurrent events, as gate driver failures can propagate damage to the safety module. Replacing the P6581471P4 in isolation without verifying gate driver health may result in repeat failures within a short operating period.

Downtime Control During System Migration

Minimizing production interruption during a safety module replacement requires a structured approach to pre-staging, execution, and post-installation verification. Before the maintenance window opens, the replacement P6581471P4 should be on-site and bench-verified. All drive parameters should be backed up to the RKP004Z keypad or a PC-based parameter management tool. Wiring diagrams for the specific VFXF-1250 installation should be reviewed to confirm terminal assignments for the safety circuit inputs — including E-stop chains, safety relay feedback loops, and external fault inputs — so that reconnection after board swap is accurate and immediate.

During the swap, ESD precautions are mandatory. The VFXF-1250 should be fully de-energized, with DC bus voltage confirmed below 50V before any board-level work begins. The P6581471P4 is secured via standard PCB mounting hardware; removal and re-installation typically requires less than 30 minutes for a trained technician familiar with the VFXF chassis layout.

Post-installation, the drive should be powered up in a controlled sequence: confirm no fault codes on initial energization, restore parameters from backup, and perform a no-load test run before reconnecting the motor load. Safety function verification — including E-stop response time and fault relay operation — should be documented as part of the commissioning record. This structured approach consistently achieves full system restoration within a single planned maintenance shift, protecting both production continuity and personnel safety.

Retrofit Support FAQ

Q: Is the P6581471P4 a direct drop-in replacement for the original Toshiba VFXF-1250 safety module?
A: Yes. The P6581471P4 is designed as a board-for-board replacement within the VFXF-1250 chassis. Terminal layout, backplane interface, and mounting dimensions are identical to the original. No chassis modification or wiring changes are required in standard replacement scenarios.

Q: Will I need to re-program the drive after replacing the safety module?
A: In most cases, no. The P6581471P4 does not store drive parameters; all operating settings reside on the main control board (P6581406P1). Provided the control board is intact and a parameter backup was performed prior to replacement, the drive can be restored to its pre-fault configuration immediately after the new board is installed.

Q: What pre-shipment testing is performed on each P6581471P4 unit?
A: Each unit undergoes functional verification prior to dispatch, including power-on self-test, safety circuit continuity checks, and visual inspection for component integrity. Units are shipped in anti-static packaging with individual test records. All units are covered by a 12-month warranty from the date of shipment.

Q: What is the typical lead time and stock availability?
A: We maintain inventory of the P6581471P4 to support urgent maintenance requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or scheduled maintenance orders, please contact our team directly to confirm availability and arrange priority allocation.
