Toshiba MG50Q2YS91 Safety-Reliable IGBT Power Module

Toshiba MG50Q2YS91 Safety-Reliable IGBT Power Module for Critical Control Sites

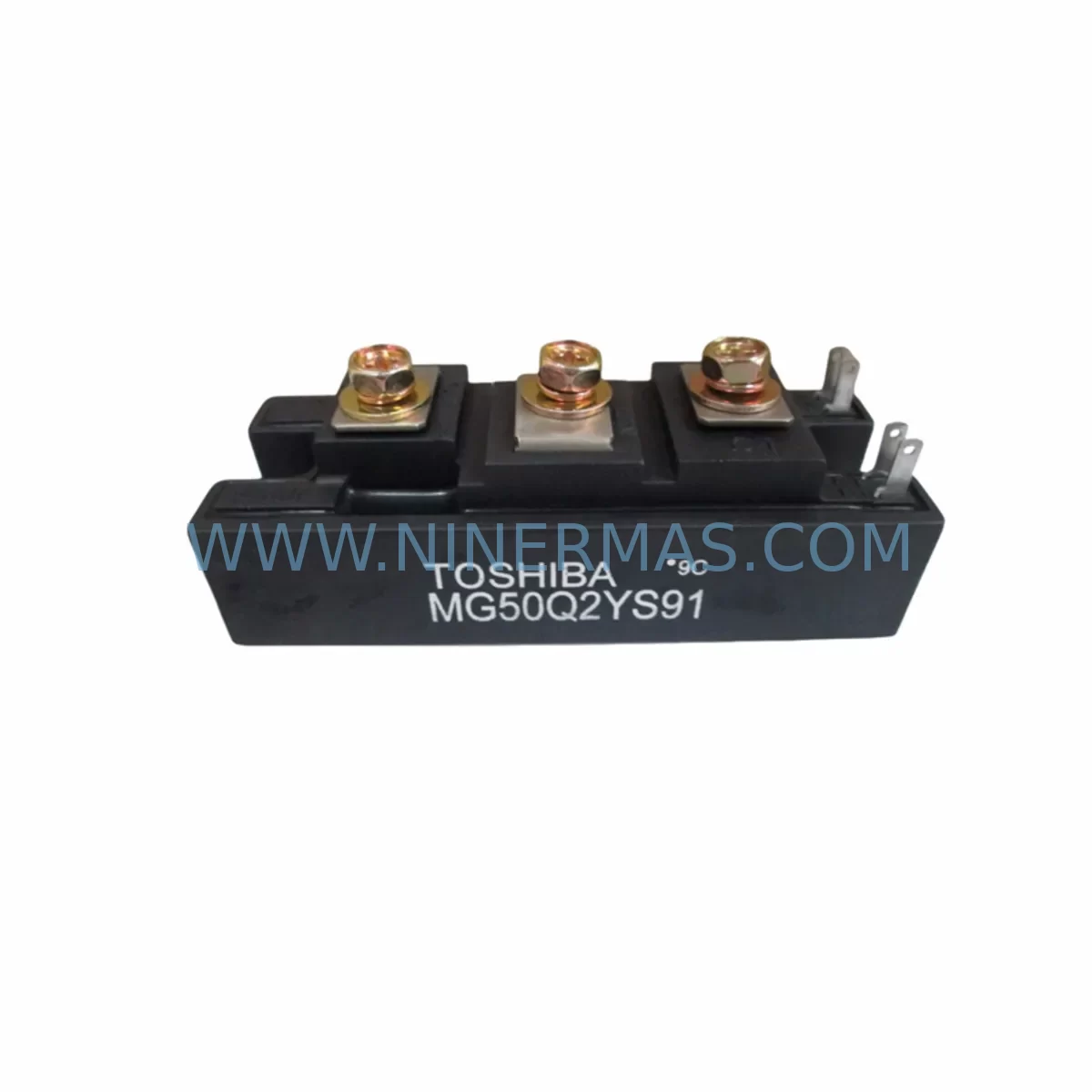

The Toshiba MG50Q2YS91 is a high-performance IGBT power module from the MG-Q Series, engineered for safety-critical industrial control environments where unplanned downtime, signal drift, and power instability carry serious operational and safety consequences. Rated at 50A / 1200V, this module delivers robust switching performance and thermal stability across demanding continuous-production and hazardous-duty applications. Whether deployed in heavy-duty motor drive cabinets, critical interlock circuits, or high-EMI process control panels, the MG50Q2YS91 is built to sustain reliable operation where failure is not an option.

Every unit supplied by NINERMAS undergoes pre-shipment functional testing to verify gate drive response, collector-emitter saturation voltage, and thermal interface integrity before dispatch. This quality assurance step is essential for customers integrating the MG50Q2YS91 into safety-rated control loops, where a latent module defect could trigger nuisance trips, process shutdowns, or — in worst-case scenarios — equipment damage. Combined with a 12-month warranty, this testing protocol ensures that each module arrives ready for immediate commissioning.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet designs — such as those found in petrochemical DCS panels, mining hoist drives, and steel mill rolling mill inverters — a single component failure in the power switching stage can cascade into full-process shutdown. The MG50Q2YS91 addresses this risk through its low on-state losses and fast, controlled switching transitions, which reduce thermal stress on adjacent components including DC bus capacitors, gate resistors, and snubber networks.

For complete drive system protection, the MG50Q2YS91 is commonly deployed alongside complementary components. Gate driver boards such as the Toshiba MG-Q Series gate driver unit provide the isolated drive signals and desaturation protection essential for safe IGBT operation. On the DC bus side, film capacitors rated 1200V DC and DC bus fuses protect against overvoltage transients and short-circuit events. In systems with variable-frequency drives (VFDs), input line reactors and EMC filters upstream of the rectifier stage reduce harmonic distortion and surge exposure that would otherwise stress the IGBT module.

For control-level protection, 24VDC SMPS power supplies with wide-input tolerance maintain stable logic power during grid fluctuations, while surge protective devices (SPDs) on I/O terminals guard against lightning-induced transients reaching the control board. In safety-rated interlock circuits, safety relays and emergency stop modules work in conjunction with the IGBT switching stage to ensure that a drive fault results in a controlled, safe de-energization rather than an uncontrolled trip. Communication integrity between the drive and the PLC is maintained through fiber-optic PROFIBUS or EtherNet/IP adapters, which eliminate ground loop interference in high-EMI environments. Finally, thermal interface pads and heatsink assemblies compatible with the MG50Q2YS91 baseplate footprint ensure optimal junction-to-ambient thermal management, directly extending module service life in high-ambient-temperature enclosures.

Critical Industrial Safety Applications

The MG50Q2YS91 is specified across a broad range of critical industrial sectors where power switching reliability is directly linked to process safety and production continuity:

Petrochemical & Refinery Plants: In compressor drive systems and pump VFDs operating within hazardous zones, the MG50Q2YS91 supports continuous-duty motor control with the thermal stability required to sustain operation in high-ambient-temperature electrical rooms. Its 1200V isolation rating provides the creepage and clearance margins demanded by IEC 61800-series drive standards.

Electric Power Generation & Transmission: Excitation systems, reactive power compensation (STATCOM), and UPS inverter stages in power plants rely on IGBT modules with consistent switching characteristics. The MG50Q2YS91’s low VCEsat reduces conduction losses in high-duty-cycle applications, improving overall system efficiency and reducing thermal cycling fatigue.

Mining & Mineral Processing: Hoist drives, conveyor belt drives, and crusher motor controllers in underground and open-pit mining environments are subject to extreme vibration, dust ingress, and wide temperature swings. The MG50Q2YS91’s robust package construction and high junction temperature rating make it a reliable choice for these demanding conditions.

Water & Wastewater Treatment: Pump and blower VFDs in water treatment facilities operate continuously, often in humid and chemically aggressive environments. Reliable IGBT switching performance ensures consistent flow control and prevents the unplanned pump trips that can disrupt treatment processes and regulatory compliance.

Metallurgy & Steel Production: Rolling mill main drives and induction heating inverters demand IGBT modules capable of sustaining high peak currents and rapid switching cycles. The MG50Q2YS91’s 50A continuous rating and fast freewheeling diodes support the dynamic load profiles characteristic of these applications.

Port Cranes & Marine Vessels: Ship propulsion drives and port crane hoist systems require power electronics that can withstand salt-laden air, vibration, and wide supply voltage variations. The MG50Q2YS91’s high isolation voltage and wide operating temperature range address these environmental challenges directly.

Continuous Manufacturing: In automotive assembly, paper mills, and food processing lines, any unplanned drive stoppage triggers costly production losses. Specifying a pre-tested, warranted IGBT module like the MG50Q2YS91 as a qualified spare reduces mean time to repair (MTTR) and supports planned maintenance strategies.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MG50Q2YS91?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and gate-emitter or collector-emitter parameter degradation outside published datasheet limits. Warranty claims are supported with replacement dispatch or credit, subject to failure analysis confirmation. The warranty period begins from the date of shipment.

Q2: What pre-shipment tests are performed on each MG50Q2YS91 unit?
Each unit undergoes functional verification including gate drive response testing, collector-emitter saturation voltage (VCEsat) measurement, leakage current check, and visual inspection of the baseplate and terminal condition. This ensures that no latent defects are present before the module is integrated into a customer’s control cabinet or drive system.

Q3: Is the MG50Q2YS91 compatible with third-party gate driver boards?
Yes. The MG50Q2YS91 is compatible with standard 1200V IGBT gate driver ICs and driver boards that provide the recommended gate voltage swing (typically +15V / –8V) and sufficient peak gate current for the module’s input capacitance. It is directly interchangeable with the original Toshiba MG-Q Series gate driver interface. Customers replacing a failed module in an existing drive should verify gate resistor values and driver output current ratings before commissioning.

Q4: Can long-term supply of the MG50Q2YS91 be assured for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated stock of the MG50Q2YS91 and equivalent MG-Q Series IGBT modules to support customers with planned maintenance schedules, critical spare parts programs, and emergency replacement requirements. Customers operating fleets of drives using this module are encouraged to contact us to discuss volume pricing and reserved stock arrangements to eliminate supply-chain risk.
