Tokyo TYB 121-1 RCP2-SA5R-I-42P-12-750 Spare Part

Tokyo TYB 121-1 RCP2-SA5R-I-42P-12-750 Spare Part: Downtime Risk Control & Rapid Replacement

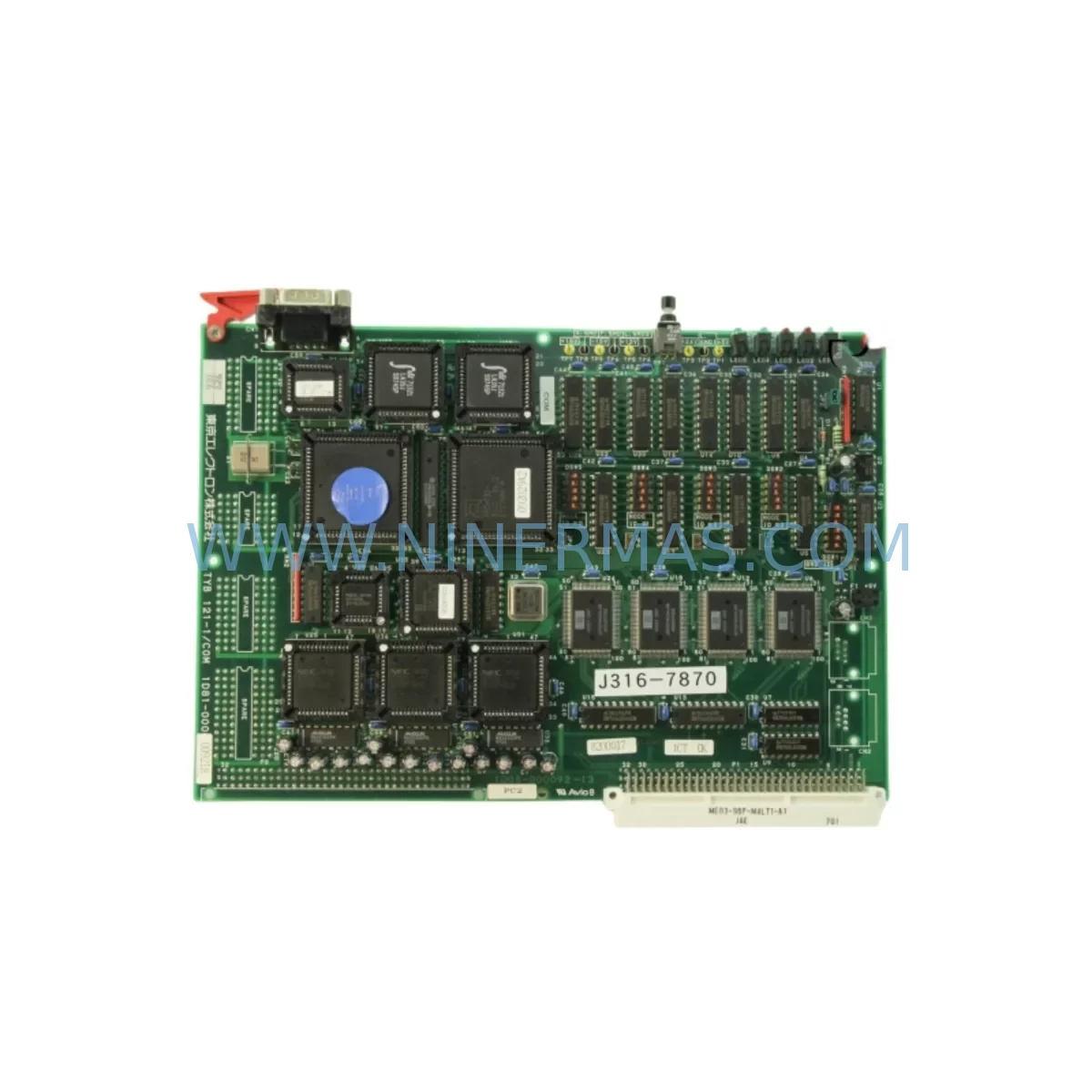

The Tokyo TYB 121-1 RCP2-SA5R-I-42P-12-750 is a service-ready ruggedized control board engineered for demanding industrial automation environments. Sourced directly for maintenance engineers and procurement teams managing legacy and end-of-life control systems, this spare part supports rapid field replacement, minimizes unplanned downtime, and ensures long-term operational continuity for production lines dependent on Tokyo automation platforms.

Whether you are conducting routine annual inspections, responding to an emergency fault isolation event, or building a strategic spare parts inventory for a critical manufacturing cell, the TYB 121-1 RCP2-SA5R-I-42P-12-750 delivers the compatibility and reliability required to restore system function without extended lead times or costly re-engineering. Every unit shipped by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty, giving procurement engineers the confidence to stock this board as a long-term supply asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TYB 121-1 RCP2-SA5R-I-42P-12-750 control board is flagged during a control cabinet inspection or fault isolation routine, experienced maintenance engineers know that the board itself is rarely the only component requiring attention. A thorough site assessment should accompany any board replacement to prevent repeat failures and ensure the restored system operates within specification.

Begin by verifying the integrity of the 24VDC power supply module feeding the control board. Voltage fluctuations or ripple from an aging power supply are a common root cause of board-level faults in the RCP2 series. Inspect the associated terminal blocks and wiring harnesses for signs of thermal stress, loose crimps, or insulation degradation — particularly on the I/O connector rows that interface with field sensors and actuators. The 42-point I/O configuration of this board means that a single wiring fault can mask the true source of a system alarm.

Communication integrity is equally critical. If the TYB 121-1 is part of a networked control architecture, inspect the RS-232 or RS-485 communication cables and verify that the network termination resistors are correctly installed. A faulty communication module or degraded cable shield can introduce noise that mimics board-level failures. Where signal isolation is required between the control board and field devices, check that signal isolators and surge protection barriers are functioning correctly — these components are often overlooked during annual maintenance cycles but are essential for protecting the control board in environments with high electrical noise.

For systems that include an HMI panel connected to the RCP2 controller, confirm that the HMI communication link is stable after board replacement. Firmware version mismatches between a replacement TYB 121-1 board and the connected HMI can cause display errors or loss of operator control. Similarly, if the control board interfaces with a backplane or rack-mounted I/O expansion chassis, inspect the backplane connectors and bus termination components for oxidation or mechanical damage before reinstalling the replacement board.

Relay output modules connected to the TYB 121-1 should also be inspected during the replacement workflow. Relay coil failures and contact wear are common in high-cycle applications and can place excessive load on the control board’s output drivers. Replacing worn relay modules at the same time as the control board reduces the risk of a secondary failure shortly after the primary repair is completed. Fuse holders and circuit protection components in the same electrical circuit should be checked and replaced if there is any evidence of overcurrent events that may have contributed to the original board failure.

Site Replacement Workflow

Replacing the Tokyo TYB 121-1 RCP2-SA5R-I-42P-12-750 in a live production environment requires a structured approach to minimize downtime and ensure system compatibility. Follow this workflow to achieve a safe and efficient replacement:

Step 1 — Pre-Replacement Verification: Confirm the replacement board’s part number and firmware revision match the installed unit. Cross-reference the full SKU (TYB 121-1/COM 1D81-000009218 0040-36290 RCP2-SA5R-I-42P-12-750-P1-R05-ML-SG) against the system’s maintenance records. Verify that the NINERMAS-supplied unit has passed pre-shipment functional testing.

Step 2 — System Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the control cabinet and discharge any stored energy in the power supply capacitors before opening the enclosure.

Step 3 — Documentation: Photograph the existing wiring and connector positions before disconnecting any cables. Label all connectors if they are not already marked. Record the current firmware version displayed on the HMI or engineering workstation.

Step 4 — Board Removal and Installation: Remove the faulty TYB 121-1 board carefully, avoiding stress on the backplane connectors. Install the replacement board, ensuring all connectors are fully seated. Torque any retaining screws to the manufacturer’s specification.

Step 5 — Power-Up and Verification: Re-energize the cabinet and monitor the system startup sequence. Verify that all I/O points are responding correctly, communication links are established, and the HMI displays the expected system status. Run a functional test cycle before returning the line to production.

Step 6 — Documentation Update: Record the replacement in the site maintenance log, including the new board’s serial number, installation date, and the NINERMAS warranty reference. Update the spare parts inventory to trigger a reorder if the TYB 121-1 stock level falls below your minimum threshold.

Spare Parts Support FAQ

Q1: How long will the Tokyo TYB 121-1 RCP2-SA5R-I-42P-12-750 remain available for purchase?
NINERMAS maintains long-term stock of end-of-life and legacy industrial components, including the TYB 121-1 series. We work with procurement engineers to establish reserved inventory agreements for critical spare parts, ensuring supply continuity even after the original manufacturer has discontinued the product. Contact our team to discuss long-term supply arrangements for your maintenance program.

Q2: How do I verify compatibility before ordering?
Provide your full system model number, the existing board’s part number, and firmware revision to our technical team at sale@ninermas.com. We will confirm compatibility before shipment. For RCP2 series systems, it is important to match not only the base part number but also the hardware revision suffix (e.g., P1-R05-ML-SG) to ensure correct fit and function.

Q3: What pre-shipment testing is performed on each unit?
Every TYB 121-1 RCP2-SA5R-I-42P-12-750 board shipped by NINERMAS undergoes a functional test procedure before dispatch. This includes power-on verification, I/O channel testing, and communication interface checks where applicable. Test records are available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund after technical review. Our warranty policy is designed to support maintenance engineers who require reliable, accountable spare parts sourcing for critical automation assets.
