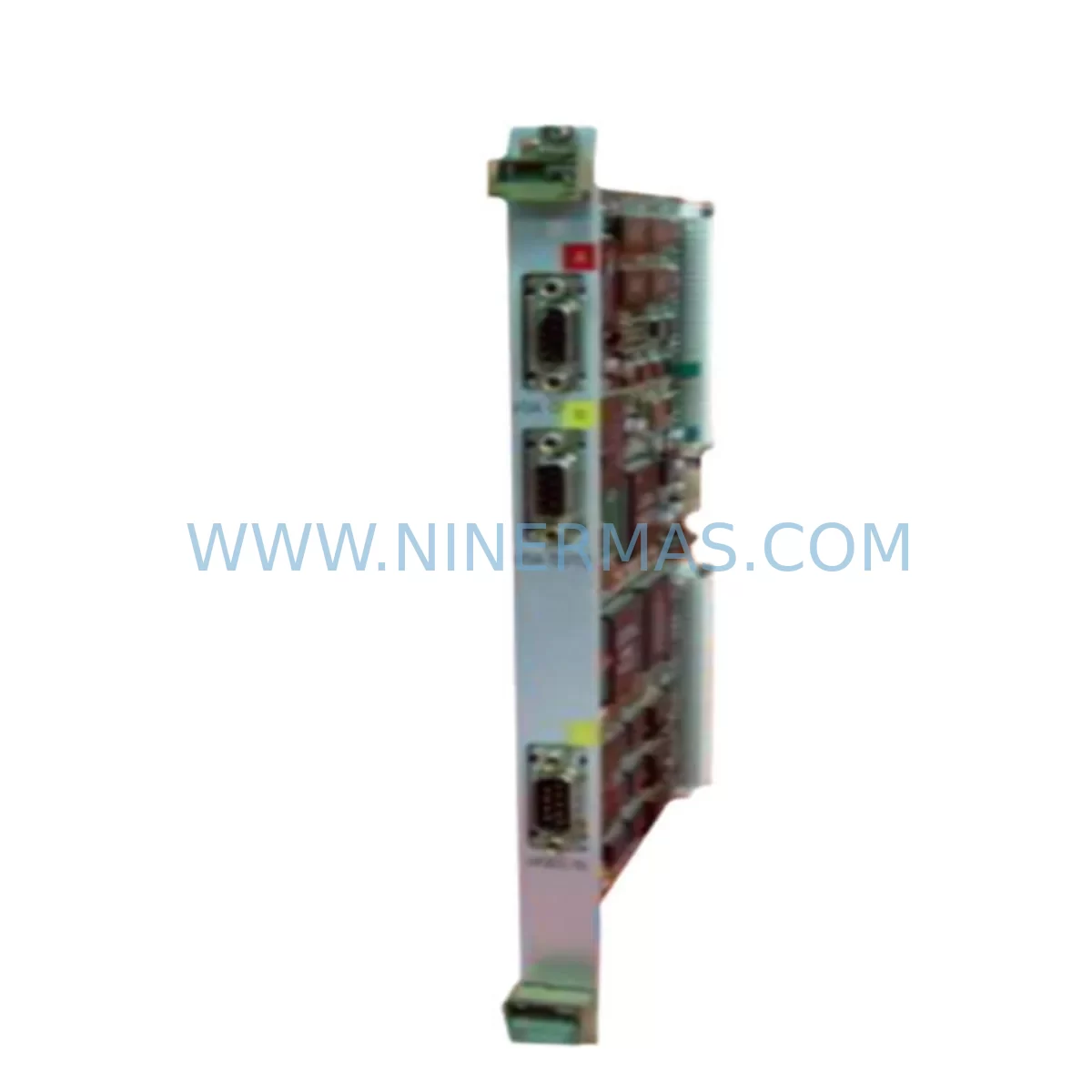

Tokyo Seimitsu HIMV-312 VGAC FA0132B YWP-C Retrofit Board

Tokyo Seimitsu HIMV-312 VGAC FA0132B YWP-C Retrofit-Compatible Industrial Spare Board for Legacy Systems

The Tokyo Seimitsu HIMV-312 VGAC FA0132B YWP-C is a precision-engineered industrial spare board designed for retrofit compatibility with legacy semiconductor measurement and automation control systems. As original equipment manufacturers phase out support for aging platforms, this board serves as a critical replacement component for facilities operating HIMV-series coordinate measuring machines (CMMs), surface roughness testers, and precision inspection systems. Whether you are managing a planned upgrade cycle or responding to an unplanned board failure, the FA0132B YWP-C assembly provides a verified, tested solution that minimizes engineering rework and reduces total downtime exposure.

Industrial facilities running legacy Tokyo Seimitsu HIMV-312 platforms frequently encounter obsolescence challenges: discontinued OEM support, unavailable spare parts, and incompatible software environments. This retrofit-compatible board addresses those challenges directly by maintaining electrical and mechanical compatibility with the original HIMV-312 VGAC backplane architecture, preserving existing terminal wiring configurations, and supporting the signal interface standards required by the host control system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the HIMV-312 VGAC FA0132B YWP-C board requires systematic pre-installation planning across several interdependent subsystems. Before removing the failed or aging board, maintenance engineers should document the existing DIP switch and jumper positions that define the module address within the VGAC backplane. Incorrect address settings after reinstallation are one of the most common causes of post-swap communication faults and can prevent the host controller from recognizing the new board entirely.

Power supply integrity is the next critical checkpoint. The HIMV-312 platform typically distributes +5 VDC logic power and ±12 VDC analog rails through a centralized HIMV-series power supply unit. Before installing the FA0132B YWP-C, verify that all rails are within tolerance using a calibrated multimeter. A degraded power supply delivering marginal voltages is frequently the root cause of board failures in aging systems, and installing a new board into an unhealthy power environment risks immediate damage to the replacement assembly.

Terminal wiring on the VGAC backplane should be photographed and labeled before any disconnection. The FA0132B YWP-C is designed to accept the original field wiring without modification, but confirming wire labeling against the original schematic prevents transposition errors during reassembly. If the system also incorporates a HIMV-312 I/O expansion module or a dedicated signal conditioning board in an adjacent slot, verify that those modules remain undisturbed during the swap to avoid introducing secondary faults.

Communication link verification is essential for systems where the HIMV-312 interfaces with upstream SCADA platforms, data acquisition systems, or RS-232 to Ethernet converters used in modernized network architectures. Confirm that the host software’s COM port settings — baud rate, parity, stop bits, and handshaking — match the configuration expected by the FA0132B YWP-C before initiating the first measurement cycle. In facilities that have partially migrated to Ethernet-based communication gateways, the serial-to-network bridge configuration may also require review.

HMI screen validation is a frequently overlooked step in board-level retrofits. If the facility operates a legacy HIMV measurement HMI terminal or a PC-based measurement software suite, confirm that the software can establish communication with the replacement board and that all measurement screens display correctly after the swap. Some legacy HMI configurations store board-specific calibration offsets that must be re-entered or verified following a hardware replacement.

For facilities managing broader control cabinet upgrades alongside this board replacement, consider the interaction with adjacent components such as HIMV-series servo amplifier boards, encoder interface modules, and axis control cards that share the same card cage. A phased replacement approach — replacing one board at a time and validating system function before proceeding — significantly reduces the risk of compounding faults during a multi-board upgrade campaign.

Where the HIMV-312 system is integrated into a larger production line managed by a programmable logic controller (PLC) or a distributed control system (DCS), coordinate the board swap with the PLC program logic to ensure that any interlocks or permissive signals dependent on the HIMV measurement output remain functional throughout the transition. Temporary bypass of non-critical interlocks during the swap window, with full restoration and verification before returning to production, is standard practice for minimizing operational risk.

Downtime Control During System Migration

Minimizing unplanned downtime during a board-level replacement on a legacy Tokyo Seimitsu HIMV-312 system requires preparation that begins well before the maintenance window opens. The most effective strategy is to have the FA0132B YWP-C replacement board on-site and pre-verified before the system is taken offline. Ninermas performs a full functional test on every unit prior to shipment, providing documented test results that confirm the board is operational before it reaches your facility.

During the maintenance window, the recommended sequence is: power down the system following the OEM-specified shutdown procedure, discharge any stored energy in the power supply capacitor bank, remove the failed board, install the FA0132B YWP-C with address settings matched to the original configuration, restore power, and verify communication with the host system before resuming measurement operations. This sequence, when executed by a qualified technician with the original system documentation available, typically completes within two to four hours for a straightforward board swap.

To protect the original program logic and calibration data stored in the host controller or measurement software, create a full backup of the system configuration before beginning any hardware work. This backup serves as the recovery baseline if the swap reveals an unexpected compatibility issue that requires further investigation. In systems where the HIMV-312 measurement data feeds directly into a statistical process control (SPC) system or a quality management database, notify the relevant production and quality teams of the planned maintenance window to prevent data gaps in the production record.

Field continuity during the swap can be maintained in some configurations by temporarily routing measurement functions to a parallel inspection station if one is available, or by scheduling the replacement during a planned production break to avoid impacting throughput targets. For facilities with critical uptime requirements, maintaining a dedicated spare board inventory — with at least one pre-tested FA0132B YWP-C unit held in climate-controlled storage — is the most reliable strategy for achieving near-zero unplanned downtime exposure on legacy HIMV-series platforms.

Retrofit Support FAQ

Q1: Is the FA0132B YWP-C a direct drop-in replacement for the original HIMV-312 VGAC board?
The FA0132B YWP-C is designed for retrofit compatibility with the HIMV-312 VGAC platform. It matches the original board’s slot form factor and backplane interface. Before installation, verify DIP switch / jumper address settings, power rail voltages, and host software version to confirm full compatibility with your specific system configuration.

Q2: What pre-shipment testing is performed on each unit?
Every FA0132B YWP-C board shipped by Ninermas undergoes a full functional test prior to dispatch. Test documentation is available upon request. The board is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this board be used if the original wiring and terminal connections are still in place?
Yes. The FA0132B YWP-C is designed to accept the original HIMV-312 VGAC field wiring without modification. Photograph and label all connections before removal as a precaution, and verify wire assignments against the original schematic before powering on the replacement board.

Q4: What is the lead time and inventory availability?
Ninermas maintains stock of the HIMV-312 VGAC FA0132B YWP-C to support urgent replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory levels and lead time. For facilities managing long-term spare parts programs, we offer stock commitment arrangements to guarantee supply availability over extended maintenance cycles.
