Thermo Electron DC10 002-4276 Service-Ready Spare Controller

Thermo Electron DC10 002-4276 Service-Ready Spare Controller: Spare Replacement and Downtime Risk Control

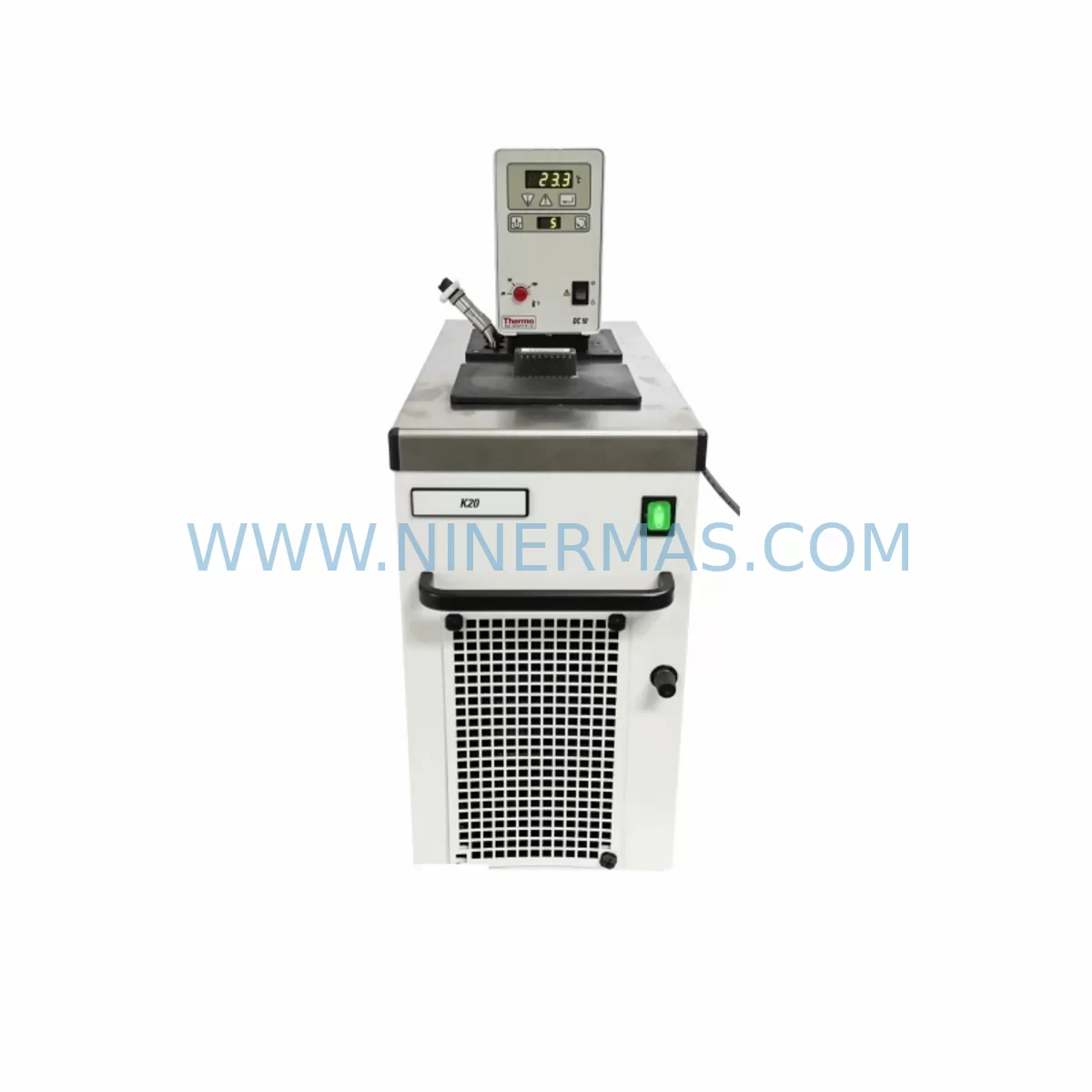

The Thermo Electron DC10 TEMP CTRL module — cross-referenced under part numbers 002-4276, 41A-15794, 0190-14271, and 21000040890 — is a precision temperature controller designed for the Thermo Electron K20 Circulating Water Bath and compatible laboratory and industrial thermal management systems. For maintenance engineers and procurement specialists managing aging thermal control infrastructure, securing a verified, service-ready spare of this controller is a critical step in preventing unplanned downtime and protecting process continuity.

This unit governs the closed-loop temperature regulation of the K20 bath system, interfacing directly with the heating element, circulation pump relay, and the front-panel setpoint interface. When this controller fails or drifts out of calibration tolerance, the entire thermal process is compromised — affecting downstream analytical instruments, chemical reaction vessels, viscosity baths, and any process that depends on stable temperature conditioning. Stocking a pre-tested replacement eliminates the risk of extended lead times during a critical failure event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault in the DC10 TEMP CTRL module (002-4276), the replacement process should not be limited to swapping the controller board alone. A thorough inspection of the surrounding electrical and control architecture is essential to prevent repeat failures and ensure the system returns to full operational specification.

Begin by verifying the integrity of the K20 bath power supply board, which provides regulated DC voltage rails to the controller logic. A degraded power supply is a common root cause of controller instability and premature failure. Simultaneously, inspect the Thermo Electron DC10 heating relay module — the relay contacts that switch the heating element are subject to wear and arcing, and a worn relay can cause erratic temperature cycling even after the controller is replaced.

The RTD temperature sensor assembly (typically a Pt100 probe integrated into the bath circulation path) should be resistance-tested before reinstalling the new controller. A drifting or open-circuit RTD will immediately cause the replacement controller to fault or overshoot. Alongside the sensor, inspect the sensor signal conditioning board that amplifies and linearizes the RTD signal before it reaches the controller input — this board is often overlooked during fault isolation.

For systems where the K20 bath is integrated into a larger process loop, check the RS-232 or RS-485 communication interface card that links the bath controller to a supervisory SCADA or data acquisition system. Communication faults can mask temperature control errors and delay fault detection. If the system uses a Thermo Electron front-panel HMI display module, verify that the display correctly reflects setpoint and actual temperature after the controller swap — a mismatched firmware or display driver can cause operator confusion during commissioning.

Additional components to inspect during a planned maintenance window include: the circulation pump motor capacitor (a common wear item that affects flow rate and heat transfer efficiency), the internal fuse assembly protecting the heating circuit, the terminal block wiring harness connecting the controller to the bath chassis, and any signal isolation modules used to decouple the bath control loop from external instrumentation ground loops. Procurement engineers should consider stocking the DC10 controller board (002-4276) alongside the relay module and RTD sensor as a matched spare set — this approach minimizes the number of separate procurement events during an emergency and reduces mean time to repair (MTTR) to under four hours.

Site Replacement Workflow

Replacing the Thermo Electron DC10 TEMP CTRL (002-4276 / 41A-15794) follows a structured procedure to minimize system downtime and ensure compatibility:

Step 1 — Isolation and Lockout: De-energize the K20 bath system at the main disconnect. Apply lockout/tagout (LOTO) per site safety procedures. Allow the bath fluid to cool to ambient temperature before opening the control enclosure.

Step 2 — Documentation: Photograph the existing wiring harness, connector positions, and PCB orientation before removal. Record the current setpoint values and any calibration offsets stored in the controller.

Step 3 — Component Removal: Disconnect the signal cables, relay output connectors, and power input leads from the existing DC10 controller board. Remove the board from its mounting standoffs or card guides, noting any grounding straps or shielding brackets.

Step 4 — Inspection: Before installing the replacement unit, inspect the connector pins, PCB edge connectors, and chassis ground points for corrosion, burn marks, or mechanical damage. Clean contact surfaces with isopropyl alcohol if required.

Step 5 — Installation and Commissioning: Install the replacement 002-4276 controller board, reconnect all cables per the documented positions, and restore power. Verify that the setpoint display reads correctly, the heating relay energizes at the correct temperature differential, and the circulation pump operates normally. Allow the bath to reach setpoint and confirm temperature stability within ±0.1°C before returning the system to service.

Step 6 — Documentation Update: Record the replacement in the equipment maintenance log, including the new unit’s serial number, installation date, and warranty expiry. Update the spare parts inventory to trigger a reorder for the consumed unit.

Spare Parts Support FAQ

Q1: Is this DC10 TEMP CTRL (002-4276) compatible with all K20 Circulating Water Bath variants?
This controller is the primary temperature control board for the Thermo Electron K20 series. Cross-reference part numbers 41A-15794, 0190-14271, and 21000040890 confirm compatibility across multiple K20 production batches. If your system uses a variant with a different power supply voltage or sensor type, contact our technical team with your system serial number for confirmation before ordering.

Q2: What pre-shipment testing is performed on this spare part?
Every unit undergoes functional verification prior to shipment, including power-on self-test, relay output actuation check, and signal input response verification. Units that do not meet operational parameters are not shipped. A 12-month warranty covers all shipped units against defects in materials and workmanship from the date of delivery.

Q3: How does NINERMAS support long-term spare parts supply for discontinued Thermo Electron products?
NINERMAS maintains reserved inventory of legacy Thermo Electron and Thermo Fisher Scientific spare parts, including DC10 series components. For customers with multiple K20 systems or planned multi-year maintenance programs, we offer reserved stock agreements that guarantee availability and lock in pricing against market scarcity. Contact our procurement team to discuss volume and lead time commitments.

Q4: What is the recommended spare parts strategy for a facility operating multiple K20 bath systems?
For facilities with two or more K20 units, we recommend maintaining at least one DC10 TEMP CTRL board (002-4276) per three systems as a minimum buffer. Pair this with a spare heating relay module and RTD sensor assembly to cover the most common failure modes. This three-component spare set enables same-shift restoration in the event of a controller, relay, or sensor fault, reducing unplanned downtime to under four hours in most scenarios.
