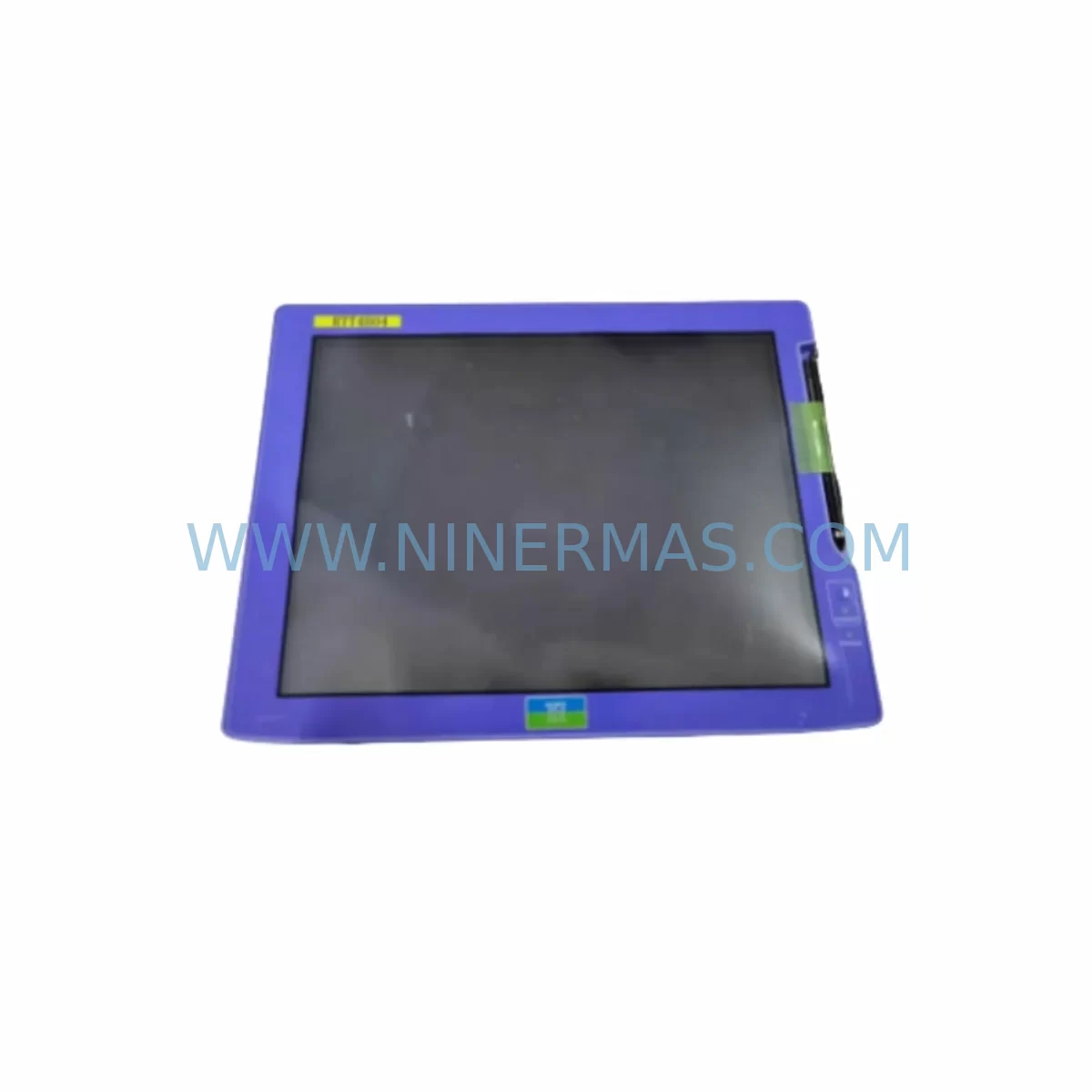

TEL TAC-3TTAATT UF7840-2-TE1 Service-Ready Spare Part

TEL TAC-3TTAATT UF7840-2-TE1 Service-Ready Spare Part: Minimizing Downtime Risk in Industrial Maintenance

The TEL TAC-3TTAATT UF7840-2-TE1 is an original spare part sourced directly from the TEL (Tokyo Electron Limited) UF7840 series platform — a control architecture widely deployed in semiconductor processing equipment, precision automation systems, and advanced industrial process lines. For maintenance engineers managing aging TEL systems, securing a verified replacement for the TAC-3TTAATT UF7840-2-TE1 is a critical step in any planned or emergency downtime recovery strategy.

At NINERMAS, every unit of the TAC-3TTAATT UF7840-2-TE1 is sourced, inspected, and dispatched with a 12-month warranty, ensuring procurement engineers can confidently add this component to their approved spare parts inventory without exposure to counterfeit or refurbished risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a fault is isolated to the TAC-3TTAATT UF7840-2-TE1, experienced maintenance engineers know that a single-component swap rarely tells the full story. A thorough site assessment should accompany any replacement of this module to prevent repeat failures and ensure the UF7840 platform returns to full operational status.

Begin by auditing the UF7840 backplane for signs of oxidation, connector wear, or thermal stress — backplane integrity is foundational to all modules seated within the UF7840-2 chassis. Next, verify the 24VDC or 5VDC power supply module feeding the control rack; a degraded power rail is a common root cause of intermittent module faults in TEL systems. If the system uses a dedicated TEL power distribution board within the same cabinet, inspect it for blown fuses or relay contact wear.

I/O integrity should be confirmed across all digital input and digital output modules sharing the same I/O bus as the TAC-3TTAATT. Wiring terminations at the terminal block assemblies — particularly screw-type or spring-clamp terminals on the field-side — should be re-torqued and inspected for insulation breakdown. Any signal isolation modules or signal conditioners in the same loop should be tested for drift, as a failing isolator can induce false fault signals upstream.

For systems with active communications, check the serial communication module or fieldbus gateway (RS-232, RS-485, or PROFIBUS depending on the UF7840 configuration) for error counters and CRC faults. If the UF7840 platform interfaces with an HMI panel, verify that the HMI communication link is re-established cleanly after the module swap — some TEL configurations require a soft reset of the HMI node following a control module replacement.

Relay output modules within the same control cabinet should be inspected for contact erosion, particularly if the TAC-3TTAATT UF7840-2-TE1 drives any interlock or safety relay circuit. Finally, review the fuse protection array on the incoming power distribution panel — a blown fuse upstream of the module is a leading indicator of a transient overcurrent event that may have contributed to the original failure.

Procurement engineers building a comprehensive spare parts kit for UF7840-based systems should consider stocking the TAC-3TTAATT UF7840-2-TE1 alongside compatible UF7840 series I/O expansion modules, TEL-compatible power supply units, backplane connector assemblies, and communication interface cards to ensure full system recoverability without extended lead-time exposure.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the TEL UF7840 diagnostic interface or HMI alarm log to confirm the fault is localized to the TAC-3TTAATT UF7840-2-TE1 slot. Document the fault code and timestamp before proceeding.

Step 2 — Lockout / Tagout: Isolate power to the UF7840 control cabinet per site LOTO procedure. Confirm zero-energy state at the backplane power rail before touching any module.

Step 3 — Module Extraction: Release the module retention latch, disconnect any field wiring harness or ribbon cable attached to the UF7840-2-TE1 sub-assembly, and extract the TAC-3TTAATT module from its backplane slot. Label all connectors before disconnection.

Step 4 — Compatibility Verification: Confirm the replacement TAC-3TTAATT UF7840-2-TE1 part number, firmware revision (if applicable), and hardware revision match the extracted unit. Cross-reference against the TEL UF7840 BOM or maintenance manual.

Step 5 — Installation: Seat the replacement module firmly into the backplane slot, reconnect all field wiring per the original labeling, and restore power in sequence per the UF7840 startup procedure.

Step 6 — Functional Verification: Confirm the module initializes without fault codes, verify I/O signal integrity at the HMI or diagnostic terminal, and run a short operational cycle before returning the system to production.

Step 7 — Documentation: Record the replacement in the site maintenance log, update the spare parts inventory, and initiate a reorder for the consumed TAC-3TTAATT UF7840-2-TE1 to maintain minimum stock levels.

This workflow is designed to minimize mean time to repair (MTTR) and ensure the UF7840 platform is returned to service with full compatibility and system integrity preserved — without the risk of introducing incompatible or unverified components into a critical production environment.

Spare Parts Support FAQ

Q1: Is the TAC-3TTAATT UF7840-2-TE1 an original TEL part or a third-party replacement?
All units supplied by NINERMAS are original TEL spare parts sourced through verified industrial supply channels. Each unit undergoes incoming inspection and is dispatched with a 12-month warranty from the date of shipment. We do not supply counterfeit, cloned, or unauthorized reproductions.

Q2: How do I verify compatibility with my existing UF7840 system before ordering?
Provide your system’s UF7840 model designation, the existing module’s part number label, and any hardware or firmware revision markings to our technical team at sale@ninermas.com. We will cross-reference against our inventory and confirm compatibility before shipment. For legacy or end-of-life TEL configurations, we recommend sharing the relevant page from your UF7840 maintenance manual or BOM.

Q3: What is the lead time and how is the unit tested before shipping?
Lead time depends on current stock availability — contact us for real-time confirmation. Prior to dispatch, each TAC-3TTAATT UF7840-2-TE1 unit is visually inspected, functionally verified where test fixtures are available, and packed in ESD-safe anti-static packaging with appropriate cushioning for international express freight. A test report or inspection certificate can be provided upon request.

Q4: Can NINERMAS support long-term supply for the TAC-3TTAATT UF7840-2-TE1 as part of an annual maintenance contract?
Yes. NINERMAS specializes in long-term spare parts supply for end-of-life and legacy industrial systems. We can establish a standing supply agreement for the TAC-3TTAATT UF7840-2-TE1 and related UF7840 series components, including scheduled delivery, reserved stock allocation, and priority fulfillment for emergency orders. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your annual maintenance requirements.
