TEL 1B81-010190-12 Service-Ready Spare Part for Maintenance

TEL 1B81-010190-12 Service-Ready Spare Part for Maintenance

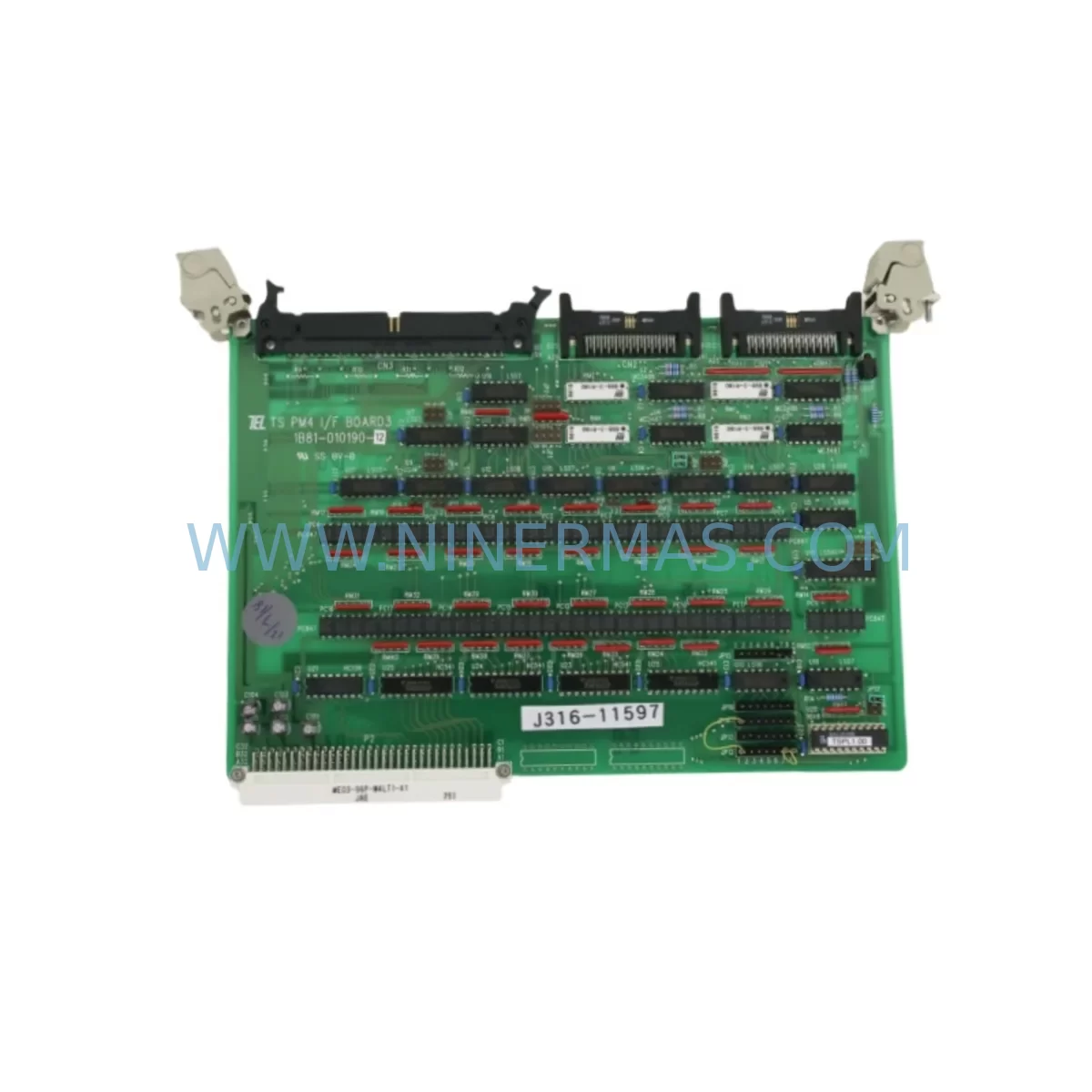

The TEL 1B81-010190-12 is an original interface board (I/F Board) designed for the Tokyo Electron (TEL) TS-PM4 process module platform — a critical component in semiconductor fabrication and advanced industrial automation systems. When this board fails or degrades, the entire process module can be rendered inoperable, resulting in unplanned downtime that directly impacts production throughput and yield. Sourcing a verified, service-ready replacement is the fastest path to restoring full system operation.

At NINERMAS, every TEL 1B81-010190-12 unit is pre-shipment tested, functionally verified, and backed by a 12-month warranty. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts inventory for long-term system continuity, this board is stocked and ready for immediate dispatch.

This listing also covers the compatible predecessor part number 1B81-010123-15, which shares the same functional role within the TS-PM4 I/F board assembly. Both part numbers are interchangeable in the appropriate TS-PM4 revision configurations, subject to firmware and backplane compatibility verification prior to installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The TEL 1B81-010190-12 I/F board sits at the intersection of signal routing, I/O management, and inter-module communication within the TS-PM4 cabinet. A disciplined maintenance strategy requires engineers to evaluate not just the board itself, but the entire electrical ecosystem it operates within.

During routine cabinet inspections and fault isolation procedures, maintenance engineers should simultaneously assess the TS-PM4 backplane assembly for trace corrosion, connector wear, and seating integrity — a degraded backplane can cause intermittent faults that mimic I/F board failure. The 24 VDC logic power supply module feeding the board should be load-tested; voltage ripple or dropout events are a leading cause of premature interface board failure in high-cycle environments.

Signal integrity across the I/O terminal blocks connected to the TS-PM4 I/F board should be verified using a calibrated multimeter or oscilloscope. Loose or oxidized terminal connections introduce noise that can corrupt communication signals and trigger false fault codes. Replacing aged terminal block assemblies during the same maintenance window as the I/F board replacement eliminates a common source of recurring faults.

The communication cables linking the TS-PM4 I/F board to the host controller — typically shielded twisted-pair or proprietary TEL ribbon cables — should be inspected for insulation cracking, connector pin damage, and shield continuity. Degraded cables are frequently overlooked during board-level replacements and can cause the new board to exhibit the same fault symptoms as the failed unit.

Relay modules and solid-state relays within the same control cabinet should be checked for contact wear and coil resistance. In process equipment environments, relay degradation often coincides with I/F board stress due to inductive switching transients. Installing surge suppression diodes or RC snubbers across relay coils during the maintenance window protects the replacement board from similar damage.

Signal isolators used to decouple analog sensor inputs from the TS-PM4 I/F board should be tested for isolation resistance and linearity. A failing isolator can inject common-mode noise into the board’s analog input channels, causing erratic process readings. Stocking a set of DIN-rail-mounted signal isolators alongside the I/F board spare ensures a complete restoration kit is available on-site.

The HMI panel connected to the TS-PM4 system should be checked for communication timeout errors and display anomalies that may indicate upstream I/F board degradation. In some configurations, the HMI’s serial communication port or Ethernet interface card may also require inspection if communication faults are reported alongside the I/F board failure.

Fuse blocks and circuit protection devices within the TS-PM4 power distribution section should be inspected and replaced if any signs of thermal stress or discoloration are present. A blown or weakened fuse upstream of the I/F board can cause intermittent power interruptions that damage the board’s logic circuits over time.

For sites running extended production schedules, procurement engineers should consider maintaining a minimum of two TEL 1B81-010190-12 units in local spare parts inventory. Combined with a stocked TS-PM4 power supply module and a set of communication cables, this inventory posture supports same-shift restoration in the event of an unplanned failure — eliminating the lead time risk associated with emergency procurement.

Site Replacement Workflow

Step 1 — Fault Confirmation: Verify the fault is isolated to the TEL 1B81-010190-12 I/F board using the TS-PM4 diagnostic software or fault log. Cross-reference the fault code against the TEL maintenance manual to confirm the board is the root cause before proceeding.

Step 2 — System Safe State: Place the TS-PM4 process module in a safe maintenance state per TEL lockout/tagout procedures. De-energize the cabinet and allow capacitors to discharge for a minimum of 5 minutes before opening the enclosure.

Step 3 — ESD Precautions: Don an ESD wrist strap and use an anti-static mat. The 1B81-010190-12 is an ESD-sensitive assembly. Handle only by the board edges and avoid contact with connector pins or surface-mount components.

Step 4 — Board Removal: Disconnect all ribbon cables and I/O connectors from the existing board, labeling each connection for accurate reinstallation. Release the board retention clips and carefully extract the board from the backplane slot.

Step 5 — Replacement Installation: Seat the new TEL 1B81-010190-12 firmly into the backplane slot until the retention clips engage. Reconnect all cables and connectors in the reverse order of removal. Verify all connectors are fully seated and locked.

Step 6 — Power-Up and Verification: Re-energize the cabinet and allow the TS-PM4 system to complete its boot sequence. Monitor the diagnostic display for fault codes. Run a functional test cycle to confirm the replacement board is operating correctly before returning the system to production.

Step 7 — Documentation: Record the replacement in the site maintenance log, including the old board serial number, new board part number, date of replacement, and technician name. Retain the failed board for failure analysis if required.

Spare Parts Support FAQ

Q1: Is the TEL 1B81-010190-12 a direct replacement for the 1B81-010123-15?
In most TS-PM4 configurations, yes — both part numbers serve the same I/F board function and share compatible connector layouts. However, compatibility should be confirmed against your specific TS-PM4 revision and firmware version before installation. Contact NINERMAS with your system serial number for a pre-sale compatibility check.

Q2: What testing is performed before shipment?
Every TEL 1B81-010190-12 unit supplied by NINERMAS undergoes functional power-on testing, I/O signal verification, and communication interface checks prior to dispatch. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement.

Q3: What is the warranty coverage and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, ESD mishandling, overvoltage events, or physical impact. Warranty claims are processed with a replacement unit dispatched upon fault confirmation.

Q4: Can NINERMAS support long-term supply for this part number?
Yes. NINERMAS maintains reserved inventory agreements for end-of-life and hard-to-source TEL components including the 1B81-010190-12 and related TS-PM4 assemblies. For sites requiring guaranteed multi-year supply, contact our procurement team to discuss a long-term supply agreement with fixed pricing and priority allocation.
