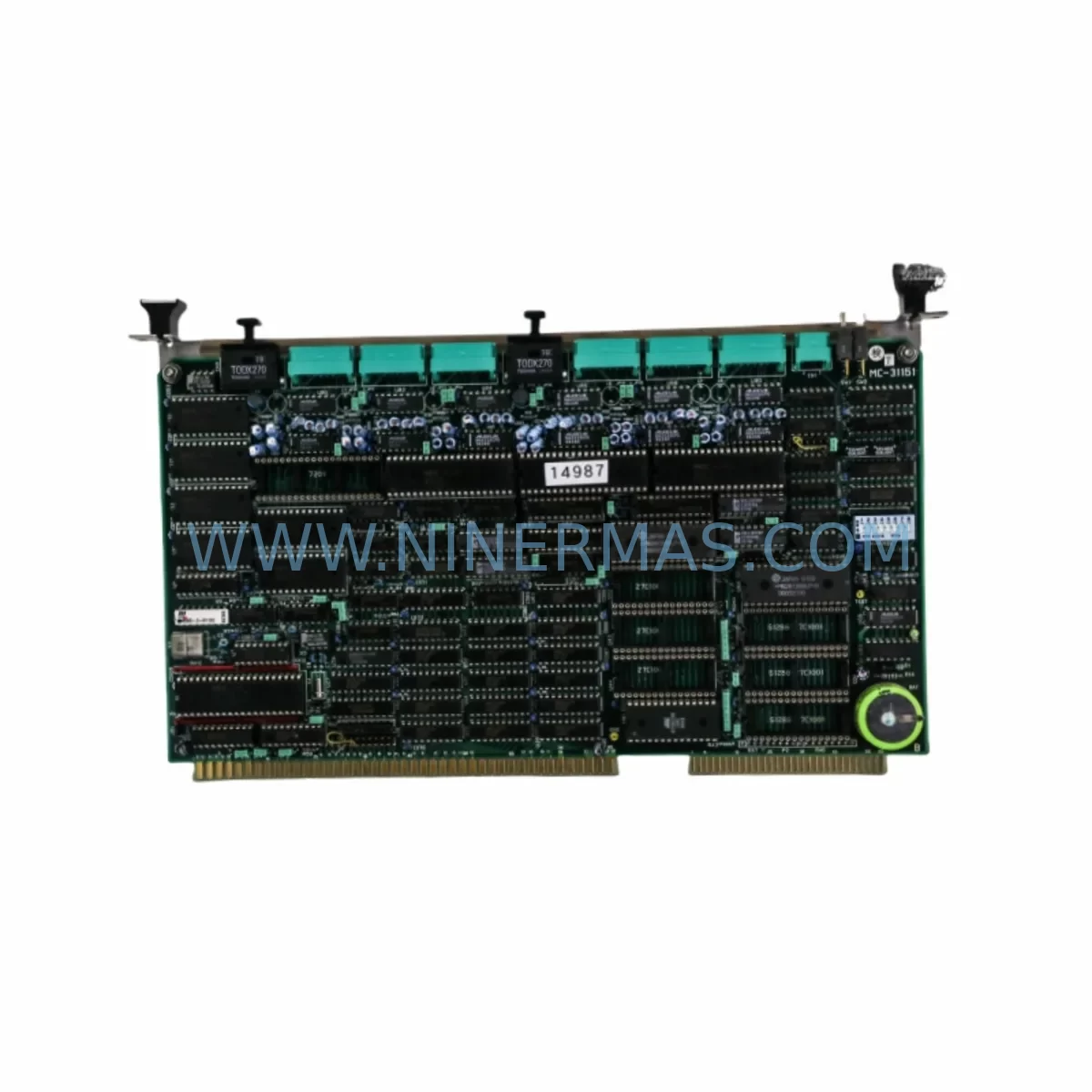

The Tokyo Electron (TEL) BB81-000009-18 is a ruggedized PCB Transfer Distribution Module designed for use in TEL semiconductor fabrication and process equipment platforms. As a critical board-level component within the BB81 series control architecture, this module manages signal distribution, power routing, and inter-board communication across the equipment’s internal backplane. When this module fails or degrades, the result is immediate process interruption — often manifesting as communication faults, I/O dropout, or uncontrolled axis movement in wafer transfer systems.

At NINERMAS, every BB81-000009-18 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained for long-term supply continuity, supporting both emergency replacement and planned annual maintenance cycles for semiconductor fabs, equipment OEMs, and system integrators worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BB81-000009-18 in isolation is rarely sufficient for a complete corrective maintenance action. Maintenance engineers and procurement teams should treat this module as part of a broader board-level inspection across the same control cabinet. During any scheduled or emergency replacement of this distribution module, the following associated components should be inspected or held as concurrent spares:

The BB81-000009-11 and BB81-000009-12 are companion distribution boards within the same BB81 series backplane assembly. Degradation in one board often correlates with thermal or power stress on adjacent modules — both should be visually inspected for burn marks, cracked solder joints, or capacitor bulge during any BB81-000009-18 swap.

The BB81-000009-22 serves as an extended I/O interface board in certain TEL platform configurations. If the equipment exhibits intermittent I/O faults alongside the distribution module failure, this board should be included in the fault isolation checklist before confirming root cause.

Power integrity is a common upstream cause of PCB distribution module failure. The PS-1050-0101 and PS-1050-0201 power supply modules feeding the BB81 backplane should be load-tested and output voltage verified at the point of distribution. A marginal power supply can cause repeated board failures if not addressed concurrently.

Communication continuity between the BB81 distribution module and the host controller depends on the integrity of the 2L81-050072-V1 communication interface board and associated ribbon or shielded cable assemblies. Signal degradation on these links can mimic distribution module faults and should be ruled out during diagnostics.

For equipment using relay-based interlock circuits, the AB81-000258-11 relay output board should be checked for contact wear or coil resistance drift, particularly if the distribution module failure was preceded by unexpected E-stop or interlock events.

The 3D81-000137-V1 signal isolation board, where installed, protects the distribution module from ground loop interference and transient voltage spikes originating from the process chamber or external I/O wiring. A failed isolator can expose the BB81-000009-18 to damaging transients — inspect and replace if isolation resistance is out of specification.

Finally, terminal blocks, fuse holders, and backplane connectors within the same cabinet section should be torque-checked and visually inspected. Loose connections and blown fuses are frequently overlooked contributors to distribution module stress and premature failure. Maintaining a small buffer stock of the 2L81-050060-11 connector interface board and associated fuse cartridges is recommended for sites with high equipment uptime requirements.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the BB81-000009-18 as the root cause using the equipment’s diagnostic interface. Log all active alarms and communication fault codes before powering down. Photograph the existing board orientation and connector positions.

Step 2 — Safe Shutdown: Follow TEL lockout/tagout (LOTO) procedures for the affected equipment module. Discharge any residual capacitor banks in the power supply section before handling PCB assemblies.

Step 3 — Board Removal: Disconnect all ribbon cables, signal connectors, and backplane edge connectors in sequence. Label each connector if not already marked. Remove the board using ESD-safe handling procedures.

Step 4 — Compatibility Verification: Confirm the replacement BB81-000009-18 matches the revision level and cross-reference SKUs (0200-14704 / 0020-44976) against the equipment’s bill of materials. Verify firmware compatibility if the module contains embedded logic.

Step 5 — Installation and Power-Up: Seat the replacement board firmly into the backplane. Reconnect all cables in reverse removal order. Restore power incrementally and monitor supply voltages at the distribution module test points before enabling full system operation.

Step 6 — Functional Verification: Run the equipment’s self-diagnostic routine. Confirm all I/O channels, communication links, and interlock circuits are responding correctly. Document the replacement in the equipment maintenance log with the new board’s serial number and shipment date for warranty tracking.

This structured workflow minimizes re-work risk, preserves system compatibility, and ensures the 12-month warranty period is correctly anchored to the verified installation date.

Spare Parts Support FAQ

Q1: Is the BB81-000009-18 still available as a new original part, or is it end-of-life?
Tokyo Electron has transitioned many BB81 series components to end-of-life or limited-availability status as the associated equipment platforms age. NINERMAS maintains dedicated inventory of service-ready BB81-000009-18 units sourced through verified channels. Each unit undergoes pre-shipment functional testing to confirm operational integrity before dispatch. Contact our team for current stock levels and lead time confirmation.

Q2: How do I verify compatibility before ordering?
Provide your equipment model number, software version, and the existing board’s revision marking (typically printed on the PCB silkscreen or a label on the board edge). Cross-reference against the SKUs 0200-14704 and 0020-44976. Our technical team can assist with compatibility confirmation before order placement to eliminate procurement risk.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sale@ninermas.com with the order reference, installation date, fault description, and photographic evidence of the failure. Replacement or repair will be coordinated within the agreed service timeline.
