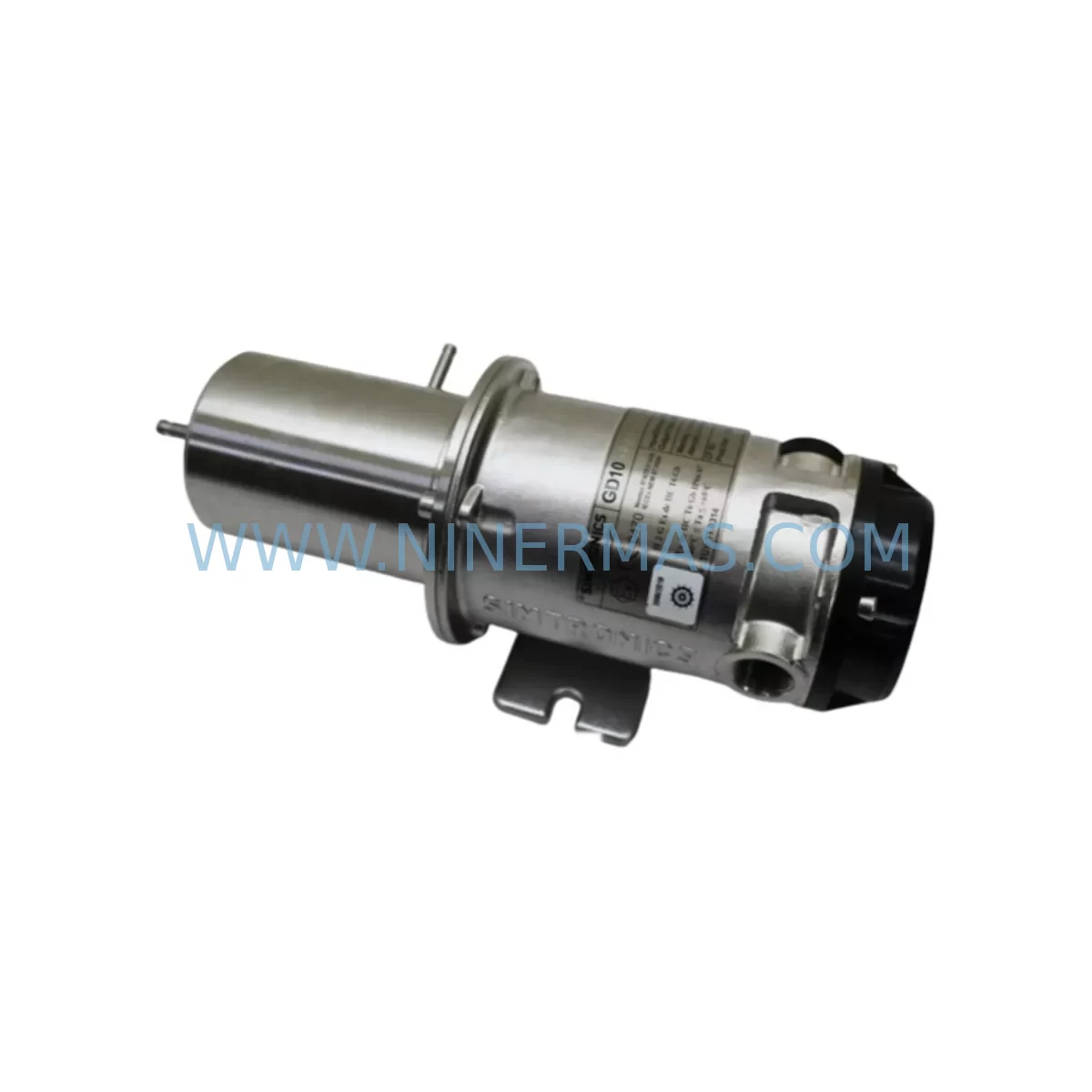

The SIMTRONICS GD10-P00-17DG-0XH-00 is a ruggedized, field-proven gas detection module engineered for continuous operation in harsh industrial environments. As legacy safety and process control systems reach end-of-life, this module has become a critical component in retrofit projects across oil & gas, petrochemical, offshore platforms, and heavy manufacturing facilities. Whether you are replacing a discontinued detector head, upgrading a legacy fire and gas control panel, or expanding an existing safety instrumented system (SIS), the GD10-P00-17DG-0XH-00 provides a reliable, compatible path forward without requiring a full system overhaul.

NINERMAS maintains verified inventory of the GD10-P00-17DG-0XH-00 with full factory testing, 12-month warranty coverage, and rapid global dispatch — minimizing procurement lead times for time-sensitive retrofit and maintenance projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the GD10-P00-17DG-0XH-00 into an existing safety or process control architecture requires careful pre-engineering to ensure seamless compatibility and minimal disruption to live operations. The following considerations are essential for a successful retrofit:

Power Supply and Loop Integrity: Before installation, verify that the existing field power supply — typically a dedicated 24 VDC safety loop PSU or a channel output from a legacy F&G controller — can sustain the additional loop current demand of the GD10 module. In older control cabinets where multiple detector loops share a common power rail, it is common to find marginal headroom. A power audit of the existing PSU, including all connected field devices, should be completed before adding or replacing any detector. If the existing supply is undersized, a supplementary DIN-rail mounted power supply module may be required.

Terminal Wiring and Field Cable Adaptation: The GD10-P00-17DG-0XH-00 uses a standard 3-wire 4–20 mA loop configuration. When replacing an older detector that used a different wiring scheme — such as a 2-wire passive loop or a voltage-output sensor — field cable modifications and terminal block rewiring will be necessary. Confirm the existing cable cross-section, insulation rating, and shield grounding arrangement before proceeding. In installations where the original detector was connected via a dedicated intrinsic safety barrier or a galvanic isolator, verify that the barrier’s entity parameters remain compatible with the GD10 module’s input characteristics.

Backplane and Rack Interface Considerations: In systems where the gas detection signal is processed through a dedicated F&G safety controller — such as a legacy rack-mounted safety PLC or a standalone F&G panel — confirm that the analog input card assigned to the detector channel supports the 4–20 mA signal range and the fault current levels generated by the GD10 module. Some older analog input modules may require reconfiguration of jumper settings or DIP switches to correctly interpret the GD10’s fault and over-range signals. If the existing analog input card is itself discontinued or at end-of-life, this retrofit may also present an opportunity to upgrade to a modern AI module with HART pass-through capability, enabling remote diagnostics without additional field wiring.

Module Addressing and Controller Configuration: After physical installation, the host controller — whether a legacy DCS, a safety PLC, or a standalone F&G panel — must be updated to reflect any changes in channel scaling, engineering units, or alarm threshold values. In systems using function block programming or ladder logic, verify that the existing program references the correct I/O address for the replaced detector channel. If the retrofit involves migrating from a proprietary detector protocol to a standard 4–20 mA loop, the controller program may require modification to remove any protocol-specific function blocks previously used for communication with the old detector.

HMI Screen and Alarm Annunciation Updates: Any operator interface — whether a dedicated F&G annunciator panel, a SCADA workstation, or a modern HMI terminal — that displays the status of the replaced detector should be reviewed and updated. Tag names, alarm descriptions, engineering unit labels, and color-coded status indicators should all be verified against the new detector’s output characteristics. In facilities where the HMI is integrated with a historian or alarm management system, ensure that the alarm rationalization documentation is updated to reflect the new detector’s alarm setpoints and response times.

Communication Link Verification: In installations where the GD10 module is connected to a HART-capable host — such as a modern DCS I/O card, an asset management system, or a handheld HART communicator — verify that the HART polling address is correctly configured and that the host system’s device description (DD) library includes the appropriate entry for the GD10-P00-17DG-0XH-00. This is particularly important in facilities that use AMS Device Manager, FieldCare, or similar asset management platforms for predictive maintenance and remote diagnostics.

Physical Installation Space and Mounting: Confirm that the existing field mounting arrangement — including the junction box, conduit entries, and cable gland sizes — is compatible with the GD10 module’s enclosure dimensions and ingress protection rating. In offshore or classified hazardous area installations, verify that the replacement module carries the appropriate ATEX, IECEx, or equivalent certification for the installation zone. If the original detector was mounted on a dedicated GD10-series mounting bracket, the GD10-P00-17DG-0XH-00 should be a direct mechanical fit. However, if the original detector used a non-standard mounting arrangement, a custom adapter bracket may be required.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live system retrofit. For the GD10-P00-17DG-0XH-00 replacement, the following approach is recommended to protect operational continuity:

Pre-Commissioning and Bench Testing: Before taking the existing detector offline, bench-test the replacement GD10-P00-17DG-0XH-00 using a calibrated gas source to verify zero and span response, fault current output, and HART communication (if applicable). This confirms that the replacement unit is fully functional before it enters the field, eliminating the risk of discovering a defective unit during a live maintenance window.

Bypass and Inhibit Management: Coordinate with the control room to place the affected detector channel in bypass or inhibit mode before beginning physical replacement work. In SIS applications, this must be done in accordance with the facility’s Management of Change (MOC) and Safety Integrity Level (SIL) maintenance procedures. Document the bypass start time and ensure that compensatory measures — such as increased gas monitoring patrols or portable detector deployment — are in place for the duration of the maintenance window.

Program Logic Preservation: Before making any changes to the host controller configuration, export and archive a backup of the existing program. In legacy PLCs or F&G controllers where online editing is not supported, plan for a controlled shutdown and restart sequence. Verify that the backup program can be restored within the maintenance window if an unexpected issue arises during commissioning of the new detector.

On-Site Calibration and Functional Test: After physical installation and wiring, perform a full functional test of the GD10-P00-17DG-0XH-00 in accordance with the manufacturer’s commissioning procedure. Apply a known concentration of calibration gas to verify alarm activation at the correct setpoints, and confirm that the host controller, HMI, and annunciator panel all respond correctly. Document the as-found and as-left calibration data for the facility’s maintenance records.

Return to Service and Bypass Release: Once the functional test is complete and all alarm responses have been verified, release the bypass or inhibit in the host controller and confirm that the detector channel is returned to normal monitoring status. Update the facility’s maintenance log, calibration records, and asset management system to reflect the completed replacement.

Retrofit Support FAQ

Q1: Is the GD10-P00-17DG-0XH-00 a direct drop-in replacement for other discontinued GD10-series variants?
In most cases, yes — the GD10-P00-17DG-0XH-00 shares the same mechanical form factor, mounting arrangement, and 4–20 mA loop interface as other GD10-series modules. However, the specific sensor head type, calibration gas, and detection range must be verified against the original specification before ordering. Contact NINERMAS with your original part number and application details for a confirmed compatibility assessment.

Q2: What wiring changes are required when replacing a legacy detector with the GD10-P00-17DG-0XH-00?
The GD10-P00-17DG-0XH-00 uses a standard 3-wire 4–20 mA loop connection. If the original detector used a 2-wire passive loop or a voltage-output configuration, field wiring modifications will be required. Confirm terminal block compatibility, cable gauge, and shield grounding arrangement before installation. NINERMAS can provide wiring diagrams and technical support to assist with the transition.

Q3: Does NINERMAS provide pre-shipment testing and a warranty for the GD10-P00-17DG-0XH-00?
Yes. All units supplied by NINERMAS are subject to pre-shipment functional testing to verify output signal integrity and basic detector response. Each unit is covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS will provide a replacement unit or repair service as appropriate.

Q4: What is the typical lead time for the GD10-P00-17DG-0XH-00, and can NINERMAS support urgent retrofit requirements?
NINERMAS maintains stock inventory of the GD10-P00-17DG-0XH-00 to support urgent retrofit and emergency replacement requirements. Standard orders are dispatched within 1–3 business days. For time-critical projects, expedited shipping options are available. Contact our sales team directly to confirm current stock levels and arrange priority dispatch.
