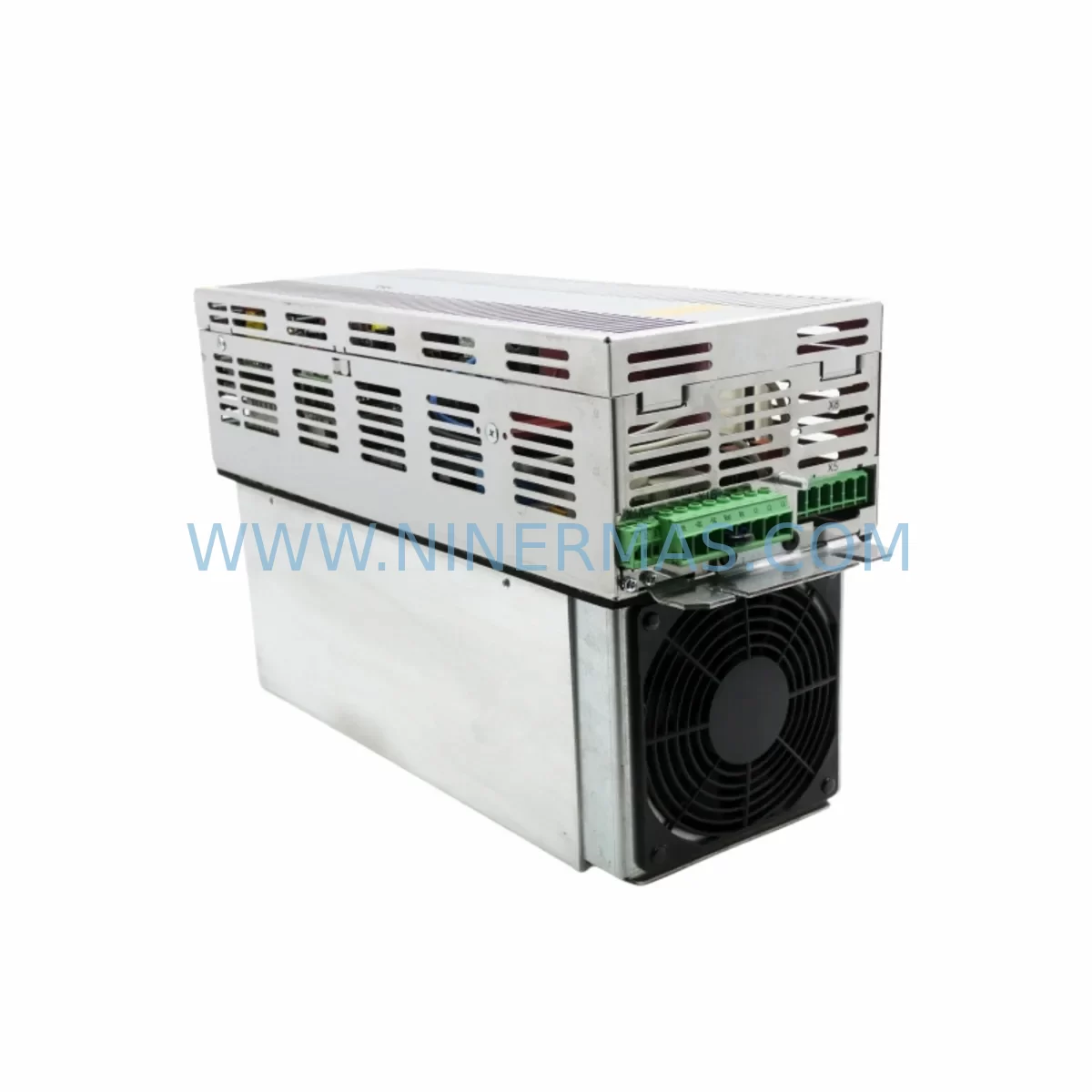

SIGMATEK SDD120 09-501-201-2 Service-Ready Spare Part for Industrial Maintenance

SIGMATEK SDD120 09-501-201-2 Service-Ready Spare Part for Industrial Maintenance

The SIGMATEK SDD120 09-501-201-2 is an original spare part designed for continuous-duty industrial automation environments where unplanned downtime carries significant operational and financial risk. As a core component within the SIGMATEK SDD Series drive and controller platform, this module supports motion control, axis coordination, and real-time process regulation in demanding manufacturing, packaging, and process automation applications. NINERMAS maintains verified stock of the SDD120 09-501-201-2 to support maintenance engineers and procurement teams requiring fast, reliable access to end-of-life and hard-to-source SIGMATEK components.

Whether you are executing a planned annual overhaul, responding to an unscheduled fault, or building a strategic spare parts buffer for a legacy SIGMATEK-controlled line, the SDD120 09-501-201-2 is supplied as an original unit — not a substitute or remanufactured alternative. Each unit undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement engineers the confidence to approve purchase orders without extended qualification cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SDD120 09-501-201-2 in isolation rarely resolves the root cause of a drive fault or axis anomaly. Experienced maintenance engineers treat a module replacement as an opportunity to audit the entire electrical environment of the control cabinet. During the same maintenance window, the following components should be inspected or replaced as part of a comprehensive spare parts strategy:

Begin with the SIGMATEK SDD Series power supply module that feeds the SDD120 — voltage ripple, output tolerance, and capacitor aging directly affect drive stability. Inspect the 24 VDC control voltage rail and associated fusing; a marginal power supply is a common hidden cause of intermittent drive faults. Check the SIGMATEK DIAS backplane or rack connector for oxidation, bent pins, or mechanical stress, particularly in high-vibration environments.

Review the encoder feedback cable and connector integrity between the SDD120 and the servo motor — shielding continuity and connector seating are critical for accurate position feedback. Inspect I/O terminal blocks and wiring harnesses connected to the drive’s digital and analog I/O channels; loose terminations cause intermittent faults that are difficult to diagnose remotely. If the system uses SIGMATEK PROFIBUS or CANopen communication modules, verify bus termination resistors and cable shielding, as communication errors can trigger false drive faults.

For cabinets operating in thermally demanding environments, inspect cabinet cooling fans and filter mats — thermal stress is the leading cause of premature drive module failure. Check surge protection devices (SPDs) and EMC filter modules on the incoming power feed; inadequate transient suppression accelerates insulation degradation in drive electronics. If the installation includes a SIGMATEK HMI panel (such as the CP or HGW series), verify firmware compatibility with the replacement SDD120 to avoid parameter mismatch after module swap.

Finally, review the motor contactor and soft-starter circuit upstream of the drive, and confirm that safety relay modules and emergency stop circuits are functioning within specification. A structured cabinet inspection during a planned SDD120 replacement significantly reduces the probability of a secondary fault within the next 12-month maintenance cycle.

Site Replacement Workflow

The SDD120 09-501-201-2 is designed as a direct replacement for the original SIGMATEK SDD120 module. Follow this workflow to minimize downtime and ensure system compatibility:

1. Pre-Replacement Preparation: Download and archive the current drive parameter set using the SIGMATEK LASAL programming environment or the applicable HMI backup function. Photograph all wiring connections and label each conductor before disconnection. Confirm the replacement unit’s firmware version matches or is compatible with the existing system configuration.

2. Safe Isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Verify zero voltage on all power rails — including the 24 VDC control supply — before touching any module. Allow adequate discharge time for DC bus capacitors.

3. Module Removal and Installation: Remove the faulty SDD120 09-501-201-2 by releasing the backplane locking mechanism and disconnecting all I/O, feedback, and communication connectors in sequence. Install the replacement unit, ensuring full backplane engagement and secure connector seating. Reconnect all cables in reverse order, verifying shield grounding at each termination point.

4. Parameter Restore and Commissioning: Restore the archived parameter set to the new module. Perform a no-load test run to verify encoder feedback, axis homing, and communication bus integrity before resuming production. Document the replacement in the site maintenance log with the new unit’s serial number and warranty start date.

5. Post-Replacement Monitoring: Monitor drive temperature, current draw, and fault logs for the first 48 hours of operation. Retain the replaced module for root cause analysis if required by your maintenance quality system.

Spare Parts Support FAQ

Q1: Is the SDD120 09-501-201-2 an original SIGMATEK spare part or a compatible substitute?
All units supplied by NINERMAS are original SIGMATEK spare parts sourced through our established industrial component network. We do not supply remanufactured, cloned, or third-party substitute modules for safety-critical drive applications. Each unit is individually verified before shipment.

Q2: What warranty coverage applies to this spare part?
The SDD120 09-501-201-2 is covered by a 12-month warranty from the date of shipment. Warranty claims are supported by NINERMAS directly. In the event of a confirmed defect, we provide a replacement unit or full refund based on your preference and the outcome of our technical review.

Q3: How do I confirm compatibility before placing a purchase order?
Provide your existing module’s full part number, firmware version (if visible on the label), and the SIGMATEK system model or cabinet designation to our technical team at sale@ninermas.com. We will confirm compatibility and advise on any firmware or parameter considerations before shipment.

Q4: Can NINERMAS support long-term or repeat supply of the SDD120 09-501-201-2?
Yes. NINERMAS maintains a long-term supply commitment for SIGMATEK SDD Series components, including the SDD120 09-501-201-2. We support blanket purchase orders, scheduled delivery programs, and strategic inventory stocking arrangements for maintenance teams managing multiple SIGMATEK-controlled lines. Contact us to discuss a supply agreement tailored to your annual maintenance budget.
