SIGMATEK ETT1233 01-230-1233 Service-Ready Spare Part: Ruggedized HMI Screen for Industrial Maintenance & Downtime Recovery

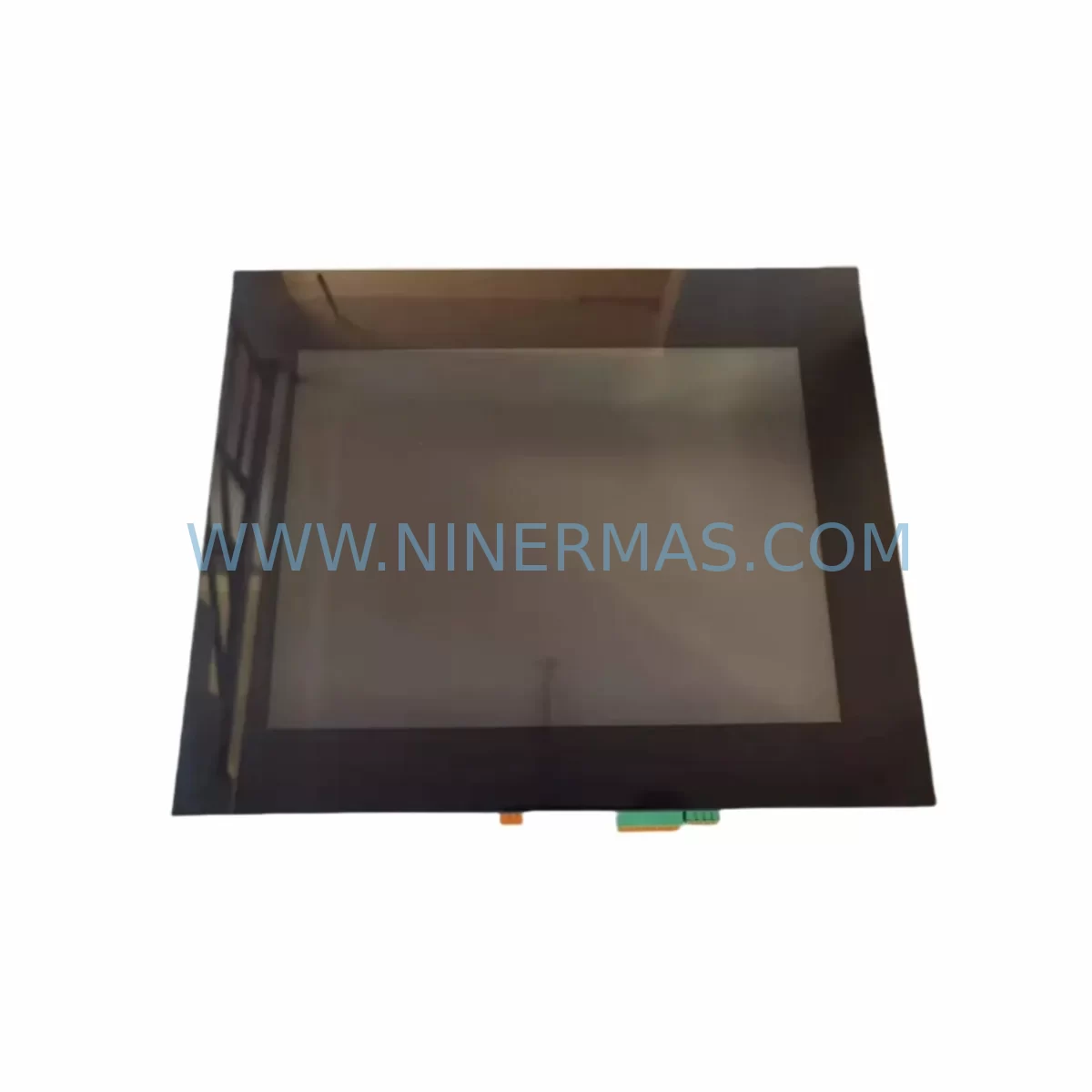

The SIGMATEK ETT1233 01-230-1233 is a ruggedized touch screen HMI module engineered for demanding industrial environments where panel visibility, operator interface reliability, and continuous uptime are non-negotiable. As a direct original spare part sourced through verified supply channels, this unit is fully tested, inspection-passed, and ready for immediate field deployment. Whether you are managing a scheduled annual overhaul, responding to an unplanned HMI failure, or building a proactive spare parts inventory for a SIGMATEK-based control system, the ETT1233 01-230-1233 delivers the compatibility and durability your maintenance team requires.

SIGMATEK’s ETT series HMI panels are widely deployed across machine tool control cabinets, packaging lines, press automation systems, and process control stations throughout Europe and Asia. The ETT1233 variant — identified by part number 01-230-1233 — is a 12-inch class ruggedized display module designed to withstand vibration, dust ingress, and wide ambient temperature ranges typical of factory floor installations. Sourcing a verified original replacement unit is critical: counterfeit or incompatible substitutes risk communication faults, display calibration errors, and cascading PLC alarms that extend downtime far beyond the initial failure event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIGMATEK ETT1233 01-230-1233 HMI panel reaches end-of-life or sustains physical damage, the replacement workflow extends beyond the screen module itself. Experienced maintenance engineers treat an HMI failure as a trigger for a broader control cabinet inspection. The ETT1233 interfaces directly with the SIGMATEK VARAN bus backbone — a real-time Ethernet-based fieldbus that connects the HMI to the CPU module, I/O nodes, and drive controllers. Before commissioning a replacement panel, verify the integrity of the VARAN bus cable assemblies and the SIGMATEK CPU module (such as units from the S-DIAS or DIAS-Drive series) to rule out upstream communication faults that may have contributed to the original failure.

The 24 VDC power supply feeding the ETT1233 should be load-tested and inspected for output ripple. A degraded SIGMATEK or third-party 24V DIN-rail power supply module can cause intermittent HMI resets and touch response errors that mimic a faulty screen. Simultaneously, inspect the panel wiring harness and D-sub or RJ45 connectors for corrosion, pin back-out, or insulation damage — particularly in high-vibration environments.

For systems with distributed I/O, confirm that the SIGMATEK S-DIAS digital and analog I/O modules connected downstream of the HMI are reporting correctly after panel swap. A communication interruption during replacement can trigger I/O module fault states that require manual reset. If the control cabinet includes SIGMATEK safety relay modules or SIL-rated I/O cards, verify their status LEDs and diagnostic outputs post-replacement before resuming production.

Maintenance planners building a comprehensive spare parts kit around the ETT1233 should also stock: SIGMATEK VARAN bus switches or hubs for network redundancy, 24V fuse holders and blade fuses for the HMI power circuit, DIN-rail terminal blocks (such as Phoenix Contact or Weidmüller equivalents) for field wiring integrity, and signal isolators for analog input channels that feed process data to the HMI display. For sites running legacy SIGMATEK DIAS-based architectures, a spare DIAS backplane or rack module is a prudent addition to the annual maintenance budget.

Where the ETT1233 is used as the primary operator interface for a servo or frequency drive system, ensure that the SIGMATEK drive controller firmware version is compatible with the replacement HMI panel’s software build. Firmware mismatches between the HMI and the drive controller are a documented source of post-replacement communication alarms in SIGMATEK LASAL environments.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed ETT1233 panel, document the current LASAL project version, HMI firmware revision, and VARAN bus node address assigned to the unit. Photograph the wiring harness routing and connector labeling for reference during reinstallation.

Step 2 — Safe Isolation: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Confirm 24 VDC supply is isolated at the fuse or circuit breaker feeding the HMI panel. Allow capacitors to discharge before disconnecting the VARAN bus cable.

Step 3 — Panel Removal: Release the ETT1233 panel retaining clips or mounting screws from the cabinet cut-out. Disconnect the VARAN bus RJ45 or proprietary connector and the 24 VDC power connector. Label all disconnected cables.

Step 4 — Replacement Unit Inspection: Inspect the replacement ETT1233 01-230-1233 for shipping damage. Verify the part number label matches 01-230-1233. Confirm firmware version compatibility with your LASAL project before installation.

Step 5 — Installation & Commissioning: Mount the replacement panel into the cabinet cut-out. Reconnect the VARAN bus cable and 24 VDC power supply. Re-energize the cabinet and observe the HMI boot sequence. Confirm VARAN bus node recognition in the LASAL runtime diagnostics. Perform touch screen calibration if required by the firmware version.

Step 6 — Functional Verification: Run a full I/O check from the HMI operator screen. Confirm all process values, alarm pages, and drive status displays are rendering correctly. Log the replacement in your CMMS with the new unit’s serial number and installation date to initiate the 12-month warranty period tracking.

This structured replacement approach minimizes unplanned downtime, preserves system compatibility, and ensures the replacement ETT1233 is commissioned correctly the first time — reducing the risk of a repeat callout caused by installation error.

Spare Parts Support FAQ

Q1: Is the SIGMATEK ETT1233 01-230-1233 a direct drop-in replacement for the original unit?
Yes. The ETT1233 01-230-1233 is an original SIGMATEK part number and is designed as a direct replacement for the same model in SIGMATEK ETT series installations. No hardware modification is required. Firmware compatibility with your specific LASAL project version should be confirmed prior to installation — contact our technical team with your current HMI firmware revision for verification.

Q2: What does the 12-month warranty cover, and how is it validated?
All ETT1233 01-230-1233 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims require the original invoice and a fault description. Units damaged by incorrect installation, overvoltage, or environmental conditions outside the rated specification are excluded.

Q3: How should we manage long-term spare parts inventory for end-of-life SIGMATEK ETT series panels?
For facilities operating SIGMATEK ETT-based control systems beyond the manufacturer’s active production lifecycle, we recommend holding a minimum of one ETT1233 01-230-1233 unit per production line as a hot spare. For multi-line facilities, a centralized spare parts store with two to three units provides adequate coverage for unplanned failures while avoiding excessive capital tie-up. NINERMAS maintains ongoing sourcing channels for ETT series components and can support long-term supply agreements for volume requirements.

Q4: Can you ship the ETT1233 01-230-1233 internationally, and what is the typical lead time?
Yes. NINERMAS ships the ETT1233 01-230-1233 globally. Standard lead time is subject to current stock availability — in-stock units typically ship within 1–3 business days after order confirmation and payment clearance. For urgent downtime recovery requirements, contact our sales team directly to confirm stock status and arrange expedited dispatch. All units are packed in anti-static protective packaging suitable for international air freight.
