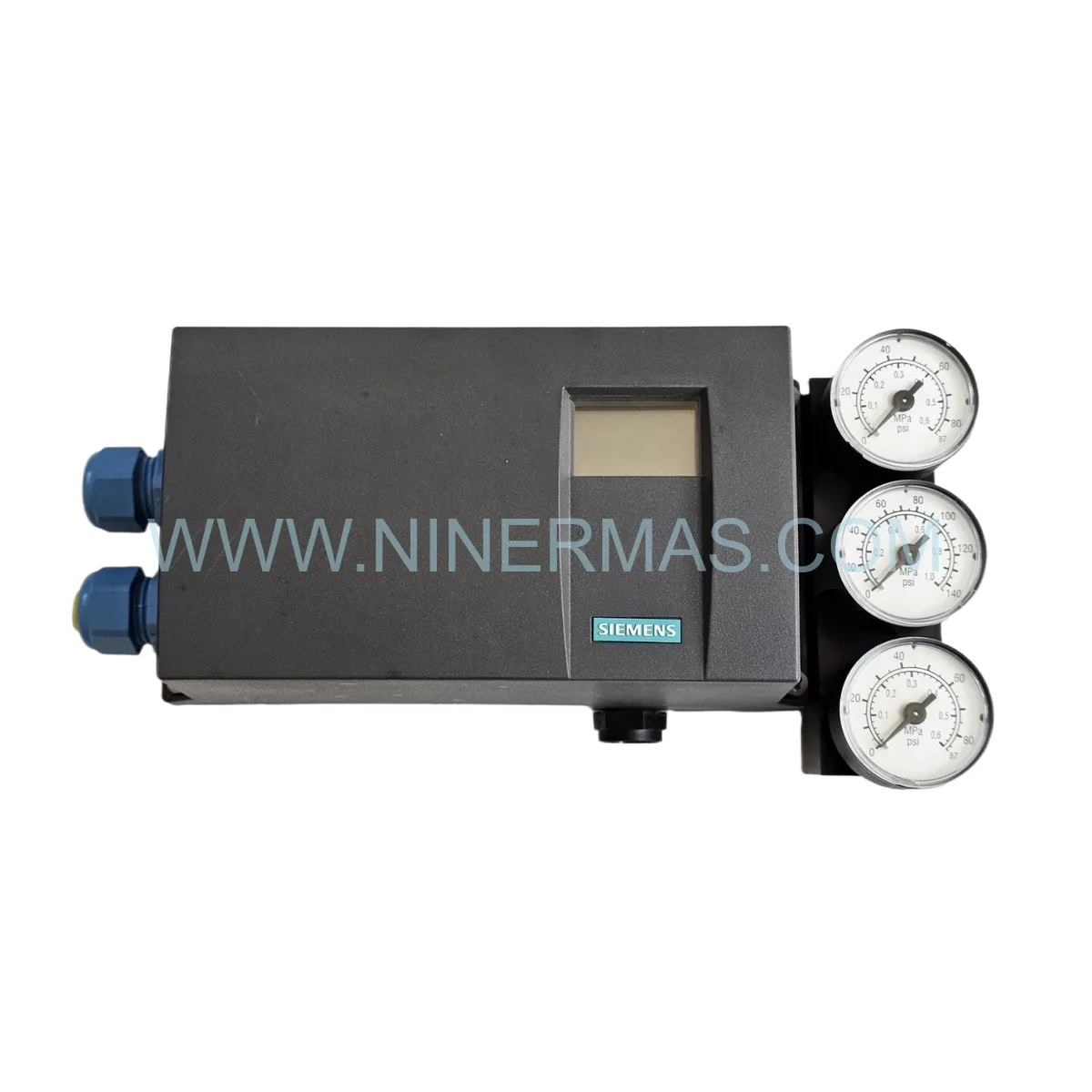

Siemens SIPART PS2 6DR5220-0EM01-0AA4 Positioner | New & Original

Siemens SIPART PS2 6DR5220-0EM01-0AA4 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the 6DR5220-0EM01-0AA4 is one of the most strategically significant automation components deployed in mission-critical valve control loops. Its adaptive positioning algorithm continuously compensates for actuator wear and supply pressure fluctuations, directly contributing to system availability rates exceeding 99.5% in continuous process environments. Whether integrated into a DCS-driven refinery loop or a standalone compressor bypass station, this unit delivers the process optimization precision that separates planned maintenance from catastrophic failure.

Engineered to withstand the harshest field conditions, the 6DR5220-0EM01-0AA4 carries IP66/NEMA 4X weatherproof certification alongside ATEX and IECEx explosion-proof approvals — making it equally suited for offshore platforms, chemical reactors, and high-humidity water treatment facilities. Installation teams should note that NAMUR-compliant direct mounting eliminates intermediate bracket complexity, while the universal feedback linkage accommodates linear strokes from 15 to 95 mm without additional hardware. Proper supply air filtration ( 40 µm) at the inlet is the single most impactful commissioning step for long-term reliability.

As production lines grow increasingly interdependent, maintaining a certified spare of this positioner in your critical spares inventory is no longer optional — it is an operational excellence imperative. Lead times for legacy and active Siemens positioner variants can extend to 12-20 weeks through standard distribution channels. Securing a verified original unit in advance eliminates the single-point-of-failure risk that unplanned downtime represents.

Key Operational Features

Adaptive Auto-Calibration — Reduces commissioning time by up to 70% vs. conventional positioners; self-tunes to actuator characteristics on first power-up.
Redundancy-Ready Architecture — Supports split-range and redundant actuator configurations for high-availability process loops.
Seamless System Integration — Simultaneous 4-20 mA analog control + HART digital communication over a single two-wire loop; compatible with AMS, PDM, and FieldCare platforms.
Partial Stroke Testing (PST) — Validates emergency shutdown valve readiness during live operation without process interruption.
Built-In Diagnostics — Continuously monitors valve friction, actuator response, and supply pressure; generates predictive maintenance alerts before failure occurs.
Explosion-Proof Certification — ATEX / IECEx / FM / CSA approved for Zone 1/2 and Division 1/2 hazardous area deployment.

Maintenance & Performance Benchmarks

The 6DR5220-0EM01-0AA4 is architected to scale across industrial network topologies — from single-loop skid installations to plant-wide DCS environments managing hundreds of control valves simultaneously. Its HART Layer 7 implementation enables full device description (DD) compatibility, allowing I/O modules and multiplexers from third-party vendors to poll diagnostic data without gateway conversion overhead.

In large-scale petrochemical facilities, field trials have demonstrated a measurable reduction in valve-related process deviations when this positioner replaces first-generation pneumatic units. The sealed relay assembly requires no scheduled lubrication or mechanical adjustment under standard operating conditions. Annual calibration verification and supply filter inspection (recommended every 6-12 months depending on air quality) constitute the complete preventive maintenance scope — a significant reduction in technician labor hours compared to legacy positioner platforms.

For multi-zone installations, the positioner’s configurable tight-shutoff function and adjustable deadband (0.1% 10% of span) allow site reliability engineers to fine-tune loop stability without returning to the control room, accelerating system integration timelines during plant commissioning or turnaround events.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6DR5220-0EM01-0AA4 dispatched from our facility is shipped in original factory packaging with full traceability documentation — including manufacturer batch records and certificate of conformity where applicable. For in-stock units, same-day dispatch is available on orders confirmed before 14:00 (GMT+8), with DHL Express, FedEx International Priority, and UPS Worldwide Expedited as standard carrier options.

We maintain a dedicated global supply chain for end-of-life (EOL) and legacy Siemens positioner variants, ensuring that facilities running older SIPART PS2 generations can source verified original replacements without resorting to uncertified aftermarket alternatives. All inventory is stored in climate-controlled warehousing to preserve component integrity and prevent electrostatic or humidity-related degradation prior to shipment.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 6DR5220-0EM01-0AA4?
A: Mount the positioner to the actuator yoke using the NAMUR interface (or optional bracket kit for non-NAMUR actuators). Connect the 4-20 mA signal loop to terminals 11/12, and supply air to the P port (1.4-7 bar). Power up and initiate auto-calibration via the INIT button sequence — the unit will self-characterize the actuator stroke within 2-5 minutes. Verify end-stop positions and deadband settings via the local display before returning the loop to automatic control.

Q2: Which firmware versions are compatible with current DCS and asset management platforms?
A: The 6DR5220-0EM01-0AA4 ships with firmware supporting HART revision 5 and 7 device descriptions. It is fully compatible with Emerson AMS Suite, Siemens PDM (Process Device Manager), and Endress+Hauser FieldCare. Firmware version verification is accessible via the local operator interface or any HART-capable handheld communicator (e.g., Emerson 475/375).

Q3: How does the warranty claim process work?
A: Our 1-year warranty covers manufacturing defects in materials and workmanship from the date of shipment. To initiate a claim, contact sale@ninermas.com with your order reference, unit serial number, and a brief fault description. Our technical team will respond within 24 business hours with an RMA authorization and return shipping instructions. Replacement units are dispatched upon receipt and inspection of the returned item.

Q4: Can this positioner be used for emergency shutdown (ESD) valve applications?
A: Yes. The integrated Partial Stroke Testing (PST) function allows periodic validation of ESD valve mechanical integrity during normal plant operation, satisfying SIL proof-test requirements without process shutdown. For full SIL-rated installations, consult the Siemens SIPART PS2 Safety Manual and confirm the specific SIL level with your functional safety engineer.

Q5: Is the unit compatible with non-Siemens actuators and control systems?
A: Absolutely. The 6DR5220-0EM01-0AA4 is designed for open-architecture system integration. It mounts to any NAMUR-compliant actuator and communicates via standard HART protocol with any HART-capable DCS, PLC, or I/O module — including those from ABB, Honeywell, Yokogawa, and Emerson. Optional bracket kits extend compatibility to non-NAMUR actuator designs.

Q6: What supply air quality is required for reliable long-term operation?
A: Instrument air must meet ISO 8573-1 Class 3 or better: particle size 40 µm, pressure dew point -20°C, and oil content 1 mg/m³. A coalescing filter-regulator installed upstream of the positioner supply port is strongly recommended and is the most cost-effective preventive maintenance investment for this class of automation component.
