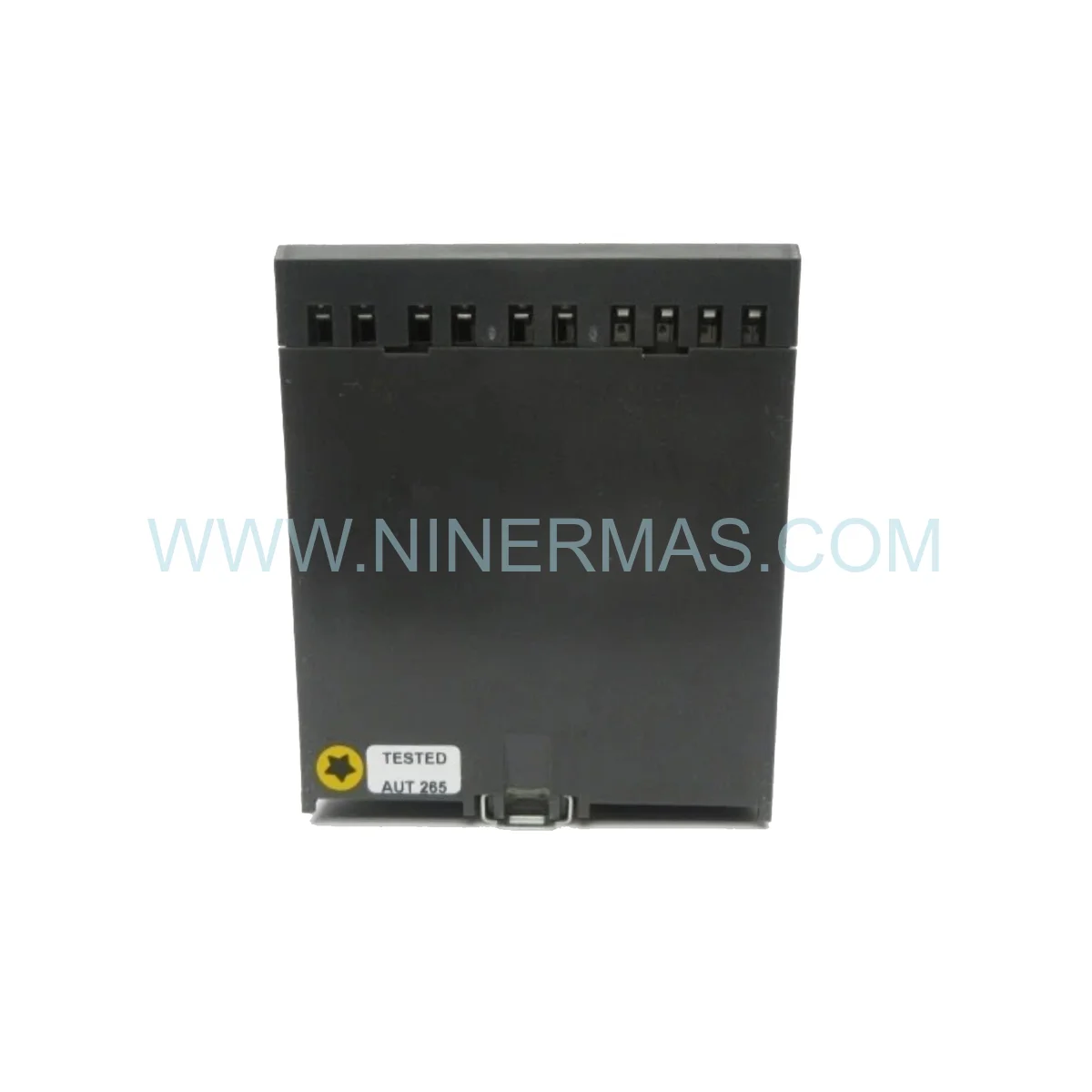

Siemens SIMEAS Q 7KG8000-8AA20/FF Power Quality Monitor (New)

Siemens SIMEAS Q 7KG8000-8AA20/FF | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer, the Siemens 7KG8000-8AA20/FF stands as a cornerstone device for sustaining system availability in mission-critical power distribution environments. Deployed across substations, manufacturing plants, and utility grids, this SIMEAS Q unit delivers continuous acquisition of voltage, current, frequency, and harmonic distortion data — feeding real-time intelligence directly into PROFIBUS DP-based control architectures. Its role in process optimization is not supplementary; it is foundational. Facilities that integrate the 7KG8000-8AA20/FF into their monitoring backbone report measurable reductions in unplanned downtime, as anomalies are flagged before they cascade into full system failures.

Engineered for durability in harsh industrial environments, this unit operates reliably on a wide DC power supply range of 24 to 60V, accommodating fluctuating auxiliary power conditions common in legacy panel installations. Its compact form factor supports both DIN rail and panel-mount configurations, simplifying retrofit deployments without requiring structural modifications. Field engineers should note that PROFIBUS DP termination resistors must be correctly configured at bus endpoints to prevent signal reflection — a common oversight that degrades communication integrity across the I/O module network.

As a discontinued yet actively sourced legacy module, the 7KG8000-8AA20/FF occupies a critical position in spare parts inventory planning. Production lines dependent on SIMEAS Q infrastructure cannot afford gaps in component availability. Stocking this unit as a certified reserve ensures operational excellence and eliminates the risk of extended lead times during emergency replacements.

Key Operational Features

PROFIBUS DP Communication Interface — Seamless integration into existing fieldbus architectures with high-speed, deterministic data exchange for real-time system integration.
Wide DC Power Input (24-60V) — Accommodates diverse auxiliary supply conditions, ensuring high availability across varied installation environments.
Comprehensive Power Parameter Acquisition — Monitors voltage, current, power factor, frequency, and harmonics for complete network analysis.
Redundancy-Ready Architecture — Compatible with redundant PROFIBUS DP ring topologies, supporting uninterrupted data flow in fault-tolerant system designs.
Compact & Versatile Mounting — DIN rail or panel-mount options enable flexible deployment in both new builds and retrofit projects.
Legacy EOL Module — Globally Sourced — Discontinued since February 2018; available through certified automation component distributors with verified original factory provenance.

Maintenance & Performance Benchmarks

The 7KG8000-8AA20/FF is engineered to operate within industrial network architectures ranging from small-scale panel installations to enterprise-level SCADA-integrated power management systems. Its PROFIBUS DP interface supports baud rates up to 12 Mbit/s, enabling low-latency data polling across multi-node bus segments — a critical requirement for time-sensitive process optimization workflows.

In distributed I/O module environments, this device functions as a passive slave node, minimizing bus loading while delivering high-resolution metering data. Maintenance cycles should include periodic verification of PROFIBUS address settings (GSD file alignment), power supply voltage stability checks within the 24-60V DC operating window, and inspection of terminal block torque values to prevent contact resistance buildup. For facilities running mixed-generation SIMEAS Q fleets, firmware version compatibility between master controllers and this unit should be validated prior to integration — consult Siemens SIMATIC NET documentation for GSD file version mapping.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 7KG8000-8AA20/FF dispatched from our inventory is supplied in Original Factory Packaging, preserving component integrity and providing full traceability from manufacturer to end-user. For in-stock orders, same-day dispatch is available upon order confirmation before the daily cut-off, supported by express courier partnerships covering North America, Europe, Southeast Asia, and the Middle East.

As a globally recognized EOL/Legacy automation component, the SIMEAS Q 7KG8000-8AA20/FF is no longer available through standard Siemens distribution channels. Our dedicated sourcing network maintains verified stock of discontinued I/O modules and metering devices, ensuring that facilities locked into legacy PROFIBUS DP infrastructure can continue operations without forced system overhauls. All units undergo pre-shipment inspection to confirm physical condition and part number authenticity.

Engineering Support & FAQ

Q1: What are the installation steps for integrating the 7KG8000-8AA20/FF into an existing PROFIBUS DP network?
A: Assign a unique PROFIBUS DP station address (1-125) via the device’s address switches. Load the corresponding GSD file into your PROFIBUS master configuration tool (e.g., STEP 7 / TIA Portal HW Config). Connect the bus cable to the DP port, ensuring correct termination at both ends of the segment. Apply DC 24-60V auxiliary power and verify the device appears online in the master’s diagnostic view before commissioning.

Q2: Which firmware versions are compatible with the 7KG8000-8AA20/FF?
A: This unit operates as a PROFIBUS DP slave and does not require firmware updates on the device itself. Compatibility depends on the GSD file version used in the master controller. Refer to Siemens Industry Online Support (SIOS) for the correct GSD file associated with part number 7KG8000-8AA20. Ensure your PROFIBUS master supports DP-V0 or DP-V1 protocol versions.

Q3: How does the wide DC input range (24-60V) benefit field installations?
A: The broad input tolerance allows the device to operate reliably on both 24V DC panel supplies and 48V DC substation auxiliary buses without requiring additional voltage regulators, reducing BOM complexity and installation cost in mixed-voltage environments.

Q4: What is the warranty policy for this unit?
A: All units are covered by a 1-Year Warranty from the date of shipment. Warranty claims are processed via our technical support team. Defective units are replaced or refunded subject to inspection confirming no physical damage or misapplication. Contact sale@ninermas.com to initiate a warranty request.

Q5: Is this module available for immediate shipment given its EOL status?
A: Yes. We maintain dedicated stock of legacy and discontinued Siemens automation components, including the SIMEAS Q series. Availability is confirmed at time of inquiry. For urgent requirements, contact our team directly for real-time stock verification and expedited logistics options.

Q6: Can this device be used in a redundant PROFIBUS DP configuration?
A: The 7KG8000-8AA20/FF supports standard PROFIBUS DP slave operation. Redundancy at the bus level can be achieved through the master controller’s redundancy management (e.g., using a redundant DP master pair). The device itself does not feature dual-port DP redundancy but integrates seamlessly into ring or line topologies managed by redundant master systems.
