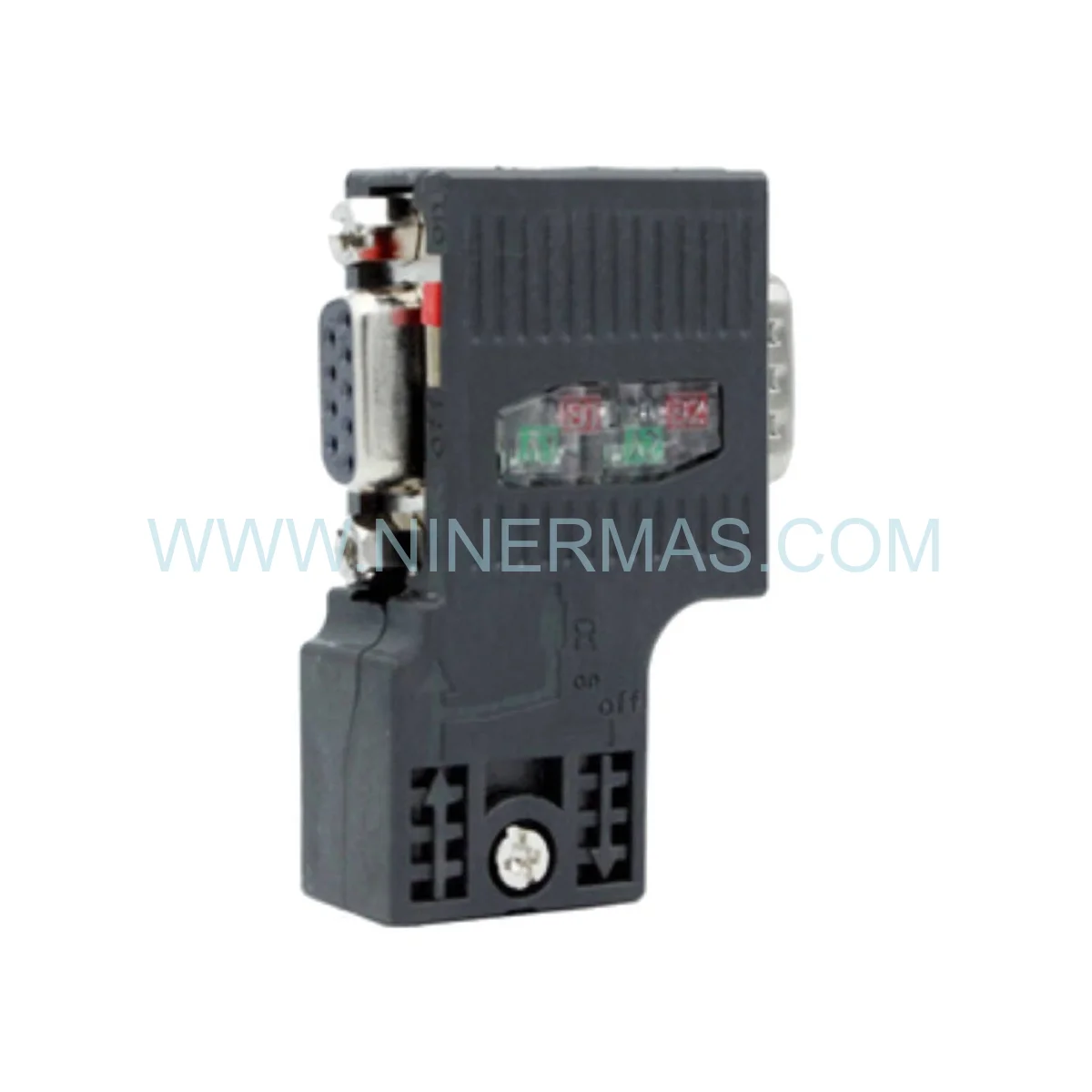

Siemens PROFIBUS Connector 6ES7972-0BB52-0XA0 RS485 90° FastConnect with PG Socket

Siemens PROFIBUS Connector 6ES7972-0BB52-0XA0 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, maintaining uninterrupted fieldbus communication is the backbone of any mission-critical automation architecture. The Siemens 6ES7972-0BB52-0XA0 plays a decisive role in sustaining system availability across PROFIBUS DP networks — its RS485 FastConnect interface eliminates tool-dependency during installation, drastically reducing mean-time-to-repair (MTTR) when a connector swap is required mid-shift. For process optimization teams managing distributed I/O modules across multi-zone production cells, this component is a proven enabler of operational excellence.

Engineered to perform in harsh industrial environments, the 6ES7972-0BB52-0XA0 withstands ambient temperatures from -40°C to +70°C and mechanical vibration loads typical of heavy manufacturing floors. Its 90-degree angled body geometry is not merely a convenience feature — it is a deliberate design choice that reduces cable stress at the connector entry point, extending service life in high-cycle installations. Field engineers should note that proper cable shielding termination at the connector housing is critical to maintaining signal integrity at transmission rates approaching 12 Mbit/s.

As production lines increasingly depend on legacy PROFIBUS infrastructure for system integration with newer SCADA layers, maintaining a verified stock of original Siemens connectors is no longer optional — it is a core element of any responsible spare-parts strategy. The 6ES7972-0BB52-0XA0 is a high-turnover consumable in any S7-300/400 environment and should be treated as a Tier-1 critical reserve component.

Key Operational Features

RS485 FastConnect Technology — Tool-free conductor termination; reduces installation time by up to 50% versus conventional screw-type connectors.
90° Angled Housing — Optimized for space-constrained cabinet installations and directional cable routing without bend-radius violations.
Integrated PG Socket — Allows direct programming device (PG/PC) connection without disrupting live network traffic; essential for online diagnostics.
High-Speed Data Transmission — Supports PROFIBUS DP baud rates up to 12 Mbit/s for high-density I/O module polling cycles.
Redundancy-Ready Design — Compatible with PROFIBUS redundancy topologies; supports seamless integration into high-availability network segments.
Broad Protocol Compatibility — Operates across PROFIBUS DP and PROFIBUS PA variants; interoperable with third-party PROFIBUS-compliant field devices.
Robust IP20 Enclosure — Suitable for control cabinet deployment; resists dust ingress and incidental contact in standard industrial enclosures.

Maintenance & Performance Benchmarks

The 6ES7972-0BB52-0XA0 is architected to serve as a transparent node within both small-scale machine-level PROFIBUS segments and large-scale plant-wide automation networks. In compact S7-300 configurations with fewer than 16 slaves, the connector’s integrated termination resistor switch allows end-of-line termination without additional hardware — a critical simplification for rapid commissioning.

In enterprise-scale deployments spanning multiple production halls, where PROFIBUS segments are extended via repeaters and optical links, this connector maintains consistent electrical characteristics that prevent impedance mismatches — a leading cause of intermittent communication faults. Maintenance teams should schedule periodic inspection of the FastConnect termination contacts every 18-24 months in high-vibration environments to ensure contact resistance remains within specification.

For firmware and GSD file compatibility: this connector is passive hardware and requires no firmware. It is fully compatible with all Siemens STEP 7 and TIA Portal project configurations targeting PROFIBUS DP master interfaces. No driver installation is required — plug-and-play integration into existing network topologies is guaranteed.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7972-0BB52-0XA0 dispatched by NINERMAS COMPANY LIMITED is sourced directly from authorized Siemens distribution channels and ships in Original Factory Packaging — sealed, labeled, and traceable to batch production records. This ensures full authenticity verification and eliminates the risk of counterfeit components entering your automation infrastructure.

Same-Day Dispatch is available for in-stock orders confirmed before the daily cut-off time, supporting emergency maintenance scenarios where production downtime costs are measured in thousands per hour. For procurement teams managing End-of-Life (EOL) or Legacy Module sourcing challenges, our global supply network maintains buffer stock of discontinued Siemens PROFIBUS accessories — enabling long-term operational continuity without forced system migrations.

Worldwide Express Logistics coverage spans North America, Europe, Southeast Asia, and the Middle East, with DHL Express and FedEx Priority as primary carriers. Full tracking, commercial invoice, and certificate of conformity documentation are provided with every shipment.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the FastConnect termination on the 6ES7972-0BB52-0XA0?
A: Strip the PROFIBUS cable outer jacket to expose approximately 35mm. Separate and trim the shield braid, then insert the cable into the FastConnect housing until the conductors seat fully into the IDC contacts. Close the housing cover until it clicks — no crimping tool required. Verify conductor seating visually through the inspection window before closing the connector body.

Q2: Which Siemens CPU and CP modules are confirmed compatible with this connector?
A: The 6ES7972-0BB52-0XA0 is compatible with all Siemens S7-300 and S7-400 series CPUs equipped with integrated PROFIBUS DP interfaces, as well as CP 342-5, CP 443-5 Extended, and IM 153-x interface modules. It also supports third-party PROFIBUS master/slave devices conforming to IEC 61158.

Q3: How do I activate the integrated terminating resistor?
A: Slide the termination switch on the connector body to the ON position only when this connector is installed at either physical end of the PROFIBUS segment. Activating termination on mid-segment nodes will cause bus reflections and communication errors. Only two connectors per segment — one at each end — should have termination enabled.

Q4: What warranty process applies to this component?
A: All units carry a 12-month warranty from the date of invoice. In the event of a verified manufacturing defect, contact sale@ninermas.com with your order reference and a fault description. Replacement units are dispatched within 3 business days upon defect confirmation. Field-damaged or improperly installed units are not covered under warranty terms.

Q5: Is this connector suitable for use in PROFIBUS PA segments?
A: The 6ES7972-0BB52-0XA0 is primarily rated for PROFIBUS DP RS485 applications. For PROFIBUS PA segments operating on the MBP (Manchester Bus Powered) physical layer, a dedicated PA connector with intrinsic safety certification is required. Consult your system integrator for segment coupler and connector selection in hazardous area installations.

Q6: Can the PG socket be used while the PROFIBUS network is live?
A: Yes. The integrated PG socket is designed for hot-plug programming device connection without interrupting PROFIBUS bus traffic. This enables online diagnostics, firmware uploads to connected devices, and network monitoring using STEP 7 or TIA Portal without requiring a network shutdown — a key advantage in continuous-process environments.
