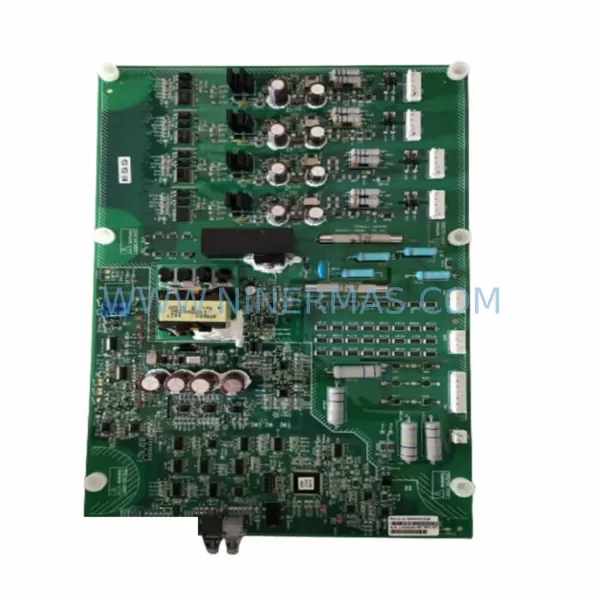

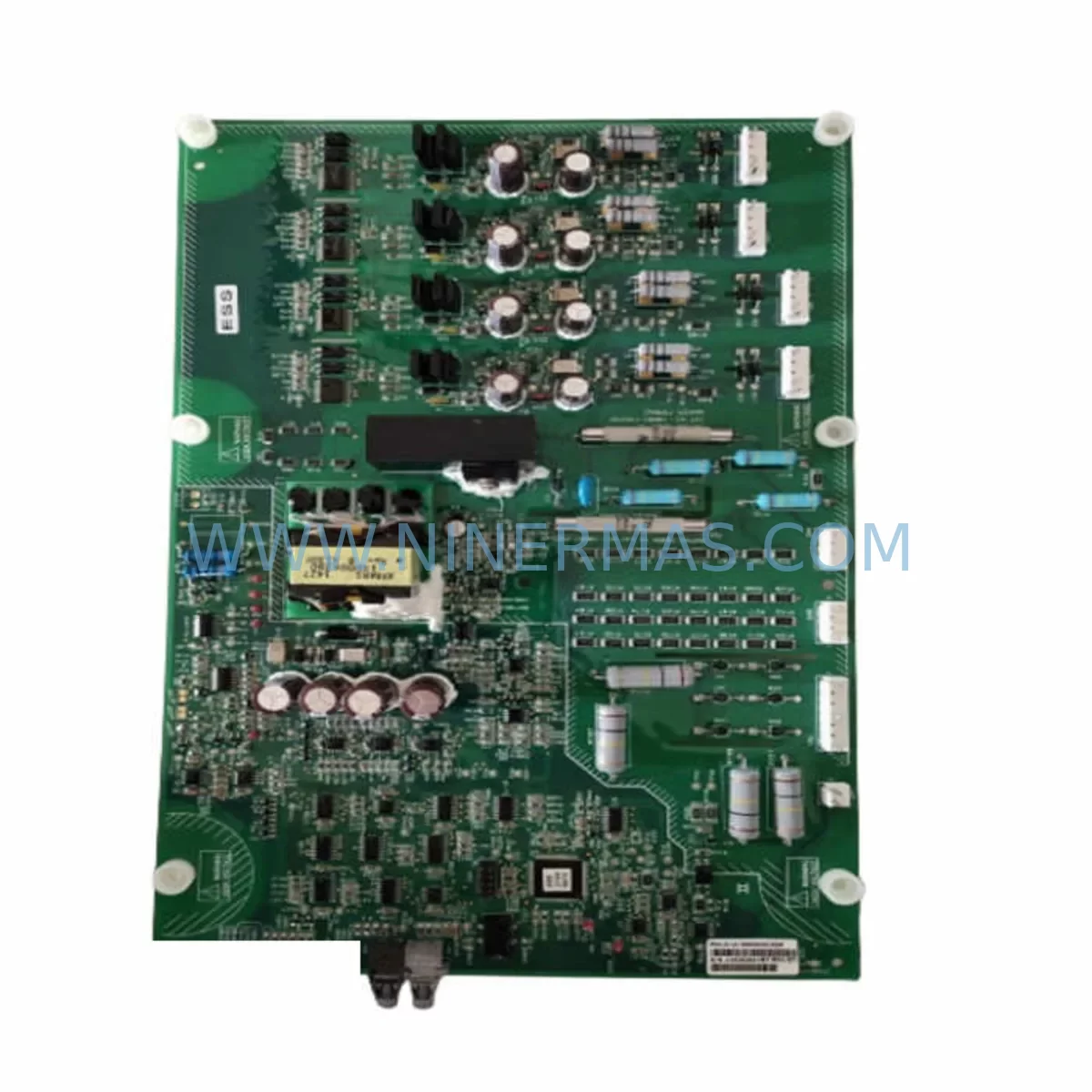

Siemens A1A10000432.02M Retrofit Gate Board for SIMOVERT

Siemens A1A10000432.02M Retrofit Gate Board: Legacy SIMOVERT Drive Compatibility & Smooth System Upgrade

The Siemens A1A10000432.02M is a retrofit-compatible gate board designed for use within the SIMOVERT drive series — one of Siemens’ most widely deployed variable frequency drive platforms in industrial automation. As legacy SIMOVERT units age out of active production support, the A1A10000432.02M remains a critical spare part for facilities managing long-lifecycle control systems, aging production lines, and control cabinet upgrades where full drive replacement is not operationally or economically viable.

This gate board serves as the firing pulse interface between the drive’s control electronics and its power semiconductors (IGBTs or GTOs depending on drive generation). Correct gate signal timing is essential for stable motor control, and a failed or degraded gate board is one of the most common root causes of SIMOVERT drive faults, including overcurrent trips, phase asymmetry alarms, and uncontrolled deceleration events. Replacing the A1A10000432.02M with a verified, tested unit restores drive performance without requiring full drive replacement or PLC reprogramming.

NINERMAS maintains in-stock inventory of the A1A10000432.02M with a 12-month warranty, pre-shipment functional testing, and same-week dispatch capability — supporting both emergency breakdown response and planned maintenance programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the A1A10000432.02M within an operational plant environment requires careful pre-planning to avoid extended downtime and to protect existing program logic. In most SIMOVERT installations, the gate board is housed within the drive’s power section, physically separated from the control unit (CU board) and the technology board (TB). Before initiating the swap, engineers should confirm that the CU board — such as the Siemens 6SE7090-0XX84-0AB0 CU or equivalent — retains its parameter memory intact, as the A1A10000432.02M replacement does not affect stored drive parameters.

In control cabinet environments where the SIMOVERT drive is integrated with a Siemens S5 or S7 PLC via PROFIBUS-DP, the gate board swap is transparent to the communication layer. The CBP2 PROFIBUS communication board continues to handle all fieldbus traffic independently of the gate board, meaning no changes to the PLC program, GSD file, or network address are required. Similarly, if the installation uses a USS protocol link via RS-485 to an operator panel or SCADA system, communication continuity is maintained throughout the replacement.

For drives connected to Siemens OP7 or OP17 HMI panels, no screen reconfiguration is necessary following a gate board replacement, as the HMI interface is managed by the CU board and technology board layers. However, it is good practice to verify that all HMI status displays return to normal operating values after the no-load commissioning test.

In installations where the SIMOVERT drive powers a high-inertia load — such as a centrifuge, extruder, or large conveyor — engineers should also confirm that the braking resistor module and associated chopper circuit are functioning correctly before returning the drive to full-load operation. A degraded gate board can sometimes cause secondary stress on the braking circuit, and a post-replacement inspection of the braking resistor assembly is recommended as part of the commissioning checklist.

Where the drive rack includes additional I/O expansion via Siemens SBP (Sensor/Actuator Board) or SBR encoder feedback boards, these modules are unaffected by the gate board replacement and do not require recalibration. Likewise, any signal isolators or 4–20 mA transducers wired into the drive’s analog I/O terminals retain their scaling and wiring configuration throughout the swap process.

For facilities managing multiple SIMOVERT drives across a production line, NINERMAS recommends maintaining at least one A1A10000432.02M as a cold-standby spare per drive generation in use. This supports rapid mean-time-to-repair (MTTR) targets and avoids the lead-time exposure associated with sourcing discontinued components under emergency conditions. Our long-term spare parts program allows customers to reserve stock under a forward-purchase agreement, ensuring supply continuity for 12–36 month planning horizons.

Downtime Control During System Migration

Minimizing production downtime during a gate board replacement on a SIMOVERT drive requires a structured approach to pre-staging, execution, and post-installation verification. The following workflow is recommended for facilities where the affected drive is on a critical production path:

Pre-Replacement Preparation: Before the maintenance window opens, retrieve and document the full parameter set from the drive’s CU board using the Siemens DriveMonitor or STARTER commissioning software. Save the parameter file to a laptop or USB drive as a backup. Confirm that the replacement A1A10000432.02M has been received, inspected, and cleared by your incoming goods process. Prepare the drive-specific wiring diagram and identify the gate board slot location and connector pinout.

During the Maintenance Window: Isolate the drive from the supply using the upstream circuit breaker or isolator. Wait for the DC bus voltage to discharge below 50V (verify with a calibrated multimeter at the DC bus terminals — do not rely solely on the drive’s display). Remove the gate board by releasing the backplane connector and any retaining screws. Install the A1A10000432.02M, ensuring full connector seating. Re-energize the drive and allow it to complete its self-test sequence before issuing a run command.

Post-Installation Commissioning: Run the drive at low speed (5–10 Hz) under no-load conditions and monitor output current symmetry across all three phases. Verify that gate firing pulses are present and balanced using an oscilloscope connected to the gate board test points if accessible. Confirm that the PROFIBUS or USS communication link re-establishes correctly and that the PLC or SCADA system receives expected status feedback. Gradually ramp the drive to full operating speed under controlled load conditions, monitoring for overcurrent, overtemperature, or asymmetry faults.

With a pre-staged replacement unit and a prepared commissioning checklist, the total maintenance window for an A1A10000432.02M swap can typically be completed within 2–4 hours, including DC bus discharge time and post-installation verification — significantly less than the downtime associated with full drive replacement or waiting for an unplanned emergency repair.

Retrofit Support FAQ

Q1: Is the A1A10000432.02M a direct drop-in replacement for the original Siemens gate board in my SIMOVERT drive?
In the vast majority of SIMOVERT installations, yes. The A1A10000432.02M is designed to the original Siemens specification and uses the same backplane connector and mounting footprint as the factory-installed board. However, we recommend confirming the drive’s exact model number and production date code against the board’s compatibility list before ordering, particularly for early-generation SIMOVERT P units which may use a different gate board variant.

Q2: Will I need to re-enter drive parameters after replacing the gate board?
No. Drive parameters are stored in the CU (Control Unit) board’s non-volatile memory, which is independent of the gate board. Replacing the A1A10000432.02M does not affect the stored parameter set. As a precaution, we always recommend backing up the parameter file before any maintenance intervention using DriveMonitor or STARTER software.

Q3: How do I verify that the replacement gate board is functioning correctly after installation?
After installation and re-energization, run the drive at low speed under no-load conditions and monitor output current on all three phases for symmetry. Check that no gate-related fault codes (e.g., F002, F005, or phase asymmetry alarms) are present. If oscilloscope access is available, verify gate pulse timing at the board’s test points. All A1A10000432.02M units shipped by NINERMAS undergo pre-shipment functional testing as part of our quality control process.

Q4: What warranty and supply terms does NINERMAS offer for the A1A10000432.02M?
NINERMAS provides a 12-month warranty on all A1A10000432.02M units, covering manufacturing defects and functional failure under normal operating conditions. Units are dispatched from in-stock inventory with same-week shipping capability. For customers requiring long-term supply assurance, we offer forward-purchase and reserved-stock programs to support 12–36 month procurement planning. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
