SIEMENS 7ME6920-1AA30-1AA0 Retrofit-Compatible Flow Transmitter

SIEMENS 7ME6920-1AA30-1AA0 Retrofit-Compatible Flow Transmitter for Legacy System Modernization

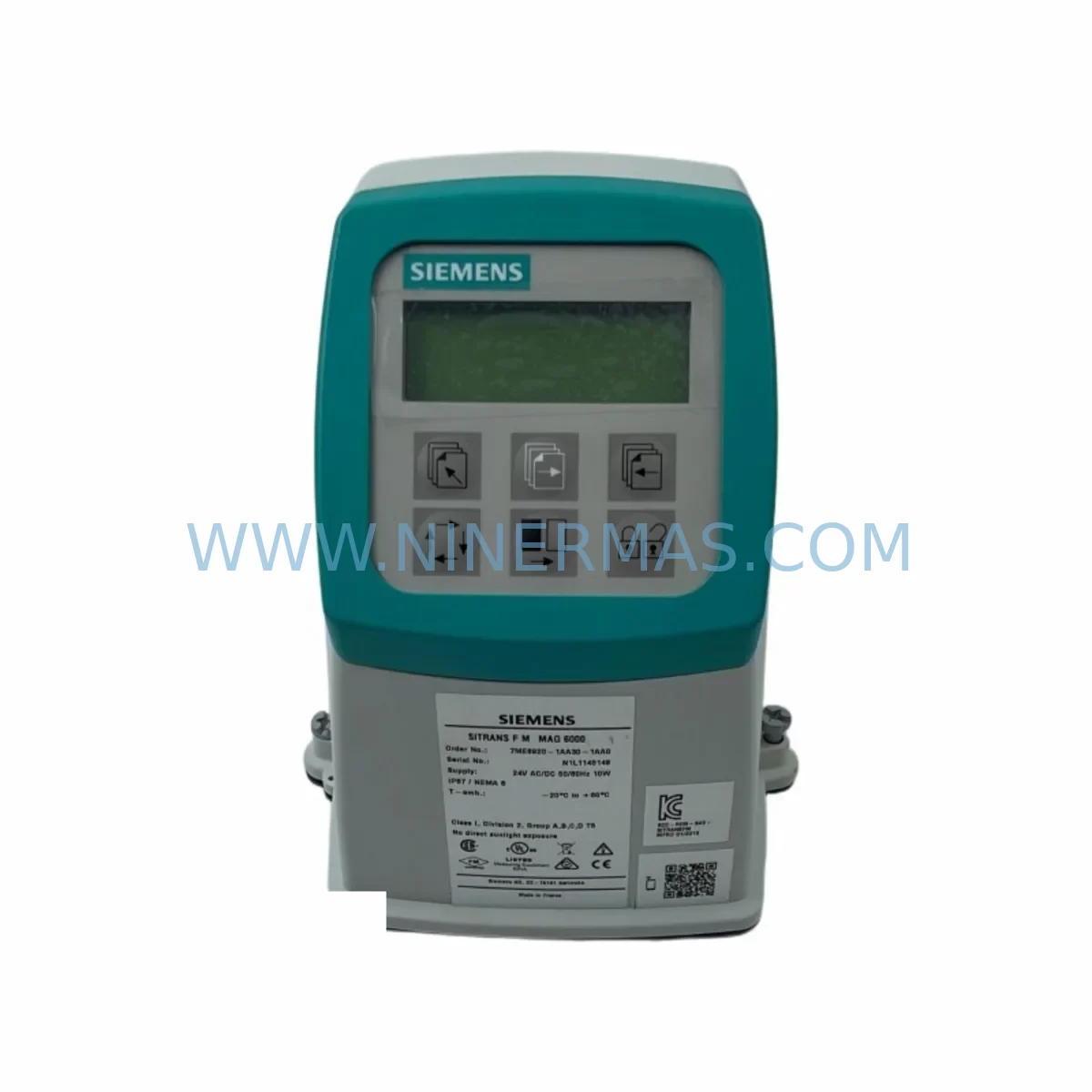

The SIEMENS 7ME6920-1AA30-1AA0 is a retrofit-compatible electromagnetic flowmeter transmitter from the SITRANS F series, purpose-built for engineers and maintenance teams managing legacy automation infrastructure. As industrial facilities face increasing pressure to modernize aging control systems while minimizing production disruption, this unit provides a reliable, drop-in-compatible upgrade path for plants still operating on first- or second-generation SITRANS F electromagnetic flow measurement platforms. Whether you are replacing a discontinued transmitter, restoring a failed measurement loop, or migrating an entire flow instrumentation network to a modern PROFIBUS PA or HART communication backbone, the 7ME6920-1AA30-1AA0 delivers the dimensional, electrical, and functional compatibility required for a smooth transition.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 7ME6920-1AA30-1AA0 into an existing plant environment requires a structured pre-installation audit. Begin by reviewing the original loop wiring diagram to confirm that the existing cable pairs — typically a 4-wire shielded cable for the sensor excitation coil and signal return — are intact and free of insulation degradation. The transmitter’s terminal block accepts standard 0.5–2.5 mm² conductors, but older installations may use non-standard gauges that require adapter ferrules.

On the power supply side, verify that the local control cabinet’s 24 VDC or 115/230 VAC rail has sufficient spare capacity. In dense control panels where a SIMATIC S7-300 or S7-400 PLC rack is already loaded with SM321 digital input modules, SM331 analog input modules, and CP343-1 PROFIBUS communication processors, adding a new transmitter loop can push the panel’s power budget close to its rated limit. A power audit using the existing PS307 or PS405 power supply load calculation sheet is strongly recommended before proceeding.

For facilities running PROFIBUS DP or PROFIBUS PA fieldbus segments, the 7ME6920-1AA30-1AA0 must be assigned a unique node address before it is connected to the live segment. Use SIMATIC PDM (Process Device Manager) or a handheld HART communicator to configure the device address, measurement range, damping factor, and output signal scaling offline before energizing the loop. If the existing DCS or PLC program references the old transmitter’s I/O address in the function block diagram, update the hardware configuration in STEP 7 or TIA Portal and perform a full download to the CPU — typically a SIMATIC S7-315-2DP or S7-317-2DP — before reconnecting the field device.

Where the legacy system includes an older DP/PA coupler or DP/PA link module, confirm that the coupler firmware supports the GSD file version associated with the 7ME6920-1AA30-1AA0. Incompatible GSD versions are a common source of commissioning delays in PROFIBUS PA retrofit projects. Similarly, if the plant HMI — whether a SIMATIC TP700 Comfort panel or a WinCC SCADA workstation — displays flow trend screens that reference the old transmitter’s tag name, update the tag database and screen objects before handing the loop back to operations.

In applications where the 7ME6920-1AA30-1AA0 replaces a transmitter paired with a SITRANS F MAG 1100 or MAG 3100 sensor, re-enter the sensor’s calibration factor (K-factor) and electrode material code from the original sensor nameplate. Failure to restore these parameters will result in systematic measurement error that may not be immediately apparent during short-duration commissioning tests but will accumulate over time in custody transfer or batch control applications.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any retrofit project involving active production lines. For the 7ME6920-1AA30-1AA0, the recommended approach is a staged cutover: pre-configure the new transmitter on the bench, verify its communication link on a test segment, and prepare all revised PLC function blocks and HMI tag updates before the scheduled maintenance window.

During the cutover window, isolate the measurement loop by closing the upstream and downstream manual isolation valves (if process conditions permit), de-energize the existing transmitter, disconnect the field wiring at the terminal head, and reconnect to the new unit following the revised wiring diagram. The entire physical swap — assuming the sensor remains in place and only the transmitter is being replaced — typically takes 30 to 60 minutes for a trained instrument technician. The remaining time in the maintenance window should be allocated to parameter entry, loop calibration verification using a portable reference meter, and a functional test of the PLC analog input channel to confirm that the engineering unit scaling matches the DCS display.

To protect the original program logic, always create a full backup of the PLC project in STEP 7 or TIA Portal before making any hardware configuration changes. Store the backup on a dedicated project server and document the change in the plant’s management of change (MOC) system. If the retrofit involves migrating from a 4–20 mA analog signal to a PROFIBUS PA digital signal, the PLC program will require more extensive modification — replacing analog input function blocks (FC105 SCALE) with PROFIBUS PA cyclic data exchange blocks — and a longer commissioning window should be planned accordingly.

For critical loops where continuous flow measurement is required, consider installing a temporary bypass measurement using a clamp-on ultrasonic flowmeter during the cutover period. This allows the control system to maintain closed-loop control on the flow variable while the permanent electromagnetic transmitter is being replaced, eliminating the need to switch the loop to manual control and reducing the risk of process upsets.

Retrofit Support FAQ

Q1: Is the 7ME6920-1AA30-1AA0 a direct replacement for my existing SITRANS F transmitter?
In most cases, yes — provided the sensor model (MAG 1100, MAG 3100, or equivalent) and the nominal pipe diameter match. Always cross-reference the sensor’s calibration certificate and the existing transmitter’s order code to confirm electrical and mechanical compatibility before ordering. Our team can assist with cross-reference verification prior to shipment.

Q2: What commissioning steps are required after installation?
After physical installation and wiring, connect to the transmitter via SIMATIC PDM or the local operator interface and enter the pipe inner diameter, fluid conductivity minimum, full-scale flow range, output damping, and PROFIBUS/HART address. Perform a zero-point adjustment with the pipe full and flow stopped, then verify the 4–20 mA or digital output against a reference standard. Document all as-found and as-left values in the calibration record.

Q3: Do you provide pre-shipment functional testing and what does the 12-month warranty cover?
Yes. Every unit undergoes a pre-shipment functional test including power-on verification, communication link check, and output signal validation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or operation outside the specified process conditions.

Q4: What is your stock availability and lead time?
We maintain ready stock of the 7ME6920-1AA30-1AA0 and related SITRANS F series components to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based orders, contact our sales team to confirm allocation and delivery schedule.
