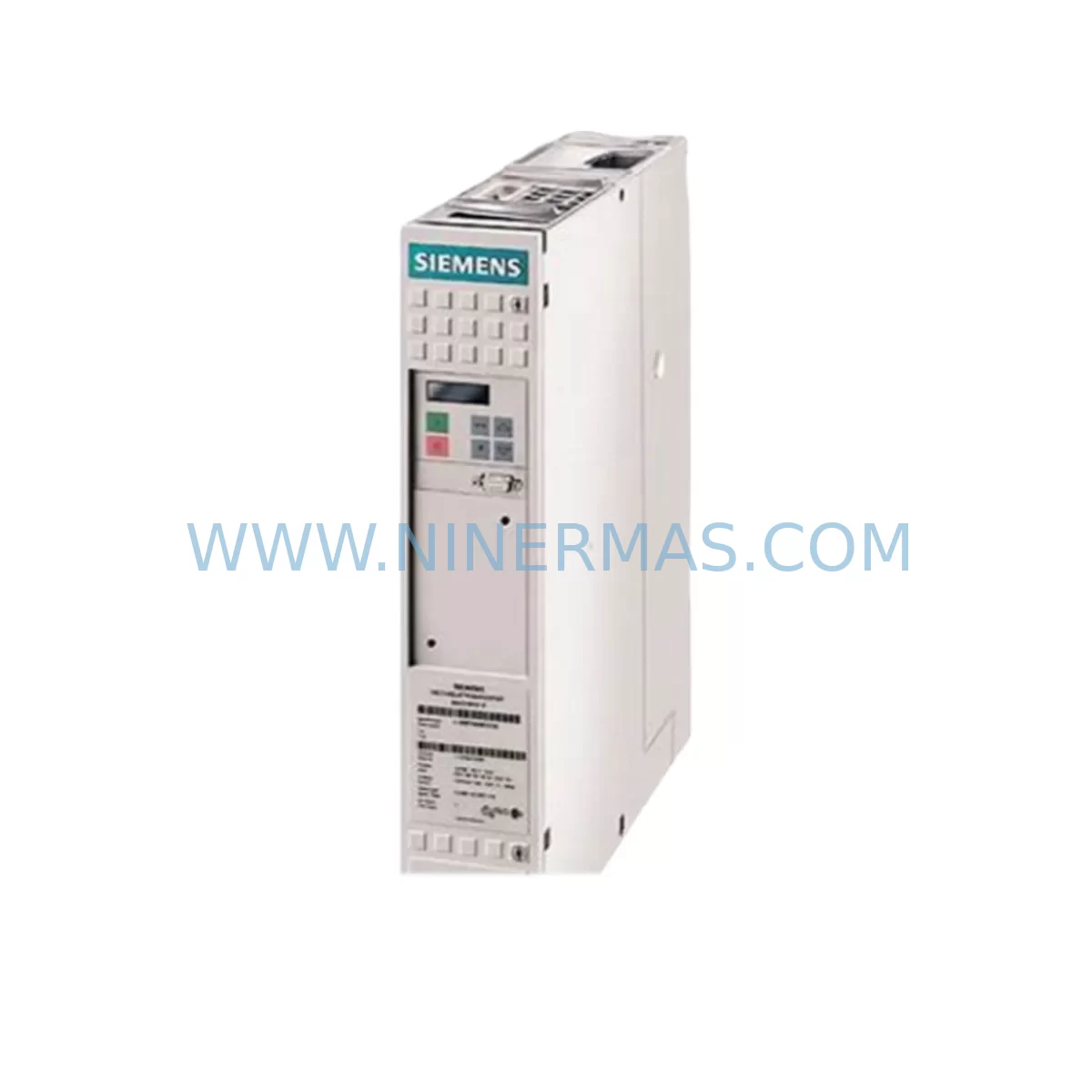

SIEMENS 6SY7000-0AA78 ES300-9655 Retrofit Drive Module

SIEMENS 6SY7000-0AA78 ES300-9655 Retrofit Drive Module for Legacy Systems

When a legacy SIEMENS ES300-series drive system reaches end-of-life or a critical board fails on the production floor, unplanned downtime can cascade into hours of lost output and costly emergency repairs. The SIEMENS 6SY7000-0AA78 ES300-9655 retrofit drive module is engineered to address exactly this scenario — providing a verified, drop-in compatible replacement for aging ES300 and SIMOREG drive platforms that continue to serve in steel mills, paper lines, chemical plants, port cranes, and continuous process facilities worldwide.

This module belongs to the SIEMENS 6SY7000 spare parts family, a range specifically designed to extend the operational life of SIMOREG DC Master and ES300 drive cabinets. The ES300-9655 board reference identifies it as a control or power interface board within the ES300 drive chassis, responsible for signal conditioning, firing pulse generation, or feedback processing depending on the specific drive configuration. Whether you are executing a planned annual overhaul or responding to an emergency board failure, the 6SY7000-0AA78 ES300-9655 provides the electrical compatibility and mechanical fit needed to restore drive operation with minimal intervention.

At NINERMAS, every unit is sourced from verified supply channels, subjected to pre-shipment functional inspection, and dispatched with a 12-month warranty. Our inventory is maintained to support both urgent single-unit replacements and bulk procurement for maintenance stock programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6SY7000-0AA78 ES300-9655 is rarely a standalone task. Experienced maintenance engineers understand that a board-level swap in a legacy drive cabinet requires a systematic review of the surrounding electrical and control architecture to ensure the retrofit succeeds without introducing new failure points.

Before initiating the replacement, the maintenance team should verify the DC bus voltage and confirm that the SIMOREG drive’s power section — including the thyristor firing board and the field supply module — is functioning within specification. A degraded firing board can cause the new control board to fail prematurely, so inspecting the 6SY7000-0AA18 thyristor module or equivalent power bridge components at the same time is strongly recommended.

On the signal side, engineers should check the integrity of the tachometer feedback wiring and the encoder or resolver interface. If the existing speed feedback signal is noisy or intermittent, the new board will inherit the same instability. Installing a SIEMENS 6SY7000-0AA14 feedback interface board or a dedicated signal isolator in the feedback loop can resolve this before it becomes a recurring fault.

The 24VDC auxiliary power supply feeding the control electronics deserves particular attention. Aging SIMOREG cabinets often have deteriorated power supply modules that deliver marginal voltage under load. Replacing or testing the auxiliary supply — such as a SITOP PSU100S or equivalent 24V regulated supply — before commissioning the new board prevents nuisance faults and protects the investment in the replacement part.

Communication links also require verification. Many ES300-series drives are integrated into plant SCADA or DCS systems via PROFIBUS DP or analog setpoint interfaces. The SIEMENS 6SY7000-0AA60 PROFIBUS communication board or the existing analog I/O terminal strip should be inspected for loose connections, corroded terminals, and correct address settings. A misconfigured node address or a broken PROFIBUS termination resistor can prevent the drive from accepting speed references after the board swap.

For cabinets that include a SIEMENS OP7 or OP17 HMI panel connected to the drive, engineers should verify that the HMI communication parameters match the drive’s updated configuration. If the drive parameters are re-downloaded from a backup, the HMI screen assignments and alarm thresholds should be cross-checked to ensure operator visibility is maintained throughout the retrofit.

Finally, the terminal block wiring — including the WAGO 750-series or Phoenix Contact CLIPLINE terminal strips commonly used in SIMOREG cabinets — should be inspected for insulation degradation and tightened to manufacturer torque specifications. Loose control wiring is a leading cause of intermittent faults in retrofitted drive systems and can be easily addressed during the planned maintenance window.

Downtime Control During System Migration

The primary objective of any ES300 retrofit is to restore production with the shortest possible interruption. A structured approach to the board replacement significantly reduces the risk of extended downtime.

Begin with a full parameter backup of the existing drive using the SIEMENS DriveMonitor or STARTER software before any hardware is disturbed. This backup preserves the motor data, ramp times, current limits, and application-specific settings that have been tuned over years of operation. Without this backup, re-commissioning the drive after the board swap can take hours or days rather than minutes.

During the physical swap, use ESD-safe handling procedures and document the original wiring connections with photographs before disconnecting any cables. The ES300-9655 board typically connects to the drive chassis via a multi-pin edge connector and several discrete signal wires. Labeling each wire before removal eliminates the risk of miswiring during reassembly.

After installation, perform a no-load test with the motor decoupled from the mechanical load before returning the drive to full production. Verify that speed feedback is stable, current limits are respected, and all fault codes are cleared. A controlled ramp-up under light load confirms that the retrofit is successful before the production line is restarted.

NINERMAS supports customers through this process by providing technical documentation, wiring reference guides, and pre-shipment test reports for every 6SY7000-0AA78 ES300-9655 unit dispatched. Our team can also advise on compatible replacement paths for other obsolete ES300 components to help customers build a comprehensive retrofit plan rather than addressing failures reactively.

Retrofit Support FAQ

Q1: Is the 6SY7000-0AA78 ES300-9655 a direct replacement for the original ES300-9655 board?
Yes. The 6SY7000-0AA78 ES300-9655 is designed as a direct board-level replacement for the original ES300-9655 within SIEMENS ES300 and SIMOREG drive cabinets. The connector footprint, mounting dimensions, and electrical interface are retained to allow drop-in installation without cabinet modification.

Q2: How do I verify compatibility before ordering?
Confirm the drive model number from the cabinet nameplate and cross-reference the existing board part number with the 6SY7000-0AA78 / ES300-9655 reference. If you have the original drive documentation or a photo of the existing board, our technical team at sale@ninermas.com can confirm compatibility before shipment.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. Each unit is tested before dispatch. In the event of a warranty claim, NINERMAS provides replacement or repair support. The warranty period begins from the date of shipment.

Q4: Can NINERMAS supply multiple units for maintenance stock?
Yes. NINERMAS maintains inventory of the 6SY7000-0AA78 ES300-9655 to support both single-unit emergency orders and bulk procurement for planned maintenance stock programs. Long-term supply agreements are available for customers managing multiple ES300 or SIMOREG installations. Contact sale@ninermas.com or +0086 187 5021 5667 for volume pricing and lead time confirmation.
