Siemens 6SX7010-0FF05 Service-Ready Spare Part for Industrial Maintenance

Siemens 6SX7010-0FF05 Service-Ready Spare Part for Industrial Maintenance

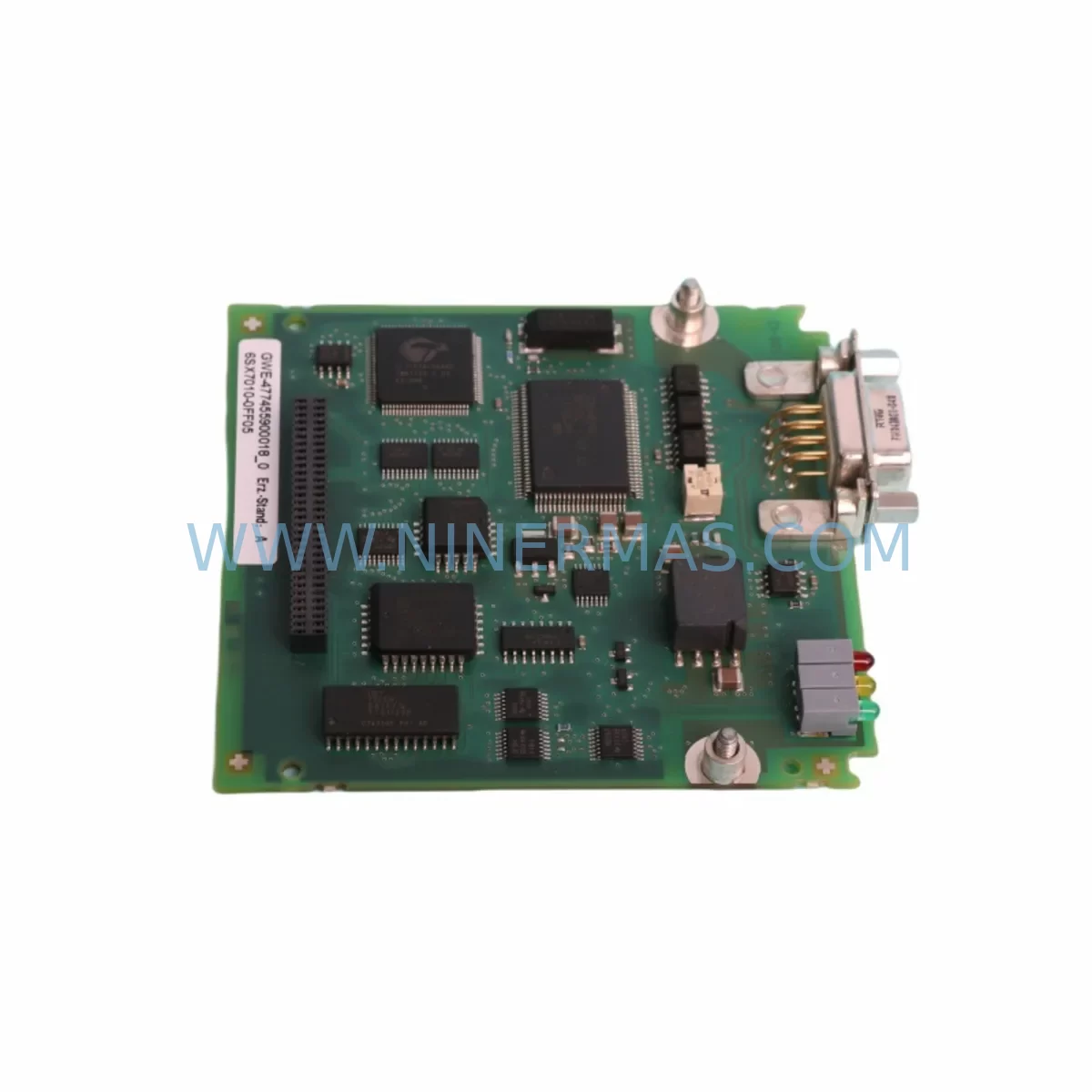

The Siemens 6SX7010-0FF05 is an original spare part designed for SIMOVERT series variable frequency drives, widely deployed in industrial automation environments including manufacturing lines, process control systems, and heavy-duty motor drive applications. When a SIMOVERT drive trips offline due to a failed internal component, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready replacement unit — tested, inspected, and backed by a 12-month warranty — is the fastest path to restoring full operation without compromising system integrity.

At NINERMAS, the 6SX7010-0FF05 is stocked as a ready-to-ship spare, pre-inspected against Siemens OEM specifications. Whether you are responding to an emergency breakdown, executing a scheduled annual overhaul, or building a strategic spare parts buffer for your control cabinet, this unit ships with full documentation and test records to support your maintenance log and procurement audit trail.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SX7010-0FF05 in a SIMOVERT drive is rarely an isolated task. Experienced maintenance engineers know that a drive fault often signals stress across adjacent components in the same electrical circuit. During the same maintenance window, it is best practice to inspect and — where wear is evident — replace the following associated components to prevent repeat failures and extend mean time between maintenance (MTBM):

• SIMOVERT Power Supply Module (e.g., 6SE7090 series PSU) — verify DC bus voltage stability and ripple before reinstalling the drive.
• DC Bus Capacitor Bank — capacitor degradation is a leading cause of drive faults; measure ESR and capacitance if the unit has been in service for more than five years.
• IGBT Gate Driver Board — inspect for thermal stress marks and verify gate signal integrity with an oscilloscope during commissioning.
• Siemens SIMOVERT Control Board (CU series) — check firmware version compatibility and inspect ribbon cable connectors for oxidation.
• I/O Terminal Expansion Module — verify all digital and analog I/O signal levels post-replacement to confirm correct parameter mapping.
• Siemens PROFIBUS DP Communication Module (e.g., CBP2) — test network communication integrity and check for address conflicts after drive restart.
• Motor Encoder Feedback Cable and Connector — inspect shielding continuity; a degraded encoder signal can cause immediate overcurrent faults after drive replacement.
• Input Line Reactor / EMC Filter — confirm the line reactor rating matches the drive’s input current; replace if insulation resistance has dropped.
• Fuse and Circuit Breaker on the Drive Input — replace input fuses as a matter of course; a nuisance blow may have preceded the drive fault.
• Cooling Fan and Fan Capacitor — SIMOVERT drives are thermally sensitive; a failing fan capacitor causes intermittent fan operation and thermal shutdown cycles that accelerate component aging.

Procurement engineers should consider holding at least one unit of the 6SX7010-0FF05 as a dedicated on-site spare, particularly in facilities running continuous 24/7 production where drive downtime is not tolerable. NINERMAS supports long-term supply agreements and can provide multi-unit quotations with staggered delivery schedules to align with your annual maintenance budget cycle.

Site Replacement Workflow

Replacing the 6SX7010-0FF05 on-site follows a structured sequence to minimize downtime and ensure system compatibility:

1. Isolate and De-energize: Follow LOTO (Lockout/Tagout) procedures. Discharge the DC bus capacitors fully — allow a minimum of 5 minutes after power-off before opening the drive enclosure.
2. Document Current Configuration: Upload or print the existing drive parameter set using STARTER or SCOUT software before removing the old unit. This eliminates re-commissioning time.
3. Physical Inspection: Before installing the 6SX7010-0FF05, inspect the mounting slot, backplane connector, and bus bar contacts for corrosion, carbon tracking, or mechanical damage.
4. Install and Secure: Seat the module firmly into the backplane, torque all terminal connections to specification, and verify that all ribbon cables and signal connectors are fully engaged.
5. Parameter Restore and Commissioning: Reload the saved parameter set. Perform a no-load motor test before reconnecting the mechanical load. Verify all fault codes are cleared.
6. Functional Verification: Run the drive through its full speed range under controlled load conditions. Monitor current, temperature, and output frequency for at least 30 minutes before returning the system to production.
7. Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the new unit’s serial number and the 12-month warranty start date.

This workflow is compatible with both direct replacement of the same SKU and cross-replacement from legacy SIMOVERT variants. If you are migrating from an older 6SX70xx series module, contact NINERMAS technical support to confirm parameter compatibility before installation.

Spare Parts Support FAQ

Q1: Is the 6SX7010-0FF05 a new original part or a refurbished unit?
All units supplied by NINERMAS are original Siemens spare parts sourced through authorized industrial supply channels. Each unit undergoes pre-shipment functional testing and is supplied with a test report. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q2: How do I confirm compatibility with my existing SIMOVERT drive system?
Compatibility is confirmed by matching the drive series, power rating, and firmware version of your existing system against the 6SX7010-0FF05 specification sheet. NINERMAS technical staff can assist with compatibility verification — provide your drive nameplate data and existing module part number when enquiring. We recommend confirming compatibility before placing a bulk order.

Q3: What is the lead time and can NINERMAS support long-term supply?
The 6SX7010-0FF05 is held in stock and ships within 1–3 business days from order confirmation. For facilities requiring ongoing supply — particularly those managing aging SIMOVERT installations — NINERMAS offers long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing for 12-month contract periods. Contact our sales team to discuss your annual consumption forecast.

Q4: What happens if the replacement part fails within the warranty period?
NINERMAS provides a 12-month warranty from the date of shipment. In the event of a warranty claim, contact sale@ninermas.com with your order reference, fault description, and site installation details. We will arrange priority replacement dispatch to minimize your downtime exposure. Warranty claims are processed within 3 business days of fault confirmation.
