Siemens 6SN1145-1BA02-0CA2 Service-Ready Spare Part

Siemens 6SN1145-1BA02-0CA2 Service-Ready Spare Part: Fast Replacement & Downtime Risk Control

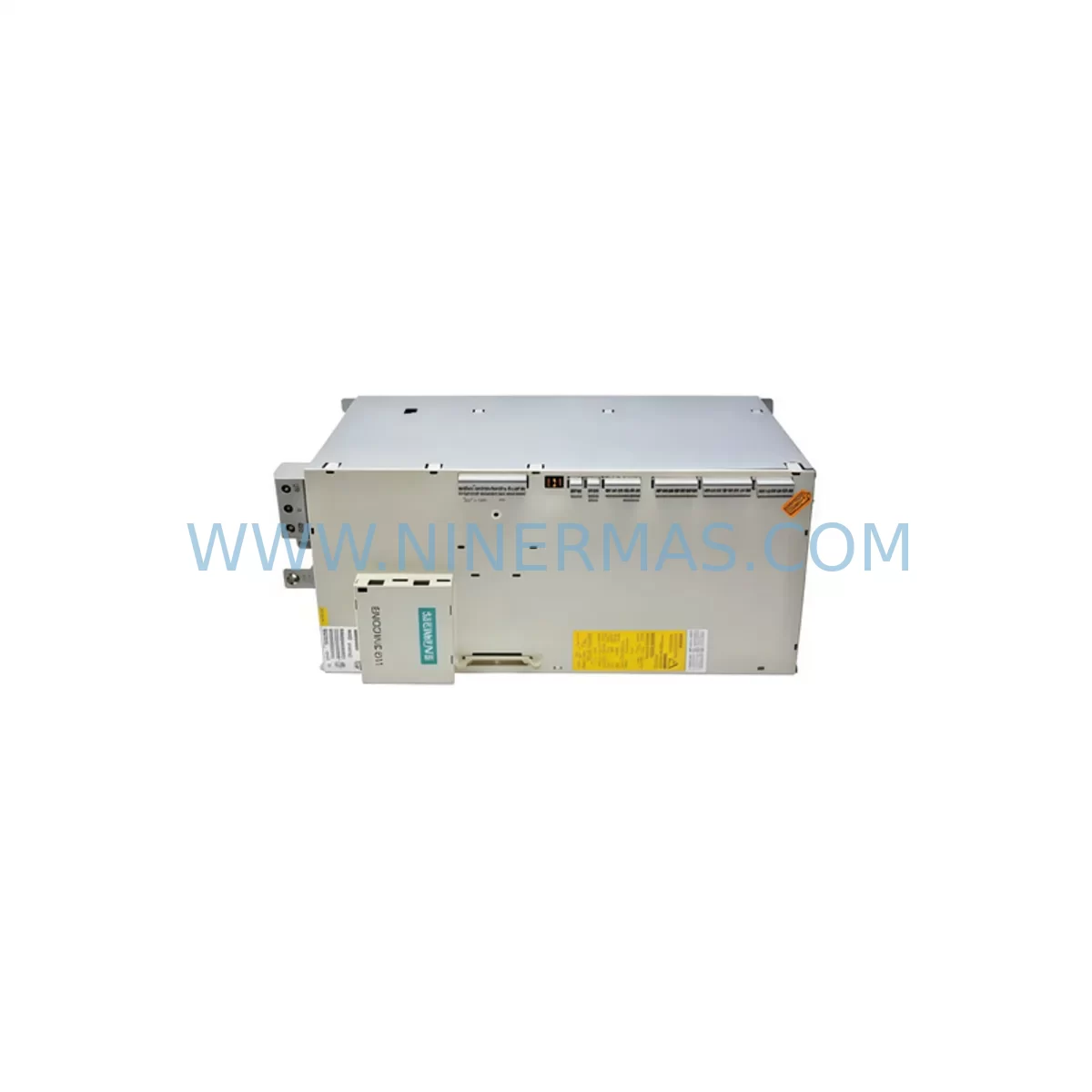

The Siemens 6SN1145-1BA02-0CA2 is a ruggedized DC link power module designed for the SIMODRIVE 611 drive system — one of Siemens’ most widely deployed servo drive platforms in CNC machining centers, transfer lines, and precision manufacturing environments. When this module fails or reaches end-of-service life, the entire axis group it powers goes offline, making rapid, verified replacement a top priority for maintenance and procurement engineers alike.

At NINERMAS, we stock the 6SN1145-1BA02-0CA2 as a service-ready spare part, pre-tested before shipment and backed by a 12-month warranty. Whether you are responding to an unplanned breakdown, executing a scheduled annual overhaul, or building a strategic spare parts buffer for aging SIMODRIVE 611 systems, this module ships with full documentation and is ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SN1145-1BA02-0CA2 in a SIMODRIVE 611 cabinet is rarely an isolated task. Experienced maintenance engineers know that a power module failure is often symptomatic of broader stress across the drive system. During the replacement window, it is best practice to inspect and — where necessary — simultaneously replace or verify the following components to prevent repeat failures and maximize uptime after restart.

The 6SN1146-1BB00-0BA1 infeed/regenerative feedback module shares the same DC bus and is subject to identical thermal and electrical stress cycles. If the 6SN1145-1BA02-0CA2 has failed due to capacitor aging or overvoltage, the infeed module should be tested under load before the system is returned to production. Similarly, the 6SN1118-0NH01-0AA1 SIMODRIVE 611 control board governs axis enable signals and fault logic — a corrupted firmware state or damaged optocoupler on this board can cause the replacement power module to trip immediately after installation.

On the power supply side, verify the 6EP1336-3BA00 SITOP power supply (24 V DC auxiliary supply) is delivering stable voltage within ±1% tolerance. Voltage sag on the 24 V rail is a common root cause of spurious drive faults that are misdiagnosed as power module failures. Inspect the terminal blocks and PE bus bars within the cabinet for signs of oxidation, loose torque, or thermal discoloration — particularly on the DC link connection points.

For systems integrated with Sinumerik 840D or 810D CNC controllers, confirm that the 6FC5210-0DF22-1AA0 NCU module or equivalent is communicating correctly over the PROFIBUS DP or DRIVE-CLiQ interface after the power module swap. A drive replacement that changes the module’s firmware revision can occasionally require a parameter re-download from the NCU. Keep a backup of the drive parameters stored on the 6FC5250-0AX00-2AA0 CF card or equivalent memory medium before beginning any replacement work.

I/O integrity should also be verified: the 6ES7321-1BL00-0AA0 SM321 digital input module or equivalent I/O modules connected to the drive’s enable and fault relay circuits should be checked for correct signal levels. Relay outputs from the drive’s ready contact — often wired through 3RT2015 or 3RH2 contactor/relay combinations — should be tested for contact resistance and correct switching behavior. A worn relay contact in the enable chain can prevent the new power module from entering the ready state.

For cabinets operating in high-ambient or dusty environments, inspect and clean the 6SN1162-0GA00-0AA0 fan/capacitor module if fitted, and verify that the cabinet door filters are not restricting airflow. Thermal management is the single largest factor in SIMODRIVE 611 power module longevity. Finally, if the system uses 6SL3055-0AA00-4CA0 SINAMICS or legacy signal isolators on analog speed reference inputs, verify signal integrity with a calibrated meter before closing the cabinet — analog reference drift can cause axis instability that is difficult to distinguish from a hardware fault.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the SIMODRIVE 611 cabinet following LOTO procedures. Verify DC link voltage has discharged below 50 V before touching any bus bar connections (allow a minimum of 5 minutes after power-off for capacitor discharge).

Step 2 — Parameter Backup: Before removing the faulty 6SN1145-1BA02-0CA2, upload all drive parameters to the Sinumerik NCU or an external programming device. Record the module’s slot position, DC link bus bar orientation, and any jumper or DIP switch settings.

Step 3 — Module Removal: Disconnect the DC link bus bars, PE connection, and all signal connectors. Note the torque values for bus bar bolts (typically 6–8 Nm for M6 connections). Remove the module from the backplane by releasing the mounting screws and sliding it out of the guide rails.

Step 4 — Compatibility Verification: Confirm the replacement 6SN1145-1BA02-0CA2 matches the original in firmware revision, hardware index (e.g., -0CA2 suffix), and DC link current rating. NINERMAS provides the hardware index and firmware version on the shipping label and test certificate.

Step 5 — Installation and Re-commissioning: Install the new module, reconnect all bus bars to specified torque, restore signal connectors, and re-download drive parameters from backup. Power up in stages — first the 24 V auxiliary supply, then the main AC infeed — and verify the module enters the ready state (green LED) before enabling axes.

Step 6 — Functional Test: Run each axis through a low-speed jog cycle and verify current feedback, position accuracy, and fault-free operation before returning the machine to production. Document the replacement in the maintenance log with the new module’s serial number and test date.

This structured workflow minimizes re-work risk, ensures system compatibility, and reduces total downtime from fault detection to production restart — typically achievable within 2–4 hours when a verified spare is on hand.

Spare Parts Support FAQ

Q1: Is the 6SN1145-1BA02-0CA2 compatible with all SIMODRIVE 611 variants?
The 6SN1145-1BA02-0CA2 is designed for the SIMODRIVE 611 platform and is compatible with 611A, 611D, and 611U drive module configurations when used with the correct infeed module and DC link bus bar arrangement. Compatibility with specific axis module combinations depends on the total DC link current demand. NINERMAS technical support can verify compatibility against your cabinet layout before shipment — contact sale@ninermas.com with your existing module list.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects, premature component failure under normal operating conditions, and any fault attributable to the module itself rather than external system conditions. Each unit shipped by NINERMAS is accompanied by a test certificate confirming pre-shipment functional testing. Warranty claims are processed by returning the faulty unit with the original test certificate and a brief fault description. Warranty period begins from the date of shipment.

Q3: How should I manage long-term spare parts inventory for aging SIMODRIVE 611 systems?
For production lines with 5 or more SIMODRIVE 611 cabinets, we recommend maintaining a minimum of one 6SN1145-1BA02-0CA2 per cabinet group as a hot spare, stored in anti-static packaging in a climate-controlled environment (10–40°C, <75% RH). For systems beyond 10 years of service, consider a two-unit buffer given the increasing probability of concurrent failures. NINERMAS offers long-term supply agreements and reserved stock programs for high-volume maintenance customers — inquire at sale@ninermas.com.

Q4: Can NINERMAS supply other SIMODRIVE 611 components to complete a full cabinet overhaul?
Yes. NINERMAS maintains stock of a broad range of SIMODRIVE 611 and Sinumerik-compatible components including infeed modules, axis drive modules, control boards, fan/capacitor assemblies, and associated Siemens SITOP power supplies. If you are planning a scheduled overhaul or building a comprehensive spare parts kit, send your BOM or cabinet layout to sale@ninermas.com and our team will provide availability and lead time confirmation within 24 hours.
