Siemens 6SN1145-1AA01-0AA2 Safety-Reliable Infeed Module

Siemens 6SN1145-1AA01-0AA2 Safety-Reliable Infeed Module for Critical Control Sites

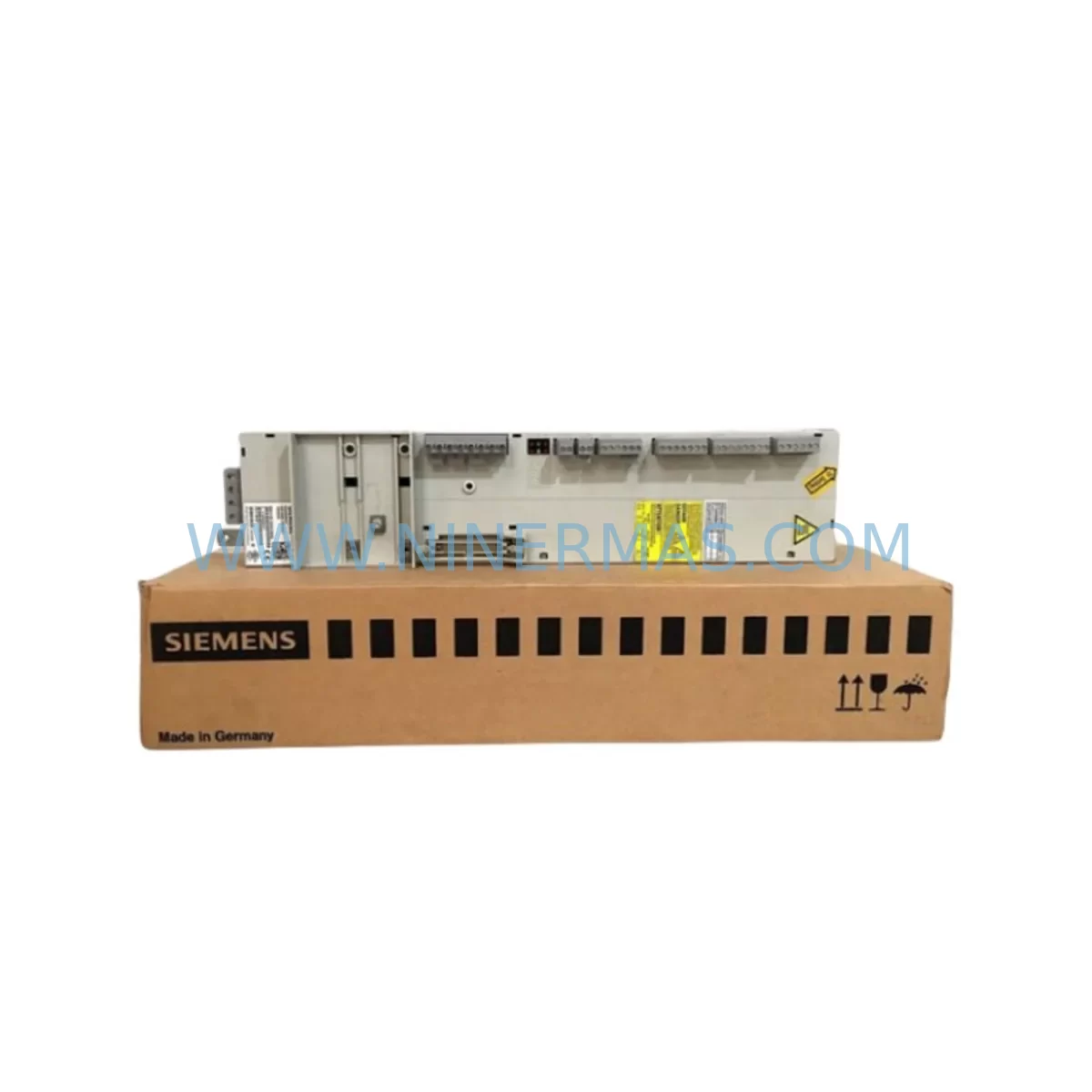

The Siemens 6SN1145-1AA01-0AA2 is a regenerative infeed and feedback module designed for the SIMODRIVE 611 drive system — one of Siemens’ most field-proven servo drive platforms deployed across precision CNC machining centers, heavy-duty milling lines, and safety-critical automation cabinets worldwide. This module serves as the central DC bus power supply unit within the SIMODRIVE 611 drive group, converting incoming AC mains power into a stable, regulated DC link voltage while simultaneously enabling regenerative energy feedback to the grid during braking cycles. In high-demand industrial environments where control continuity is non-negotiable, the 6SN1145-1AA01-0AA2 delivers the power stability and protection architecture that keeps production lines running without interruption.

At NINERMAS, every unit of the 6SN1145-1AA01-0AA2 is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring that your critical control cabinet receives a component that performs from day one and continues to do so throughout its service life.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a fully integrated SIMODRIVE 611 drive cabinet, the 6SN1145-1AA01-0AA2 infeed module does not operate in isolation — it anchors an entire ecosystem of interdependent components whose collective reliability determines whether a production line stays online or faces an unplanned shutdown. Understanding how this module interacts with its cabinet neighbors is essential for any maintenance engineer or spare parts planner responsible for critical site uptime.

The DC bus output of the 6SN1145-1AA01-0AA2 feeds directly into the SIMODRIVE 611 axis drive modules (such as the 6SN1123 and 6SN1124 series), which control individual servo axes on CNC machining centers and transfer lines. Any instability in the DC link — caused by mains voltage fluctuation, capacitor aging, or infeed module degradation — propagates immediately to these axis drives, resulting in position drift, torque irregularities, or emergency stop events. Replacing a degraded infeed module with a tested 6SN1145-1AA01-0AA2 unit eliminates this upstream risk at its source.

The module’s internal monitoring logic communicates status signals through the SIMODRIVE 611 drive bus backplane, which also carries real-time data to the SINUMERIK 840D sl or SINUMERIK 810D CNC controller. If the infeed module detects a DC bus fault, it triggers a coordinated shutdown signal across all connected axis modules — a safety interlock behavior that prevents uncontrolled axis movement during power anomalies. This architecture is particularly critical in multi-axis gantry systems and heavy-duty boring mills where simultaneous axis runaway would cause catastrophic tooling or workpiece damage.

On the mains input side, the 6SN1145-1AA01-0AA2 is typically protected by a SIEMENS 3RV or 3NP series main circuit breaker and coordinated with a SIEMENS SITOP power supply for the 24 V DC control circuit. Surge protection devices — such as the DEHN or Phoenix Contact SPD modules — are recommended upstream of the infeed module in environments with frequent lightning strikes or utility switching transients, particularly in outdoor substations, port crane control rooms, and open-pit mining sites. The regenerative feedback capability of the 6SN1145-1AA01-0AA2 also reduces the thermal load on braking resistors, which in high-cycle applications (such as press lines or winding machines) significantly extends the service life of the SIMODRIVE 611 pulsed resistor module (6SN1113 series).

For cabinet-level EMC integrity, the infeed module should be installed with a properly grounded SIMODRIVE 611 shield connection terminal and paired with a Siemens EMC line filter (6SL3000 series or equivalent) on the AC input. In environments with heavy variable-frequency drive (VFD) interference — such as steel rolling mills or chemical processing plants — this filter combination prevents high-frequency conducted emissions from corrupting the drive bus communication and causing spurious fault trips on the SIMODRIVE 611 monitoring module (6SN1114 series).

Critical Industrial Safety Applications

The Siemens 6SN1145-1AA01-0AA2 has established a long service record across the most demanding industrial environments where control system failure carries direct safety and financial consequences.

Petrochemical & Refinery Plants: In continuous process facilities, CNC-controlled valve actuators and compressor drive systems rely on stable DC bus power to maintain precise flow control. An infeed module failure in this context can trigger emergency shutdowns affecting entire process trains. The 6SN1145-1AA01-0AA2’s overvoltage suppression and regenerative feedback architecture make it a preferred replacement component for lifecycle extension programs in aging SIMODRIVE 611 installations at refinery sites.

Power Generation & Utilities: Turbine blade machining centers and generator rotor grinding machines in power plant maintenance workshops operate under strict quality tolerances. The DC bus stability provided by the 6SN1145-1AA01-0AA2 ensures that axis positioning accuracy is maintained even during mains voltage dips caused by large load switching events on the plant’s internal distribution network.

Mining & Mineral Processing: Underground and open-pit mining operations subject control cabinets to extreme vibration, dust ingress, and wide ambient temperature swings. The 6SN1145-1AA01-0AA2, installed within a properly sealed and climate-controlled cabinet enclosure, provides the power backbone for drill rig positioning systems, conveyor drive controllers, and ore crusher automation — applications where a single drive failure can halt an entire extraction shift.

Water & Wastewater Treatment: Pump station drive systems and sludge dewatering centrifuge controllers in municipal water treatment facilities require continuous, unattended operation. The regenerative infeed capability of the 6SN1145-1AA01-0AA2 reduces energy consumption during pump deceleration cycles while maintaining DC bus stability across variable load conditions — a key factor in facilities operating on tight energy budgets with limited on-site maintenance staff.

Metallurgy & Steel Production: Rolling mill drive systems and continuous casting machine controllers represent some of the highest-power, highest-cycle applications for SIMODRIVE 611 technology. The 6SN1145-1AA01-0AA2 infeed module, as a direct replacement for aging units in these installations, restores full regenerative braking performance and DC bus protection — reducing the risk of uncontrolled roll gap changes or casting speed deviations that could result in product defects or equipment damage.

Port & Marine Automation: Ship-to-shore crane drive systems and automated container handling equipment operate in high-humidity, salt-laden air environments. The 6SN1145-1AA01-0AA2, when installed in properly rated enclosures with appropriate derating for ambient conditions, provides reliable infeed performance for hoist and trolley drive systems where load drop prevention is a primary safety requirement.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the 6SN1145-1AA01-0AA2?
Every 6SN1145-1AA01-0AA2 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the module’s rated specifications. Our pre-shipment testing protocol verifies DC bus output voltage, regenerative feedback function, and internal protection circuit integrity before dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each unit undergoes a documented functional test sequence that includes: DC bus voltage output verification, overvoltage protection trigger test, cooling fan operation check, and drive bus communication signal integrity verification. Test records are available upon request for quality-critical procurement programs.

Q3: Is the 6SN1145-1AA01-0AA2 compatible with all SIMODRIVE 611 configurations?
The 6SN1145-1AA01-0AA2 is designed for use within the SIMODRIVE 611 drive group as a regenerative infeed module. Compatibility depends on the total connected drive power, mains voltage rating, and cabinet configuration. It is compatible with SINUMERIK 840D and 810D CNC systems when used with the appropriate SIMODRIVE 611 drive modules. For specific cabinet configurations, our technical team can assist with compatibility verification prior to order.

Q4: Can NINERMAS support long-term spare parts supply for SIMODRIVE 611 components?
Yes. NINERMAS maintains stock of SIMODRIVE 611 series components — including infeed modules, axis drive modules, monitoring modules, and power supply units — as part of our long-term spare parts program. We support lifecycle extension strategies for installations where OEM production has been discontinued, providing tested replacement units with defined lead times and fixed pricing for committed stock programs. Contact our team at sale@ninermas.com to discuss your site’s long-term supply requirements.
