Siemens 6SN1123-1AB00-0CA3 Retrofit-Compatible LT-Module

Siemens 6SN1123-1AB00-0CA3 Retrofit-Compatible LT-Module for Legacy SIMODRIVE 611 Systems

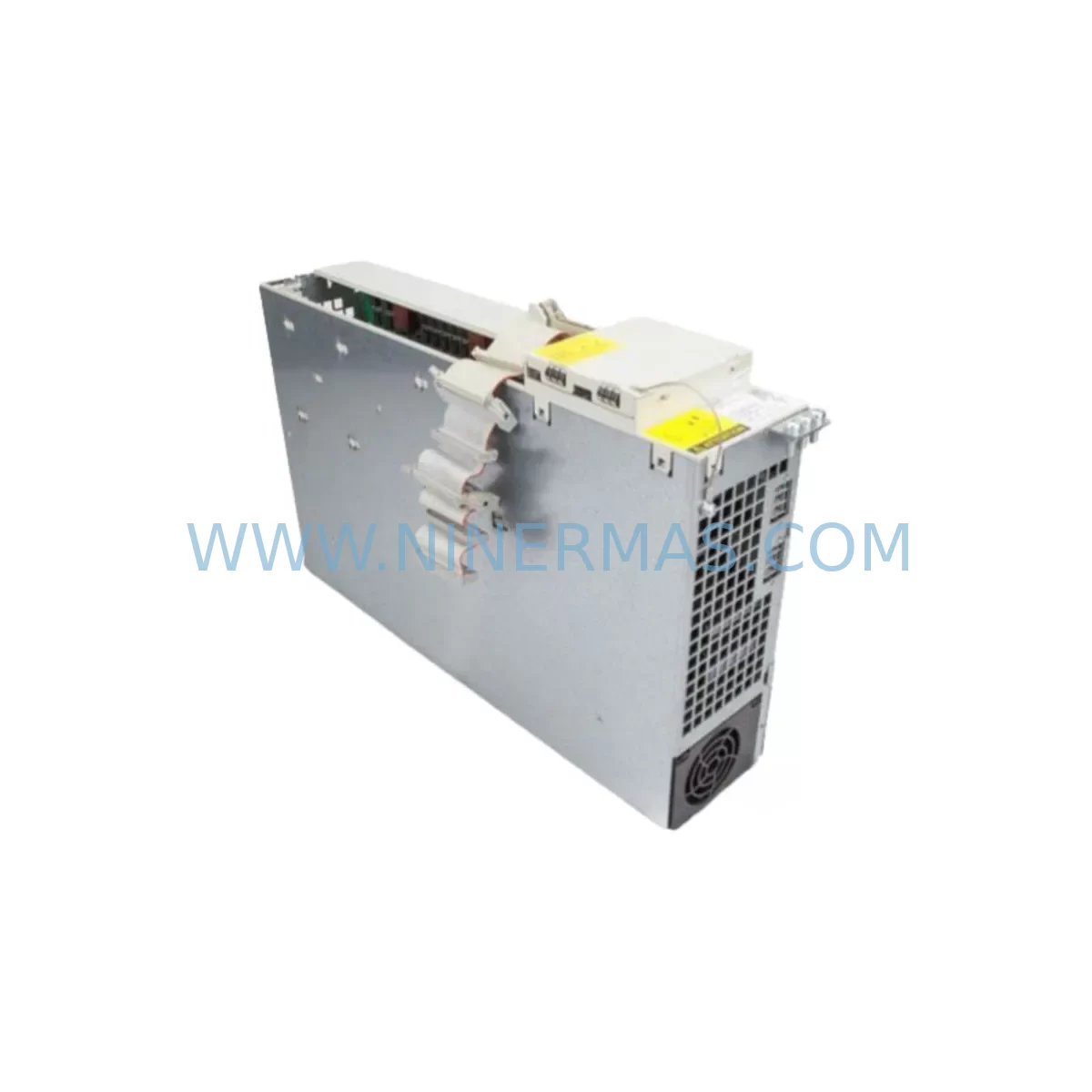

The Siemens 6SN1123-1AB00-0CA3 is a power module (LT-Module) within the SIMODRIVE 611 drive series, designed for axis feed and spindle control in CNC machine tool environments. As original SIMODRIVE 611 components approach end-of-life and spare part availability tightens, this module has become a critical retrofit and replacement component for engineers tasked with keeping legacy production lines operational. NINERMAS maintains verified stock of the 6SN1123-1AB00-0CA3 with full functional testing, outgoing inspection, and a 12-month warranty on every unit shipped.

Whether you are replacing a failed unit on an existing SINUMERIK 840D or 810D-controlled machine, upgrading a control cabinet that still runs on an older SIMODRIVE 611A or 611D platform, or consolidating spare parts inventory ahead of a planned retrofit, the 6SN1123-1AB00-0CA3 provides a direct, form-fit-function replacement that minimizes engineering rework and reduces machine downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a SIMODRIVE 611-based machine tool requires a structured approach that accounts for every component in the drive chain. The 6SN1123-1AB00-0CA3 LT-Module sits at the heart of the power section, but a successful retrofit also depends on the condition and compatibility of surrounding modules. Engineers should begin by auditing the 6SN1145-1BA01-0BA0 or equivalent infeed/regenerative feedback module, which supplies the DC link voltage that the LT-Module depends on. A degraded or mismatched infeed module will cause the replacement LT-Module to fault immediately on power-up.

The control section of the drive — typically a 6SN1118-series control module (611D or 611A variant) — must be inspected for firmware compatibility. If the existing control module carries an older firmware version, the new LT-Module may not initialize correctly without a parameter reset and re-upload from the SINUMERIK NCU or from a STARTER/SINAMICS Startdrive session. Keep a backup of the existing drive data set (using the 6FC5250-0AX30-2AH0 CF card or equivalent NCU memory card) before any hardware swap.

The backplane and rack assembly — the 6SN1162-series bus section — must be checked for corrosion, damaged bus bar contacts, and correct slot assignment. Module address settings, where applicable, must match the original configuration to avoid axis mapping errors in the SINUMERIK part program. If the machine uses a 6SN1160-series cable set for motor feedback (resolver or encoder), verify that the feedback connector pinout is compatible with the replacement module before powering up.

For machines that communicate over PROFIBUS-DP, confirm that the NCU’s PROFIBUS address assignments and GSD file configuration remain unchanged after the module swap. In systems where a 6FC5303-0AF36-0AA0 or similar operator panel interface (OPI) connects the HMI to the NCU, verify that the HMI screen assignments for axis status, drive diagnostics, and alarm displays are still correctly mapped after the retrofit. Any axis-specific machine data (MD) that references drive parameters should be re-validated in the SINUMERIK service menu.

If the retrofit involves expanding I/O capacity alongside the drive replacement, consider adding a 6ES7321-series digital input module or a 6ES7322-series digital output module to the existing S7-300 or S7-400 rack if the control architecture includes a Simatic PLC layer. Signal isolators may be required at the interface between the new drive module and legacy 24 V DC field wiring to prevent ground loop interference during the transition period.

Power capacity verification is essential before commissioning. Confirm that the existing power supply — whether a 6EP1-series SITOP unit or an integrated SIMODRIVE infeed — can sustain the peak current demand of the replacement LT-Module under full-load axis acceleration. Undersized power capacity is one of the most common causes of nuisance tripping after a drive module replacement.

Downtime Control During System Migration

Minimizing production downtime during a SIMODRIVE 611 module replacement requires preparation that begins well before the maintenance window opens. The first step is to export and archive the complete drive parameter set from the SINUMERIK NCU using the series start-up file or the STARTER project backup. This ensures that if the replacement module requires re-parameterization, the original axis tuning data — including speed controller gains, current limits, encoder resolution settings, and referencing parameters — can be restored in minutes rather than hours.

Before removing the 6SN1123-1AB00-0CA3 from the cabinet, photograph the existing terminal wiring, bus bar connections, and cable routing. Label every connector. The DC link bus bars in a SIMODRIVE 611 cabinet carry residual voltage for several minutes after power-down; always verify with a calibrated meter before touching any bus bar connection. Follow the discharge procedure specified in the SIMODRIVE 611 installation manual and allow the DC link capacitors to fully discharge before proceeding.

During the swap, keep the machine’s PLC in STOP mode and the SINUMERIK NCU in the service/maintenance state to prevent any automatic restart sequence from initiating. After installing the replacement module and reconnecting all terminals, perform a visual inspection of all connections before applying power. On first power-up, monitor the drive bus status LEDs and the SINUMERIK alarm log simultaneously. Address any parameter faults (typically P-alarms or A-alarms related to drive configuration) before enabling axis motion.

A controlled test cycle — running each affected axis through its full travel range at reduced feedrate — should be completed before returning the machine to production. Document the post-retrofit axis performance data and compare it against the pre-retrofit baseline. This record supports both quality assurance requirements and future maintenance planning. With a pre-tested, warranted replacement unit from NINERMAS and a structured migration plan, most SIMODRIVE 611 LT-Module replacements can be completed within a single planned maintenance shift.

Retrofit Support FAQ

Q1: Is the 6SN1123-1AB00-0CA3 a direct drop-in replacement for the same SKU currently installed in my machine?
A: Yes, units sharing the same full part number are form-fit-function compatible. However, always verify the firmware version on the associated control module (6SN1118-series) and confirm that the DC link bus bar configuration matches before powering up. If the existing unit has been modified in the field, document those modifications before removal.

Q2: What commissioning steps are required after installing the replacement LT-Module?
A: After physical installation and terminal reconnection, restore the drive parameter set via the SINUMERIK NCU or STARTER software. Verify axis machine data, encoder feedback signals, and drive enable logic. Run a test cycle at reduced feedrate on all affected axes before returning to full production speed. Check the SINUMERIK alarm log for any residual drive faults.

Q3: Has the unit been tested before shipment, and what does the warranty cover?
A: Every 6SN1123-1AB00-0CA3 unit shipped by NINERMAS undergoes functional testing and outgoing inspection prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with appropriate anti-static and moisture protection packaging.

Q4: What is your typical lead time and do you maintain stock?
A: NINERMAS maintains available inventory of the 6SN1123-1AB00-0CA3. Lead time for in-stock units is typically 3–7 business days depending on destination. For urgent requirements, contact our team directly to confirm current stock status and expedited shipping options.
