Siemens 6SN1123-1AA00-0EA1 Retrofit Power Module Legacy

Siemens 6SN1123-1AA00-0EA1 Retrofit-Compatible Power Module for Legacy SIMODRIVE 611 Systems

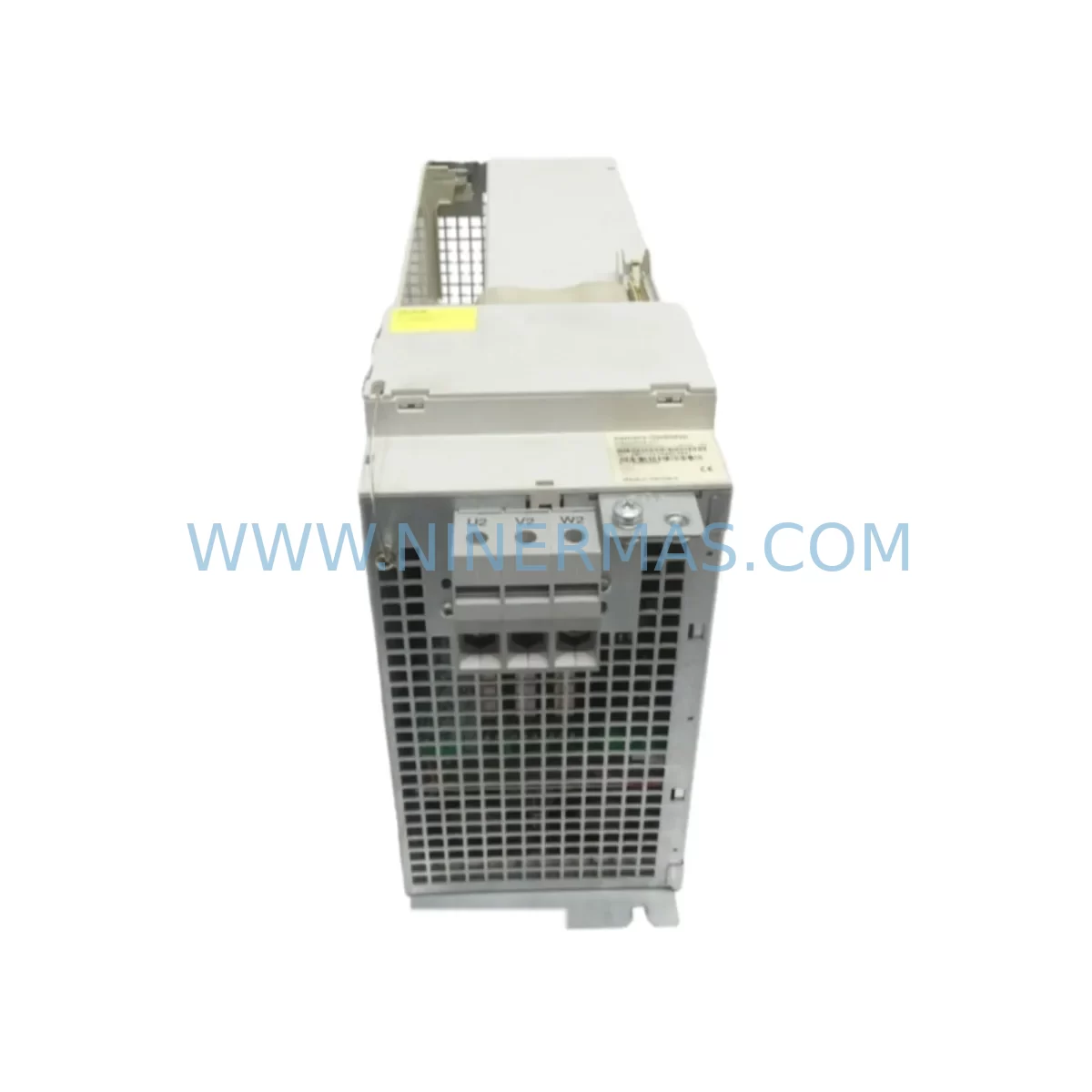

The Siemens 6SN1123-1AA00-0EA1 is a feed/spindle power module designed for the SIMODRIVE 611 drive series — one of Siemens’ most widely deployed servo drive platforms in CNC machining centers, transfer lines, and automated production equipment. As original equipment reaches end-of-life and spare parts become increasingly scarce, the 6SN1123-1AA00-0EA1 remains a critical component for engineers and maintenance teams tasked with keeping legacy systems operational, extending machine service life, and executing controlled modernization projects without full-line replacement.

At NINERMAS, we specialize in sourcing, testing, and supplying discontinued and hard-to-find industrial automation components. Every 6SN1123-1AA00-0EA1 unit we ship undergoes functional verification and is backed by a 12-month warranty, giving your maintenance team the confidence to proceed with retrofit and upgrade projects on tight schedules and tighter budgets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6SN1123-1AA00-0EA1 in an active production environment requires careful pre-planning across several interdependent system layers. Before removing the failed module, maintenance engineers should document the existing drive parameter set using the SIMODRIVE 611 commissioning software or the SINUMERIK 840D / 810D operator panel’s drive data backup function. This ensures that axis-specific tuning data — including current limits, speed controller gains, encoder assignments, and motor data sets — can be restored to the replacement unit without re-commissioning from scratch.

On the hardware side, confirm that the 6SN1118-0NH01-0AA0 NE/UE module (line infeed) is functioning correctly before installing the replacement power module. A faulty infeed module is a common root cause of repeated power module failures and must be ruled out during the diagnostic phase. Similarly, inspect the 6SN1162-0GA00-0AA0 shield connection plate and the DC bus connector for signs of arcing, corrosion, or mechanical damage — these components are often overlooked during module swaps but are critical to system stability.

For systems running multiple axes, verify that the 6SN1123-1AB00-0BA1 or 6SN1123-1AB00-0CA1 axis drive modules sharing the same drive bus are not drawing excessive current that may have contributed to the original failure. Check the drive bus ribbon cable and backplane connectors for continuity and insulation integrity. If the control cabinet also houses a 6SN1145-1BA01-0BA0 monitoring module, confirm its status LEDs and fault outputs are clear before powering up the replacement.

Where the retrofit involves a broader system upgrade — for example, migrating from an older SINUMERIK 810D to a SINUMERIK 840D sl platform — the 6SN1123-1AA00-0EA1 remains compatible with the SIMODRIVE 611 universal drive modules used in both environments. In these cases, also plan for the replacement or reconfiguration of the 6FC5203-0AF02-1AA0 SINUMERIK operator panel interface and any associated 6FX2001-series encoder cables to ensure signal integrity between the new controller and the existing servo motors.

I/O expansion requirements should also be assessed at this stage. If the retrofit involves adding new axes or integrating additional process signals, consider whether the existing 6ES7321 / 6ES7322 SIMATIC S7-300 digital I/O modules in the control cabinet have sufficient capacity, or whether additional slots and a rack extension are required. For systems where the SIMODRIVE 611 communicates with a SIMATIC S7 PLC via PROFIBUS-DP, verify that the 6GK1500-0FC10 PROFIBUS connector termination resistors are correctly set on the bus segment after any hardware changes.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy system retrofit. For the 6SN1123-1AA00-0EA1 replacement, the most effective strategy is to complete all pre-work — parameter backup, spare parts staging, wiring documentation, and safety isolation procedures — before the maintenance window begins. A well-prepared team can typically complete a single power module swap within two to four hours, including functional verification and a supervised production restart.

To protect the original program logic, always back up the SINUMERIK NC program files, PLC ladder logic (stored in the SIMATIC S7 CPU), and drive parameter files to an external storage device or engineering workstation before beginning any hardware work. If the machine uses a 6FC5250-0AF02-0AA0 PCMCIA memory card for NC data storage, verify the card is readable and the backup is current. This eliminates the risk of data loss if the replacement procedure encounters unexpected complications.

For critical production lines where even a brief interruption is costly, consider maintaining a pre-configured and parameter-loaded spare 6SN1123-1AA00-0EA1 in your on-site inventory. NINERMAS can supply pre-tested units with customer-specified parameter sets loaded on request, further reducing the time between module removal and production restart. Our standard lead time for in-stock units is 3–5 business days for international shipments, with expedited options available for urgent requirements.

After installation, conduct a controlled power-up sequence: energize the infeed module first, confirm DC bus voltage is within specification, then enable the axis drives one at a time while monitoring current draw and fault registers on the SINUMERIK operator panel. Run the machine through a slow-speed dry cycle before returning to full production speed to verify that all axes are tracking correctly and no residual faults are present.

Retrofit Support FAQ

Q1: Is the 6SN1123-1AA00-0EA1 a direct drop-in replacement for my existing failed module?
In most cases, yes. The 6SN1123-1AA00-0EA1 is designed to fit the standard SIMODRIVE 611 backplane slot and uses the same drive bus connector as other modules in the 6SN1123 family. However, you should verify the DC bus voltage rating, current capacity, and firmware revision compatibility with your specific machine configuration before installation. Our technical team can assist with compatibility verification if you provide your machine model and existing drive configuration.

Q2: Do I need to re-enter all drive parameters after replacing the module?
Yes, drive parameters are stored in the module itself and will need to be restored after replacement. We strongly recommend performing a full parameter backup using the SIMODRIVE 611 commissioning software or the SINUMERIK operator panel before removing the failed unit. If the original module is completely non-functional and no backup exists, our team can assist with parameter reconstruction based on motor data sheets and machine documentation.

Q3: Has the unit been tested before shipment?
Yes. Every 6SN1123-1AA00-0EA1 unit supplied by NINERMAS undergoes functional testing under load conditions prior to shipment. Units are inspected for physical damage, connector integrity, and electrical performance. A test report is available on request. All units are shipped with anti-static packaging and are covered by our 12-month warranty from the date of delivery.

Q4: What is your stock availability and lead time?
NINERMAS maintains a dedicated inventory of SIMODRIVE 611 series components, including the 6SN1123-1AA00-0EA1, to support urgent retrofit and breakdown recovery requirements. Standard in-stock units ship within 1–3 business days. For large quantity orders or long-term supply agreements, please contact our sales team to discuss scheduling and pricing. We serve customers globally with reliable logistics and customs documentation support.
