Siemens 6SN1118-0DH23-0AA0 Service-Ready Spare Part

Siemens 6SN1118-0DH23-0AA0 Service-Ready Spare Part for Industrial Maintenance

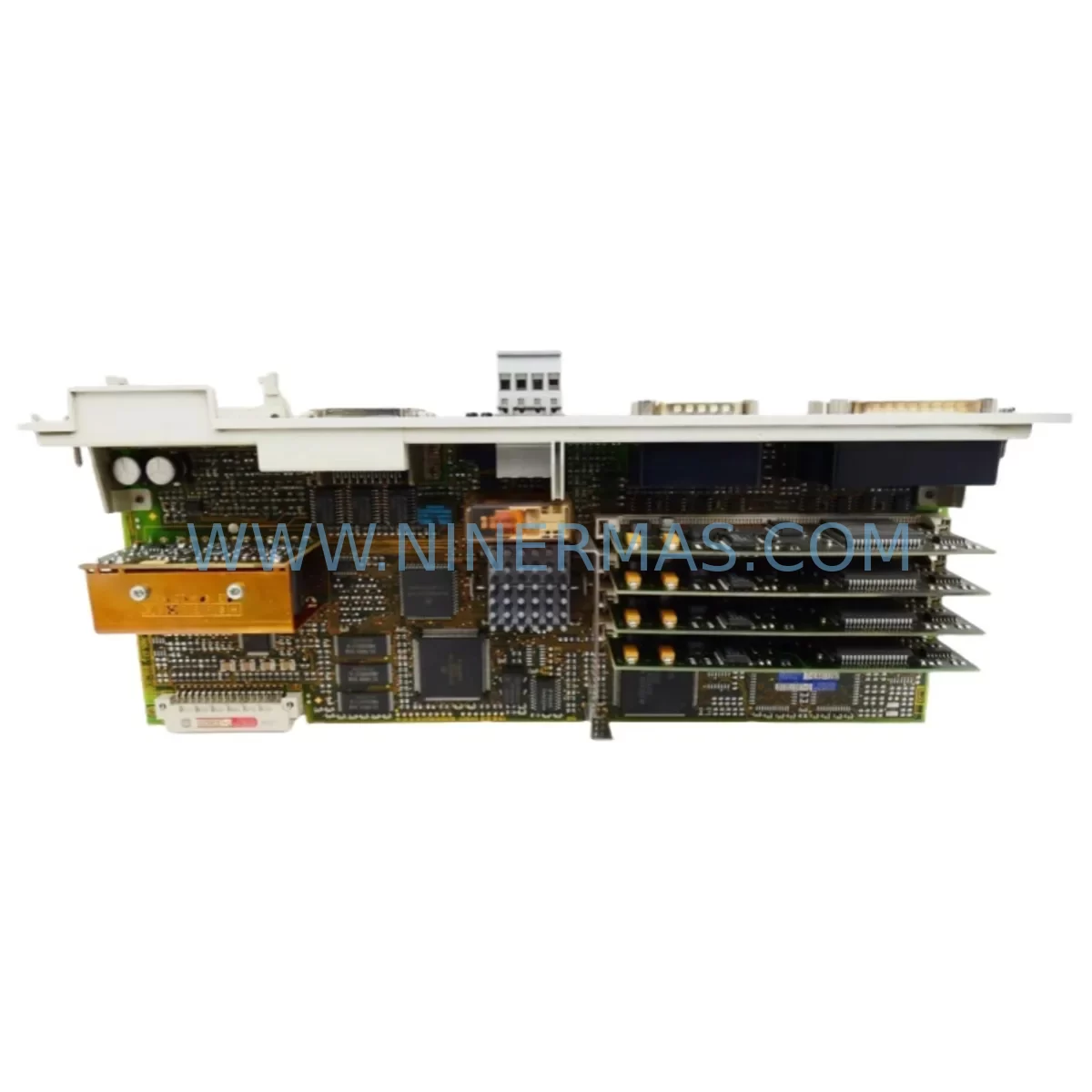

The Siemens 6SN1118-0DH23-0AA0 is a control module designed for the SIMODRIVE 611 drive series — one of Siemens’ most widely deployed servo and spindle drive platforms in CNC machining centers, transfer lines, and automated production systems. As manufacturing facilities continue to operate legacy SIMODRIVE 611 infrastructure well beyond its original design lifecycle, maintaining a reliable inventory of service-ready spare parts such as the 6SN1118-0DH23-0AA0 is essential for minimizing unplanned downtime and protecting production continuity.

At NINERMAS, every unit of the 6SN1118-0DH23-0AA0 is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, executing a scheduled annual overhaul, or building out your preventive maintenance spare parts inventory, this module is available for immediate shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMODRIVE 611 drive system triggers a fault — whether it is an axis following error, a current regulation alarm, or a communication dropout — the root cause is rarely isolated to a single component. Maintenance engineers responding to a 6SN1118-0DH23-0AA0 failure should treat the event as an opportunity to audit the entire drive cabinet and associated electrical circuit.

Begin with the SIMODRIVE 611 power supply module (e.g., 6SN1145 series infeed/regenerative unit), which provides the DC bus voltage to all drive modules in the cabinet. A degraded or overloaded infeed module can cause downstream control board failures that appear as module faults. Simultaneously, inspect the 6SN1162 series shield connection terminals and 6SN1113 series motor connection cables — damaged shielding or loose encoder cable connections are a frequent source of intermittent axis faults that are misdiagnosed as control module failures.

The 6SN1118 series control boards interface directly with the drive’s power section via the internal backplane. If the backplane bus connector shows signs of oxidation or mechanical wear, replacing the control module alone will not resolve the fault. Inspect the SIMODRIVE 611 backplane bus board and verify that all module seating contacts are clean and fully engaged.

For systems integrated with a SINUMERIK 840D or 810D CNC controller, the drive communication path runs through the PROFIBUS-DP interface or the internal drive bus. A faulty 6SN1118-0DH23-0AA0 can disrupt axis parameterization and cause the CNC to report drive-not-ready or axis configuration errors. After replacing the module, re-upload the axis machine data from the NCU (Numerical Control Unit) or from a backup MD file to restore correct drive parameters.

Procurement engineers building a SIMODRIVE 611 spare parts kit should also consider stocking the 6SN1114 series monitoring modules, which provide I²t monitoring and short-circuit protection for the drive output stage. These modules are often overlooked until a motor winding fault causes secondary damage to the control board. Including a 6SN1111 series line filter in the spare parts inventory further protects the drive system from mains-borne interference that can accelerate control board degradation.

For facilities running multi-axis machining centers, the 6FC5 series SINUMERIK NCU modules and associated 6SN1162 SIMODRIVE terminal expansion boards should be part of the annual inspection checklist. Signal isolation between the CNC and the drive system — particularly for analog speed reference signals in 611A configurations — depends on the integrity of these interface components. A failing signal isolator or a degraded reference voltage can cause axis drift and positioning errors that are difficult to trace without systematic component-level testing.

Finally, do not overlook the 24 VDC control power supply feeding the drive cabinet logic circuits. An undersized or aging SITOP power supply (e.g., 6EP1 series) delivering marginal voltage under load is a common cause of intermittent control module resets and unexplained drive faults. Verifying supply voltage at the module terminals — not just at the power supply output — is a critical step in any SIMODRIVE 611 fault investigation.

Site Replacement Workflow

Replacing the 6SN1118-0DH23-0AA0 in a live production environment requires a structured approach to minimize downtime and avoid secondary faults. Follow this recommended workflow:

Step 1 — Pre-Replacement Backup: Before powering down the drive cabinet, use the SINUMERIK operator panel or SIMATIC S7 programming tool to export all drive parameters (machine data, axis data, and PROFIBUS configuration) to a USB drive or network backup location. This ensures that the replacement module can be commissioned with the correct parameters without manual re-entry.

Step 2 — Safe Isolation: Isolate the drive cabinet from mains power using the main disconnect switch and verify zero-energy state with a calibrated voltage tester. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after power-off) before opening the cabinet.

Step 3 — Module Removal: Release the module locking lever, disconnect the backplane bus connector, and carefully extract the 6SN1118-0DH23-0AA0 from its slot. Note the slot position and any DIP switch or jumper settings on the outgoing module before removal.

Step 4 — Inspection and Comparison: Compare the replacement module’s hardware revision and firmware version with the outgoing unit. For SIMODRIVE 611D (digital) systems, firmware compatibility with the NCU software version must be confirmed before installation. Contact NINERMAS technical support if version matching assistance is required.

Step 5 — Installation and Parameter Restore: Insert the replacement module, secure the locking lever, and restore power to the cabinet. Upload the backed-up drive parameters to the new module via the CNC operator panel or drive commissioning tool (e.g., STARTER or SINAMICS Startdrive for compatible configurations). Perform a controlled axis reference run before returning the machine to production.

Step 6 — Functional Verification: Run the axis through its full travel range at reduced feedrate, verify encoder feedback signals, and confirm that no drive alarms are active. Log the replacement in the machine maintenance record and update the spare parts inventory accordingly.

Spare Parts Support FAQ

Q1: Is the 6SN1118-0DH23-0AA0 compatible with both SIMODRIVE 611A (analog) and 611D (digital) drive systems?
The 6SN1118-0DH23-0AA0 is a control module within the SIMODRIVE 611 family. Compatibility depends on the specific drive power section and system configuration. NINERMAS recommends confirming the hardware revision and drive variant (611A or 611D) against your existing system documentation before ordering. Our technical team can assist with compatibility verification based on your machine’s drive cabinet layout and NCU software version.

Q2: What is included in the 12-month warranty, and what does the pre-shipment inspection cover?
Every 6SN1118-0DH23-0AA0 shipped by NINERMAS is inspected for physical integrity, connector condition, and functional readiness prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated specifications. Warranty claims are processed with priority to minimize customer downtime.

Q3: Can NINERMAS support long-term supply agreements for SIMODRIVE 611 spare parts?
Yes. NINERMAS specializes in long-term supply support for legacy industrial automation components, including the full SIMODRIVE 611 control module range. We maintain strategic inventory of high-demand spare parts and can establish blanket purchase agreements for facilities with recurring maintenance requirements. Contact our sales team at sale@ninermas.com to discuss volume pricing and scheduled delivery programs.

Q4: How should the 6SN1118-0DH23-0AA0 be stored if purchased as a buffer spare?
Store the module in its original anti-static packaging in a dry, temperature-controlled environment (recommended: 15–35 °C, relative humidity below 75% non-condensing). Avoid storing near strong magnetic fields or in areas subject to vibration. Inspect the module annually for any signs of connector oxidation or packaging degradation. Properly stored, the module can be held as a buffer spare for 3–5 years without significant risk of shelf degradation.
