Siemens 6SL3210-5BE17-5UV0 Retrofit-Compatible VFD for Legacy Systems

Siemens 6SL3210-5BE17-5UV0 Retrofit-Compatible VFD for Legacy Systems

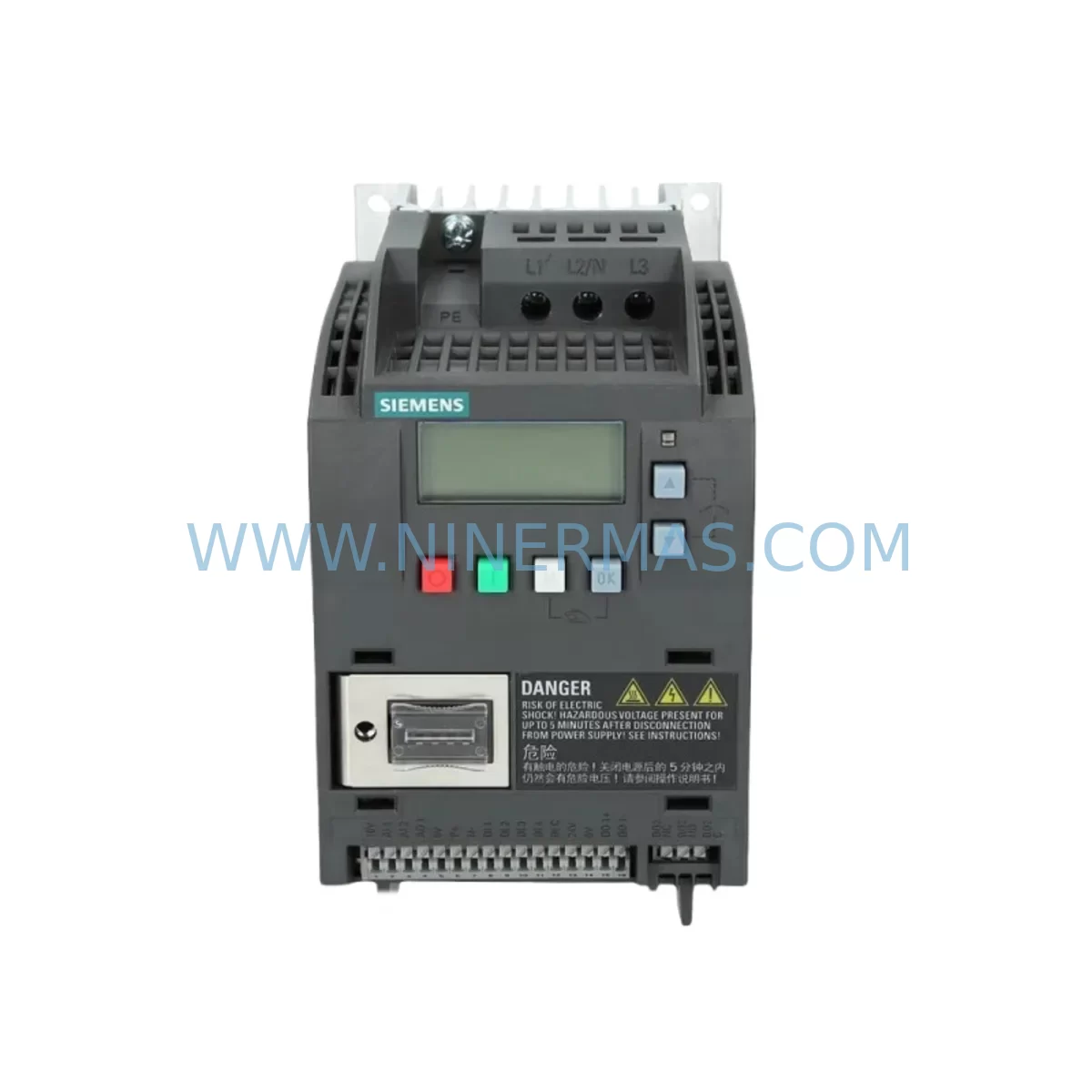

The Siemens 6SL3210-5BE17-5UV0 is a compact variable frequency drive from the SINAMICS G120C series, rated at 0.75 kW / 1 HP for three-phase 200–240 V AC input. As legacy automation lines age and original spare parts become increasingly difficult to source, the 6SL3210-5BE17-5UV0 has become a critical retrofit solution for engineers tasked with modernizing older motor control systems without full panel redesigns. NINERMAS maintains verified stock of this unit, fully tested prior to shipment and backed by a 12-month warranty.

Whether you are replacing a discontinued MICROMASTER 420 or MICROMASTER 440 drive, migrating from an older SIMOREG DC drive platform, or upgrading a legacy SINAMICS G110 installation, the 6SL3210-5BE17-5UV0 offers a compact footprint and integrated safety functions that simplify the transition. Its built-in USS and Modbus RTU communication interfaces make it compatible with existing HMI panels and SCADA systems without requiring protocol converters in most standard retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6SL3210-5BE17-5UV0 begins with a thorough review of the existing control cabinet layout. Engineers should first confirm available installation space, as the G120C series has a narrower profile than many older MICROMASTER 440 units, which can simplify panel integration but may require new DIN rail brackets or adapter plates. Power supply capacity must be verified — the drive requires a stable 200–240 V three-phase input, and any shared bus bar or upstream circuit breaker should be rated appropriately for the new load.

Terminal wiring is a key step. The 6SL3210-5BE17-5UV0 uses the standard G120C terminal layout, which differs from the MICROMASTER 420 terminal block arrangement. Technicians should map existing control wiring — including analog setpoint inputs (0–10 V or 4–20 mA), digital inputs for run/stop/fault commands, and relay outputs for status feedback — against the new terminal assignments before disconnecting the old unit. A wiring adapter or intermediate terminal block such as a Siemens SITOP power supply rail assembly can help maintain signal integrity during the transition.

For sites running PROFIBUS DP or PROFINET communication, the base G120C unit supports USS and Modbus RTU natively. If the existing system uses PROFIBUS DP, a SINAMICS G120C PROFIBUS option module (such as the 6SL3255-0AA00-4CA1) may be required to maintain fieldbus connectivity with the S7-300 or S7-400 PLC. Alternatively, sites migrating to TIA Portal-based S7-1200 or S7-1500 controllers can leverage PROFINET integration using the appropriate G120C PN variant. In either case, the drive address must be set correctly on the hardware DIP switches before commissioning.

HMI screen updates are often overlooked during drive replacements. If the existing SIMATIC HMI panel — such as a TP700 Comfort or KTP400 Basic — displays drive parameters via direct tag mapping, the tag addresses may need to be updated to reflect the G120C parameter set (P-numbers). The STARTER commissioning software or Startdrive within TIA Portal can be used to upload and verify the parameter set, and a parameter backup from the old drive (if still accessible) can accelerate the configuration process.

I/O expansion requirements should also be assessed. If the legacy system relied on external I/O modules such as a SIMATIC ET 200S distributed I/O rack or a standalone EM 231 analog input module, these can typically remain in place as the 6SL3210-5BE17-5UV0 accepts standard analog and digital control signals. Signal isolators may be needed if long cable runs introduce noise on analog setpoint lines.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any drive retrofit project. When replacing the 6SL3210-5BE17-5UV0 or installing it as a direct substitute for a failed legacy unit, the recommended approach is to pre-configure the new drive offline using STARTER or Startdrive before the scheduled maintenance window. All motor data — rated voltage, current, frequency, speed, and power factor — should be entered and the motor identification routine completed on a test bench if possible.

During the actual swap, the original program logic in the upstream PLC (whether an S7-300, S7-400, or S7-1200) does not need to be modified if the drive interface signals remain consistent. The PLC program continues to send the same run/stop commands and speed references; only the drive’s internal parameter set changes. This approach protects the existing ladder logic or function block diagram and avoids the risk of introducing new software faults during the hardware change.

Field commissioning should follow a structured sequence: power-on self-test, parameter verification against the pre-configured backup, motor no-load test, and finally a loaded run at reduced speed before returning to full production speed. Fault codes should be monitored via the BOP-2 operator panel or the connected HMI during the first production cycle. NINERMAS provides pre-shipment functional testing on all 6SL3210-5BE17-5UV0 units, reducing the risk of DOA failures and shortening on-site commissioning time.

Retrofit Support FAQ

Q: Is the 6SL3210-5BE17-5UV0 a direct replacement for the MICROMASTER 420 in the same power class?
A: It is functionally compatible as a replacement for the MICROMASTER 420 0.75 kW variant in most applications. Terminal wiring and parameter mapping will differ, and a wiring diagram review is recommended before installation. The G120C offers enhanced safety functions and communication options not available on the MICROMASTER 420.

Q: What commissioning software is required for the 6SL3210-5BE17-5UV0?
A: The drive can be commissioned using the BOP-2 basic operator panel, Siemens STARTER software, or Startdrive within TIA Portal. For sites already using TIA Portal for S7-1200 or S7-1500 PLCs, Startdrive is the recommended tool as it allows integrated drive and controller commissioning in a single environment.

Q: Does NINERMAS test the 6SL3210-5BE17-5UV0 before shipment?
A: Yes. All units undergo functional testing prior to dispatch, including power-on verification and basic parameter checks. Each unit is shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains ready stock of the 6SL3210-5BE17-5UV0. Standard orders are processed and dispatched within 1–3 business days. For urgent retrofit requirements or bulk procurement, please contact our team directly to confirm current inventory levels and expedited shipping options.
