Siemens 6SE7033-5WJ84-1BH0 Service-Ready Spare Part

Siemens 6SE7033-5WJ84-1BH0 Service-Ready Spare Part for Industrial Maintenance

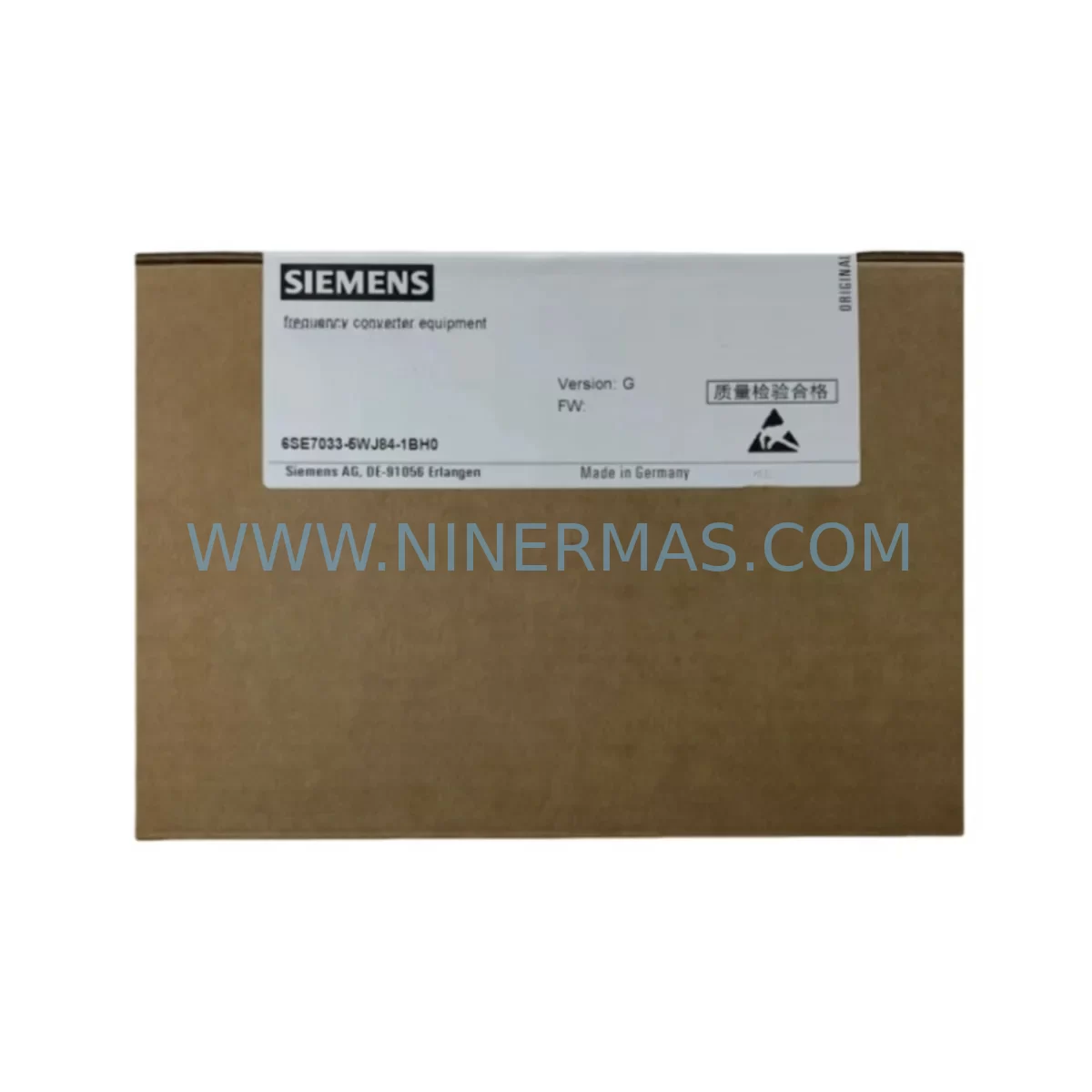

The Siemens 6SE7033-5WJ84-1BH0 is a ruggedized frequency inverter module from the SIMOVERT MASTERDRIVES MC/VC series, engineered for demanding industrial environments where vibration, dust, and temperature extremes are routine operational conditions. As a direct-replacement spare part, this unit is sourced, inspected, and dispatched to support rapid downtime recovery across manufacturing lines, process plants, and heavy-duty automation systems. NINERMAS maintains verified stock of this module to serve maintenance engineers and procurement teams requiring reliable, long-lifecycle spare parts supply.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SE7033-5WJ84-1BH0 inverter module is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers know that the inverter itself is rarely the only component requiring attention. A thorough site inspection should extend to the full drive train and control cabinet ecosystem to prevent repeat failures and maximise mean time between maintenance events.

Start with the DC bus pre-charge circuit and DC link capacitor bank — on high-power MASTERDRIVES chassis, capacitor degradation is a leading cause of nuisance trips and inverter damage. Simultaneously, verify the condition of the Siemens 6SE7090 series braking resistor modules and chopper units; a failed braking resistor under regenerative load can destroy a replacement inverter within hours of commissioning. Check the 6SE7031 or 6SE7032 series rectifier/infeed modules sharing the same DC bus, as unbalanced infeed can stress the new inverter immediately upon startup.

On the control side, inspect the CU (Control Unit) board — typically a CU3 or CU-MC variant — for firmware version compatibility with the replacement power section. Mismatched firmware between the control board and the new inverter module is a common commissioning pitfall that causes hours of unnecessary delay. If the system uses PROFIBUS-DP communication via a CBP2 option board, confirm the board is seated correctly and that the PROFIBUS address and baud rate settings are preserved before powering up.

Inspect all 24 VDC auxiliary power supply modules feeding the control electronics — a marginal SITOP PSU100S or equivalent unit that is borderline on current capacity will cause intermittent control faults on the new inverter. Check terminal blocks and power wiring on the motor output side; loose connections on U, V, W terminals at high current ratings generate heat that accelerates insulation breakdown. Verify the integrity of motor feedback encoders and resolver cables — a damaged encoder cable is frequently misdiagnosed as an inverter fault, leading to unnecessary module replacements.

For plants running legacy MASTERDRIVES systems, it is also prudent to stock 6SE7090-0XX84-0KA0 fan replacement kits and 6SE7090-0XX84-0FF0 capacitor kits alongside the inverter module. Maintaining a small buffer of SIMATIC S7-300 or S7-400 I/O modules that interface with the drive’s digital and analog I/O is equally important — a failed DI/DO module on the PLC side can simulate a drive fault and delay fault isolation. Where SIMATIC HMI panels (TP or OP series) are used for drive parameterisation and monitoring, ensure the panel firmware and project are backed up before any drive replacement, as parameter uploads from the drive to the HMI may overwrite local settings.

Site Replacement Workflow

Step 1 — Isolation and Documentation: De-energise the drive cabinet following LOTO procedures. Record all existing drive parameters using the STARTER commissioning tool or DriveMonitor before disconnecting the faulty unit. Download the parameter set to a laptop or USB memory card (6SE7090-0XX84-2FA0) for re-upload after replacement.

Step 2 — Mechanical Removal: Disconnect motor output cables (U/V/W), DC bus bars, and control wiring harnesses. Label all connectors before removal. On ruggedized variants such as the 6SE7033-5WJ84-1BH0, the conformal coating on PCBs means visual inspection alone may not reveal latent damage — always perform a functional test on the removed unit if workshop facilities allow.

Step 3 — Installation of Replacement Module: Mount the new 6SE7033-5WJ84-1BH0 into the chassis frame. Reconnect DC bus bars to the specified torque values (refer to the MASTERDRIVES installation manual, document A5E00297992). Reconnect motor cables and control wiring. Verify PE (protective earth) continuity before energising.

Step 4 — Parameter Restore and Commissioning: Upload the saved parameter set via STARTER or DriveMonitor. Perform a motor identification run if the motor data has changed. Verify PROFIBUS communication status on the CBP2 board. Run the drive at low speed under no-load conditions before returning to full production load.

Step 5 — System Validation: Monitor DC bus voltage, output current, heatsink temperature, and fault log for the first 30 minutes of operation. Confirm that all interlocks, safety relays, and emergency stop circuits are functioning correctly before handing back to production.

Spare Parts Support FAQ

Q1: Is the 6SE7033-5WJ84-1BH0 still available as a new or tested spare part?
A: Yes. NINERMAS maintains verified stock of the 6SE7033-5WJ84-1BH0 as a service-ready spare. Each unit undergoes functional inspection and power-on testing prior to dispatch. Given that Siemens has transitioned newer drive platforms to the SINAMICS S120 series, sourcing original MASTERDRIVES spare parts through specialist suppliers is the most reliable strategy for plants committed to long-term legacy system operation.

Q2: What is the warranty coverage and what does it include?
A: All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment. Units showing signs of incorrect installation, overvoltage damage, or unauthorised modification are excluded from warranty claims. Our technical team provides pre-sales compatibility confirmation and post-sales commissioning support.

Q3: How do I confirm compatibility before ordering?
A: Provide your existing drive’s full nameplate data — including the complete part number (6SE7033-5WJ84-1BH0), firmware version on the CU board, and the motor rating — to our sales team at sale@ninermas.com. We will cross-reference against the MASTERDRIVES hardware compatibility matrix and confirm suitability before order confirmation. For multi-unit procurement, we recommend requesting a sample unit for bench testing prior to committing to bulk stock.

Q4: Can NINERMAS support long-term supply agreements for this SKU?
A: Yes. For maintenance teams managing fleets of MASTERDRIVES-equipped machines, NINERMAS offers long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing for 12-month contract periods. This eliminates procurement risk for critical spare parts that are increasingly difficult to source through standard distribution channels. Contact our team to discuss a tailored spare parts programme for your facility.
