Siemens 6SE7032-5FB87-2DA1 Retrofit-Compatible AC Drive

Siemens 6SE7032-5FB87-2DA1 Retrofit-Compatible AC Drive: Legacy System Compatibility & Smooth Upgrade

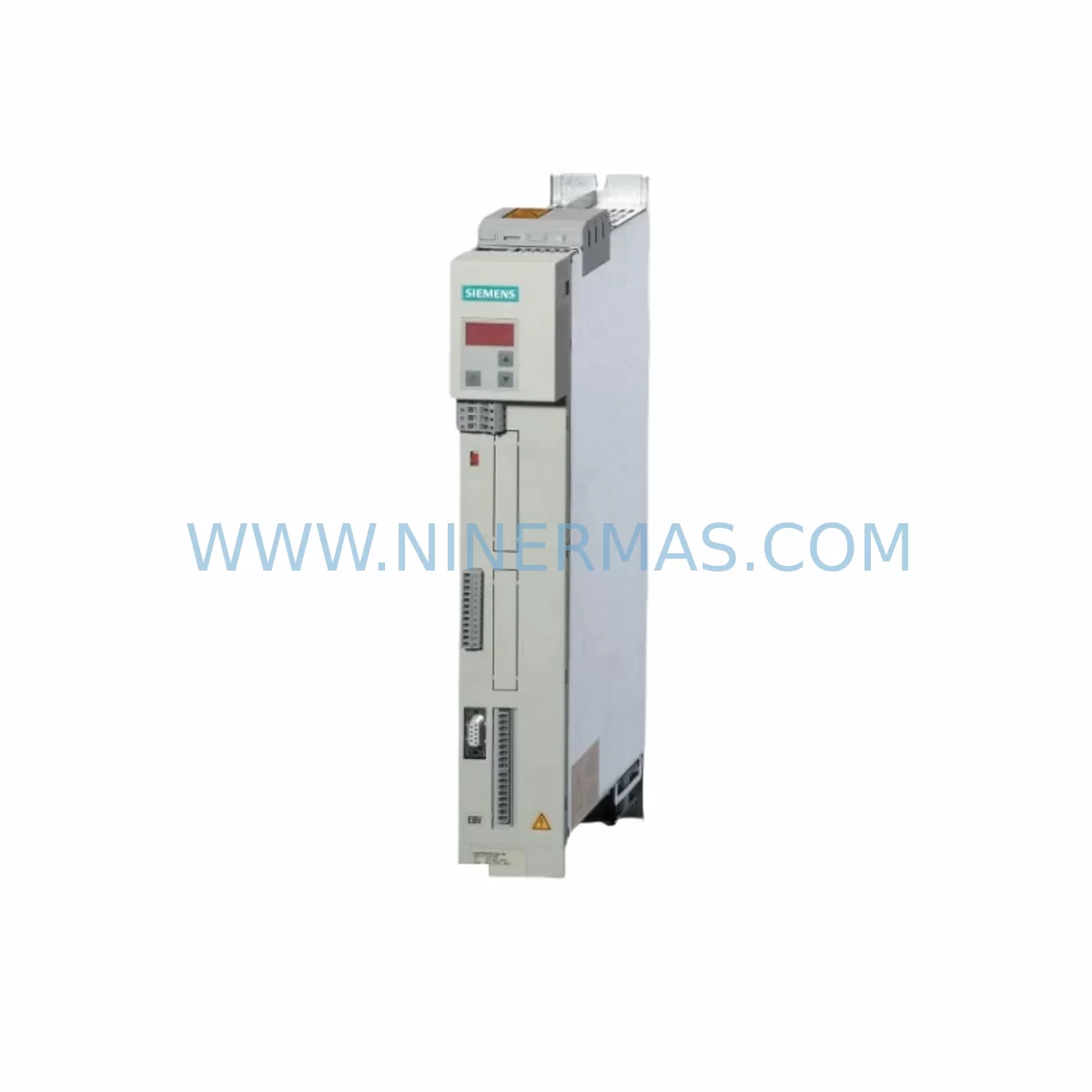

The Siemens 6SE7032-5FB87-2DA1 is a high-performance AC variable frequency drive from the SIMOVERT MASTERDRIVES series, designed for demanding industrial motion control applications. As legacy automation systems age and original spare parts become increasingly difficult to source, the 6SE7032-5FB87-2DA1 serves as a critical retrofit and replacement component for engineers managing aging production lines, control cabinets, and drive systems built around the MASTERDRIVES platform.

This unit supports vector control and is rated for medium-voltage motor applications, making it a preferred choice for retrofit projects in industries including steel, paper, mining, chemical processing, and heavy manufacturing. Whether you are replacing a failed drive, upgrading a discontinued unit, or extending the operational life of an existing control system, the 6SE7032-5FB87-2DA1 provides a reliable, tested, and warranty-backed solution.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6SE7032-5FB87-2DA1 into a legacy production environment requires careful pre-engineering. The following planning checklist covers the key areas that field engineers and maintenance teams must address before and during the retrofit process.

Power Capacity Verification: Before installation, confirm that the incoming supply transformer and distribution panel can support the rated input current of the 6SE7032-5FB87-2DA1. Older facilities may have undersized feeders or aging circuit breakers that require upgrading. Verify that the DC bus voltage is within tolerance and that any existing line reactors or input filters — such as the Siemens 6SE7032 series line filter modules — remain compatible with the new unit.

Terminal and Wiring Adaptation: The control terminal layout of the 6SE7032-5FB87-2DA1 may differ from the unit it replaces. Cross-reference the existing wiring diagram against the new terminal block assignments for analog inputs (AI1, AI2), digital inputs (DI1–DI6), relay outputs, and the 24 VDC control supply. If the original installation used a Siemens SLB (Serial Link Board) or a CBP2 PROFIBUS communication board, confirm that the replacement unit’s option slot is populated with the correct board and that the PROFIBUS address is configured to match the existing network node assignment.

Backplane and Module Address Alignment: In systems where the MASTERDRIVES unit communicates with a Siemens SIMATIC S7-300 or S7-400 PLC via PROFIBUS-DP, the GSD file for the 6SE7032-5FB87-2DA1 must be loaded into the STEP 7 hardware configuration. Verify that the DP slave address, process data word (PZD) length, and parameter channel (PKW) configuration match the existing PLC program expectations. Mismatched PZD word counts are a common source of commissioning faults in MASTERDRIVES retrofit projects.

Program and Parameter Migration: Use Siemens DriveMonitor or STARTER software to upload the parameter set from the outgoing drive before removal. After installing the 6SE7032-5FB87-2DA1, download the saved parameter file and perform a motor identification run (P1910) to recalibrate the vector control to the connected motor. If the system uses a Siemens OP1S operator panel or a third-party HMI connected via the drive’s serial interface, verify that the HMI screen tags and parameter addresses remain valid after the parameter migration.

HMI and SCADA Integration: Many legacy MASTERDRIVES installations interface with Siemens WinCC or third-party SCADA systems via OPC or PROFIBUS. After the drive swap, confirm that all process values — speed setpoint, actual speed, output current, fault codes — are correctly mapped in the SCADA tag database. Update any HMI faceplates that reference drive-specific parameter numbers if the new firmware version has changed the parameter index structure.

I/O Expansion and Signal Isolation: In applications where the drive controls multiple motor zones or interfaces with external safety relays, signal isolators, or I/O expansion modules, verify that the analog output scaling (0–10 V or 4–20 mA) from the 6SE7032-5FB87-2DA1 matches the input range of downstream instruments. Signal isolators and I/O terminal modules from the Siemens ET 200 family are commonly used in these configurations to protect the drive’s control terminals from ground loops and transient voltages.

Encoder Feedback and Closed-Loop Control: If the original installation used a pulse encoder for closed-loop speed control, confirm that the encoder supply voltage (5 V or 24 V), signal type (HTL or TTL), and pulse count per revolution are compatible with the SBP (Sensor Board Pulse) or SBR encoder option board fitted to the 6SE7032-5FB87-2DA1. Incorrect encoder configuration will prevent the drive from achieving stable vector control and may trigger F-fault codes during commissioning.

Braking and Energy Dissipation: Verify that the existing braking resistor or braking chopper module is rated for the power class of the 6SE7032-5FB87-2DA1. In regenerative applications, confirm whether the system uses a Siemens AFE (Active Front End) rectifier unit for energy feedback to the supply, and ensure that the AFE firmware and DC bus interconnection remain compatible after the drive replacement.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES drive replacement is a primary concern for plant engineers. The following approach is recommended to protect existing program logic, maintain field control continuity, and reduce retrofit risk.

Pre-Shutdown Preparation: Before taking the system offline, upload and archive the complete parameter set from the existing drive using DriveMonitor. Document all terminal wiring connections with photographs and a written wiring schedule. Confirm that a replacement 6SE7032-5FB87-2DA1 unit has been pre-tested and is on-site before scheduling the maintenance window. Our pre-shipment functional testing procedure verifies that each unit powers up correctly, passes internal self-diagnostics, and responds to basic speed commands before dispatch.

Controlled Shutdown Sequence: Follow the standard MASTERDRIVES shutdown procedure: ramp the drive to zero speed, disable the enable signal (STW bit 0), open the main contactor, and isolate the incoming supply. Allow the DC bus capacitors to discharge fully before opening the drive cabinet — this typically requires a minimum of five minutes after supply isolation. Do not rely on the DC bus voltage indicator alone; use a calibrated voltmeter to confirm safe voltage levels before touching internal components.

Swap and Recommission: Mount the 6SE7032-5FB87-2DA1 in the existing cabinet space, reconnect all power and control terminals per the documented wiring schedule, and reinstall any option boards (CBP2, SBP, SLB) in the correct option slots. Download the archived parameter set, perform a motor identification run, and verify all digital input and output functions before re-enabling the drive. Test the drive at low speed under no-load conditions before reconnecting the mechanical load.

Post-Commissioning Verification: After the drive is running under load, monitor output current, motor temperature, and DC bus voltage for the first 30 minutes of operation. Confirm that all PROFIBUS communication is stable and that the PLC program is receiving correct process data from the drive. Log the commissioning results and update the plant maintenance records with the new drive serial number and parameter file version.

Retrofit Support FAQ

Q1: Is the 6SE7032-5FB87-2DA1 a direct drop-in replacement for other MASTERDRIVES units of the same power class?
A: In most cases, yes — provided the power rating, voltage class, and control mode (vector or V/f) match the original specification. However, terminal assignments and option board configurations must be verified against the original wiring drawings. Parameter migration is required; the new unit will not retain the settings of the outgoing drive automatically.

Q2: What commissioning software is required, and is it compatible with current PC operating systems?
A: Siemens DriveMonitor and STARTER are the standard tools for MASTERDRIVES commissioning. DriveMonitor runs on Windows XP through Windows 10 (32-bit compatibility mode may be required on 64-bit systems). STARTER is the preferred tool for newer installations and supports USB-to-USS adapters for PC connection. Confirm the correct software version for the firmware installed on the 6SE7032-5FB87-2DA1 before beginning parameter download.

Q3: Does the unit ship with a warranty, and is pre-shipment testing included?
A: Yes. Every 6SE7032-5FB87-2DA1 supplied by NINERMAS COMPANY LIMITED includes a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify power-up, self-diagnostics, and basic drive operation before dispatch. Test records are available upon request.

Q4: What is the typical lead time, and do you maintain stock of this unit?
A: We maintain inventory of the 6SE7032-5FB87-2DA1 to support urgent retrofit and breakdown replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact our sales team for current stock availability and expedited shipping options.
