Siemens 6SE7031-5TF60-Z Service-Ready Spare Part

Siemens 6SE7031-5TF60-Z Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

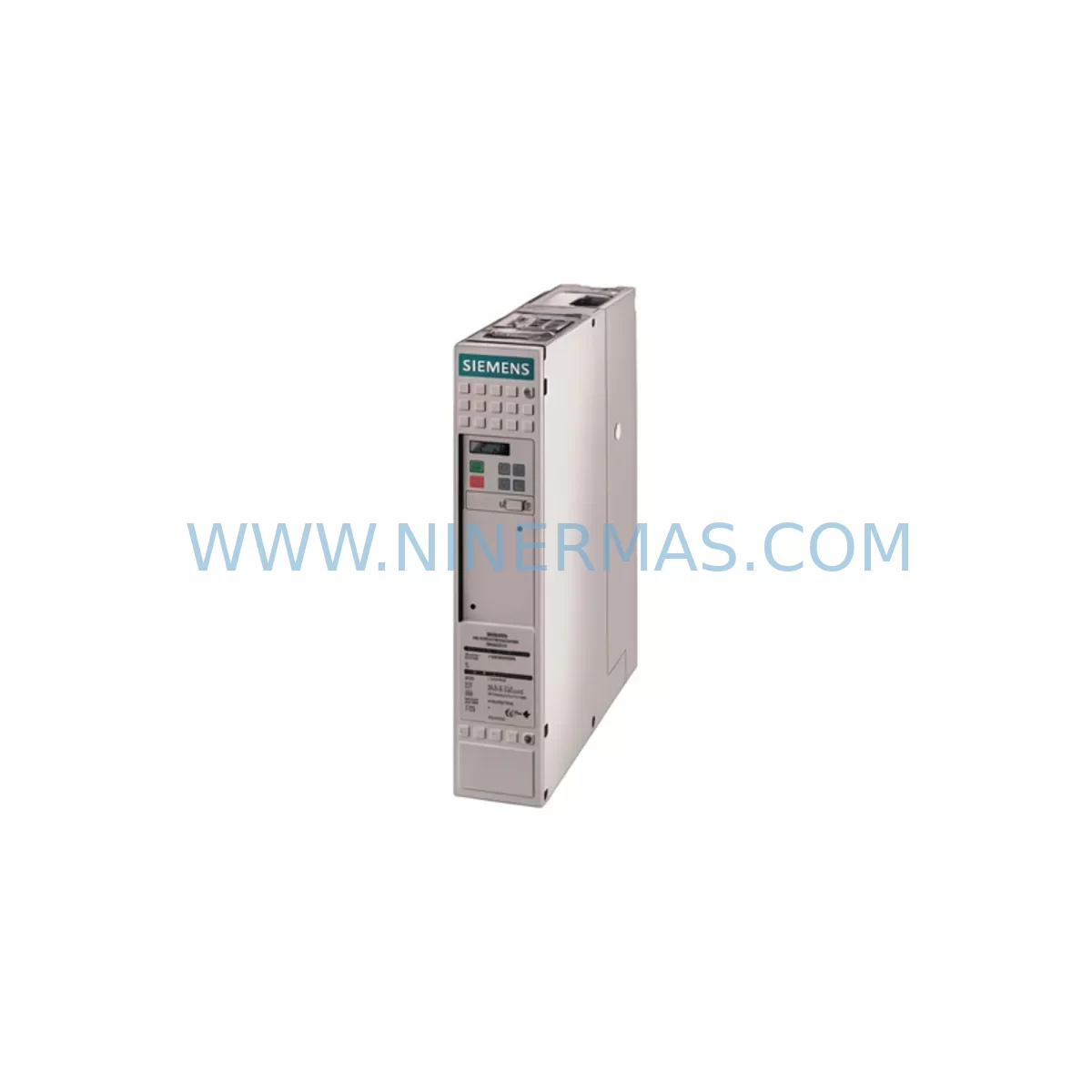

The Siemens 6SE7031-5TF60-Z is a high-power AC variable frequency drive from the SIMOVERT VC Series, engineered for demanding industrial automation environments including continuous process lines, heavy-duty motor control, and mission-critical production systems. At NINERMAS, we supply this unit as a service-ready spare part — tested, verified, and ready for immediate field deployment to minimize unplanned downtime and accelerate maintenance recovery.

Whether you are managing a scheduled annual overhaul, responding to an emergency drive failure, or building a strategic spare parts inventory for aging SIMOVERT VC installations, the 6SE7031-5TF60-Z with option codes G41 + G93 + K80 + L30 represents a direct, compatible replacement that preserves your existing system architecture without costly re-engineering.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SE7031-5TF60-Z in a live production environment is rarely an isolated task. Experienced maintenance engineers know that a drive failure is often a symptom of broader electrical stress across the control cabinet. When this unit is pulled for replacement, a thorough inspection of the surrounding components is essential to prevent repeat failures and ensure long-term system stability.

Begin with the input power supply section: verify that the upstream line reactor or input choke (commonly a 4% impedance type used with SIMOVERT VC drives) shows no signs of overheating or insulation degradation. Check the main circuit breaker and input fuses — blown or weakened fuses are a leading indicator of upstream transient events that may have contributed to the drive fault. If the cabinet uses a Siemens SITOP power supply module for 24 V DC control voltage, confirm its output is stable and within tolerance before powering up the replacement drive.

On the DC bus side, inspect the DC bus capacitor bank condition if accessible. For older SIMOVERT VC installations, capacitor aging is a known failure mode. If the system includes a braking resistor module or a regenerative feedback unit connected to the DC bus, verify its integrity — a shorted braking resistor can immediately damage a newly installed drive.

Review the I/O wiring and terminal strip connections. The 6SE7031-5TF60-Z uses standard SIMOVERT VC terminal assignments; however, years of vibration and thermal cycling can loosen screw terminals on Phoenix Contact or Weidmüller terminal blocks commonly used in these cabinets. Re-torque all signal and power terminals to specification. Check the analog input signal cables (4–20 mA or 0–10 V setpoint signals) for shielding continuity — unshielded or poorly grounded signal cables are a frequent source of drive instability after replacement.

If the system uses PROFIBUS DP communication (enabled by the G93 option on this SKU), verify the PROFIBUS address setting on the replacement unit matches the original configuration. Inspect the PROFIBUS connector and termination resistor at both ends of the segment. A missing or incorrect termination is a common cause of communication faults after drive swap-out. For systems integrated with a Siemens S7-300 or S7-400 PLC, confirm the GSD file version and hardware configuration in STEP 7 or TIA Portal matches the replacement drive firmware version.

The K80 option on this unit typically indicates a specific customer-defined hardware configuration — review the original order documentation or drive nameplate to confirm the exact hardware build before installation. Similarly, the L30 option may relate to specific language or regional settings; verify the parameter set (P-list) backup from the original drive is available for upload to the replacement unit via the PMU operator panel or a Siemens DriveMonitor / STARTER software connection.

For sites running multiple SIMOVERT VC drives in a coordinated system, also inspect the master-follower communication cables, encoder feedback cables and pulse encoder modules, and any signal isolators or galvanic separation modules used between the drive and the PLC I/O rack. These components are often overlooked during emergency replacements but are critical for restoring full system performance.

NINERMAS recommends maintaining a minimum spare parts kit for SIMOVERT VC installations that includes: one replacement drive unit (6SE7031-5TF60-Z or equivalent frame size), a set of DC bus fuses, a spare PMU operator panel, a replacement PROFIBUS DP communication board, and a set of spare cooling fans matched to the drive frame size. This kit enables same-day restoration for the most common failure scenarios.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the faulty drive, document the current parameter set using DriveMonitor or STARTER software. Record all P-parameters, motor data, and communication settings. If the drive is non-responsive, retrieve the parameter backup from your CMMS or maintenance records.

Step 2 — Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Isolate the main supply, wait a minimum of 5 minutes for DC bus capacitors to discharge, then verify zero voltage on the DC bus terminals before proceeding. Do not rely solely on the drive’s internal discharge indicator.

Step 3 — Mechanical Installation: Mount the replacement 6SE7031-5TF60-Z in the original cabinet position. Verify that the cabinet ventilation path is unobstructed and that the drive’s cooling air inlet and outlet are not blocked by cable bundles or other components.

Step 4 — Electrical Reconnection: Reconnect power cables (U1/V1/W1 input; U2/V2/W2 output), DC bus connections if applicable, control wiring, PROFIBUS connector, and encoder cables. Re-torque all terminals. Verify motor cable shielding is properly bonded to the drive’s PE terminal and cabinet ground bar.

Step 5 — Parameter Upload and Commissioning: Upload the saved parameter set to the replacement drive. Perform a motor identification run if the motor data has changed or if the original parameters are unavailable. Verify setpoint source, ramp times, current limits, and protection settings before enabling the drive output.

Step 6 — Test Run and Handover: Run the motor at low speed under no-load conditions first, then gradually increase to full operational speed. Monitor drive status, output current, and temperature via the PMU panel or SCADA system. Document the replacement in the maintenance log and update the spare parts inventory.

This structured workflow reduces average replacement time to under 4 hours for experienced maintenance teams, minimizing production loss and ensuring a safe, verified return to service.

Spare Parts Support FAQ

Q1: Is the 6SE7031-5TF60-Z a direct drop-in replacement for my existing SIMOVERT VC installation?
Yes, provided the option codes (G41, G93, K80, L30) match your original unit’s hardware configuration. The base SKU 6SE7031-5TF60-Z is frame and power-class compatible with the SIMOVERT VC series. We recommend verifying the option codes against your original order documentation or drive nameplate before installation. NINERMAS technical support can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on this spare part?
Every unit supplied by NINERMAS undergoes a multi-point inspection including DC bus capacitance verification, IGBT switching test, control board power-up check, and communication interface validation. New units are tested against factory acceptance criteria. Refurbished-to-spec units are additionally subjected to a full load burn-in test. A test report is available upon request and accompanies each shipment.

Q3: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and component failures under normal operating conditions. The warranty includes free replacement or repair of the defective unit. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental conditions. Our technical team is available to support warranty claims and failure analysis.

Q4: Can NINERMAS support long-term supply for this part as part of an ongoing maintenance contract?
Yes. NINERMAS specializes in long-term supply of industrial automation spare parts, including legacy and discontinued Siemens SIMOVERT VC components. We maintain strategic stock of high-demand SKUs and can establish a framework supply agreement for maintenance teams managing large fleets of SIMOVERT VC drives. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your annual maintenance plan.
