Siemens 6SE7024-7ED84-1HF3 MASTERDRIVES AC Drive Retrofit

Siemens 6SE7024-7ED84-1HF3 MASTERDRIVES AC Drive Retrofit: Legacy System Compatibility & Smooth Upgrade

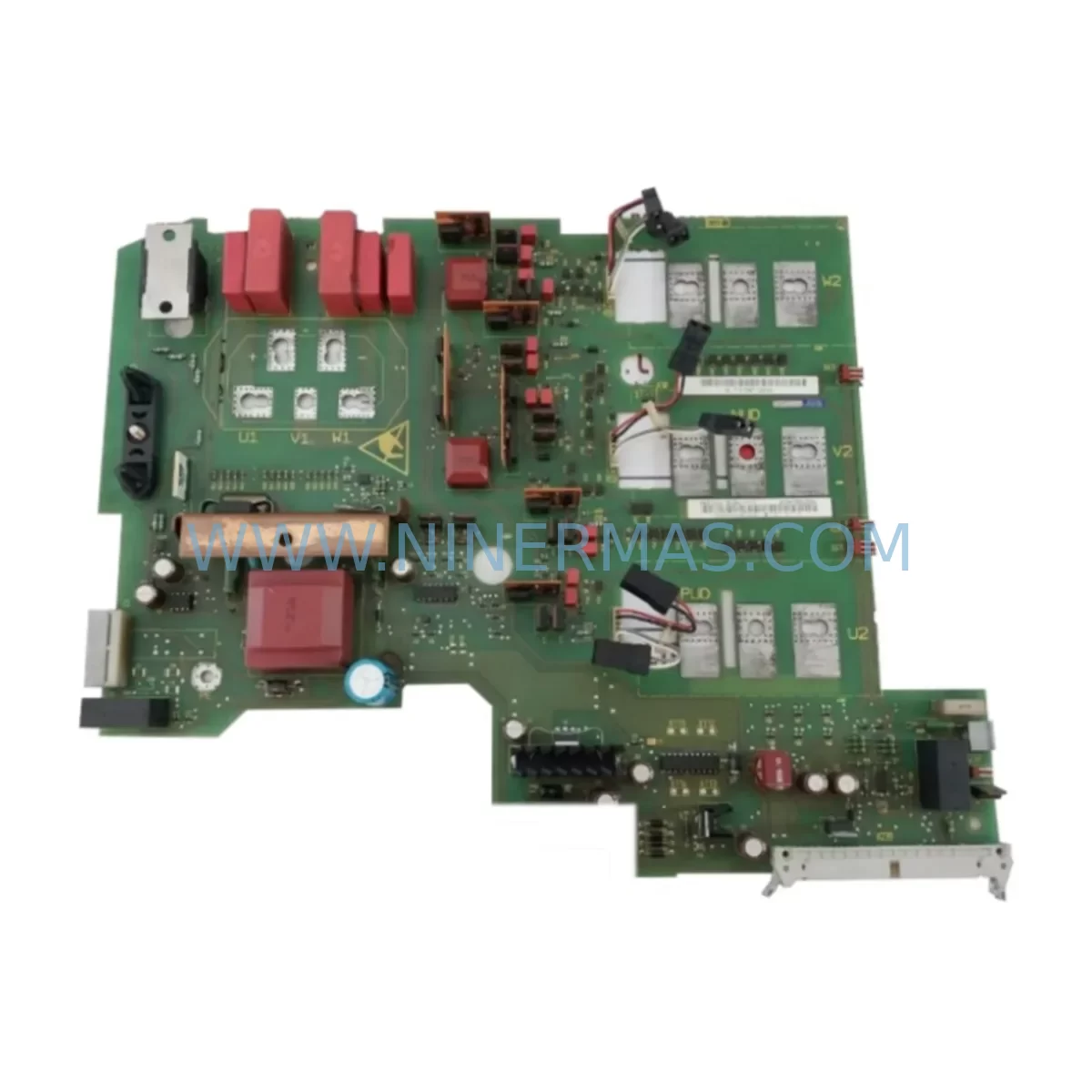

The Siemens 6SE7024-7ED84-1HF3 is a MASTERDRIVES Vector Control AC drive unit designed for demanding industrial motion control applications. As legacy MASTERDRIVES installations age and original spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source verified retrofit-compatible replacements that preserve existing control logic, wiring infrastructure, and communication links — without triggering a full system overhaul.

NINERMAS supplies the 6SE7024-7ED84-1HF3 as a tested, retrofit-ready replacement unit backed by a 12-month warranty, pre-shipment functional testing, and dedicated technical support for legacy system integration. Whether you are replacing a failed unit on an active production line or building a strategic spare parts inventory to extend the operational life of your MASTERDRIVES platform, this unit is sourced, inspected, and ready to deploy.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SE7024-7ED84-1HF3 into an existing MASTERDRIVES installation requires systematic pre-planning across several interdependent system layers. The drive does not operate in isolation — it interfaces with power supply modules, communication backbones, I/O expansion racks, and supervisory control systems that must all be evaluated before the replacement unit is installed.

Power Supply Verification: Before installation, confirm that the existing DC link power supply or line-side infeed module — such as a 6SE7024 series rectifier unit or a compatible 6SE70 Active Front End — can sustain the load demand of the replacement drive under full operating conditions. Undersized or aging power supply modules are a common cause of nuisance trips after drive replacement.

Terminal and Wiring Adaptation: The control terminal strip layout of the 6SE7024-7ED84-1HF3 must be cross-referenced against the original wiring diagrams. Analog input signals (speed reference, torque setpoint), digital I/O (enable, fault reset, direction), and encoder feedback connections should all be verified. If the original installation used a 6SE7090 series terminal expansion board or an external signal isolator, confirm that these auxiliary components remain compatible with the replacement unit.

PROFIBUS-DP Communication: MASTERDRIVES installations frequently rely on PROFIBUS-DP for coordinated multi-axis control. When replacing the 6SE7024-7ED84-1HF3, the PROFIBUS node address must be set to match the original configuration. If the network includes a Siemens S7-300 or S7-400 PLC acting as the DP master, verify that the GSD file and hardware configuration in STEP 7 or TIA Portal still correctly maps to the replacement drive’s process data objects (PKW/PZD structure).

I/O Expansion and Backplane Modules: In multi-drive cabinet configurations, the 6SE7024-7ED84-1HF3 may share a common backplane with other MASTERDRIVES modules, including 6SE7090 series option boards, technology function modules (T400, T100), or communication boards (CBP2 for PROFIBUS, CBC for CAN). Confirm that the backplane slot assignment and option board configuration are preserved during the swap.

HMI and Operator Panel Integration: If the existing system uses a Siemens OP1S operator panel or a third-party HMI connected via USS protocol or PROFIBUS, verify that the parameter addresses and screen tag assignments remain valid after the replacement. Parameter factory defaults on the new unit must be overwritten with the backed-up parameter set from the original drive before HMI communication is re-established.

Parameter Transfer and Program Compatibility: Use Siemens STARTER or DriveMonitor software to upload the parameter set from the original drive (if still functional) or restore from a previously saved backup file. Pay particular attention to application-specific parameters: ramp times, current limits, speed controller gains, and technology function configurations. If the original drive used a T400 technology board for cam control or positioning, ensure the replacement unit’s option slot is populated with a compatible board.

Encoder and Motor Feedback: If the application uses closed-loop vector control with a pulse encoder, verify that the encoder evaluation board — such as a 6SE7090-0XX84-0KA0 SBP board — is correctly installed and that encoder cable shielding and grounding comply with EMC requirements. Incorrect encoder wiring is a frequent source of speed instability after drive replacement.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES drive replacement is achievable with disciplined pre-commissioning preparation. The following approach is recommended for maintenance teams working with the 6SE7024-7ED84-1HF3:

1. Pre-Replacement Preparation (Offline): Before the maintenance window opens, complete all parameter backups, wiring diagram reviews, terminal cross-references, and PROFIBUS address confirmations. Prepare the replacement unit by pre-loading the saved parameter set using STARTER or DriveMonitor in offline mode where possible. Verify that all required option boards are installed and configured on the bench before the unit enters the cabinet.

2. Controlled Shutdown and Isolation: Follow the site’s lockout/tagout (LOTO) procedure. Discharge the DC bus capacitors fully before handling the drive unit. Document the physical position of all terminal connections and label cables before disconnection to eliminate re-wiring errors.

3. Mechanical Installation: Confirm that the replacement 6SE7024-7ED84-1HF3 fits the existing cabinet slot without modification. Check ventilation clearances and ensure that the backplane connector engages correctly. Torque all power terminals to specification.

4. Recommissioning and Functional Verification: After power-up, verify that the PROFIBUS link is established and that the PLC recognizes the drive without hardware configuration changes. Run the drive in no-load test mode before reconnecting the motor. Confirm that speed reference, torque limits, and fault responses behave as expected. Re-engage the HMI and verify that all operator screen functions are active.

5. Live Production Handover: Perform a controlled ramp-up under load, monitoring current draw, temperature, and communication status. Confirm that the process returns to normal operating parameters before releasing the line to production. Document the completed replacement in the site maintenance log.

With thorough preparation, most 6SE7024-7ED84-1HF3 replacements in existing MASTERDRIVES cabinets can be completed within a single planned maintenance shift, preserving control continuity and protecting the original program logic.

Retrofit Support FAQ

Q1: Is the 6SE7024-7ED84-1HF3 a direct drop-in replacement for my existing MASTERDRIVES unit?
In most cases, yes — provided the power rating, frame size, and option board configuration match the original installation. NINERMAS recommends confirming the existing unit’s nameplate data and option board population before ordering to ensure full compatibility. Our technical team can assist with pre-order verification.

Q2: How do I transfer parameters from the failed drive to the replacement unit?
If the original drive is still partially functional, use Siemens STARTER or DriveMonitor software to upload and save the parameter set via the serial interface (RS232 or USS). If the original drive is completely failed, restore from a previously saved parameter file. If no backup exists, NINERMAS can provide guidance on reconstructing the parameter set from the motor nameplate data and application documentation.

Q3: What pre-shipment testing is performed on the 6SE7024-7ED84-1HF3?
Every unit supplied by NINERMAS undergoes functional power-on testing before dispatch. Testing confirms that the drive powers up correctly, communication interfaces are active, and no internal fault codes are present. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and do you maintain stock of the 6SE7024-7ED84-1HF3?
NINERMAS maintains inventory of high-demand MASTERDRIVES spare parts including the 6SE7024-7ED84-1HF3. Lead times vary based on current stock levels. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for real-time availability and expedited shipping options for urgent production line requirements.
