SIEMENS 6RY1803-0AA05-0AA1 Retrofit Digital Output Module

SIEMENS 6RY1803-0AA05-0AA1 Retrofit-Compatible Digital Output Module for Legacy Systems

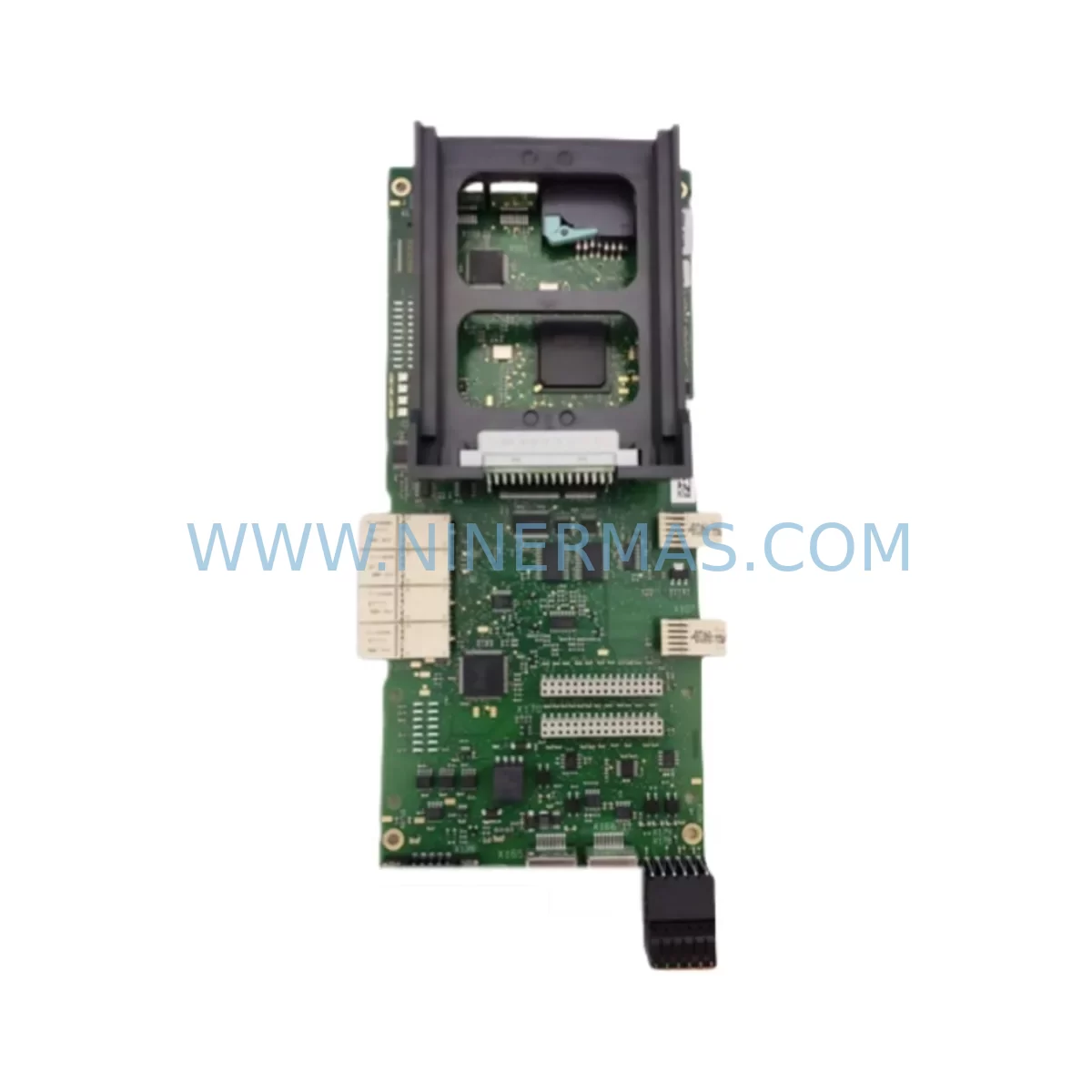

The SIEMENS 6RY1803-0AA05-0AA1 (also referenced as A5F00133619) is a ruggedized digital output module designed for the SIMOREG DC Master series of DC drive converters. As legacy DC drive systems approach end-of-life or require modernization, this module serves as a critical retrofit and replacement component — enabling engineers to restore full drive functionality, extend system service life, and defer costly full-system overhauls without compromising operational continuity.

At NINERMAS, we maintain verified stock of the 6RY1803-0AA05-0AA1, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid global dispatch to support planned and emergency retrofit projects alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6RY1803-0AA05-0AA1 within an existing SIMOREG DC Master installation requires a structured approach to ensure zero logic loss and minimal downtime. Before the module swap, engineers should back up the full parameter set using SIMOREG DriveMonitor or STARTER commissioning software via the RS232/USS interface or PROFIBUS connection. The parameter memory — particularly the P-group settings governing digital output assignments, threshold values, and interlock logic — must be preserved and re-uploaded after the new module is seated.

On the hardware side, confirm that the SIMOREG 6RA70 series converter chassis or the applicable 6RA24 compact converter has the correct module slot available. The backplane connector pinout of the 6RY1803-0AA05-0AA1 is generation-specific, so cross-referencing the drive’s hardware revision against the module’s compatibility matrix is essential before installation. In multi-axis or coordinated drive applications, the SIMOREG CUD1 central unit board and associated ADB (Analog-Digital Board) should also be inspected for firmware compatibility, as digital output behavior may be governed by cross-board parameter links.

For sites running PROFIBUS-DP fieldbus architectures, verify that the GSD file loaded in the SIMATIC S7-300 or S7-400 PLC correctly maps the digital output byte addresses after module replacement. In older installations using USS protocol over RS485, the baud rate and station address settings must be re-confirmed post-swap to prevent communication loss between the drive and the supervisory controller.

Where the retrofit involves upgrading from an older SIMOREG generation to a newer platform, additional interface components may be required. A SIMOREG SLB (Serial Link Board) or CBP2 PROFIBUS communication board may need to be retained or replaced in parallel. Signal isolation between the digital output module and field devices — contactors, solenoid valves, relay coils — should be verified using a SIEMENS 3TX7 signal isolator or equivalent DIN-rail isolator to protect the new module from inductive kickback during switching events.

Power supply integrity is equally critical. The internal 24 VDC logic supply feeding the digital output module should be measured under load using the drive’s built-in diagnostics or an external SITOP PSU100S power supply to confirm voltage stability within ±5% tolerance. Any deviation may cause erratic output behavior or module fault codes. In cabinet environments where the SIMOREG drive shares a panel with SIMATIC ET200S distributed I/O or SIRIUS 3RT contactors, ensure that the digital output switching transients are adequately suppressed with RC snubber circuits or varistors on inductive loads.

For HMI-integrated systems, update the SIMATIC WinCC or TP/MP panel tag database to reflect any output address changes introduced during the retrofit. If the original system used a SIMOREG OP1S operator panel, verify that the panel firmware version remains compatible with the replacement module’s parameter structure. Completing a full functional test — including forced output activation, interlock verification, and fault simulation — before returning the drive to production is strongly recommended.

Downtime Control During System Migration

Minimizing production interruption during a SIMOREG digital output module replacement depends on preparation quality. The most effective strategy is a pre-staged swap: the replacement 6RY1803-0AA05-0AA1 is pre-configured and parameter-loaded offline using a bench test setup before the planned maintenance window begins. This reduces the live swap window to physical installation, wiring verification, and a final functional check — typically achievable within a two-to-four hour planned shutdown.

For continuous process industries — such as paper mills, steel rolling lines, or chemical dosing systems — where even brief DC drive interruptions carry significant production cost, a hot-standby spare strategy is advisable. Keeping one pre-tested 6RY1803-0AA05-0AA1 in the local spare parts cabinet, alongside a backed-up parameter file on a USB drive or engineering laptop, ensures that an unplanned failure can be recovered within the same shift without waiting for international logistics.

During the migration, protect the original program logic by exporting the full drive parameter set to both a local file and a remote backup location. If the SIMOREG is integrated into a SIMATIC PCS 7 or TIA Portal project, ensure the drive’s function block parameters are synchronized with the project archive before the swap. After module installation, perform a controlled ramp-up sequence — starting at reduced speed setpoint — to confirm that all digital outputs respond correctly to PLC commands before resuming full production speed. Document the commissioning results, including output state verification at each operating point, as part of the site’s maintenance record.

Retrofit Support FAQ

Q1: Is the 6RY1803-0AA05-0AA1 a direct drop-in replacement for the original SIMOREG digital output board?
In most SIMOREG DC Master 6RA70 series applications, the 6RY1803-0AA05-0AA1 is a direct functional replacement. However, customers should confirm the chassis hardware revision and backplane slot type, as minor mechanical or connector differences may exist between early and late production generations. NINERMAS technical support can assist with compatibility verification based on your drive’s nameplate data.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every 6RY1803-0AA05-0AA1 unit dispatched by NINERMAS undergoes functional output verification, insulation resistance testing, and visual inspection for component integrity. Units are shipped with individual test records and are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module be used in a SIMOREG system still running an older firmware version?
The 6RY1803-0AA05-0AA1 is designed for compatibility across the SIMOREG DC Master platform. In systems running older CUD1 firmware, it is advisable to verify that the digital output parameter assignments (P600–P615 range) are correctly mapped after installation. If a firmware mismatch is detected, NINERMAS can advise on available firmware update paths or alternative module options.

Q4: What is the long-term supply availability for this part?
NINERMAS maintains ongoing inventory of SIMOREG series spare modules, including the 6RY1803-0AA05-0AA1, sourced from authorized channels and verified surplus stock. We support long-term supply agreements for customers managing multi-site SIMOREG fleets, ensuring consistent access to tested spare parts beyond the original manufacturer’s active production period.
