Siemens 6ES7972-0BB42-0XA0 Service-Ready Spare Part

Siemens 6ES7972-0BB42-0XA0 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

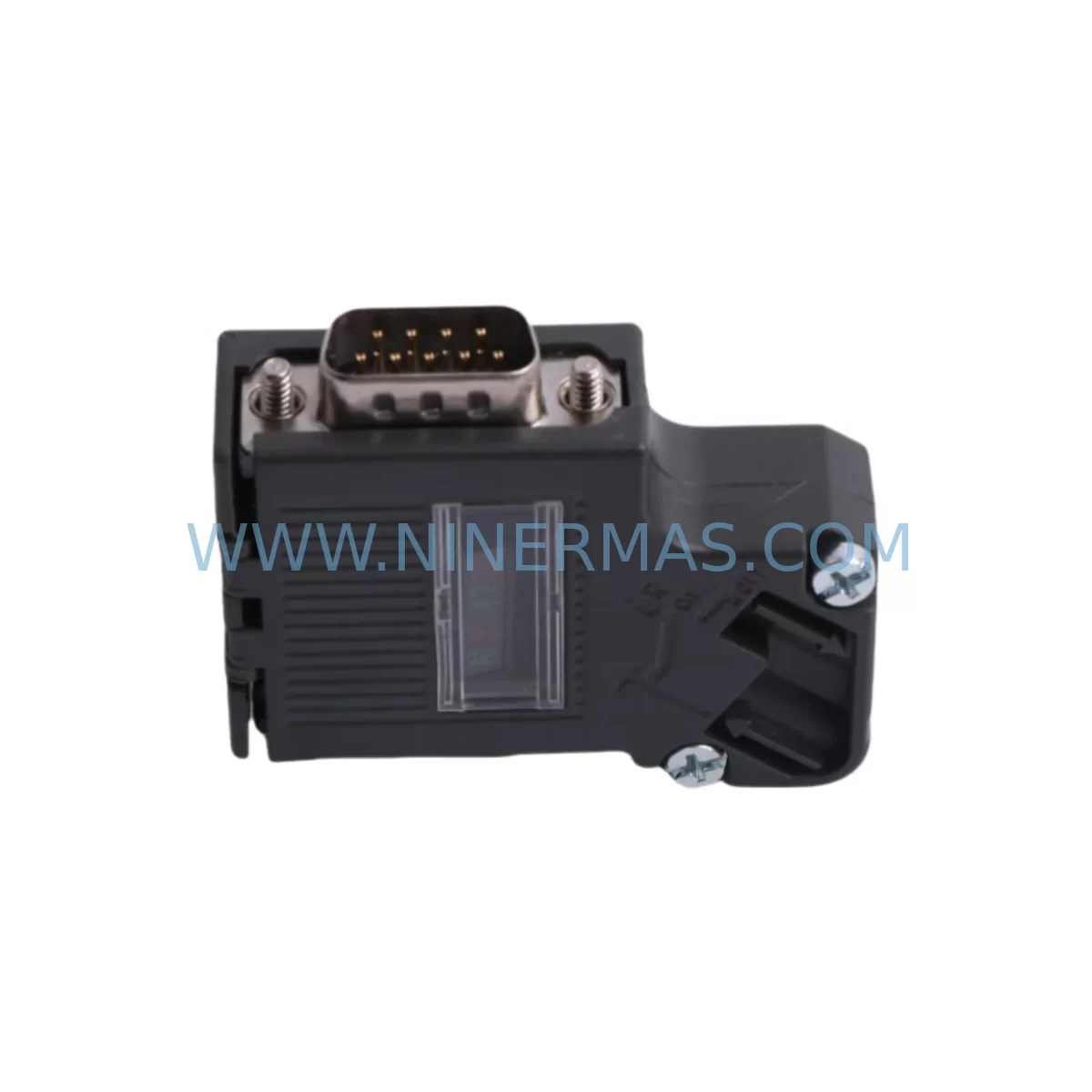

The Siemens 6ES7972-0BB42-0XA0 is a SIMATIC NET PROFIBUS bus connector designed for reliable field-level communication in industrial automation environments. As a critical interface component within S7-300 and S7-400 PLC architectures, this connector enables stable PROFIBUS DP network topology across distributed I/O stations, drives, and remote field devices. Maintaining a verified stock of this connector is essential for any maintenance engineer responsible for continuous production uptime.

In industrial facilities where PROFIBUS networks underpin motor control centers, conveyor systems, process instrumentation, and safety interlocks, a failed or degraded bus connector can cascade into full line stoppages within minutes. The 6ES7972-0BB42-0XA0 features a 90-degree cable outlet with integrated terminating resistor switch, making it suitable for end-of-line nodes in PROFIBUS DP segments. Its robust housing withstands the vibration, temperature cycling, and EMI exposure typical of panel-mounted and cabinet-edge installations.

For maintenance engineers conducting routine control cabinet inspections, this connector should be evaluated alongside the PROFIBUS cable shielding integrity, the DP/PA coupler condition, and the status of adjacent CP 342-5 or CP 443-5 communication processors. A degraded connector at a segment termination point is a common root cause of intermittent communication faults that are difficult to isolate without a spare on hand for swap testing. Keeping at least two units in your spare parts inventory eliminates diagnostic ambiguity and accelerates fault resolution.

Procurement engineers sourcing this part for annual maintenance kits or emergency stock should verify compatibility with the installed PROFIBUS cable type (Type A, 0.22 mm²) and confirm the termination resistor requirement based on network topology. The 6ES7972-0BB42-0XA0 is compatible with the full SIMATIC S7-300 and S7-400 product families, as well as ET 200M, ET 200S, and ET 200pro distributed I/O systems. It also integrates seamlessly with SINAMICS G120 and S120 drive systems connected via PROFIBUS DP.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for PROFIBUS-based control systems must account for the full communication chain. When replacing the 6ES7972-0BB42-0XA0, maintenance teams should simultaneously inspect the following components to prevent repeat failures and ensure network stability:

The PROFIBUS DP cable (6XV1830-0EH10) running to the affected node should be checked for insulation damage, bend radius violations, and shield continuity — cable degradation is frequently the underlying cause of connector wear. The CP 342-5 communication processor or CP 443-5 Extended module installed in the S7-300 or S7-400 rack should be verified for firmware currency and error-free diagnostic status. If the affected node is a distributed I/O station, the ET 200M IM 153-2 interface module should be inspected for contact oxidation and secure backplane seating.

Power supply integrity is equally critical: the SITOP PSU100S 24V DC power supply feeding the PROFIBUS segment should be load-tested, and the 24V DC bus terminal fuses on the terminal strip should be verified. For systems using SINAMICS drives on the same PROFIBUS segment, the SINAMICS CU320-2 DP control unit parameter set should be backed up before any connector swap to avoid drive re-commissioning delays.

In older S7-300 installations, the SM 321 digital input module and SM 322 digital output module adjacent to the affected station should be inspected for loose wiring on the front connector. Signal isolation barriers and HART multiplexers connected to analog I/O on the same rack should also be checked for ground loop issues that can manifest as PROFIBUS communication errors. Finally, the OP 277 or TP 277 HMI panel connected to the network should be verified for alarm history that may reveal intermittent faults predating the connector failure.

Site Replacement Workflow

Replacing the 6ES7972-0BB42-0XA0 on a live PROFIBUS segment requires a disciplined approach to minimize downtime and avoid network disruption. Begin by documenting the current network topology using STEP 7 or TIA Portal’s hardware configuration view, noting the station address and segment position of the affected node. If the connector is at a segment end point, confirm that the integrated terminating resistor is switched ON before installation — failure to do so will cause reflections that degrade communication quality across the entire segment.

Power down only the affected field device or I/O station rather than the entire PROFIBUS segment where process conditions permit. Disconnect the PROFIBUS cable from the old connector, noting the A/B wire orientation, and transfer the cable to the new 6ES7972-0BB42-0XA0 maintaining correct polarity. After reconnection, use a PROFIBUS tester or the diagnostic functions in STEP 7 / TIA Portal to verify that the station returns to cyclic data exchange without bus errors. Record the replacement in the maintenance log with date, technician ID, and the previous connector’s condition for lifecycle tracking.

For legacy S7-300 systems approaching end-of-life, this connector replacement is also an opportunity to assess whether a migration to PROFINET using a PN/DP coupler (6GK1415-2AA10) is feasible, which would reduce dependency on PROFIBUS-specific spare parts and extend system longevity without full PLC replacement.

Spare Parts Support FAQ

Q1: Is the 6ES7972-0BB42-0XA0 compatible with both S7-300 and S7-400 systems?
Yes. This PROFIBUS bus connector is compatible with the full SIMATIC S7-300 and S7-400 PLC families, as well as ET 200M, ET 200S, ET 200pro distributed I/O systems, and SINAMICS drive series connected via PROFIBUS DP. Always verify the cable outlet angle (90°) matches your cabinet wiring layout before installation.

Q2: How do you verify the part before shipment?
Every unit undergoes visual inspection and functional verification prior to dispatch. Parts are shipped in anti-static, impact-resistant industrial packaging with a test record. A 12-month warranty is provided from the date of invoice, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports long-term supply agreements for MRO and spare parts procurement. We maintain stock of the 6ES7972-0BB42-0XA0 and related SIMATIC NET components to support scheduled annual maintenance, emergency replenishment, and multi-site inventory programs. Contact our team to discuss volume pricing and lead time commitments.

Q4: What should I do if the replacement connector does not resolve the PROFIBUS communication fault?
If the fault persists after connector replacement, the diagnostic scope should be expanded to include the PROFIBUS cable continuity and shield grounding, the CP module firmware and hardware revision, the power supply voltage stability under load, and the station address configuration in the hardware configuration tool. Our technical support team can assist with fault isolation guidance based on your system configuration.
