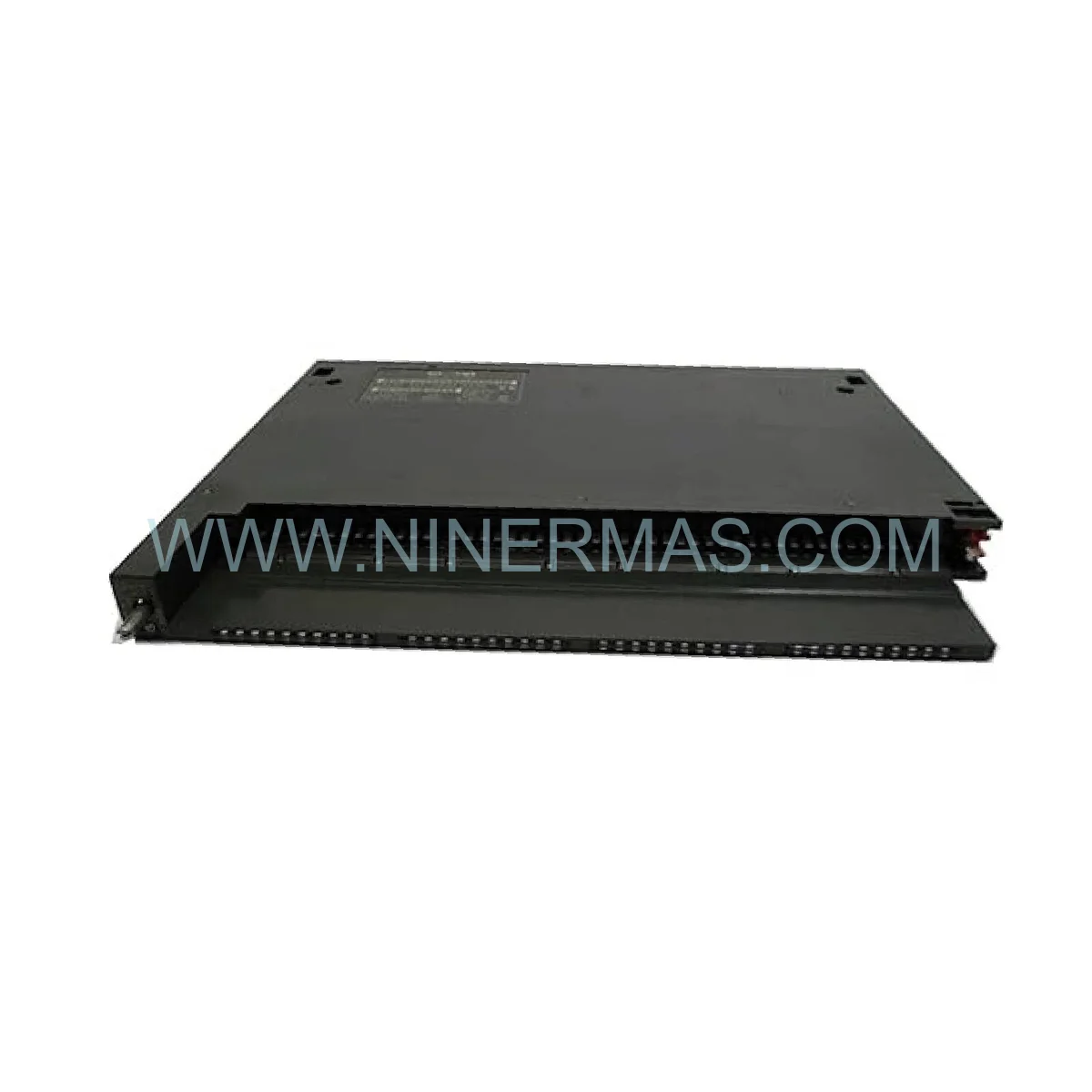

Siemens 6ES7422-1HH00-0AA0 | S7-400 Retrofit & Modernization Output Module

Siemens 6ES7422-1HH00-0AA0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the Siemens 6ES7422-1HH00-0AA0 stands as a cornerstone component in any S7-400 modernization initiative. This SM 422 digital output module delivers 16 independent 24VDC transistor output channels at 0.5A per channel — a specification profile that directly addresses the performance gaps found in aging discrete output architectures. Whether you are extending the operational lifespan of an existing S7-400 platform or executing a phased migration from obsolete relay-based panels, integrating the Siemens 6ES7422-1HH00-0AA0 provides an immediate and measurable uplift in output reliability, switching precision, and diagnostic transparency.

One of the most critical advantages of this module in a retrofit context is its native backward compatibility with the entire S7-400 rack ecosystem. It slots directly into any available position within UR1 or UR2 universal racks without requiring firmware reconfiguration or hardware adapters — a decisive factor when minimizing downtime during live system upgrades. Legacy wiring harnesses using 40-pin front connectors can be retained and transferred, dramatically reducing re-wiring labor costs and the risk of field wiring errors during cutover.

From a migration risk management perspective, deploying the 6ES7422-1HH00-0AA0 as a like-for-like or performance-enhanced replacement reduces the probability of integration failures that typically inflate retrofit project budgets. Its channel-level electronic short-circuit protection and thermal overload shutdown mechanisms provide a self-protecting output layer that legacy relay panels simply cannot match — translating directly into lower unplanned maintenance costs and improved mean time between failures (MTBF) across the upgraded control cabinet.

Upgrade Highlights & Compatibility

• ✅ Direct Rack Compatibility: Installs into any S7-400 UR1/UR2 slot — zero hardware adaptation required for legacy system integration
• Performance Enhancement: Transistor switching at up to 100 Hz replaces slow mechanical relay outputs, enabling high-speed actuator control in modernized lines
• ✅ Legacy Wiring Retention: 40-pin removable front connector supports existing field wiring, eliminating full panel rewire during retrofit
• Future-Proof Diagnostics: Channel-level fault reporting integrates with STEP 7 and TIA Portal for centralized condition monitoring in upgraded SCADA environments
• ✅ Seamless Integration: Fully compatible with S7-400H redundant CPU configurations for mission-critical upgrade projects requiring zero-downtime cutover
• Scalable Architecture: Mix with analog, digital input, and communication modules in the same rack to build a complete modernized I/O layer without platform migration

Modernization Use Cases & Success Stories

DCS Migration — Chemical Process Plant: A regional petrochemical facility operating a legacy distributed control system with aging relay output cards faced escalating spare parts costs and increasing unplanned shutdowns. By replacing end-of-life relay output boards with the Siemens 6ES7422-1HH00-0AA0 within their existing S7-400 framework, the engineering team achieved a 40% reduction in output-related fault incidents within the first operational quarter. The module’s electronic short-circuit protection eliminated the cascading relay failures that had previously caused multi-hour process interruptions.

TSI Retrofit — Power Generation Turbine Monitoring: A combined-cycle power plant executing a turbine supervisory instrumentation (TSI) upgrade required output modules capable of interfacing with both legacy 24VDC actuator circuits and new digital protection relay systems. The 6ES7422-1HH00-0AA0’s transistor output architecture and 500VAC channel-to-backplane isolation provided the electrical separation necessary to safely bridge old and new protection layers during the phased cutover — allowing the plant to maintain generation capacity throughout the 18-month modernization program.

Automotive Assembly Line Modernization: A Tier-1 automotive supplier upgrading a body-in-white welding line from a first-generation PLC platform to a modern S7-400 architecture used the 6ES7422-1HH00-0AA0 as the primary output interface for pneumatic clamp and weld gun control. The module’s 100 Hz switching frequency supported the high-cycle-rate demands of the new servo-pneumatic actuators, delivering a 25% improvement in line throughput compared to the legacy relay output system it replaced.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Siemens 6ES7422-1HH00-0AA0 unit supplied through our channel is 100% genuine, sourced from authorized Siemens distribution networks, and delivered in original factory-sealed packaging with full certification documentation. Anti-static protective packaging ensures module integrity during international transit.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement requirements. Express air freight options are available to all major industrial regions including Europe, Southeast Asia, the Middle East, and the Americas — with typical lead times of 3-7 business days for in-stock units.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Siemens S7-400 system configurations. Whether you need assistance with slot assignment planning, front connector wiring verification, STEP 7 hardware configuration files, or compatibility analysis for mixed-generation rack builds, our technical advisors are available to support your retrofit project from planning through commissioning.

Retrofit FAQ — Upgrade Guide

Q: Will the 6ES7422-1HH00-0AA0 fit into my existing S7-400 rack without mechanical modification?
A: Yes. The Siemens 6ES7422-1HH00-0AA0 conforms to the standard S7-400 single-width module form factor (40mm wide) and installs directly into any available I/O slot in UR1, UR2, or ER2 racks. No mechanical adapters, slot fillers, or rack modifications are required. The backplane bus connector is fully standardized across the S7-400 platform generation.

Q: Can this module communicate with both legacy STEP 7 V5.x projects and newer TIA Portal configurations?
A: Yes. The 6ES7422-1HH00-0AA0 is fully supported in both STEP 7 Classic (V5.4 and above) and TIA Portal environments when used with compatible S7-400 CPUs. Hardware configuration GSD files and module data records are available in both engineering environments, enabling a phased software migration without requiring immediate hardware replacement.

Q: What are the viable replacement or upgrade path options if this module reaches end-of-availability?
A: The 6ES7422-1HH00-0AA0 is currently in Active lifecycle status. For long-term planning, Siemens’ migration path guidance recommends the ET 200SP or ET 200MP distributed I/O families as forward-compatible successors for new system designs. However, for existing S7-400 installations, this module remains the optimal in-platform retrofit solution with no cross-platform migration complexity.

Q: How does the transistor output architecture of this module compare to the relay output boards it may be replacing?
A: Transistor outputs offer significantly faster switching speeds (up to 100 Hz vs. typically 10-20 Hz for relay outputs), longer operational lifespan (no mechanical contact wear), lower power consumption, and integrated electronic fault protection. The trade-off is that transistor outputs are limited to DC loads — for AC load switching, interface relays should be used between the module output and the field device.

Q: Is it possible to replace only selected output modules in a mixed-generation S7-400 rack during a phased retrofit?
A: Absolutely. The S7-400 platform’s modular architecture is specifically designed to support incremental hardware upgrades. The 6ES7422-1HH00-0AA0 can coexist in the same rack with older SM 422 variants, SM 421 input modules, analog modules, and communication processors without any compatibility conflicts. This makes it ideal for budget-phased modernization programs where full system replacement is not immediately feasible.

Q: What documentation is included to support installation and commissioning during a retrofit project?
A: Each unit is supplied with the Siemens SM 422 module manual reference. Upon request, our technical support team can provide STEP 7 hardware configuration templates, front connector wiring diagrams for common actuator types, and diagnostic integration guides for connecting module fault data to plant-level SCADA or MES systems.
