Siemens 6ES7222-1HF32-0XB0 Service-Ready Spare Part

Siemens 6ES7222-1HF32-0XB0 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

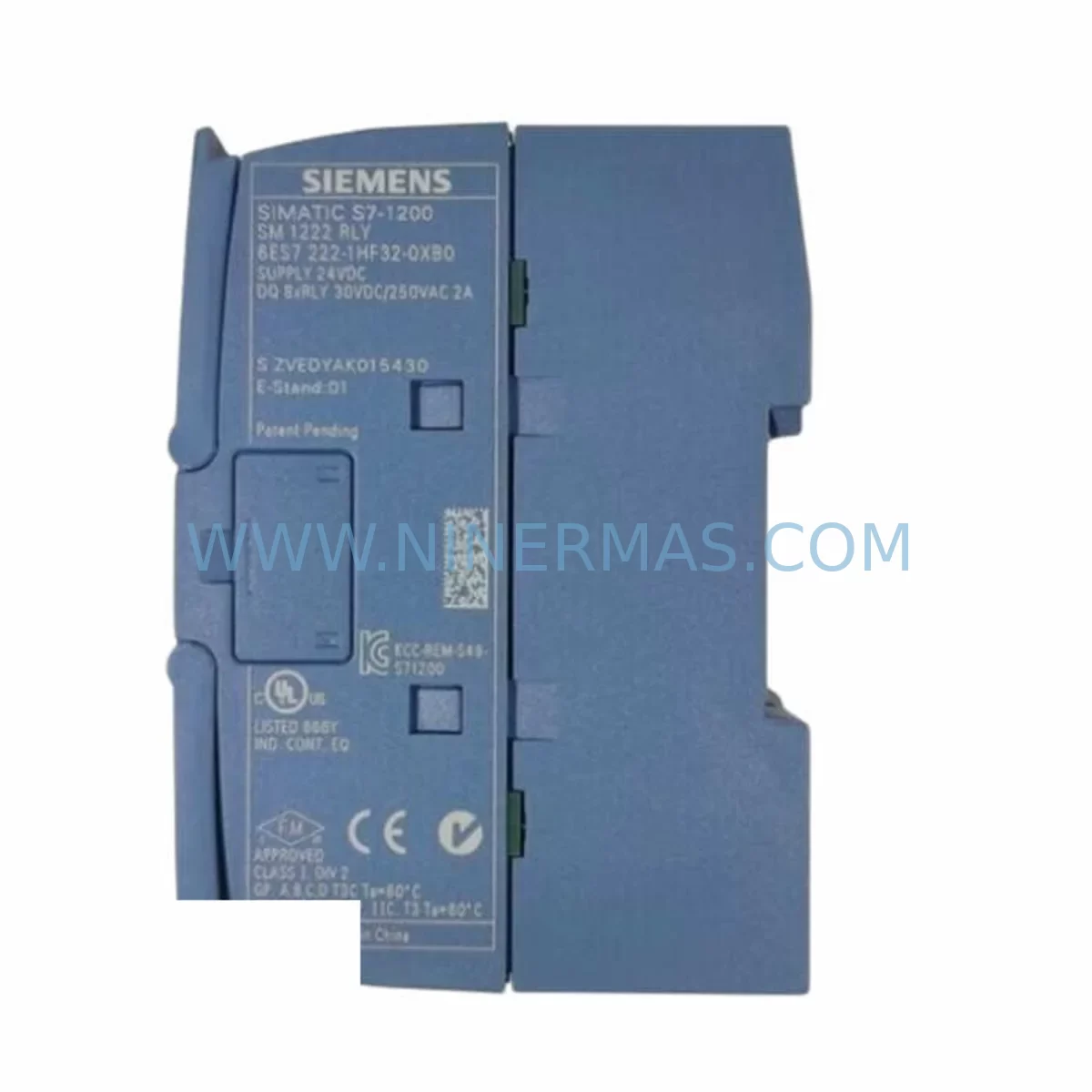

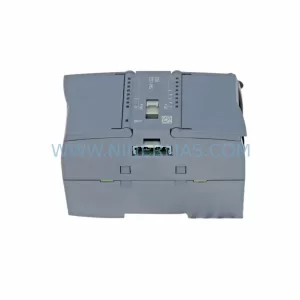

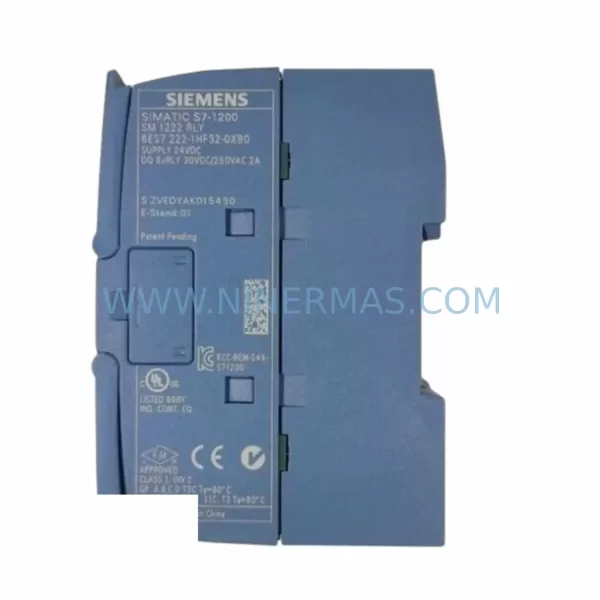

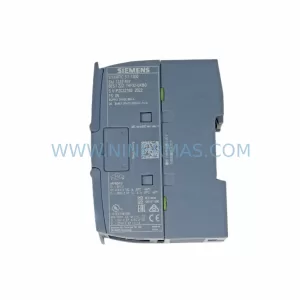

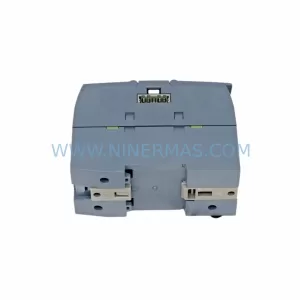

The Siemens 6ES7222-1HF32-0XB0 is a digital output module belonging to the SM 1222 signal module series, designed for seamless integration with the SIMATIC S7-1200 programmable logic controller platform. This module provides 8 relay outputs and is widely deployed across discrete manufacturing, packaging lines, conveyor systems, and process automation environments where reliable output switching is critical to continuous production.

At NINERMAS, we supply this module as a service-ready spare part, fully tested prior to shipment and backed by a 12-month warranty. Whether you are responding to an unplanned fault, building a preventive maintenance stock, or replacing an end-of-life unit in an aging S7-1200 cabinet, the 6ES7222-1HF32-0XB0 is available for immediate dispatch to minimize your production downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7222-1HF32-0XB0 output module fails or shows degraded relay performance during routine inspection, experienced maintenance engineers know that the fault rarely exists in isolation. A thorough site assessment should accompany any module replacement to prevent repeat failures and ensure the restored system operates reliably.

Begin by verifying the 24 V DC power supply feeding the S7-1200 rack — a marginal or noisy supply is a common root cause of relay output anomalies. Siemens SITOP PSU100S or equivalent stabilized power supplies should be checked for output ripple and load capacity before the new module is commissioned. Alongside the power supply, inspect the S7-1200 CPU module itself (such as the CPU 1214C DC/DC/DC or CPU 1215C AC/DC/Relay) for firmware currency and diagnostic buffer entries that may indicate upstream communication faults.

The SM 1221 digital input module paired in the same cabinet should be tested in parallel — input signal integrity directly affects the logic conditions that drive the relay outputs on the 6ES7222-1HF32-0XB0. Similarly, if the application involves analog process variables, the SM 1231 analog input module or SM 1232 analog output module should be verified for calibration drift, particularly in temperature-sensitive environments.

Terminal blocks and field wiring connected to the relay outputs deserve close attention. Loose or corroded terminals on Siemens SIRIUS 3RT contactors or downstream 3RV circuit breakers can cause intermittent switching failures that are misdiagnosed as module faults. Replacing the output module without addressing wiring integrity will result in premature failure of the new spare.

For cabinets running PROFINET communication, the CM 1241 RS485 communication module or CM 1243-5 PROFIBUS DP master module should be inspected for connector seating and network termination. Communication faults can trigger watchdog resets that appear as output module errors in the diagnostic log. If the system includes a KTP700 Basic HMI panel or similar operator interface, verify that the HMI project is synchronized with the current CPU program version to avoid control logic mismatches after the module swap.

Procurement engineers building annual maintenance stock for S7-1200-based lines should consider holding at least one spare 6ES7222-1HF32-0XB0 per production cell, alongside a spare CPU module and one digital input module. This three-component buffer covers the majority of unplanned outage scenarios and aligns with lean spare parts inventory strategies for mid-complexity automation systems.

Site Replacement Workflow

Replacing the 6ES7222-1HF32-0XB0 on a live S7-1200 system follows a structured procedure to minimize downtime and avoid configuration errors. Before removing the faulty module, use STEP 7 / TIA Portal to export the current hardware configuration and note the module slot assignment. Power down the S7-1200 rack at the main disconnect — do not attempt hot-swap on relay output modules, as relay coil de-energization during live removal can cause uncontrolled output state changes in connected field devices.

Remove the field wiring connector from the faulty module (the plug-in terminal design on SM 1222 modules allows the wiring harness to be transferred directly to the replacement unit without re-terminating individual conductors). Slide the replacement 6ES7222-1HF32-0XB0 into the correct expansion slot, reconnect the terminal plug, and restore power. TIA Portal will automatically recognize the module if the hardware configuration matches — no additional parameterization is required for a like-for-like replacement.

After power-up, verify all relay output indicators in the CPU diagnostic view and perform a functional test of each output channel against the field device it controls. Document the replacement in the maintenance log with the module serial number, installation date, and test results. This record supports warranty claims and provides traceability for future audits.

For sites migrating from older S7-200 or S7-300 platforms, the 6ES7222-1HF32-0XB0 can serve as part of a modernization strategy — the S7-1200 platform offers a compact, cost-effective upgrade path that preserves relay output compatibility with existing field wiring while adding PROFINET connectivity and TIA Portal engineering efficiency.

Spare Parts Support FAQ

Q1: Is the 6ES7222-1HF32-0XB0 compatible with all S7-1200 CPU variants?
Yes. The SM 1222 signal module series is compatible with all S7-1200 CPU models, including the 1211C, 1212C, 1214C, 1215C, and 1217C. The module connects via the right-side expansion bus and is automatically detected by TIA Portal during hardware configuration. Confirm your TIA Portal version supports the firmware level of your CPU before commissioning.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every 6ES7222-1HF32-0XB0 supplied by NINERMAS undergoes functional output verification before dispatch — each relay channel is tested for switching continuity and coil response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the rated specification.

Q3: Can NINERMAS support long-term or recurring supply of this module?
Yes. NINERMAS maintains stock of the 6ES7222-1HF32-0XB0 and related S7-1200 spare parts to support ongoing maintenance programs. We can accommodate blanket purchase orders, scheduled deliveries, and emergency same-day dispatch for critical production environments. Contact our team to discuss a supply agreement tailored to your maintenance cycle.

Q4: How do I verify compatibility before ordering if my system uses a customized hardware configuration?
Provide your TIA Portal hardware configuration export or the CPU order number and existing module slot layout to our technical team. We will confirm compatibility and advise on any firmware or configuration considerations before the order is placed, eliminating procurement risk and ensuring the replacement module integrates without modification.
