Siemens 6ES5928-3UB12 Retrofit-Compatible CPU for Legacy Systems

Siemens 6ES5928-3UB12 Retrofit-Compatible CPU for Legacy Systems: Smooth Upgrade for SIMATIC S5 Automation

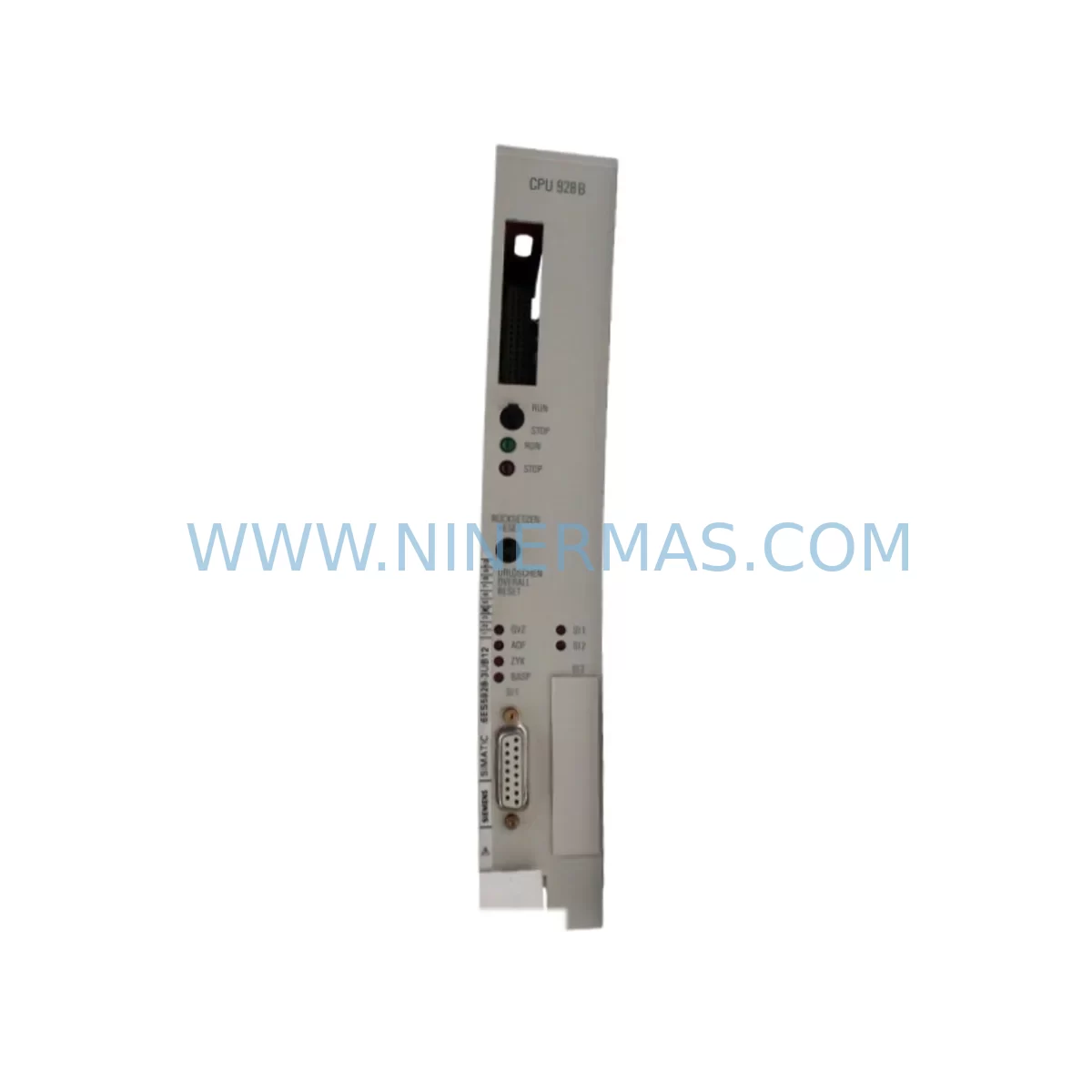

The Siemens 6ES5928-3UB12 is a central processing unit designed for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed industrial automation architectures of the 1980s and 1990s. Despite the official end-of-life status of the S5 series, thousands of production lines, process control cabinets, and utility automation systems worldwide continue to rely on this hardware. NINERMAS supplies retrofit-compatible 6ES5928-3UB12 units to support customers who need to replace failed modules, extend the operational life of existing installations, or execute a phased migration to modern control platforms without full line shutdown.

Whether you are managing a paper mill, a chemical dosing system, a water treatment facility, or a discrete manufacturing cell, the 6ES5928-3UB12 provides a reliable path to restore system function and maintain production continuity. Each unit supplied by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 6ES5928-3UB12 retrofit begins well before the replacement unit arrives on site. Engineers responsible for the upgrade should start by auditing the existing S5 subrack configuration — identifying which slots are occupied by I/O modules such as the 6ES5430-4UA12 digital input module or the 6ES5451-4UA13 digital output module, and confirming that the backplane bus connectors are free of corrosion or mechanical damage. The power supply module — typically a 6ES5955-3LC41 or equivalent PS 955 unit — should be load-tested to confirm it can support the CPU and all installed I/O cards without voltage sag.

Terminal wiring on the S5 signal modules is generally retained during a CPU swap, but engineers should photograph and document all field wiring before beginning work. If the system includes analog I/O — for example, a 6ES5464-4UA13 analog input module handling 4–20 mA process signals — the scaling parameters stored in the CPU’s data blocks must be preserved and reloaded after the replacement. Any loss of DB contents will result in incorrect process values and potential interlock trips.

Communication links also require careful attention. Many S5 installations use a 6GK1541-1AA00 CP 5412 or similar communications processor to interface with PROFIBUS DP networks, SINEC H1 Ethernet segments, or serial SCADA links. The CP module configuration — including station address, baud rate, and message frame definitions — is stored separately from the main CPU program and must be independently verified after the CPU swap. If the site uses an OP 15 or OP 25 operator panel connected via the MPI or point-to-point interface, the HMI screen assignments and variable mappings should be tested against the restored program before returning the system to automatic mode.

For installations where the S5 rack is mounted inside a legacy control cabinet alongside relay logic, motor starters, or third-party signal conditioners, physical installation space must be confirmed. The 6ES5928-3UB12 occupies a standard S5 module slot, but if the subrack has been modified or if additional DIN rail components have been added over the years, clearance for module extraction and reinsertion should be verified. In some cases, a 6ES5700-8MA11 expansion subrack or an additional IM (interface module) pair may be present — these should remain undisturbed during the CPU replacement.

Where the long-term plan involves migrating from S5 to S7 or TIA Portal-based platforms, the 6ES5928-3UB12 replacement can serve as a stabilization step while the migration project is planned. Siemens S7-300 CPUs such as the CPU 315-2 DP are a common migration target, and the STEP 5 to STEP 7 conversion tools can assist with program block translation — though manual review of all time-critical OBs and interrupt routines is always recommended.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any S5 CPU replacement project. NINERMAS recommends a structured approach: first, obtain a verified backup of the existing STEP 5 program using a PG 740, PG 760, or a modern PC-based programming adapter such as the 6ES5734-1BD20 S5-compatible cable. Store the backup on at least two independent media — a formatted floppy or CF card image and a PC-based archive — before touching any hardware.

Once the backup is confirmed, the CPU swap itself can typically be completed within a single planned maintenance window of two to four hours, depending on rack accessibility and the complexity of the installed program. The replacement 6ES5928-3UB12 should be inserted into the same slot as the original unit, with the module address switches set to match the original configuration. After power-up, the STEP 5 program is downloaded from the backup PG, and all I/O force tables and flag assignments are verified before switching from STOP to RUN mode.

Field control continuity is maintained by keeping all output modules de-energized during the download sequence and only enabling outputs after a full I/O diagnostic scan confirms correct signal mapping. For process-critical loops — such as PID temperature control or flow regulation — manual control should be established at the field device level before the CPU is taken offline, and automatic mode should only be restored after the loop has been verified in manual for a minimum observation period.

NINERMAS pre-tests each 6ES5928-3UB12 unit prior to shipment, reducing the risk of receiving a non-functional module and eliminating one of the most common causes of extended downtime during legacy CPU replacements. Units are shipped with protective packaging suitable for international freight, and expedited delivery options are available for urgent breakdown situations.

Retrofit Support FAQ

Q1: Is the 6ES5928-3UB12 supplied by NINERMAS a direct drop-in replacement for the original Siemens module?
Yes. The unit is physically and electrically compatible with the original S5 subrack slot. Module address switches must be set to match the original configuration before installation. No hardware modification to the rack or wiring is required for a like-for-like CPU replacement.

Q2: What commissioning steps are required after installing the replacement CPU?
After physical installation, the STEP 5 program must be downloaded from a verified backup using a compatible PG or PC adapter. All data blocks, organization blocks, and function blocks should be confirmed present and correct. I/O mapping, communication module parameters, and HMI variable links should be tested in STOP mode before switching to RUN. A supervised trial run under manual field control is recommended before returning to full automatic operation.

Q3: How does NINERMAS verify the unit before shipment?
Each 6ES5928-3UB12 undergoes a functional power-on test and basic I/O bus communication check prior to dispatch. Units that fail any stage of testing are quarantined and not shipped. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q4: Is inventory available for immediate shipment, and what are the lead times?
NINERMAS maintains stock of the 6ES5928-3UB12 to support urgent breakdown and planned maintenance requirements. Standard orders are dispatched within 1–3 business days. For time-critical situations, please contact our team directly to confirm current stock levels and arrange expedited freight.
