Siemens 6ES5928-3UA11 Retrofit-Compatible CPU for Legacy S5

Siemens 6ES5928-3UA11 Retrofit-Compatible CPU for Legacy S5 Systems: Smooth Upgrade Path for Aging Automation Infrastructure

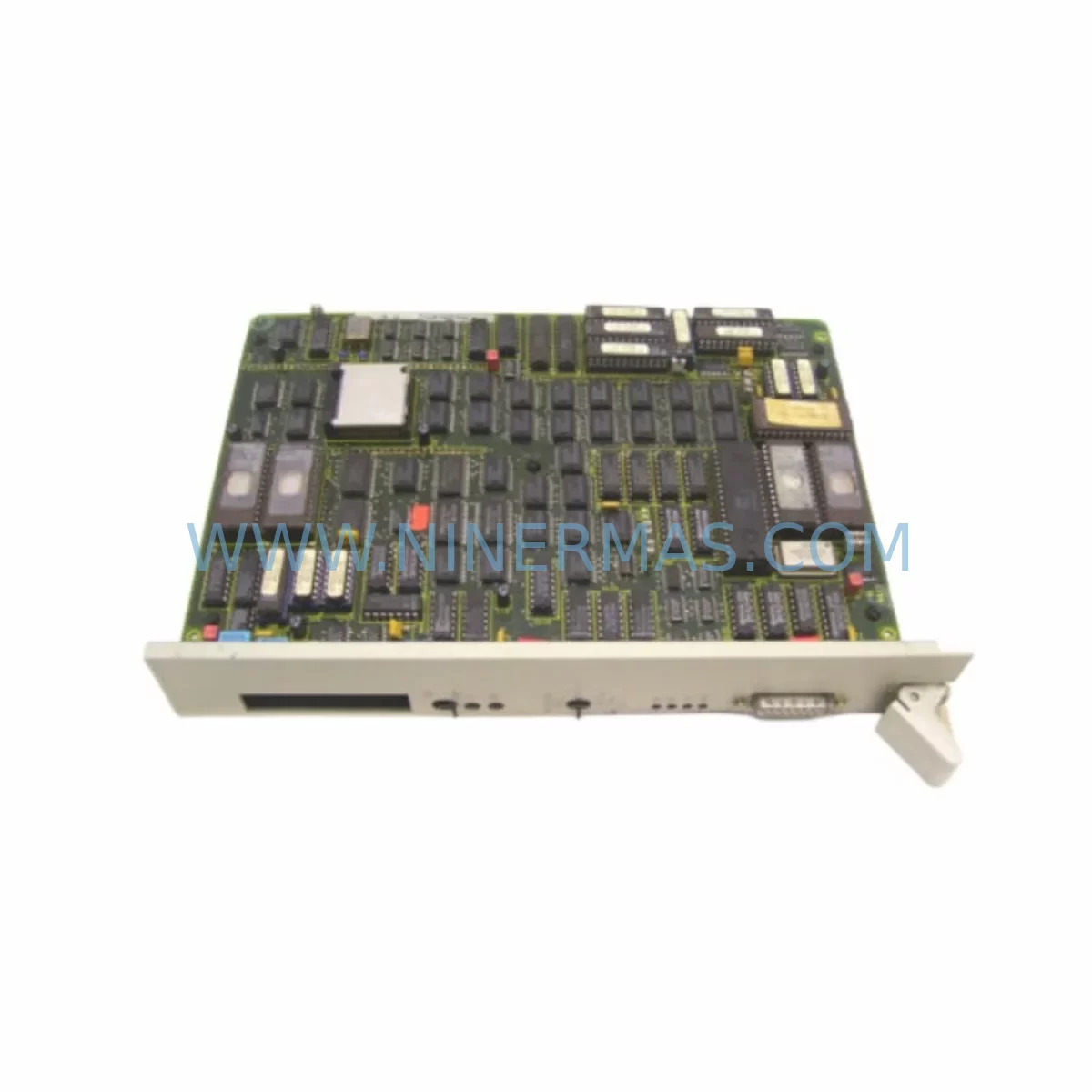

The Siemens 6ES5928-3UA11 (CPU928A) is a high-performance central processing unit designed for the SIMATIC S5-928 programmable logic controller platform. As industrial facilities worldwide face the challenge of maintaining aging automation infrastructure, this module has become a critical component in retrofit projects, discontinued model replacements, and control cabinet modernization programs. Whether you are restoring a production line after an unexpected CPU failure or executing a planned migration away from end-of-life hardware, the 6ES5928-3UA11 provides a reliable, drop-in-compatible solution that minimizes engineering rework and reduces total downtime.

Originally manufactured in Germany and built to Siemens’ stringent industrial quality standards, the CPU928A supports the full SIMATIC S5 instruction set and is compatible with the S5-928 rack architecture. Its robust design makes it suitable for demanding environments including automotive assembly, chemical processing, power generation, and heavy manufacturing — industries where control continuity is non-negotiable.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life CPU928A in an operational plant requires careful pre-planning across multiple system layers. Before removing the existing 6ES5928-3UA11, engineers should back up the complete STEP 5 program — including all organization blocks (OBs), function blocks (FBs), data blocks (DBs), and system data — using a compatible programming cable such as the 6ES5734-1BD20 or the 6ES5752-0AA23 TTY adapter connected to a PC running SIMATIC STEP 5 v7.x or later.

The power supply module must be verified before installation. The S5-928 rack typically draws significant current from the 24 VDC bus, and adding or replacing a CPU module can shift the load balance. Confirm that the installed 6ES5955-series PS module has sufficient headroom — particularly if the rack also houses analog I/O modules such as the 6ES5464-series input cards or 6ES5470-series output cards, which carry their own current demands. Overloading the power supply is a common cause of intermittent faults after retrofit work.

Terminal wiring and I/O module addressing must be verified against the original hardware configuration. The S5-928 uses a slot-based addressing scheme, and any change in module position — even swapping a digital input module like the 6ES5421-series or a digital output module like the 6ES5441-series — can shift I/O addresses and cause program mismatches. Always compare the physical slot assignments against the STEP 5 hardware configuration file before powering up the replacement CPU.

Communication modules installed in the same rack, such as the 6ES5734-series CP modules for SINEC L2 or H1 networks, must also be re-initialized after a CPU swap. Network node addresses, baud rates, and telegram structures stored in the CP’s internal memory may need to be reloaded. If the plant uses an HMI system — whether a legacy SIMATIC OP series operator panel or a more modern WinCC-based supervisory station — verify that the HMI communication driver is still correctly mapped to the new CPU’s data block structure. Screen variables linked to specific DB addresses can become misaligned if the program was modified before the replacement.

For facilities planning a longer-term migration from S5 to S7 architecture, the 6ES5928-3UA11 can serve as a stable interim solution while the S7-300 or S7-400 migration is engineered. During this transition period, signal isolators and protocol converters may be required to bridge legacy S5 I/O signals with newer field devices. Keeping the S5 platform operational with a verified spare CPU buys the engineering team the time needed to complete a thorough migration without forcing an emergency cutover.

Downtime Control During System Migration

Unplanned downtime during a CPU replacement is one of the highest-cost risks in industrial retrofit projects. A structured approach to the 6ES5928-3UA11 swap can reduce total outage time to under two hours in most cases. The key is preparation: have the replacement module tested and verified on the bench before the maintenance window begins. At NINERMAS, each unit undergoes functional testing prior to shipment, confirming that the CPU initializes correctly, passes internal diagnostics, and communicates via the PG port — so you are not discovering hardware faults on the production floor.

Before the scheduled outage, complete a full program backup and document the current rack configuration, including every module’s slot position, address assignment, and any DIP switch or jumper settings on analog modules. Photograph the terminal wiring on any I/O modules that will be disturbed during the swap. This documentation becomes your recovery baseline if anything does not come up as expected after the CPU is replaced.

During the swap itself, power down the rack in the correct sequence — disable field outputs first, then remove power from the PS module before extracting the CPU. Insert the 6ES5928-3UA11 replacement into the same slot, restore power, and allow the CPU to complete its self-test cycle before attempting a program download. Download the backed-up STEP 5 program, verify the hardware configuration matches the physical rack, and perform a controlled startup with field outputs still inhibited. Only after confirming correct I/O response and communication link status should field outputs be re-enabled and the system returned to automatic mode.

This disciplined sequence protects the original program logic, maintains field control continuity, and dramatically reduces the risk of a secondary fault caused by rushed commissioning. With a pre-tested replacement unit and a documented retrofit procedure, most S5-928 CPU swaps can be completed within a single planned maintenance shift.

Retrofit Support FAQ

Q: Is the 6ES5928-3UA11 a direct drop-in replacement for the 6ES5928-3UA12 or 6ES5928-3UB11?
A: In most cases, yes — the CPU928A family shares the same backplane connector and rack form factor. However, firmware revision differences between sub-variants can affect certain system functions. We recommend verifying the firmware version of your existing module and confirming compatibility with your STEP 5 program version before installation. Our technical team can assist with cross-reference verification prior to shipment.

Q: What programming cable and software are required to commission this module?
A: The 6ES5928-3UA11 is programmed using SIMATIC STEP 5 software (v7.2 or later recommended) via a TTY or RS-232 programming cable such as the 6ES5734-1BD20 or 6ES5752-0AA23. A PC-PG adapter may be required for modern laptops without a native serial port. All units are shipped with the PG port functional and verified.

Q: Does NINERMAS test units before shipment, and what warranty is provided?
A: Yes. Every 6ES5928-3UA11 unit is functionally tested before dispatch — including power-on self-test, CPU initialization, and PG port communication verification. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Warranty support includes technical assistance and unit replacement if a fault is confirmed.

Q: What if I need multiple units for a multi-line retrofit or to build a spare parts inventory?
A: NINERMAS maintains stock of the 6ES5928-3UA11 and related S5 components to support both single-unit emergency replacements and bulk procurement for planned retrofit programs. Contact our sales team to discuss volume pricing, lead times, and consignment stocking arrangements for long-term maintenance contracts.
