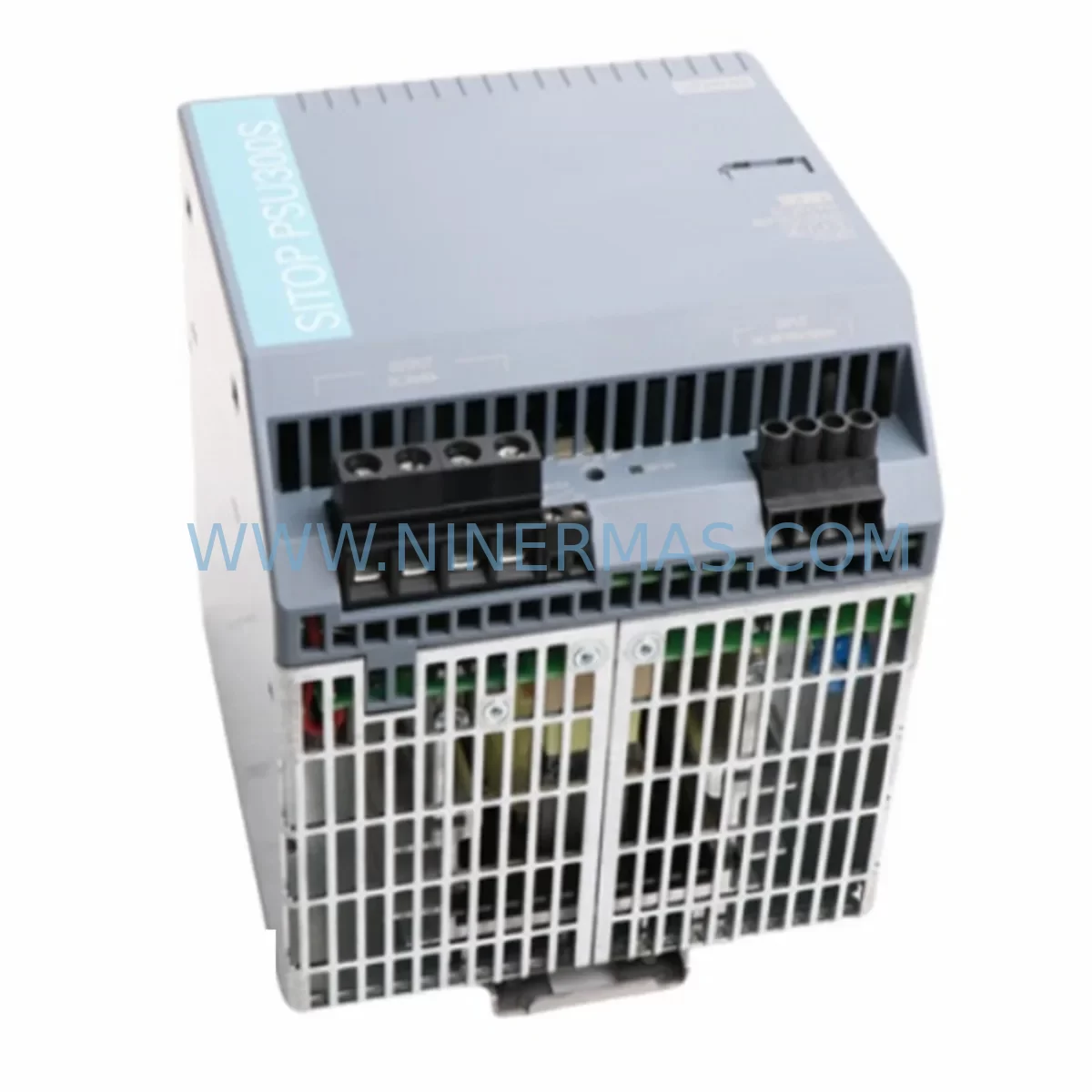

The SIEMENS 6EP1437-2BA20 is a ruggedized SITOP PSU300S series 24 VDC / 40 A stabilized power supply module engineered for continuous-duty industrial environments. Designed to operate reliably under wide input voltage ranges (AC 120–230 V), vibration, and elevated ambient temperatures, this unit is a critical backbone component in control cabinets serving process automation, discrete manufacturing, and utility infrastructure. When a 6EP1437-2BA20 fails or approaches end-of-service life, unplanned downtime can cascade across the entire PLC or DCS rack it powers — making rapid spare part availability a non-negotiable element of any maintenance strategy.

At NINERMAS, every 6EP1437-2BA20 unit is sourced, inspected, and function-tested prior to shipment. We maintain forward stock to support emergency call-outs, scheduled turnarounds, and long-term spare parts programs for facilities operating SIEMENS SITOP infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply failure at the 24 V rail level is rarely an isolated event. When the 6EP1437-2BA20 is flagged during a control cabinet inspection or trips under load, maintenance engineers should treat the event as a trigger for a broader cabinet health audit before restoring production.

Begin by verifying the downstream load budget. The 40 A output of the 6EP1437-2BA20 typically feeds multiple sub-circuits: SIEMENS S7-300 or S7-400 CPU racks, SM321/SM322 digital I/O modules, SM331/SM332 analog I/O cards, and CP 343-1 or CP 443-1 PROFINET communication processors. Each of these modules draws a defined current from the 24 V rail, and a degraded or overloaded PSU will cause intermittent resets across all of them simultaneously — making root-cause isolation difficult without a known-good spare in hand.

Inspect the 6ES7 307-series power supply modules on adjacent racks, as these often share the same incoming AC feed and may exhibit similar aging characteristics. Check the SITOP UPS1600 or SITOP UPS500S uninterruptible power supply if installed — a failing PSU can mask a simultaneous UPS battery degradation that only becomes apparent during the next power interruption.

On the field side, examine terminal blocks (e.g., WAGO 281 or Phoenix Contact PTFIX series) for signs of thermal discoloration or loose torque, which indicate sustained overcurrent events that may have contributed to PSU stress. Fuse holders and miniature circuit breakers on the 24 V distribution rail should be tested for correct trip characteristics. Signal isolators such as the SIEMENS SITOP SEL1200 or third-party units from Pepperl+Fuchs should be checked for output drift if the PSU has been operating outside its rated voltage window.

For facilities running SIEMENS WinCC or TIA Portal SCADA, cross-reference the alarm historian for low-voltage warnings on the 24 V rail in the weeks preceding the failure — this data supports root-cause documentation and justifies the spare parts budget for the next procurement cycle. HMI panels such as the SIEMENS TP700 Comfort or KTP900 Basic connected to the same cabinet should be power-cycled and their project integrity verified after PSU replacement.

Procurement engineers should note that the 6EP1437-2BA20 is a long-lifecycle SITOP product, but lead times from standard distribution channels can extend to 8–16 weeks during supply disruptions. Maintaining one or two units in the site spare parts store — alongside the 6EP1333-3BA00 (10 A) and 6EP1436-3BA00 (20 A) for smaller sub-panels — provides a tiered power supply inventory that covers the majority of SITOP cabinet configurations without excessive capital commitment.

Site Replacement Workflow

Step 1 — Isolation: De-energize the incoming AC feed to the PSU via the upstream MCB. Confirm zero voltage on both AC input terminals and 24 V output terminals using a calibrated multimeter before touching any wiring.

Step 2 — Documentation: Photograph the existing wiring layout, terminal labeling, and DIN rail position. Record the output voltage trim setting on the existing unit (visible on the front potentiometer) so the replacement can be set identically.

Step 3 — Removal: Disconnect AC input wiring (L, N, PE) and DC output wiring (+24 V, 0 V, PE). Release the DIN rail locking tab and slide the unit free. Note the physical condition of the unit — bulging capacitors, burn marks, or corrosion should be documented for the maintenance record.

Step 4 — Installation: Clip the 6EP1437-2BA20 replacement onto the DIN rail. Reconnect AC input and DC output wiring to the same terminal positions. Verify torque on all terminals (typically 0.5–0.8 Nm for this class of PSU).

Step 5 — Commissioning: Energize the AC feed. Measure output voltage at the PSU terminals and at the furthest downstream load point. Adjust the output trim if necessary. Confirm all PLC racks, I/O modules, and communication processors have resumed normal operation. Clear any fault codes in the CPU and SCADA historian.

Step 6 — Record Closure: Update the equipment register with the replacement date, new unit serial number, and next recommended inspection interval (12 months). Return the failed unit to NINERMAS for evaluation if a warranty claim or failure analysis is required.

Spare Parts Support FAQ

Q1: Is the SIEMENS 6EP1437-2BA20 still available as a new original spare part?
A: Yes. NINERMAS maintains forward stock of the 6EP1437-2BA20 sourced from authorized channels. Each unit is inspected and function-tested before shipment. Contact our team to confirm current stock availability and lead time for your site.

Q2: What is the warranty coverage for the 6EP1437-2BA20 supplied by NINERMAS?
A: All units carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Units are tested at rated load prior to dispatch, and a test report can be provided on request.

Q3: Can the 6EP1437-2BA20 directly replace older SITOP power supply variants in the same cabinet?
A: The 6EP1437-2BA20 is dimensionally and electrically compatible with earlier SITOP PSU300S variants sharing the same 40 A / 24 VDC output class. Verify the DIN rail footprint, terminal pitch, and output voltage trim range against your existing installation drawings before committing to a direct swap. NINERMAS technical support can assist with compatibility confirmation.

Q4: Does NINERMAS support long-term supply agreements for the 6EP1437-2BA20?
A: Yes. We offer blanket order arrangements and annual spare parts programs for facilities requiring guaranteed stock availability across multi-year maintenance cycles. This is particularly relevant for sites operating legacy S7-300 or S7-400 infrastructure where OEM supply continuity is uncertain.
