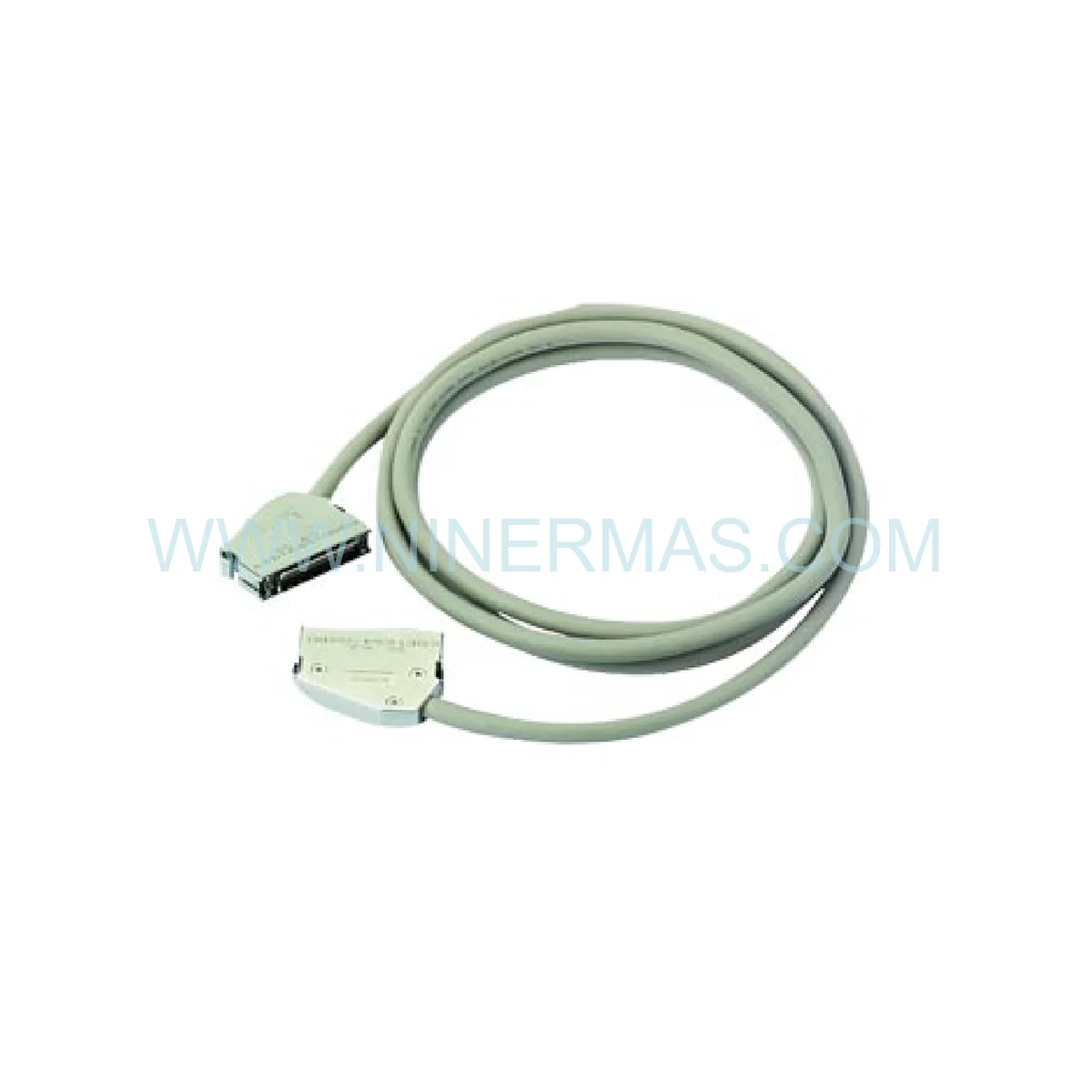

Siemens 6DD1684-0FD0 SC53 Ribbon Cable | SIMADYN D Retrofit & Upgrade

Siemens 6DD1684-0FD0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across power generation and process manufacturing facilities, the Siemens 6DD1684-0FD0 stands out as a mission-critical enabler in any SIMADYN D modernization initiative. This precision-engineered SC53 50-pole ribbon cable is not merely a passive interconnect t is the backbone of signal integrity that allows aging SIMADYN D architectures to sustain operational continuity while phased hardware upgrades are executed around them. Deploying the Siemens 6DD1684-0FD0 as part of a structured retrofit plan directly reduces unplanned downtime risk and preserves the investment already embedded in existing subrack infrastructure.

One of the most compelling advantages of this component in a migration context is its full backward compatibility with the SIMADYN D module ecosystem ncluding processor cards, I/O expansion boards, and communication interfaces. Whether your facility is transitioning from legacy turbine control wiring to a modernized DCS backbone, or simply extending the operational lifespan of a proven SIMADYN D installation, this cable provides the seamless integration layer that bridges old and new without requiring full system replacement.

From a cost-and-risk perspective, sourcing the 6DD1684-0FD0 as a verified OEM-equivalent component eliminates the need for custom cable fabrication or adapter workarounds oth of which introduce failure points and inflate project budgets. Retrofit teams benefit from a drop-in solution that compresses commissioning timelines and minimizes the engineering hours required for signal validation during cutover phases.

Upgrade Highlights & Compatibility

✅ Full Legacy Compatibility: Engineered for the complete SIMADYN D product family rocessor, I/O, and communication modules nsuring zero-compromise integration in existing subrack configurations.

Performance Enhancement: Supports full SIMADYN D communication bandwidth (up to 12 Mbps), eliminating signal degradation that commonly plagues aged or improvised cabling solutions.

✅ Retrofit-Ready Form Factor: Flat ribbon architecture enables organized, space-efficient routing within control cabinets ritical for retrofit projects where cabinet real estate is constrained.

Future-Proofing via Standardization: The standardized 50-pole IDC connector format simplifies future module swaps and system expansions without rewiring.

✅ Seamless Integration: No special tooling required for installation DC press-fit connectors allow rapid deployment during scheduled maintenance windows or emergency replacement scenarios.

Hardware Upgrade Confidence: Factory-sealed, OEM-grade construction ensures the same electrical characteristics as original Siemens production units ritical for safety-rated control environments.

Modernization Use Cases & Success Stories

DCS Backbone Consolidation — Chemical Processing Plant: A multi-unit chemical facility running parallel SIMADYN D and legacy relay-based control loops used the 6DD1684-0FD0 to re-establish clean module-to-module communication paths during a phased DCS consolidation. By replacing degraded original cables with verified OEM units, the retrofit team eliminated intermittent fault alarms that had been misattributed to processor card failures ecovering over 200 engineering hours previously spent on false-positive diagnostics.

Turbine Monitoring System (TSI) Upgrade — Power Generation Facility: During a turbine control system modernization at a 600 MW thermal plant, the 6DD1684-0FD0 served as the critical interconnect between retained SIMADYN D I/O modules and newly installed communication gateways. Its verified 50-pole pinout allowed the retrofit team to maintain existing field wiring while upgrading the supervisory layer educing cutover risk and compressing the outage window by an estimated 30%.

Subrack Expansion — Automotive Manufacturing Line: An automotive body shop running SIMADYN D-based drive coordination required subrack expansion to accommodate additional axis controllers. The 6DD1684-0FD0 provided the standardized interconnect for new module slots, enabling a seamless integration of expanded I/O capacity without disrupting the existing production control logic.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every unit of the 6DD1684-0FD0 is sourced as genuine Siemens OEM stock, factory-sealed to preserve connector integrity and insulation properties. No refurbished or remanufactured units are supplied ritical for safety-rated retrofit environments where counterfeit components pose unacceptable risk.

Expedited Global Logistics: Recognizing that SIMADYN D retrofit projects frequently operate under tight outage windows, we maintain ready stock with expedited international shipping to support emergency replacement and planned maintenance schedules across Asia, Europe, and the Americas.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in EOL and legacy Siemens SIMADYN D components. We provide pre-shipment compatibility verification, pinout documentation, and installation guidance to ensure your retrofit team has the technical resources needed for a successful deployment ven when original Siemens documentation is no longer readily available.

Retrofit FAQ — Upgrade Guide

Q: Will the 6DD1684-0FD0 fit within the physical constraints of my existing SIMADYN D subrack cabinet during a retrofit?
A: Yes. The flat ribbon form factor of the 6DD1684-0FD0 is specifically designed for the spatial constraints of SIMADYN D subrack enclosures. Its 2-meter length accommodates standard module-to-module distances, and the flexible ribbon body allows routing around existing cable bundles without requiring cabinet modifications key advantage in retrofit scenarios where structural changes are not feasible.

Q: Can this cable support communication between legacy SIMADYN D modules and newer SIMATIC TDC or S7-based gateway interfaces?
A: The 6DD1684-0FD0 is natively designed for SIMADYN D internal bus communication. When integrating with SIMATIC TDC or S7 gateways, the cable connects on the SIMADYN D side of the interface; the gateway module itself handles protocol translation. Always verify connector pinout compatibility at the gateway interface before commissioning.

Q: What is the recommended replacement strategy if the original cable shows signs of insulation degradation during a system audit?
A: Siemens recommends full cable assembly replacement rather than field repair of ribbon cables. During retrofit audits, any unit showing cracked insulation, bent conductors, or connector deformation should be replaced with a verified OEM 6DD1684-0FD0 unit. Attempting to repair or splice ribbon cables in safety-critical control environments introduces unacceptable signal integrity risk.

Q: Are there alternative part numbers or cross-reference substitutes for the 6DD1684-0FD0 in a retrofit bill of materials?
A: The 6DD1684-0FD0 is a Siemens-specific part with a proprietary 50-pole IDC configuration. No direct third-party substitute is certified for SIMADYN D systems. For retrofit projects requiring confirmed compatibility, we strongly recommend sourcing the exact 6DD1684-0FD0 model number rather than attempting cross-reference substitutions that may introduce connector or signal timing mismatches.

Q: How does this cable perform in high-vibration environments typical of turbine or compressor control installations?
A: The SC53 ribbon cable construction provides inherent vibration resistance through its flat, multi-conductor bonded structure, which distributes mechanical stress across the cable body rather than concentrating it at individual conductors. For extreme vibration environments, additional cable clamps at 300mm intervals are recommended per Siemens installation guidelines.

Q: What documentation is available to support the retrofit commissioning process?
A: We provide access to SIMADYN D system documentation references, connector pinout diagrams, and installation checklists upon request. Our technical support team can assist with pre-installation verification to confirm correct cable orientation and module port assignment before system power-up.
