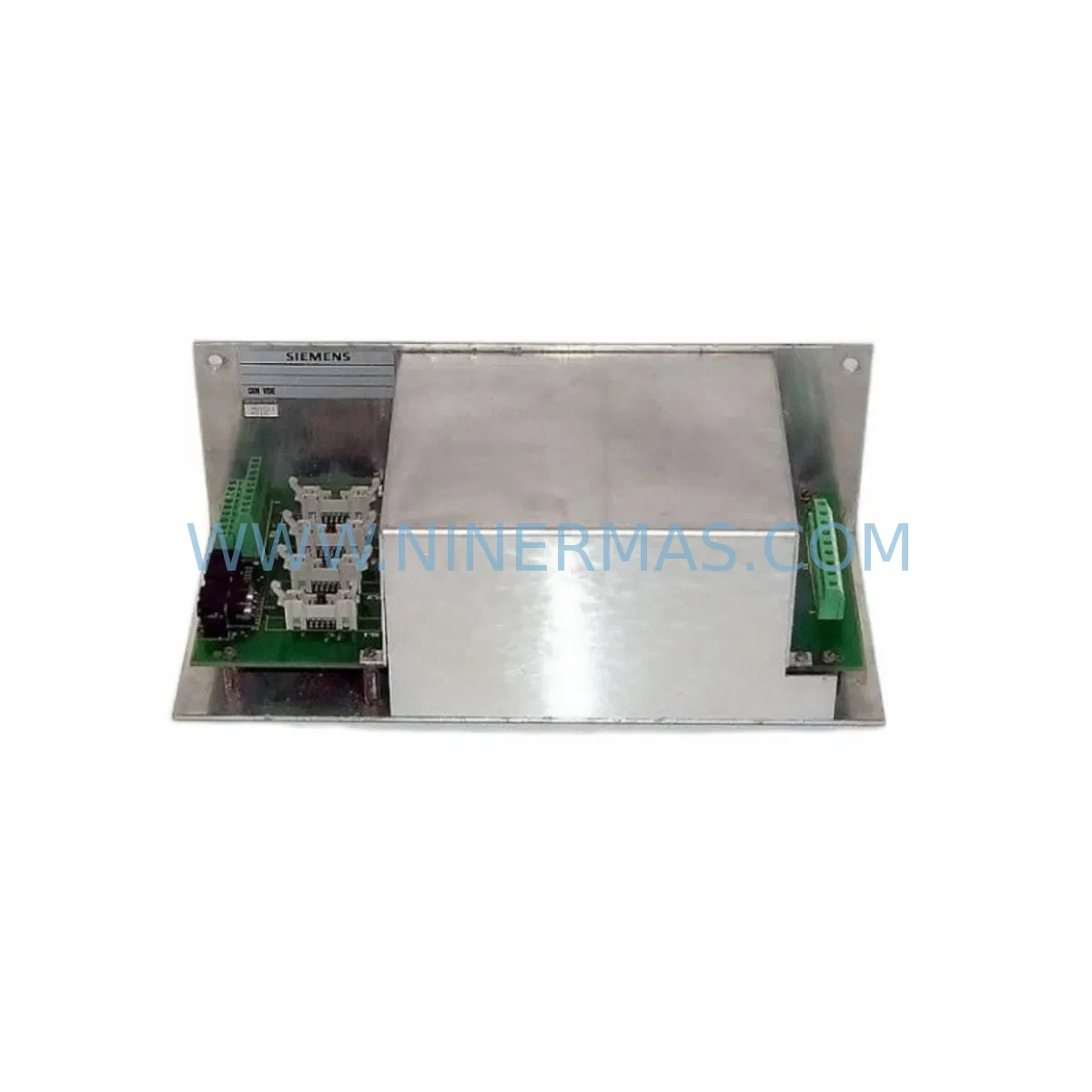

SIEMENS 6DD1681-0EK1 Retrofit-Compatible Interface Module

SIEMENS 6DD1681-0EK1 Retrofit-Compatible Interface Module for Legacy System Upgrades

The SIEMENS 6DD1681-0EK1 is a ruggedized interface module originally designed for the SIMADYN D control platform — one of Siemens’ most widely deployed drive and process control systems in heavy industry. As SIMADYN D components approach or have passed their end-of-life support dates, plant engineers and automation integrators are increasingly sourcing verified replacement units to extend operational continuity without committing to a full system overhaul. The 6DD1681-0EK1 serves as a critical link in this retrofit strategy, bridging legacy backplane architectures with modern control demands while preserving existing program logic and field wiring.

Whether you are managing a steel mill, paper plant, cement kiln, or chemical processing line, the 6DD1681-0EK1 provides a reliable, tested path to restore or extend the life of your existing SIMADYN D rack. NINERMAS maintains verified stock of this module with full functional testing prior to shipment and a 12-month warranty on every unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6DD1681-0EK1 in an active production environment requires careful pre-planning across multiple system layers. Before removing the failed module, engineers should document the current rack configuration, including the slot positions of adjacent modules such as the 6DD1606-0AH0 analog input module and the 6DD1607-0AA0 digital output module. These companion I/O modules share the same backplane bus and their signal assignments must be preserved exactly during the swap to avoid remapping errors in the control program.

Power supply integrity is a common failure point in aging SIMADYN D cabinets. Before installing the replacement 6DD1681-0EK1, verify that the rack’s internal power supply — typically a 6DD1681-0AC0 or equivalent SIMADYN D power module — is delivering stable 24 VDC and 5 VDC rails within tolerance. A marginal power supply can cause intermittent faults on the new module and complicate commissioning. If the power module shows signs of capacitor aging or output ripple, replacing it concurrently with the interface module is strongly recommended.

Communication continuity is another critical consideration. In systems where the SIMADYN D rack communicates upstream to a SIMATIC S7-400 controller or a SIMATIC TDC platform via PROFIBUS DP, the 6DD1681-0EK1 interface module must be re-addressed correctly to maintain the existing PROFIBUS node address. Any address conflict will cause the master controller to fault on startup. Confirm the PROFIBUS address setting on the module’s rotary switch or DIP block before powering the rack. In installations where a CP 5613 or CP 5614 communications processor card is used on the host PC or S7 rack, verify that the GSD file and hardware configuration in STEP 7 HW Config still match the restored node.

For plants that have already partially migrated toward SIMATIC S7-300 or S7-400 platforms, the 6DD1681-0EK1 often serves as a bridging module during a phased migration. In this scenario, the SIMADYN D rack continues to handle legacy drive control tasks — such as coordinating DC drive systems through 6RA70 series thyristor converters — while the new S7 platform takes over higher-level sequencing. The interface module maintains the real-time data exchange between these two control layers until the full cutover is complete.

HMI continuity must also be addressed. If the plant uses a SIMATIC OP37 or TP270 operator panel connected to the SIMADYN D system via MPI or PROFIBUS, confirm that the HMI screen tags and variable addresses remain valid after the module replacement. In most direct swap scenarios, HMI screens do not require modification, but any change to the module’s slot address or communication node will require a corresponding update in the HMI project file using ProTool or WinCC flexible.

Finally, consider the physical installation space. The 6DD1681-0EK1 occupies a standard SIMADYN D single-width slot. Confirm that the rack’s guide rails are undamaged and that the backplane connector pins are clean and straight. In cabinets with high vibration or thermal cycling history, connector oxidation is common and should be addressed with appropriate contact cleaner before seating the replacement module. Adequate clearance for airflow around the module must be maintained to prevent thermal shutdown during continuous operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a critical interface module in a live production system. The recommended approach is to schedule the swap during a planned maintenance window, ideally with a cold backup of the SIMADYN D control program already saved to a programming device running STRUC G. This ensures that if the replacement module requires a fresh program download — which is common when the original module’s internal memory has been corrupted — the restoration can be completed within minutes rather than hours.

Before powering down the rack, capture a full snapshot of the current I/O status, including all analog setpoints and digital output states. This snapshot serves as the reference baseline for post-commissioning verification. In drive-intensive applications, coordinate with the process team to bring all connected 6RA70 or 6SE70 series drives to a safe stop state before cutting power to the SIMADYN D rack. Attempting a hot-swap without proper drive shutdown can result in uncontrolled motor coast-down and potential mechanical damage.

Once the replacement 6DD1681-0EK1 is seated and the rack is powered, perform a systematic I/O check before releasing the system to production. Verify each analog input channel against known process values, confirm digital output states match the expected safe-state configuration, and check that the PROFIBUS communication link to the upstream controller is established and error-free. A structured commissioning checklist — covering power rails, module LEDs, communication status, and I/O verification — typically allows a trained engineer to complete the full swap and return the system to production in under two hours, keeping total downtime well within acceptable limits for most continuous process industries.

All units supplied by NINERMAS are functionally tested prior to shipment and covered by a 12-month warranty. In-stock units are available for same-day or next-day dispatch, further reducing the risk of extended production outages caused by spare parts lead time.

Retrofit Support FAQ

Q1: Is the 6DD1681-0EK1 a direct drop-in replacement for my existing failed unit?
In most cases, yes — provided the firmware revision of the replacement unit matches or is compatible with your existing SIMADYN D rack configuration. NINERMAS can advise on revision compatibility based on your rack’s PM module type and software version. If a firmware mismatch is identified, we will source the correct revision before shipment.

Q2: What pre-installation checks should I perform before fitting the replacement module?
Verify the rack power supply output voltages, inspect the backplane connector for bent pins or oxidation, confirm the module slot address matches the original configuration, and ensure the control program backup is available on a programming device. These steps prevent the majority of commissioning delays encountered during interface module replacements.

Q3: How is the module tested before shipment, and what does the 12-month warranty cover?
Every 6DD1681-0EK1 unit is powered up and subjected to functional verification testing on a SIMADYN D test rack before dispatch. The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Q4: Can NINERMAS supply other SIMADYN D components needed for a broader cabinet upgrade?
Yes. NINERMAS maintains stock of a wide range of SIMADYN D and related Siemens industrial control components, including processor modules, I/O modules, power supplies, and communication cards. If your retrofit project requires multiple components, contact our team for a consolidated quotation to simplify procurement and reduce overall project lead time.
