Siemens 6DD1611-0AG0 Retrofit-Compatible Controller for Legacy Systems

Siemens 6DD1611-0AG0 Retrofit-Compatible Controller for Legacy Systems: Seamless Upgrade for Aging SINUMERIK 840D Platforms

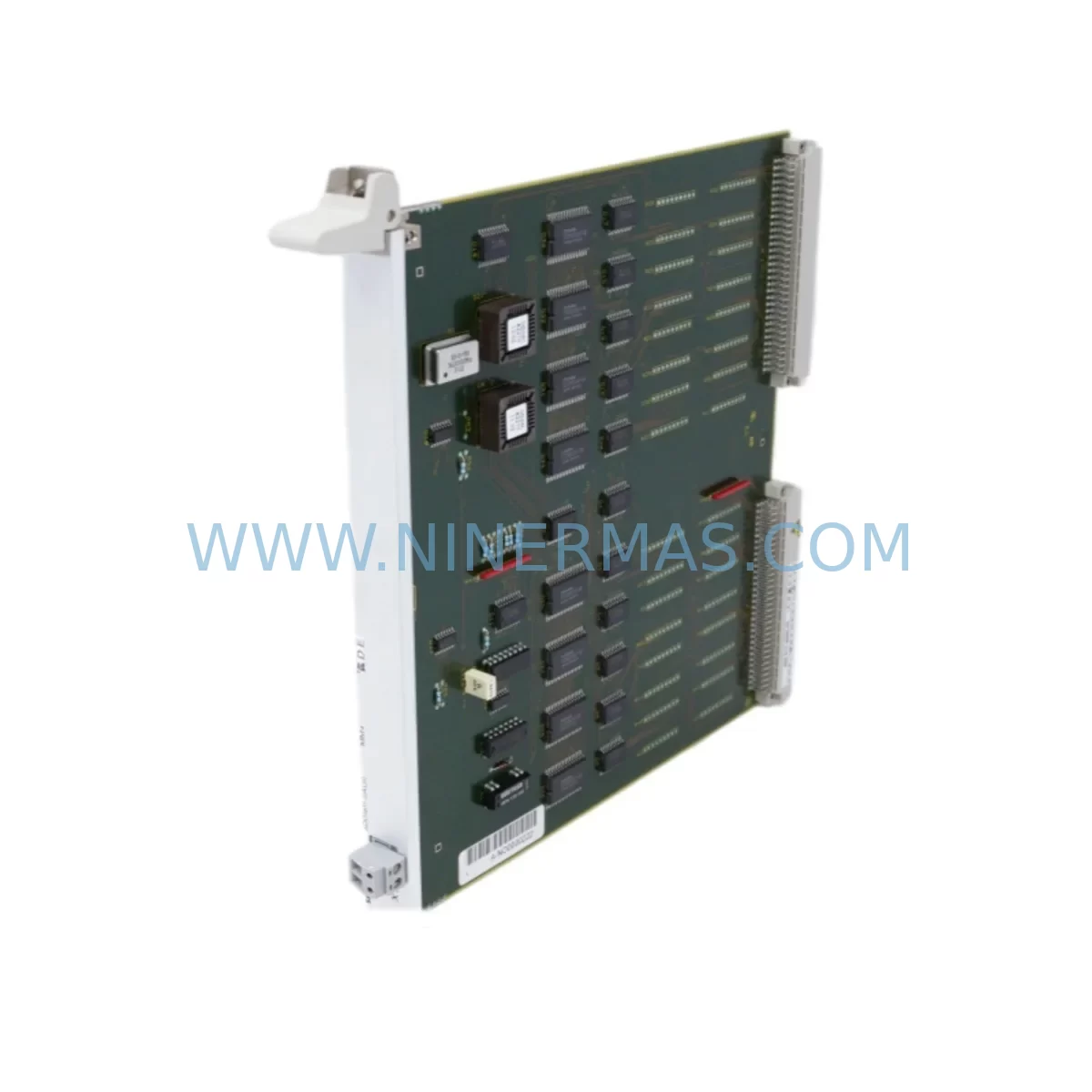

The Siemens 6DD1611-0AG0 is a high-performance controller module widely deployed in SINUMERIK 840D CNC systems across precision machining, heavy manufacturing, and automated production lines. As original equipment reaches end-of-life and Siemens phases out legacy support, facilities relying on the 840D platform face mounting pressure to source verified replacement units or plan a structured migration path. NINERMAS maintains ready inventory of the 6DD1611-0AG0 to support both emergency replacement scenarios and planned retrofit programs, with each unit subject to full functional testing and backed by a 12-month warranty.

Whether your facility is executing a one-for-one swap of a failed module or undertaking a broader control cabinet modernization, the 6DD1611-0AG0 serves as the central processing backbone that must be validated against your existing hardware configuration before installation. Procurement teams and maintenance engineers should confirm power supply capacity, backplane slot compatibility, firmware revision alignment, and communication link integrity as part of any replacement workflow.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 6DD1611-0AG0 requires a systematic review of every component in the control chain. The NCU module does not operate in isolation — it exchanges data continuously with the SIMODRIVE 611 drive system, the PP 72/48 I/O modules handling digital inputs and outputs from the machine tool, and the operator panel interface running HMI Advanced software. Before removing the original controller, engineers should archive the complete NCK machine data set, the PLC program stored in the CPU 315-2 DP or equivalent SIMATIC module, and all axis-specific parameters including encoder resolution, velocity limits, and position control gains.

Power distribution within the control cabinet must be audited carefully. The 6DD1611-0AG0 draws regulated 24 VDC from the system bus, and if the existing PS 307 power supply module is already operating near capacity due to additional I/O expansion or third-party signal conditioning equipment, a supply upgrade may be necessary before the new controller is commissioned. Similarly, if the retrofit scope includes adding PROFIBUS DP nodes — such as ET 200S distributed I/O stations for remote machine sections — the network topology must be re-evaluated to ensure correct termination resistors are in place and that the new node addresses do not conflict with existing devices.

Communication protocol migration is a frequent challenge in 840D retrofit projects. Facilities that originally commissioned their systems with MPI-based HMI connections may need to transition to PROFIBUS DP or Industrial Ethernet as part of the upgrade, particularly if the new HMI panel is an IPC-based unit running Sinumerik Operate rather than the legacy HMI Advanced interface. In these cases, the PROFIBUS DP cable routing, connector shielding, and network segment length must all comply with PROFIBUS specification to avoid intermittent communication faults during production.

I/O expansion requirements should also be assessed during the planning phase. If the modernized machine requires additional digital or analog channels beyond what the original PP 72/48 modules provided, supplementary I/O modules can be integrated into the existing rack or added as distributed stations. Signal isolators may be required at the interface between legacy field devices and the new control hardware, particularly where sensor output levels or loop impedances differ from the module’s rated input range. Documenting these interface points before the retrofit begins significantly reduces the risk of wiring errors during the physical installation.

For facilities managing multiple machine tools on a shared network, the retrofit of a single 6DD1611-0AG0 unit should be coordinated with the network administrator to avoid disrupting PROFIBUS or Ethernet segments that serve adjacent machines. A staged approach — isolating the target machine from the network, completing the hardware swap, restoring and verifying the NCK data, and then reconnecting to the plant network — minimizes the risk of cascading faults. Programming cables such as the PC Adapter USB or PROFIBUS PC card are essential tools during this phase, enabling direct connection from a service laptop to the NCU for data upload, parameter verification, and alarm diagnostics before the machine is returned to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a central controller module like the 6DD1611-0AG0. The most effective strategy is to treat the replacement as a planned maintenance event rather than an emergency response. This means pre-staging the replacement unit, verifying its firmware version against the existing system configuration, and preparing a complete backup of the NCK machine data, PLC program, and HMI project files before the original module is removed from service.

During the physical swap, the original wiring harness and connector assignments should be photographed and documented before disconnection. Terminal blocks serving the drive enable signals, axis reference switches, and safety relay circuits are particularly critical — incorrect reconnection of these circuits can prevent the machine from completing its reference cycle or trigger safety shutdowns that are difficult to diagnose without the original wiring documentation.

Once the replacement 6DD1611-0AG0 is installed and powered, the NCK boot sequence should be monitored via the HMI or a connected service terminal. Alarm codes related to axis configuration, encoder feedback, or PROFIBUS communication failures should be addressed systematically before attempting to run the machine under program control. In most cases, reloading the archived machine data set resolves axis parameter mismatches, while PROFIBUS node recognition issues are typically resolved by cycling power to the affected drive or I/O station.

For facilities where continuous production is critical, a parallel commissioning approach can be considered — where the replacement controller is pre-configured and tested on a bench setup using a representative I/O simulation before being installed in the live machine. This approach requires access to a compatible SIMODRIVE 611 drive unit and a set of PP 72/48 I/O modules for bench testing, but it can reduce the live machine downtime to the duration of the physical swap and final verification, typically two to four hours for an experienced commissioning engineer.

NINERMAS ships all 6DD1611-0AG0 units with a pre-shipment functional test report, confirming that the module has been powered, initialized, and verified against its specification before dispatch. This reduces the risk of receiving a non-functional unit and supports the goal of completing the retrofit within a single planned maintenance window.

Retrofit Support FAQ

Q: Is the 6DD1611-0AG0 a direct drop-in replacement for the original module in my SINUMERIK 840D system?
A: In most cases, yes — the 6DD1611-0AG0 is designed for the SINUMERIK 840D platform and uses the same backplane interface and connector assignments as the original unit. However, you should verify the firmware version and NCK software release on your existing system before installation, as significant version differences may require a software update or machine data adjustment during commissioning.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, the standard commissioning sequence includes verifying the NCK boot, reloading the archived machine data set, confirming PROFIBUS DP node recognition for all connected drives and I/O modules, validating axis reference cycles, and checking HMI screen functionality. A full test run under manual jog mode is recommended before returning the machine to automatic program execution.

Q: How do I confirm wiring compatibility between the replacement module and my existing control cabinet?
A: Compare the connector pin assignments on the replacement 6DD1611-0AG0 against your original electrical drawings. Pay particular attention to the drive enable signals, encoder feedback connections, and PROFIBUS DP cable termination. If your cabinet uses custom wiring adaptors or signal isolators between the NCU and field devices, verify that these remain compatible with the replacement module’s input/output specifications.

Q: What does the 12-month warranty cover, and what is the stock availability?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. NINERMAS maintains stock of the 6DD1611-0AG0 and can confirm current availability and lead time upon inquiry. Each unit is dispatched with a pre-shipment functional test report. Contact sale@ninermas.com or call +0086 187 5021 5667 for stock confirmation and order processing.
