Siemens 6AU1425-2AD00-0AA0 Retrofit Motion Controller

Siemens 6AU1425-2AD00-0AA0 Retrofit Motion Controller: Legacy System Compatibility & Smooth Upgrade

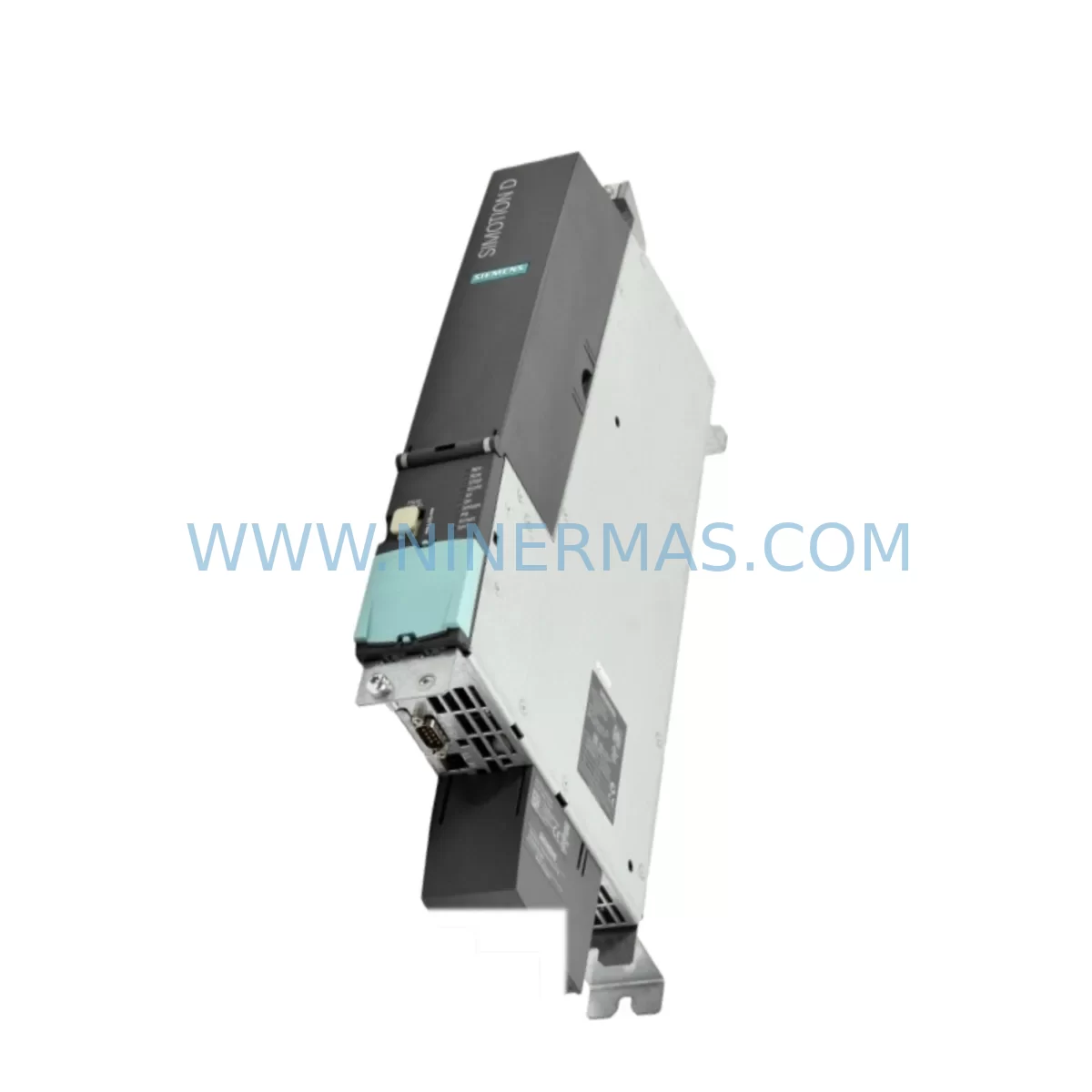

The Siemens 6AU1425-2AD00-0AA0 is a ruggedized motion controller designed for demanding industrial environments and is widely deployed as a retrofit-compatible replacement in legacy Sinumerik-based CNC and motion control systems. Whether you are modernizing an aging production line, replacing a discontinued module, or extending the service life of an existing control cabinet, the 6AU1425-2AD00-0AA0 delivers the performance, interface compatibility, and environmental resilience required for seamless integration into existing automation architectures.

At NINERMAS, we specialize in sourcing, testing, and supplying hard-to-find industrial control components for system integrators, maintenance engineers, and OEM retrofit teams. Every unit of the 6AU1425-2AD00-0AA0 we supply undergoes pre-shipment functional verification and is backed by a 12-month warranty, ensuring your retrofit project proceeds with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6AU1425-2AD00-0AA0 into a legacy system requires careful pre-retrofit planning across multiple subsystems. The following outlines the key considerations engineers encounter during real-world retrofit projects.

Power Supply Capacity Verification: Before installing the 6AU1425-2AD00-0AA0, audit the existing 24 VDC power supply budget within the control cabinet. Legacy systems often run close to their rated capacity, and adding or replacing a motion controller module can push the load beyond safe limits. A Siemens SITOP PSU8200 24V/10A or a higher-rated equivalent is commonly installed alongside the retrofit module to ensure stable power delivery to the NCU rack, I/O modules, and communication interfaces simultaneously.

Terminal Block and Wiring Adaptation: Older Sinumerik 840D and 810D installations frequently use proprietary terminal block configurations that differ from the connector layout on the 6AU1425-2AD00-0AA0. Engineers should cross-reference the original wiring diagram against the new module’s terminal assignment before cutting any wires. In many cases, a Siemens terminal adapter or custom breakout cable is fabricated on-site to bridge the pinout differences without modifying the existing cabinet wiring harness.

Backplane Interface and Module Addressing: The 6AU1425-2AD00-0AA0 must be assigned the correct slot address within the NCU rack. When replacing a failed module in a multi-axis system, the replacement module must inherit the same logical address as the original to avoid axis mapping errors. This is particularly critical in systems where the Siemens NCU 720.3 PN or NCU 730.3 PN serves as the central controller, as axis assignments are stored in the NCU’s non-volatile memory and must be reloaded after module replacement.

Communication Protocol Migration: Many legacy lines still operate on PROFIBUS DP for drive communication, while newer retrofit targets increasingly require PROFINET IO. The 6AU1425-2AD00-0AA0 supports both protocols, but the active interface must be configured correctly in the startup parameters. If the existing line uses a Siemens SINAMICS S120 drive system communicating over PROFIBUS, the retrofit plan must confirm that the drive firmware and the controller firmware are mutually compatible before go-live. In mixed-protocol environments, a PROFIBUS-to-PROFINET gateway module may be required to bridge legacy drives to the upgraded controller.

I/O Expansion and Signal Isolation: During retrofit, it is common to discover that the existing Siemens ET 200SP or ET 200M distributed I/O stations require reconfiguration to match the new controller’s I/O mapping. Digital and analog signal channels must be verified against the updated hardware configuration in TIA Portal or STEP 7. Where signal integrity is a concern — particularly for encoder feedback lines running over long cable distances — a signal isolator or repeater module should be inserted in the signal chain to prevent noise-induced faults during high-speed motion sequences.

HMI Screen and Program Compatibility: The operator interface connected to the legacy system — often a Siemens SINUMERIK Operate panel or a TP900 Comfort HMI — must be validated against the updated controller firmware. Screen layouts, alarm texts, and operator prompts are typically stored in the HMI project file and may require re-compilation and re-download after the controller replacement. Engineers should archive the original HMI project before beginning the retrofit and verify all critical operator screens on a test cycle before returning the line to production.

Programming Cable and Backup Procedure: A Siemens PC Adapter USB A2 or equivalent programming cable is required to connect a laptop running TIA Portal or STEP 7 to the NCU for program backup, parameter upload, and post-retrofit commissioning. Always perform a full program backup — including drive parameters from the SINAMICS S120 or connected servo drives — before powering down the legacy system. This backup serves as the recovery baseline if the retrofit encounters unexpected compatibility issues.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any plant engineer undertaking a motion controller retrofit. A structured migration approach for the 6AU1425-2AD00-0AA0 typically follows these principles:

Pre-Staging and Bench Testing: Where possible, the replacement 6AU1425-2AD00-0AA0 should be pre-configured on a bench setup before the scheduled maintenance window. Load the backed-up NCU program, configure the module address, and verify communication with a test drive or simulator. This reduces the on-machine commissioning time to parameter verification and axis tuning rather than full configuration from scratch.

Parallel Documentation: Maintain a live retrofit checklist covering power-down sequence, module extraction, wiring reconnection, power-up sequence, program reload, drive parameter restore, HMI reconnection, and test cycle execution. Assign each step to a specific team member to prevent missed steps during time-pressured maintenance windows.

Program Logic Protection: The original PLC and motion program logic stored in the NCU must be preserved throughout the retrofit. Use the SINUMERIK backup tool or TIA Portal’s archive function to create a verified backup on at least two separate storage media before any hardware is touched. If the legacy system uses a CompactFlash card for program storage, clone the card before removal.

Phased Axis Recommissioning: In multi-axis systems, recommission one axis at a time after the controller replacement. Verify position feedback, velocity limits, and torque limits on each axis independently before enabling coordinated motion. This approach isolates any axis-specific wiring or parameter issues before they can cause a machine fault that affects the entire line.

Field Commissioning Support: NINERMAS provides technical documentation and pre-shipment test reports with every 6AU1425-2AD00-0AA0 unit to support your on-site commissioning team. Our stock is maintained for immediate dispatch, and our 12-month warranty covers the full post-installation period, giving your maintenance team a reliable safety net throughout the retrofit lifecycle.

Retrofit Support FAQ

Q1: Is the 6AU1425-2AD00-0AA0 a direct drop-in replacement for discontinued Sinumerik motion controller modules?
In most cases, yes — the 6AU1425-2AD00-0AA0 is designed to be retrofit-compatible with legacy Sinumerik NCU rack systems. However, engineers should verify the slot address, firmware version, and terminal pinout against the original module specification before installation. Minor wiring adaptations are common and do not affect functional compatibility.

Q2: What commissioning steps are required after replacing the motion controller?
After physical installation, the standard commissioning sequence includes: module address assignment in the NCU configuration, program reload from backup, drive parameter restore (for connected SINAMICS drives), HMI project re-download if required, and a full axis test cycle covering jog, reference point return, and program execution. Total commissioning time for a single-axis system is typically 2–4 hours with a prepared backup.

Q3: Does NINERMAS verify the unit before shipment, and what does the 12-month warranty cover?
Yes. Every 6AU1425-2AD00-0AA0 unit supplied by NINERMAS undergoes a pre-shipment functional test to verify power-up behavior, communication interface operation, and module self-diagnostics. The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains ready stock of the 6AU1425-2AD00-0AA0 for immediate dispatch. Standard orders are processed within 1–2 business days. For urgent retrofit projects requiring same-day or next-day dispatch, please contact our sales team directly to confirm current stock levels and expedited shipping options.
