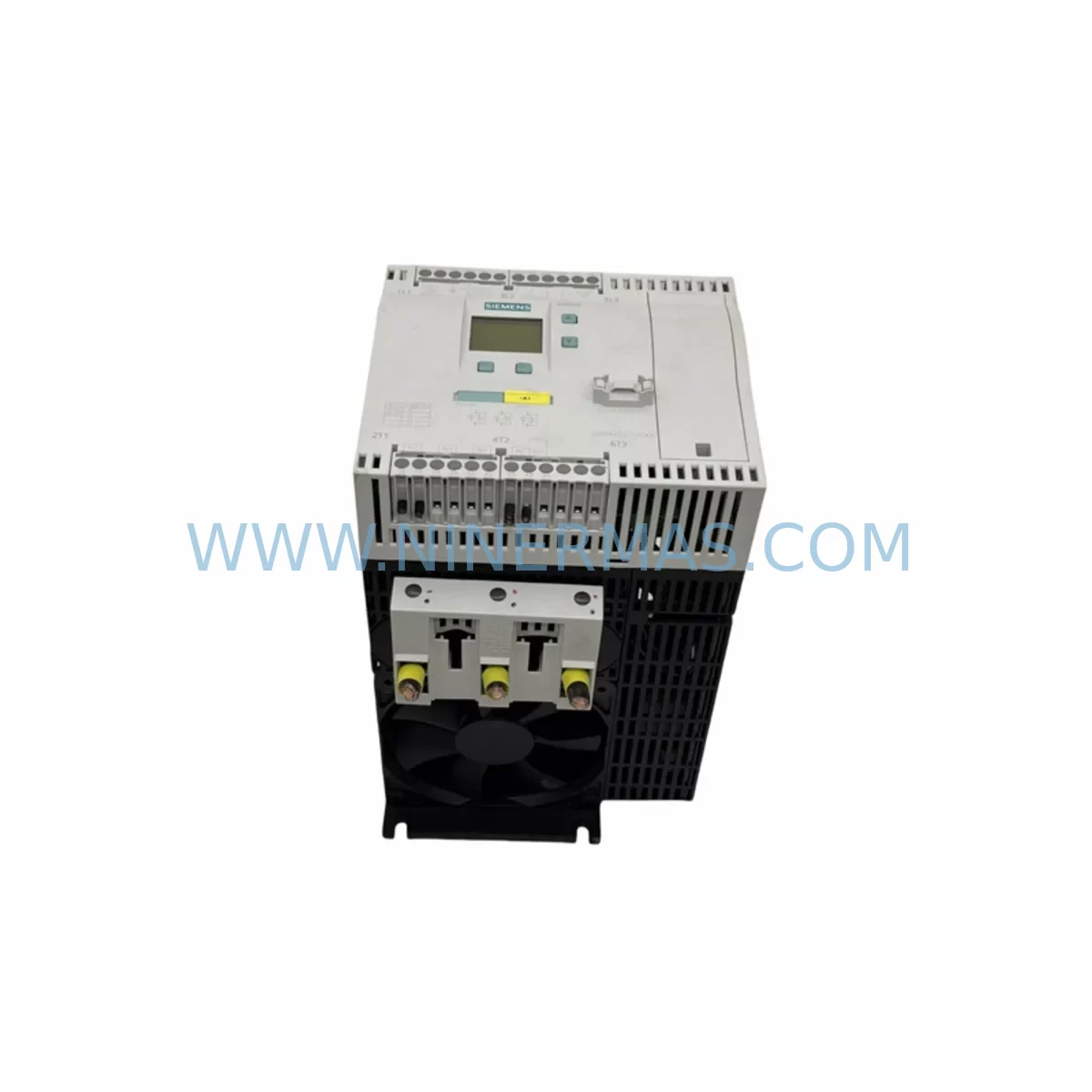

SIEMENS 3RW4422-1BC44 Retrofit-Compatible Soft Starter

SIEMENS 3RW4422-1BC44 Retrofit-Compatible Soft Starter for Legacy Systems

The SIEMENS 3RW4422-1BC44 is a high-performance soft starter from the SIRIUS 3RW44 series, engineered for smooth motor starting and stopping in demanding industrial environments. As legacy motor control systems age and original components reach end-of-life, the 3RW4422-1BC44 stands as a proven retrofit-compatible replacement that preserves existing wiring infrastructure, control logic, and cabinet layouts — minimizing engineering rework and downtime during system migration.

Rated for three-phase AC motors with integrated bypass contactor and electronic overload protection, the 3RW4422-1BC44 delivers controlled ramp-up and ramp-down profiles that reduce mechanical stress on driven equipment such as pumps, fans, compressors, and conveyors. Its compact footprint and standard DIN rail or panel-mount installation make it a direct fit for most existing control cabinet configurations without requiring structural modifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a soft starter in an operational facility requires careful pre-migration planning to avoid control interruptions and protect existing program logic. When integrating the 3RW4422-1BC44 into a legacy system, maintenance and commissioning engineers should systematically verify the following components and subsystems:

Begin with the control power supply — confirm that the existing 24 V DC or 110/230 V AC control circuit can support the 3RW4422-1BC44’s control input requirements. If the cabinet uses a Siemens SITOP PSU100S or PSU200M power supply module, verify output current headroom before adding the new soft starter load. Next, inspect the main circuit wiring and terminal blocks: the 3RW4422-1BC44 uses standard screw-type power terminals compatible with most existing cable cross-sections used in 3RW44-generation installations.

For systems integrated with a Siemens S7-300 or S7-400 PLC, confirm that the existing motor control function blocks (FC or FB) reference the correct output addresses mapped to the soft starter’s control inputs. If the legacy system used a 3RW4036 or 3RW4046 predecessor, the I/O signal mapping is typically compatible, but engineers should validate the fault output relay wiring and the thermistor input connection. Where PROFIBUS DP communication was used with the previous soft starter, the 3RW4422-1BC44 supports the same GSD file-based integration via the optional 3RW4900-0KC00 PROFIBUS module, preserving the existing network topology without requiring PLC program restructuring.

Inspect the bypass contactor wiring — the 3RW4422-1BC44 features an integrated electronic bypass, eliminating the need for an external bypass contactor that older 3RW40 series installations may have required. This simplifies the cabinet layout and reduces the number of components that need to be replaced simultaneously. Check that the motor protection relay or overload relay downstream of the soft starter is correctly set for the motor’s rated current, and consider replacing aging Siemens 3RU21 overload relays if they show signs of contact wear or calibration drift.

For HMI integration, if the facility uses a Siemens SIMATIC HMI TP700 or OP77B panel, verify that the soft starter status screens reference the correct PLC data blocks. No HMI screen redesign is typically required when replacing within the same 3RW44 series. Finally, confirm that the installation space in the control cabinet accommodates the 3RW4422-1BC44’s dimensions, and that adequate ventilation clearances are maintained above and below the unit per Siemens installation guidelines.

Downtime Control During System Migration

Minimizing production downtime during a soft starter retrofit requires a structured hot-swap preparation strategy. Before removing the legacy unit, document all existing parameter settings — ramp-up time, ramp-down time, current limit, and motor protection thresholds — using the Siemens SIRIUS Soft Starter ES software or the onboard parameter display. The 3RW4422-1BC44 supports parameter input via its integrated operator panel, allowing pre-configuration on the bench before installation.

Schedule the physical swap during a planned maintenance window or shift changeover. With the main circuit de-energized and LOTO (Lockout/Tagout) procedures applied, disconnect the power terminals and control wiring from the legacy unit, label all conductors, and install the 3RW4422-1BC44 in the same mounting position. Reconnect wiring per the original terminal diagram, restore control power, and perform a no-load test before re-engaging the motor circuit. This structured approach typically reduces migration downtime to under two hours for a single drive replacement, preserving production continuity on adjacent lines.

NINERMAS supplies the 3RW4422-1BC44 with full pre-shipment functional testing, ensuring the unit is verified against Siemens factory specifications before dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Long-term stock availability is maintained to support multi-unit procurement programs and scheduled maintenance cycles.

Retrofit Support FAQ

Q1: Is the 3RW4422-1BC44 a direct replacement for older 3RW44 series soft starters?
Yes. The 3RW4422-1BC44 is dimensionally and electrically compatible with other units in the SIRIUS 3RW44 series. Power terminal positions, control input wiring, and mounting hole patterns are consistent across the series, making it a straightforward retrofit replacement without cabinet modification.

Q2: Can the 3RW4422-1BC44 be integrated with an existing PROFIBUS DP network?
Yes, via the optional Siemens 3RW4900-0KC00 PROFIBUS communication module. The existing GSD file and PLC program structure can be retained, minimizing software rework during the retrofit.

Q3: What pre-shipment testing does NINERMAS perform on the 3RW4422-1BC44?
Each unit undergoes functional verification including control power input testing, ramp parameter validation, fault relay output confirmation, and visual inspection for physical integrity. Units that pass all checks are packaged with anti-static protection and shipped with a test confirmation record.

Q4: What warranty and long-term supply support does NINERMAS provide?
All 3RW4422-1BC44 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. NINERMAS maintains ongoing stock to support both immediate replacement orders and long-term procurement agreements for facilities managing multi-unit soft starter fleets.
