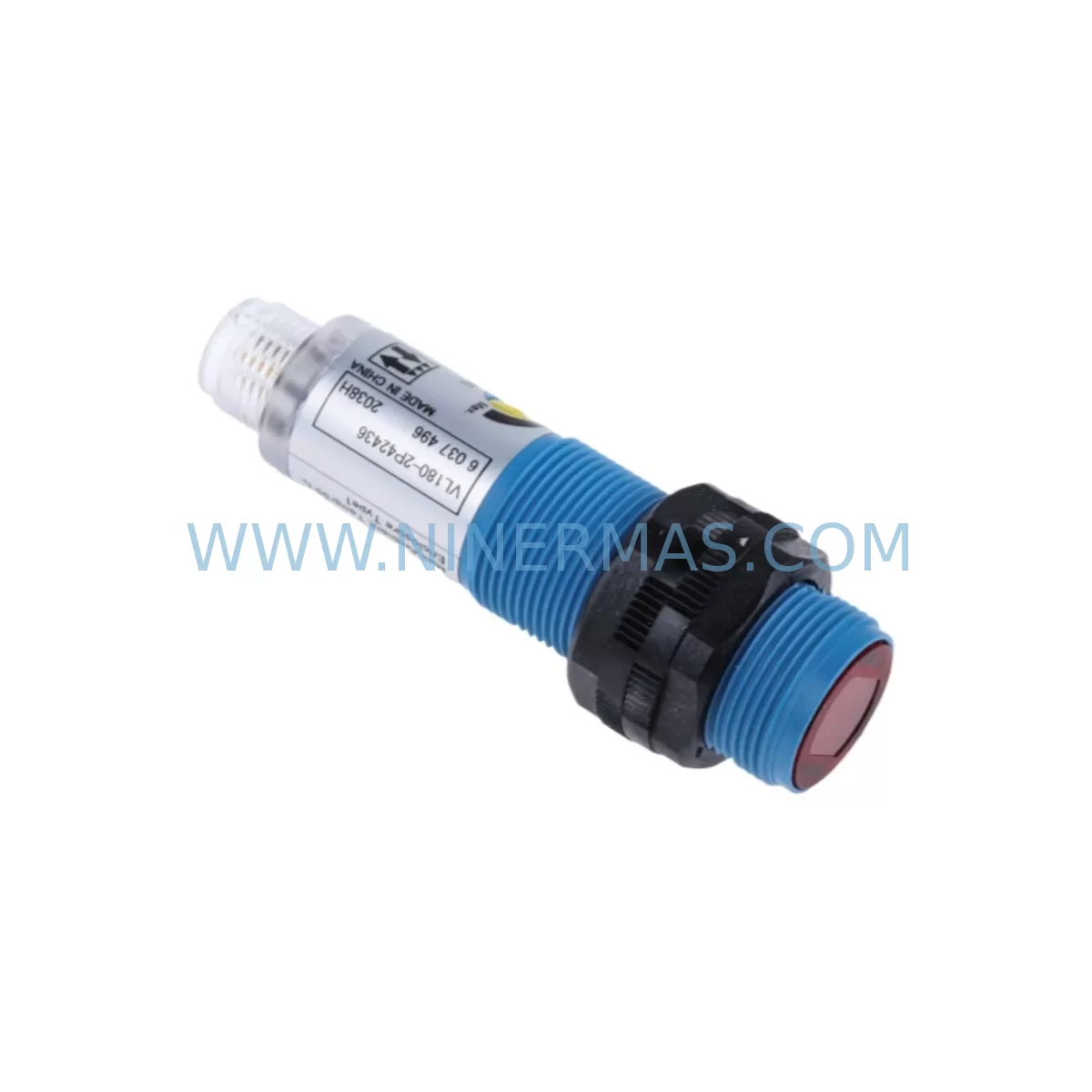

The SICK VL180-2P42436 is a ruggedized photoelectric sensor engineered for demanding industrial environments where reliability, precision, and long service life are non-negotiable. As a critical spare part in automation and process control systems, the VL180-2P42436 is widely deployed across manufacturing lines, packaging systems, material handling conveyors, and heavy-duty industrial control cabinets. When a photoelectric sensor fails on the production floor, every minute of unplanned downtime translates directly into lost output and increased maintenance cost. Stocking the SICK VL180-2P42436 as a ready-to-deploy spare is a proven strategy for maintenance engineers who prioritize rapid fault isolation and line recovery.

Sourced and tested by NINERMAS COMPANY LIMITED, this unit is supplied as an original-grade spare part with full functional verification prior to shipment. Whether you are managing a scheduled annual overhaul, responding to an emergency sensor failure, or building a preventive maintenance inventory for a SICK VL180 series installation, the VL180-2P42436 delivers the compatibility and performance your system demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SICK VL180-2P42436 in the field is rarely an isolated task. Experienced maintenance engineers understand that a sensor failure is often a symptom of broader electrical or mechanical stress within the same control loop or cabinet. When performing a VL180-2P42436 swap, a thorough site inspection should extend to the following associated components to prevent repeat failures and ensure full system restoration.

Begin with the M12 sensor cable connecting the VL180-2P42436 to the control cabinet. Ruggedized environments subject cables to repeated flexing, chemical exposure, and mechanical abrasion — a degraded cable can cause intermittent signal loss that mimics sensor failure. Inspect and replace the M12 4-pin cable assembly if any jacket damage or connector corrosion is observed.

Next, verify the 24V DC power supply module feeding the sensor circuit. Voltage fluctuations or ripple outside the 10–30 V DC operating range of the VL180 series can cause false triggering or premature sensor failure. A SICK or equivalent industrial DIN-rail power supply should be load-tested during the maintenance window.

Check the PLC digital input module receiving the sensor’s switching signal. If the VL180-2P42436 feeds a Siemens S7-300/S7-400 or similar PLC I/O card, inspect the input channel for correct voltage threshold recognition and confirm the input filter time is configured appropriately for the application’s detection speed requirements.

Inspect the terminal blocks and DIN-rail wiring within the control cabinet. Loose or oxidized terminal connections on the sensor signal wire, 0V common, and shielding ground are a frequent source of noise-induced faults in photoelectric sensor circuits. Re-torque all terminals to manufacturer specification and apply contact protection spray where corrosion is present.

If the VL180-2P42436 is part of a safety-rated detection zone, verify the associated safety relay module — such as a SICK or Pilz safety relay — for correct reset behavior and output contact integrity after sensor replacement. Safety relay contacts should be tested under load to confirm switching reliability.

For installations where the sensor signal passes through a signal isolator or signal conditioner, confirm that the isolator’s input impedance and signal range remain compatible with the VL180-2P42436’s PNP/NPN output. Signal isolators in aging control panels are often overlooked during sensor replacement and can introduce offset errors or signal attenuation.

Review the HMI (Human-Machine Interface) diagnostic screen for any latched fault codes related to the sensor zone. After physical replacement, clear all related alarms and perform a full functional test cycle before returning the line to production. HMI trend logs can also reveal whether the sensor had been operating in a degraded state prior to failure — useful data for root cause analysis and future PM scheduling.

Where the VL180-2P42436 is mounted on a conveyor or robotic cell, inspect the mounting bracket and alignment fixture. Vibration-induced misalignment is a leading cause of detection errors in ruggedized photoelectric applications. Re-align the sensor to the target reflector or detection zone using the manufacturer’s recommended teach procedure.

Finally, if the installation includes a SICK CLV or Lector barcode reader, a SICK distance sensor, or other SICK sensing devices in the same electrical zone, use this maintenance window to perform a visual inspection and functional check on those units as well. Proactive inspection of neighboring SICK devices reduces the likelihood of a secondary unplanned failure shortly after the VL180-2P42436 replacement.

Site Replacement Workflow

Step 1 — Isolate and Lock Out: De-energize the sensor circuit at the control cabinet. Apply LOTO (Lockout/Tagout) procedure per site safety policy. Confirm zero voltage at the M12 connector before disconnecting.

Step 2 — Document Existing Configuration: Photograph the existing sensor mounting position, cable routing, and any teach/sensitivity settings visible on the sensor body. Record the PLC I/O address and any HMI tag associated with this sensor point.

Step 3 — Remove the Failed Unit: Disconnect the M12 cable connector. Remove the sensor from its mounting bracket. Inspect the bracket for damage or corrosion and replace if necessary.

Step 4 — Install the SICK VL180-2P42436 Spare: Mount the new VL180-2P42436 in the same position and orientation as the original. Reconnect the M12 cable. Confirm connector locking ring is fully engaged to maintain IP67 sealing.

Step 5 — Power Up and Teach: Re-energize the circuit. Perform the sensor’s teach or sensitivity adjustment procedure per the SICK VL180 series operating manual. Confirm the output indicator LED responds correctly to the target object.

Step 6 — Functional Verification: From the PLC or HMI, confirm the input signal toggles correctly during a manual test cycle. Check for any residual fault codes and clear them. Log the replacement in the site CMMS (Computerized Maintenance Management System).

Step 7 — Return to Production: Remove LOTO, restore normal operation, and monitor the first production cycle for correct sensor behavior. Update the spare parts inventory record to reflect consumption of one VL180-2P42436 unit.

This structured replacement workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for maintenance compliance — critical for ISO-certified manufacturing facilities and regulated process industries.
