Shimadzu INV-CTRL-1003-262-75242B Service-Ready Spare

Shimadzu INV-CTRL-1003-262-75242B Service-Ready Spare: Downtime Risk Control for Industrial Maintenance

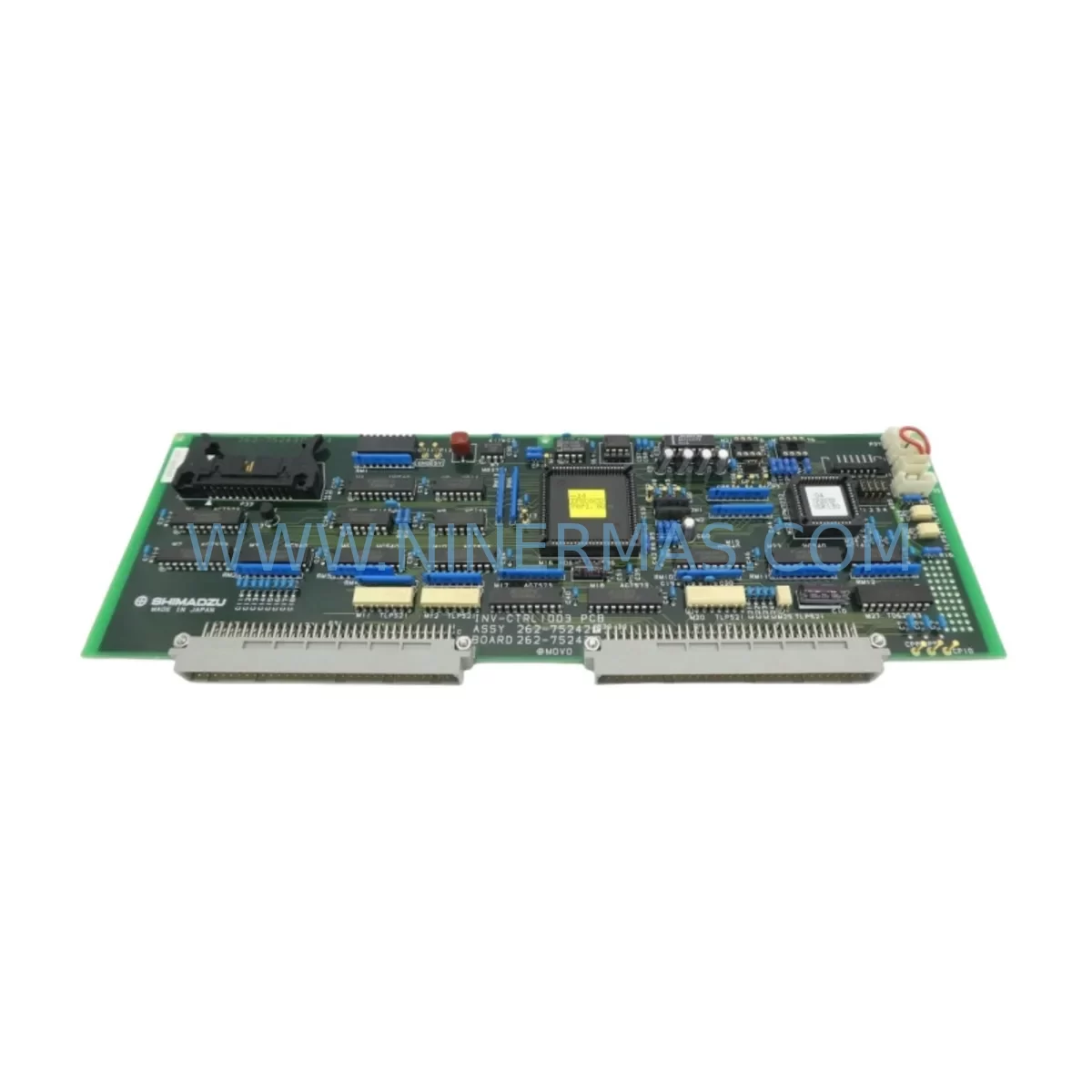

The Shimadzu INV-CTRL-1003-262-75242B is a ruggedized inverter control module engineered for continuous operation in demanding industrial environments. Designed to serve as a direct replacement spare for aging or failed units within Shimadzu variable frequency drive (VFD) and inverter systems, this module supports maintenance engineers and procurement teams in executing rapid fault recovery, planned annual overhauls, and long-term spare parts inventory strategies. With pre-shipment functional testing and a 12-month warranty, every unit shipped by NINERMAS is verified service-ready before dispatch.

Industrial facilities operating Shimadzu inverter platforms — including analytical instrument drive systems, vacuum pump controllers, and precision motion control cabinets — depend on the INV-CTRL-1003 series for stable frequency conversion and motor control signal integrity. When this module fails or degrades, the downstream impact on production throughput, process stability, and equipment safety can be severe. Maintaining a stocked replacement unit eliminates the risk of extended lead times from OEM channels, particularly for end-of-life or discontinued part numbers.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the INV-CTRL-1003-262-75242B in the field is rarely an isolated task. A thorough maintenance engineer will treat this module swap as an opportunity to audit the entire inverter control cabinet and associated electrical circuit. The following components should be inspected, tested, or replaced concurrently to prevent repeat failures and ensure system stability after the control module is restored.

Power Supply Module: The Shimadzu 24 VDC internal power supply board (often designated PSU-INV or equivalent within the INV-CTRL-1003 cabinet) should be load-tested before the new control module is energized. A degraded power supply is a common root cause of control module failure and will damage a replacement unit if not addressed.

Gate Driver Board: The IGBT gate driver card associated with the INV-CTRL-1003 series interfaces directly with the control module. Inspect for carbon tracking, burnt gate resistors, or failed optocouplers. A faulty gate driver will produce erratic motor behavior even after the control module is replaced.

I/O Terminal Block Assembly: Shimadzu inverter cabinets typically use a dedicated I/O terminal rail for analog speed reference (0–10 V or 4–20 mA), digital run/stop commands, and fault relay outputs. Inspect terminal screws for looseness, corrosion, or insulation breakdown. Loose I/O wiring is a frequent cause of nuisance trips that are misdiagnosed as control module faults.

Communication Module (RS-485 / PROFIBUS / Modbus): If the drive is integrated into a PLC or DCS network via a fieldbus communication card, verify the communication module firmware version and connector integrity. The INV-CTRL-1003 series supports optional fieldbus adapters; a failed communication card can prevent the replacement control module from accepting remote commands.

Signal Isolation Module: Analog reference signals entering the inverter from upstream process controllers should pass through a signal isolator to prevent ground loops. Inspect the isolator for drift or output offset, which can cause speed instability after the control module replacement.

Input Fuse Assembly and Circuit Breaker: Verify that the upstream fusing (typically fast-acting semiconductor fuses rated for the drive’s input current) has not been weakened by the fault event that caused the control module failure. Replace fuses proactively if the fault was caused by an overcurrent or short-circuit event.

EMC Filter / Line Reactor: The input EMC filter and line reactor protect the inverter from mains-borne transients. Inspect for physical damage, overheating marks, or capacitor bulging. A compromised filter will expose the new control module to the same electrical stress that caused the original failure.

Cooling Fan and Thermal Management: Shimadzu inverter modules in the INV-CTRL-1003 family rely on forced-air cooling. Inspect the internal cooling fan for bearing wear, reduced airflow, or blocked heatsink fins. Thermal stress is a leading cause of premature control module failure in harsh environments.

Relay Output Module: Fault relay and run-status relay outputs connected to the control module should be tested for contact resistance and coil integrity. Relay contacts that have welded or pitted due to inductive load switching will produce unreliable fault signaling after the control module is restored.

HMI Operator Panel: If the drive is equipped with a local HMI keypad or remote operator panel, verify that parameter settings are backed up before the control module swap. Some INV-CTRL-1003 configurations store drive parameters in the control module itself; a replacement module may require full parameter re-entry or upload from a saved configuration file.

Site Replacement Workflow

The following workflow is recommended for field replacement of the Shimadzu INV-CTRL-1003-262-75242B to minimize downtime and ensure system compatibility:

Step 1 — Fault Isolation: Confirm the control module as the failed component using the drive’s built-in diagnostics or an external oscilloscope. Document the fault code, operating conditions at time of failure, and any recent parameter changes. This information is critical for root cause analysis and warranty claim processing.

Step 2 — Parameter Backup: Before de-energizing the drive, use the HMI panel or a PC-based parameter tool to export the full drive parameter set. Store the backup file in the site maintenance management system (CMMS) for traceability.

Step 3 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Verify that DC bus voltage has discharged to safe levels (typically below 50 VDC) before opening the drive cabinet. Use a calibrated multimeter to confirm discharge.

Step 4 — Module Removal and Inspection: Remove the failed INV-CTRL-1003-262-75242B using ESD-safe tools. Inspect the PCB for burn marks, failed components, or mechanical damage. Photograph the board before disposal for warranty documentation.

Step 5 — Replacement Installation: Install the service-ready replacement module. Verify connector seating, torque all fasteners to OEM specification, and confirm that all wiring harnesses are correctly routed and secured.

Step 6 — Parameter Restore and Commissioning: Restore the parameter backup to the replacement module. Perform a no-load test run to verify correct motor direction, speed reference response, and fault relay operation before returning the drive to production service.

Step 7 — Documentation: Record the replacement in the site CMMS, including the new module serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger a reorder for the consumed unit.

Spare Parts Support FAQ

Q1: Is the INV-CTRL-1003-262-75242B a genuine original spare or a compatible aftermarket replacement?
All units supplied by NINERMAS are original Shimadzu spare parts or OEM-equivalent components sourced from verified supply channels. Each unit undergoes pre-shipment functional testing to confirm electrical performance before dispatch. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q2: How do I verify compatibility with my existing Shimadzu inverter system before ordering?
Compatibility can be confirmed by matching the full part number (INV-CTRL-1003-262-75242B) and cross-reference SKUs (MFS460-042, MEI T001-0029, 0190-24445) against your drive’s nameplate data and service manual BOM. If you are uncertain, contact NINERMAS with your drive model number and serial number; our technical team will confirm compatibility before shipment.

Q3: What is the recommended inventory strategy for this module in a multi-drive facility?
For facilities operating three or more Shimadzu INV-CTRL-1003 series drives, NINERMAS recommends maintaining a minimum of one replacement module per five installed units, with a reorder trigger set at the point of consumption. For critical production lines where drive failure causes immediate line stoppage, a dedicated hot-spare unit stored in the control room is advisable. NINERMAS offers reserved inventory agreements and scheduled delivery programs to support long-term spare parts planning.

Q4: What is the lead time, and can NINERMAS support long-term supply for end-of-life Shimadzu components?
In-stock units are typically dispatched within 1–3 business days. For end-of-life or discontinued Shimadzu components, NINERMAS maintains reserved inventory sourced through authorized channels and long-term procurement agreements. Contact our team to discuss volume commitments, scheduled delivery, and multi-year supply contracts to protect your maintenance program against future obsolescence risk.
