Schubert 09026240 Service-Ready Industrial Spare Part

Schubert 09026240 Service-Ready Industrial Spare Part: Spare Parts Replacement and Downtime Risk Control

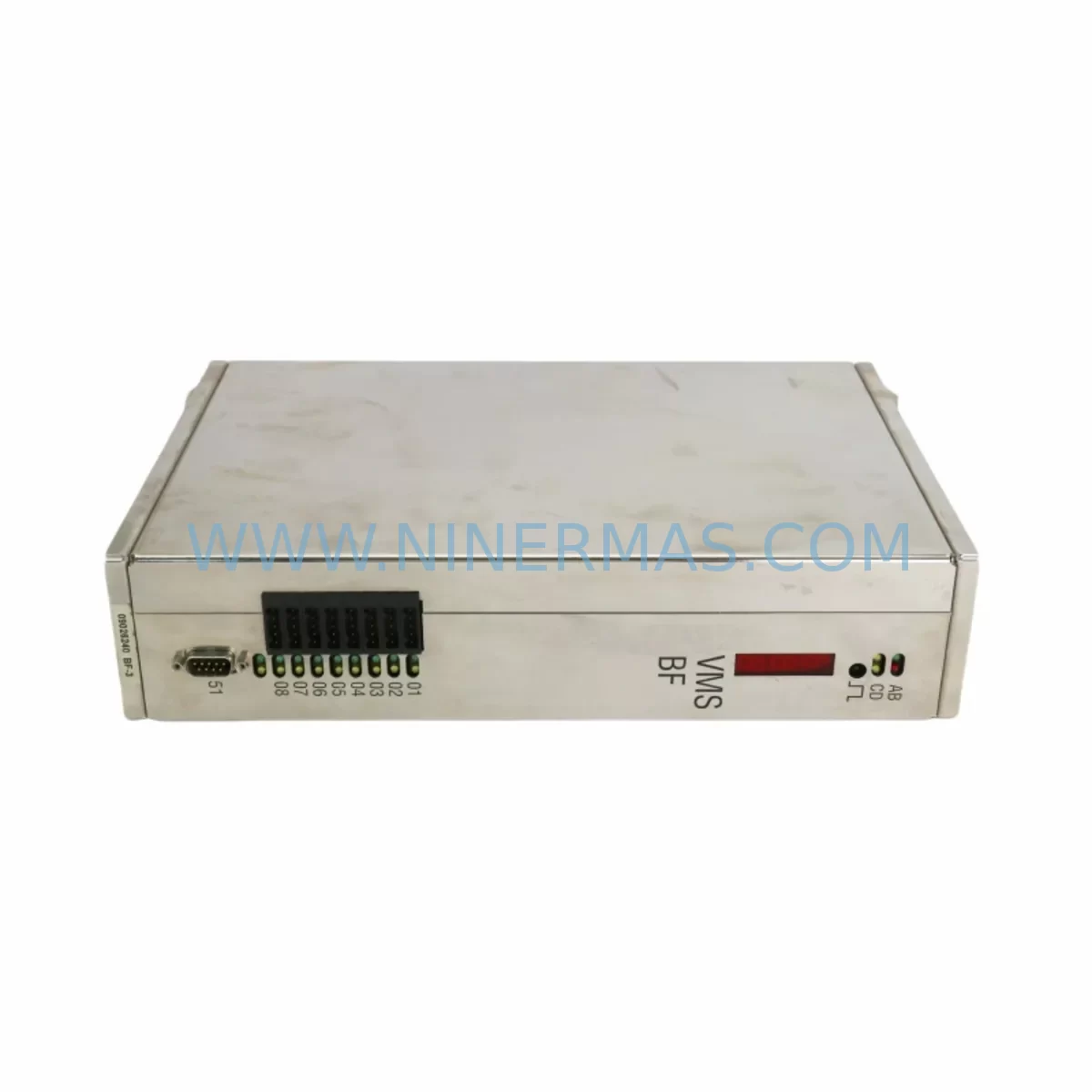

The Schubert 09026240 BF3-UNI3 SEC-4400MC-UC CPASC1-M1H-K-P-2.5 CPASC1-VI-SA is a precision industrial controller component engineered for Schubert TLM and F4 series packaging automation lines. As a service-ready original spare part, this unit is designed to support rapid field replacement, minimize unplanned downtime, and maintain full system compatibility within Schubert’s modular control architecture. For maintenance engineers and procurement teams managing high-availability packaging lines, securing a verified stock of this component is a critical element of any proactive maintenance strategy.

Schubert’s BF3 backplane and UNI3 universal I/O framework form the backbone of the SEC-4400MC motion control cabinet. The 09026240 module integrates directly into this architecture, interfacing with the CPASC1 communication and axis control subsystem. When this component fails or degrades, the entire motion sequence of the packaging line can be interrupted, resulting in costly production stoppages. Having a pre-tested, service-ready replacement on hand reduces mean time to repair (MTTR) to the 4–6 hour target that modern packaging operations demand.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Schubert SEC-4400MC-UC control cabinet extends well beyond replacing the 09026240 module in isolation. Maintenance engineers conducting annual overhauls or responding to unplanned faults should treat this replacement as an opportunity to audit the full electrical and control circuit surrounding the unit.

Begin with the BF3 backplane assembly. The backplane distributes power and communication signals to all installed modules; any oxidation on the backplane connector pins or mechanical stress on the mounting rail can cause intermittent faults that are difficult to diagnose remotely. Inspect the UNI3 universal I/O modules installed adjacent to the 09026240 for signs of overheating or connector wear. These I/O modules handle digital and analog signal routing between the machine’s sensors, actuators, and the SEC motion controller, and a degraded I/O module can mask or mimic a controller fault.

The CPASC1 axis control communication modules — both the M1H-K-P-2.5 and VI-SA variants — should be verified for firmware version compatibility after any hardware replacement. Mismatched firmware between the axis controller and the SEC-4400MC motion controller is a common source of post-replacement faults on Schubert lines. Ensure that the replacement 09026240 unit is loaded with the correct firmware revision before commissioning.

Power supply integrity is equally critical. The SEC-4400MC cabinet typically draws from a dedicated 24 VDC rail for logic power and a separate AC supply for servo amplifier stages. Inspect the 24 VDC power supply module for output voltage stability under load, and check the associated fuse blocks and terminal strips for signs of thermal stress or loose terminations. A failing power supply can cause the 09026240 to report spurious faults, leading to unnecessary module replacements.

Signal isolation is another area that warrants attention during planned maintenance. The CPASC1-VI-SA signal interface module provides galvanic isolation between the control logic and field-level signals. If this isolator is degraded, noise from servo drives or solenoid valves can corrupt communication on the CPASC1 bus. Replacing the signal isolator at the same time as the 09026240 is a cost-effective strategy that prevents repeat service calls.

For lines that include HMI panels integrated with the Schubert control system, verify that the HMI communication link to the SEC controller remains stable after the replacement. HMI panels on Schubert TLM lines often communicate via proprietary Schubert protocols, and a controller swap can require re-establishing the communication parameters. Keep a backup of the HMI project and controller configuration on a dedicated maintenance laptop before beginning any replacement work.

Finally, review the safety relay modules and emergency stop circuits within the cabinet. Schubert packaging lines operate under strict safety standards, and any maintenance intervention that involves opening the control cabinet must be followed by a full safety function verification before the line is returned to production. Document the test results and retain them as part of the machine’s maintenance record.

Site Replacement Workflow

Replacing the Schubert 09026240 on a live production site requires a structured approach to minimize downtime and avoid secondary faults. The following workflow is recommended for maintenance engineers performing a first-time or repeat replacement of this module.

Step 1 — Pre-Replacement Preparation: Before shutting down the line, back up the current SEC-4400MC controller configuration, axis parameters, and CPASC1 communication settings. Confirm that the replacement 09026240 unit has been pre-tested and carries a valid test certificate. Verify firmware version compatibility between the replacement module and the installed SEC controller version.

Step 2 — Safe Isolation: Follow the site’s lockout/tagout (LOTO) procedure. Isolate the SEC-4400MC cabinet from both the AC mains supply and the 24 VDC logic rail. Allow capacitors in the servo amplifier stages to discharge fully before opening the cabinet door.

Step 3 — Module Removal: Identify the 09026240 module on the BF3 backplane. Release the module locking mechanism and carefully extract the unit, noting the orientation and any cable routing. Label all connectors before disconnection to prevent reassembly errors.

Step 4 — Replacement Installation: Install the new 09026240 module onto the BF3 backplane, ensuring full seating of the backplane connector. Reconnect all labeled cables and verify that the CPASC1 communication bus termination is correctly set for the module’s position in the backplane chain.

Step 5 — Power-Up and Verification: Restore the 24 VDC logic supply first and confirm that the module initializes without fault codes. Then restore the AC mains supply and perform a controlled axis homing sequence to verify that all motion axes respond correctly. Check the HMI for any residual alarms and clear them after confirming root cause resolution.

Step 6 — Documentation: Record the replacement in the machine’s maintenance log, including the old module’s serial number, the new module’s serial number and firmware version, and the date and technician name. Retain the failed module for failure analysis if required by the site’s quality management system.

Spare Parts Support FAQ

Q1: What is the recommended spare parts inventory strategy for the Schubert 09026240?
For high-utilization packaging lines running two or three shifts, we recommend maintaining a minimum of one pre-tested 09026240 unit in on-site stock at all times. For multi-line facilities, a shared pool of two units is advisable. NINERMAS offers reserved inventory programs that guarantee stock availability with agreed lead times, reducing the risk of extended downtime caused by global supply chain disruptions.

Q2: How is the 09026240 tested before shipment?
Every unit supplied by NINERMAS undergoes pre-shipment functional testing that verifies communication interface integrity, power rail stability, and module initialization against Schubert’s original specification. A test certificate is included with each shipment. Units that do not pass the full test protocol are not released for sale.

Q3: Is the 09026240 compatible with all variants of the Schubert SEC-4400MC-UC system?
The 09026240 is designed for use within the BF3-UNI3 / SEC-4400MC-UC architecture with CPASC1 axis control. Compatibility should be verified against the specific firmware version and backplane configuration of your installed system before ordering. Our technical team can assist with compatibility verification based on your machine’s serial number and installed software version.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. In the event of a warranty claim, NINERMAS will provide a replacement unit or repair service with priority lead time to minimize production impact.
