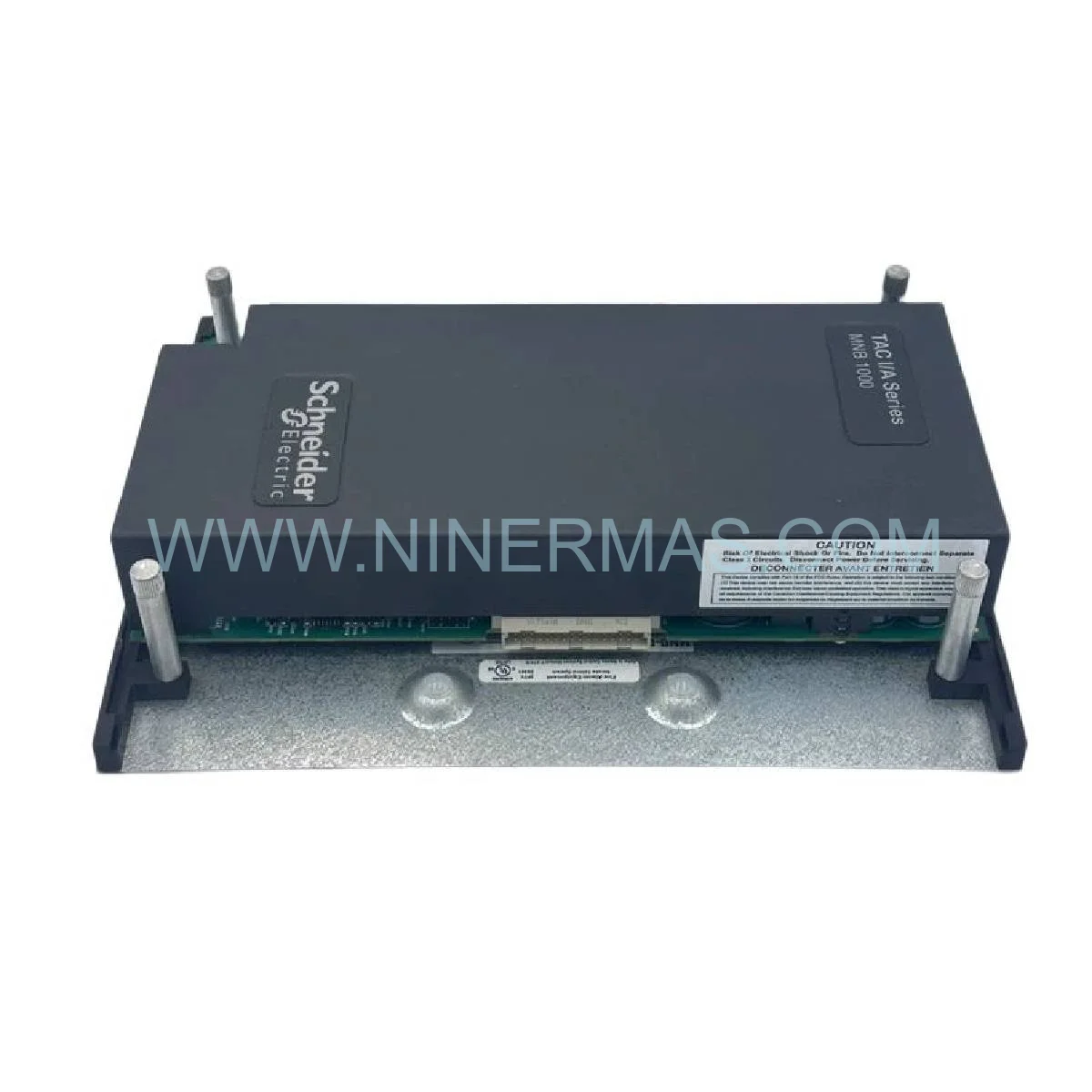

Schneider MNB-1000 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing building automation modernization across global manufacturing and commercial facilities, the Schneider MNB-1000 stands out as a cornerstone hardware asset for any system upgrade initiative. The Schneider MNB-1000 MicroNet BACnet Plant Controller bridges the critical gap between aging proprietary control architectures and modern, open-protocol building management systems — dramatically extending the operational lifespan of existing infrastructure while delivering measurable performance gains without full system replacement.

One of the most compelling advantages of deploying the MNB-1000 in a retrofit scenario is its native dual-protocol support: BACnet/IP and BACnet MS/TP. This means legacy field devices communicating over RS-485 MS/TP networks can be seamlessly integrated alongside modern Ethernet-based supervisory systems — eliminating the need for costly protocol gateways and reducing integration complexity. For facilities locked into aging Schneider MicroNet or third-party BMS platforms, the MNB-1000 serves as the ideal migration anchor point, preserving existing wiring infrastructure while unlocking modern supervisory capabilities.

From a migration risk and cost perspective, the MNB-1000 delivers exceptional value. Its modular I/O architecture (expandable to 64 physical points) allows phased deployment — teams can migrate zone by zone rather than executing a high-risk full cutover. This incremental approach reduces downtime exposure, lowers capital expenditure per phase, and allows operational validation at each stage before proceeding. The result: a lower total cost of ownership and a significantly de-risked modernization roadmap.

Upgrade Highlights & Compatibility

✅ Seamless Legacy Integration: Supports BACnet/IP + MS/TP simultaneously — connect old RS-485 field devices and modern Ethernet supervisory layers without gateways.
Performance Enhancement: 512 KB Flash / 256 KB RAM processing architecture delivers faster scan cycles and real-time alarm response vs. legacy proprietary controllers.
? Future-Proof Architecture: Open BACnet standard ensures long-term vendor-neutral interoperability with Tridium Niagara, Honeywell, Johnson Controls, and Siemens platforms.
Phased Migration Ready: Modular expandable I/O supports incremental zone-by-zone cutover — minimize downtime and capital risk.
? Hardware Upgrade Value: Replaces obsolete proprietary controllers with a standardized, maintainable platform — reducing spare parts complexity and training overhead.
Certified Compliance: UL, CE, FCC certified — meets global installation standards for industrial and commercial retrofit projects.

Modernization Use Cases & Success Stories

DCS / BMS Modernization in Commercial Facilities:
A regional hospital campus operating a 15-year-old proprietary BMS faced escalating maintenance costs and obsolete controller hardware. By deploying the MNB-1000 as the new plant-level controller, the facility migrated its chiller plant, AHU networks, and cooling tower controls to a unified BACnet/IP backbone — achieving a 23% reduction in HVAC energy consumption and eliminating the need for legacy proprietary programming tools.

Industrial Manufacturing Plant HVAC Retrofit:
A precision manufacturing facility required strict environmental control across cleanroom zones. The existing MS/TP field network was retained while the MNB-1000 was introduced as the supervisory controller, integrating legacy VAV actuators and new Ethernet-based sensors into a single coherent control strategy. The retrofit was completed in phases over 6 weekends with zero production interruption.

Turbine Monitoring System (TSI) Auxiliary HVAC Integration:
At a combined-cycle power plant, auxiliary building HVAC systems previously operated on isolated proprietary controllers. The MNB-1000 was deployed to consolidate these systems under a unified BACnet supervisory layer, enabling integration with the plant’s existing DCS historian for centralized performance monitoring and predictive maintenance alerting.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Schneider MNB-1000 unit supplied is sourced from authorized distribution channels and shipped in original manufacturer packaging — ensuring full firmware integrity and warranty eligibility.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement scenarios. Express air freight to North America, Europe, Southeast Asia, and the Middle East is available with typical lead times of 3-7 business days.

Technical Support for Legacy & Obsolete Hardware: Our engineering team specializes in supporting retrofit projects involving discontinued or end-of-life BMS hardware. We provide pre-sales compatibility assessments, configuration guidance, and post-installation technical support — ensuring your migration project stays on schedule and within budget.

Retrofit FAQ (Upgrade Guide)

Q: Will the MNB-1000 physically fit in the same panel space as my existing legacy controller?
A: The MNB-1000 supports both DIN rail and panel mount configurations, making it compatible with most standard control panel layouts. We recommend verifying panel depth and rail spacing against the MNB-1000 dimensional drawings (available upon request) before finalizing your retrofit design.

Q: How does the MNB-1000 communicate with both old MS/TP devices and new Ethernet-based systems simultaneously?
A: The MNB-1000 features dual-port architecture with a dedicated RS-485 port for BACnet MS/TP field devices and an Ethernet port for BACnet/IP supervisory communication. Both networks operate concurrently, enabling true hybrid legacy-to-modern integration without any additional protocol conversion hardware.

Q: Can the MNB-1000 replace controllers from other manufacturers in a retrofit scenario?
A: Yes. Because the MNB-1000 operates on the open BACnet standard, it can replace proprietary controllers from Honeywell, Johnson Controls, Siemens, and other vendors — provided the field devices support standard BACnet or Modbus RTU communication. A compatibility assessment is recommended for complex multi-vendor environments.

Q: What programming tools are required for retrofit configuration?
A: The MNB-1000 is configured using Schneider’s MicroNet Studio software (available as a free download). For teams migrating from third-party platforms, the web-based configuration interface provides an accessible alternative for basic point mapping and alarm configuration without specialized software.

Q: Is there a risk of data loss or control interruption during the migration cutover?
A: The MNB-1000’s phased deployment capability allows parallel operation during transition — the new controller can be commissioned and validated while the legacy system remains active. Cutover is executed zone by zone, with each segment tested independently before the legacy controller is decommissioned, minimizing operational risk.

Q: What warranty and post-installation support is available for retrofit deployments?
A: Each unit includes a 12-month warranty covering manufacturing defects. Our technical support team provides dedicated retrofit project support including pre-commissioning configuration review, on-call troubleshooting during cutover, and post-installation performance validation assistance.
