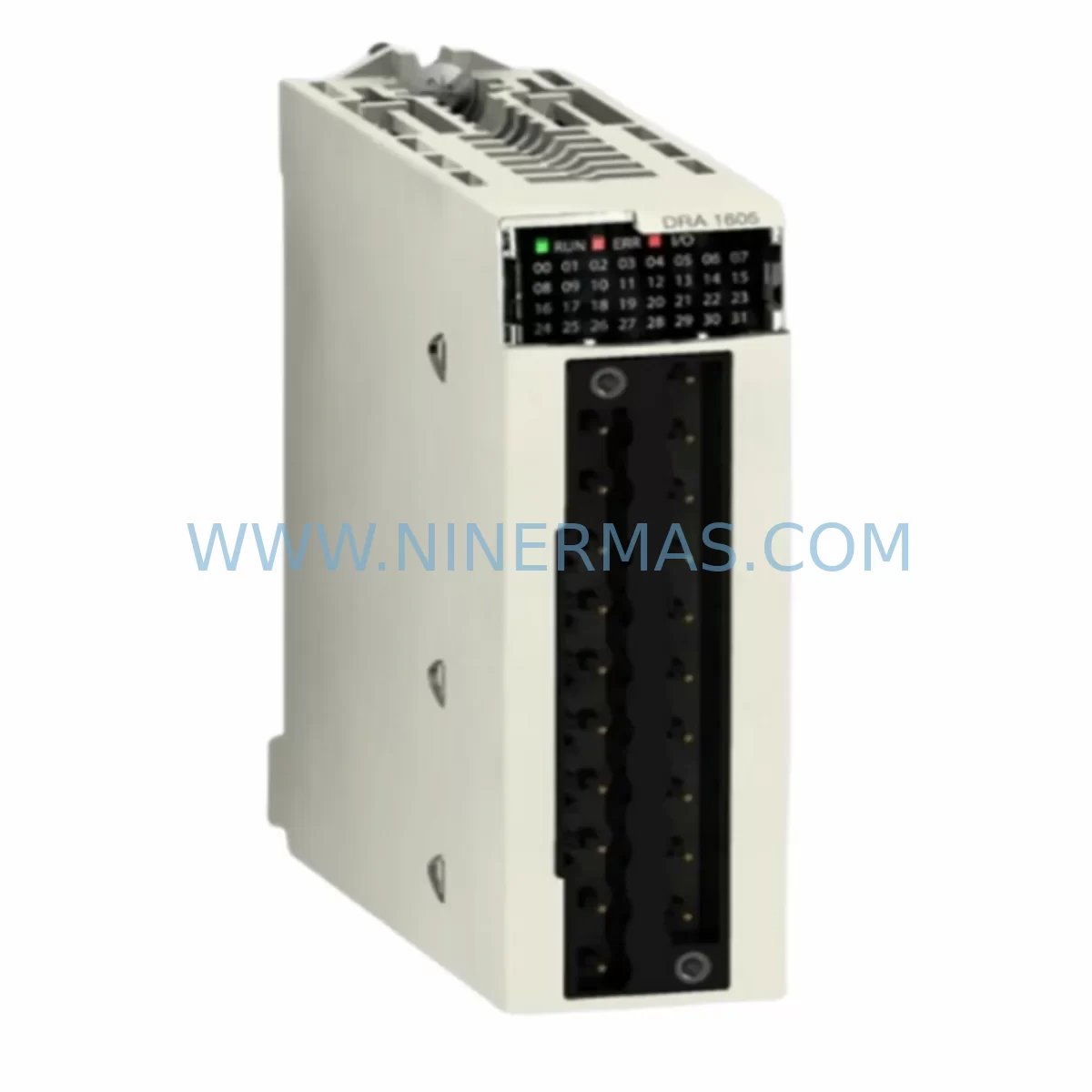

The Schneider Electric BMXDRA1605 is a 16-channel relay output module designed for the Modicon M340 PLC platform — one of the most widely deployed mid-range programmable logic controllers in process manufacturing, utilities, and discrete automation. Each channel supports up to 5A resistive load switching, making this module a critical interface between the control system and field actuators such as solenoid valves, motor starters, contactors, and alarm annunciators.

For maintenance engineers managing aging M340 control cabinets, the BMXDRA1605 represents a high-risk single point of failure. Relay output modules are subject to contact wear, coil fatigue, and thermal stress — particularly in high-cycle applications such as batch processing lines, conveyor control, and HVAC automation. Unplanned failure of this module can halt an entire production cell. Holding a verified, tested spare on-site is the most effective strategy to minimize mean time to repair (MTTR) and protect production continuity.

NINERMAS supplies the BMXDRA1605 as a service-ready spare part, pre-tested before shipment, with a 12-month warranty and long-term stock availability. Our sourcing covers both new and refurbished-to-spec units, with full compatibility confirmation against the Modicon M340 backplane and Unity Pro / EcoStruxure Machine Expert programming environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BMXDRA1605 relay output module is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough cabinet inspection at the time of replacement significantly reduces the risk of repeat failures and secondary faults.

Begin by verifying the 24VDC power supply module feeding the M340 rack — units such as the BMXCPS2000 or BMXCPS3500 should be checked for output voltage stability and ripple, as degraded power quality accelerates relay coil wear. Inspect the backplane bus connector on the BMX XBP rack for oxidation or mechanical damage, particularly if the BMXDRA1605 showed intermittent faults before full failure.

Review the BMXDAI1604 or BMXDDI1602 discrete input modules in the same rack — input/output modules in adjacent slots share the same backplane power rail and are subject to similar thermal aging. If the relay outputs were driving inductive loads such as motor contactors, check the surge suppression devices (RC snubbers or varistors) wired across each load — failed suppressors dramatically shorten relay contact life.

For cabinets with communication-intensive architectures, inspect the BMXNOE0100 or BMXNOE0110 Ethernet communication module and verify that the BMXP342020 or equivalent CPU module firmware is current. Outdated firmware can cause false output toggling that accelerates relay wear beyond design limits.

Terminal blocks and field wiring connected to the BMXDRA1605’s output terminals should be inspected for loose connections, insulation degradation, and correct torque — particularly on Schneider NSYTRV or equivalent terminal rail assemblies. Loose terminals are a leading cause of arcing damage to relay contacts. If the cabinet includes signal isolators or loop-powered transmitters on the same 24VDC rail, verify their current draw has not increased due to field wiring faults.

For sites running mixed I/O architectures, also confirm that any BMXAMI0410 analog input modules or BMXAMO0210 analog output modules in the same rack are functioning within specification — analog modules sharing a degraded backplane can produce subtle drift errors that are difficult to diagnose without a known-good relay output module as a reference baseline.

Procurement engineers should note that the BMXDRA1605 has a long field service history and remains in active use across thousands of installed M340 systems globally. NINERMAS maintains forward stock of this module to support both emergency replacement and planned annual maintenance programs, with flexible minimum order quantities and consolidated shipping for multi-site spare parts programs.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the BMXDRA1605 is the fault source using Unity Pro diagnostics or EcoStruxure Machine Expert I/O forcing. Document the current output channel mapping and field wiring labels before disconnecting.

Step 2 — Safe isolation: De-energize the rack section using the cabinet’s main isolator. Verify zero voltage on all output terminals with a calibrated multimeter before removing the module. The BMXDRA1605 is hot-swap capable on supported M340 configurations — confirm your rack firmware version supports this before attempting live replacement.

Step 3 — Module swap: Remove the faulty BMXDRA1605 by releasing the top and bottom locking tabs. Insert the replacement module firmly until the backplane connector seats fully. The module address is set automatically by slot position — no DIP switch configuration is required.

Step 4 — Wiring reconnection: Reconnect field wiring to the output terminal block. Verify terminal torque to manufacturer specification (typically 0.5–0.6 Nm for M3 screws). Re-check surge suppression devices on inductive loads.

Step 5 — Functional test: Power up the rack and use Unity Pro or EcoStruxure Machine Expert to force each output channel individually. Confirm field device response before returning the system to automatic control. Log the replacement in the site maintenance management system (CMMS) with the new module serial number and warranty start date.

This workflow is compatible with both cold-swap (full rack power-down) and hot-swap procedures, and applies equally to legacy M340 installations and more recent EcoStruxure-integrated deployments. NINERMAS can provide pre-tested replacement units with burn-in documentation on request.

Spare Parts Support FAQ

Q1: Is the BMXDRA1605 still available as a new spare part, or only as refurbished stock?
NINERMAS supplies both new and refurbished-to-specification BMXDRA1605 units. All refurbished units undergo full functional testing, contact resistance measurement, and insulation verification before shipment. Each unit is supplied with a test report and 12-month warranty regardless of condition grade. We recommend confirming your preferred condition grade at the time of inquiry.

Q2: How do I confirm compatibility with my existing Modicon M340 rack and CPU?
The BMXDRA1605 is compatible with all standard Modicon M340 BMX XBP backplanes (4, 8, and 12-slot configurations) and all M340 CPU variants including the BMXP341000, BMXP342000, BMXP342010, and BMXP342020. Compatibility with hot-swap operation depends on rack firmware version. Share your CPU reference and firmware version with our technical team and we will confirm compatibility before dispatch.

Q3: What is your lead time for emergency replacement orders?
For in-stock units, NINERMAS can dispatch within 24–48 hours of order confirmation. Express international freight options are available for critical downtime situations. We recommend establishing a standing spare parts agreement for high-criticality M340 installations to ensure immediate availability without lead time risk.

Q4: Does NINERMAS offer long-term supply agreements for the BMXDRA1605 and related M340 modules?
Yes. NINERMAS offers annual spare parts programs covering the BMXDRA1605 and associated M340 components including power supply modules, CPU units, communication modules, and discrete I/O modules. Long-term agreements include reserved stock allocation, fixed pricing, and priority dispatch. Contact our sales team to discuss a customized spare parts program aligned with your maintenance schedule and installed base.
