Rosemount 2051CD2A02A1AS3I1M5 Retrofit-Compatible Pressure Transmitter

Rosemount 2051CD2A02A1AS3I1M5 Retrofit-Compatible Coplanar Pressure Transmitter for Legacy Systems

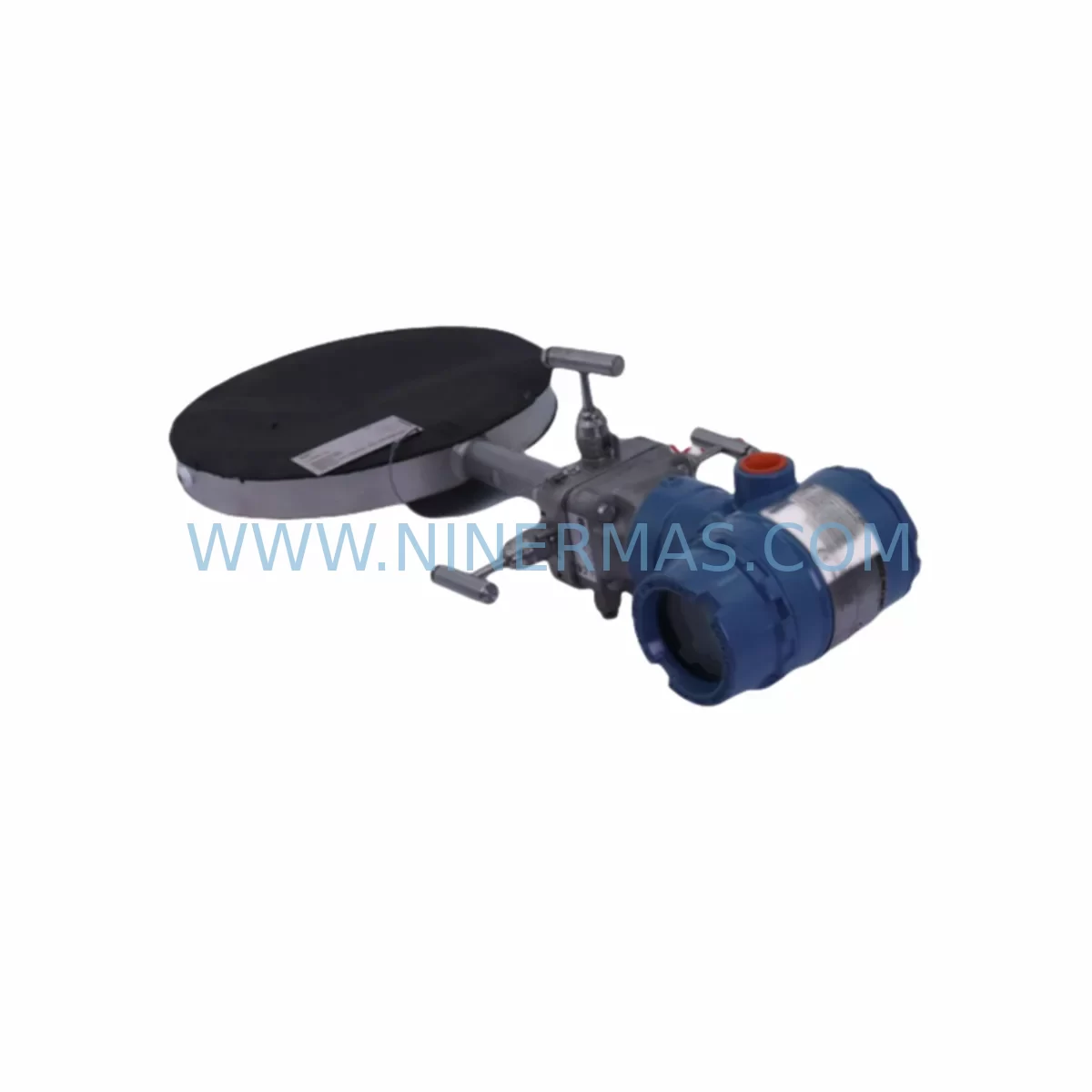

The Rosemount 2051CD2A02A1AS3I1M5 405PS060N040D3H is a retrofit-ready coplanar differential pressure transmitter engineered for seamless integration into existing automation infrastructure. Designed as a direct replacement for discontinued or aging field instruments, this unit supports smooth migration from legacy DCS platforms and aging control cabinets without requiring major rewiring or process interruption. With a 4–20 mA HART output and coplanar flange mounting, it is compatible with a wide range of existing impulse piping configurations, making it a preferred choice for maintenance engineers managing long-lifecycle plant assets.

Whether you are replacing a failed Rosemount 1151 series transmitter, upgrading from an early-generation 3051 unit, or standardizing your pressure measurement fleet across a brownfield facility, the 2051CD delivers the accuracy, stability, and protocol compatibility required for modern process control — without the cost or downtime of a full instrument overhaul.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the Rosemount 2051CD2A02A1AS3I1M5 into a brownfield plant requires a structured pre-installation review. Before removing the existing instrument, maintenance teams should document the current loop wiring, terminal block assignments, and junction box labeling. The 2051CD uses a standard two-wire loop-powered architecture, so existing 24 V DC field power supplies and barrier modules — such as those used with Pepperl+Fuchs or MTL signal isolators — are typically reusable without modification.

For installations where the legacy transmitter was wired to a Honeywell TDC 3000 or a Yokogawa EJA series input card, engineers should verify the input card’s HART pass-through capability. If the existing I/O card does not support HART communication, a HART multiplexer or a dedicated HART-to-Modbus gateway may be required to retain remote configuration access. In DeltaV or ABB 800xA environments, the 2051CD can be added to the device library using the standard Rosemount DD file, enabling full AMS integration without custom configuration.

Backplane and rack space are rarely a concern for field-mounted transmitters, but control cabinet layout should be reviewed when the replacement involves relocating a panel-mounted differential pressure indicator to a field-mounted coplanar unit. In such cases, the Rosemount 305 integral manifold or a compatible 3-valve manifold block should be confirmed against the existing process tap spacing. The coplanar flange bolt pattern on the 2051CD is consistent with the Rosemount 3051C and most legacy coplanar manifolds, simplifying mechanical installation.

For facilities running older Modicon Quantum or Allen-Bradley SLC 500 PLCs with analog input modules, the 4–20 mA output of the 2051CD connects directly to existing AI cards without signal conditioning changes. If the plant is migrating toward a ControlLogix or CompactLogix platform, the HART capability of the 2051CD supports future integration with Rockwell’s HART-enabled 1756-IF8H or 1769-IF4H analog input modules, preserving the instrument investment across the platform transition.

When replacing multiple transmitters across a process unit, it is advisable to batch the installation with related components: Rosemount 305 manifolds, Rosemount 0305 coplanar gasket kits, and appropriate conduit fittings should be staged alongside the transmitter to avoid secondary work orders. For level applications, the 2051CD should be paired with a correctly sized Rosemount 305 or 306 remote seal system if the process fluid is viscous, corrosive, or prone to plugging the impulse lines.

All units are pre-shipment tested against calibration certificates traceable to NIST standards. Configuration data — including range, damping, and engineering units — is documented and included with each shipment to support rapid field commissioning.

Downtime Control During System Migration

Minimizing process downtime during a pressure transmitter replacement requires careful sequencing of isolation, removal, installation, and loop verification steps. For the Rosemount 2051CD2A02A1AS3I1M5, the recommended approach is to complete all pre-configuration offline before the maintenance window begins. Using a Rosemount 475 Field Communicator or a laptop running AMS Device Manager, technicians can pre-configure the new transmitter’s range, damping, engineering units, and HART tag to match the existing instrument’s parameters exactly. This eliminates on-site configuration time and reduces the risk of range errors during loop checkout.

During the isolation sequence, the 3-valve or 5-valve manifold should be used to equalize and then isolate the process connections before loosening the coplanar flange bolts. The existing loop should be placed in manual mode at the DCS or PLC to prevent false process alarms or control upsets during the swap. For critical loops where continuous monitoring is required, a portable pressure calibrator can be connected to the loop to provide a temporary 4–20 mA signal while the transmitter is being changed out.

After mechanical installation, the loop should be verified by applying a known pressure and confirming the mA output at the DCS input card. HART communication should be confirmed using the field communicator to verify device status, configuration integrity, and primary variable reading. If the plant uses an asset management system such as Emerson AMS or Yokogawa PRM, the new device should be registered and its baseline diagnostic snapshot captured immediately after commissioning to support future predictive maintenance.

For multi-transmitter replacement projects, a phased approach — replacing one loop at a time while keeping adjacent loops in service — is strongly recommended. This approach, combined with pre-staged spare transmitters and pre-configured HART parameters, typically reduces per-loop replacement time to under 90 minutes, including loop verification and DCS acknowledgment.

Retrofit Support FAQ

Q1: Is the Rosemount 2051CD2A02A1AS3I1M5 a direct replacement for the Rosemount 1151 or 3051C?
A: Yes. The 2051CD shares the same coplanar flange bolt pattern as the Rosemount 3051C and is mechanically compatible with most legacy coplanar manifolds. For Rosemount 1151 installations with traditional flange adapters, a coplanar adapter plate may be required. Electrical wiring is compatible with standard two-wire 4–20 mA loops used by both legacy models.

Q2: What tools are needed to commission and re-range this transmitter on-site?
A: A Rosemount 475 Field Communicator (or equivalent HART-compatible handheld) is sufficient for full configuration, including range adjustment, damping, engineering units, and HART tag assignment. For PC-based configuration, Emerson AMS Device Manager with the appropriate Rosemount DD file supports all configuration and diagnostic functions.

Q3: Does this unit support HART 7, and is it compatible with older HART 5 infrastructure?
A: The 2051CD supports both HART 5 and HART 7 protocols. It is backward-compatible with existing HART 5 infrastructure, including older HART multiplexers, barriers, and DCS HART interface cards. No firmware or hardware changes are required when connecting to a HART 5 host system.

Q4: What warranty and pre-shipment testing does this unit include?
A: Every unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each transmitter undergoes pre-shipment functional testing including loop output verification, HART communication check, and calibration confirmation against a NIST-traceable reference. A calibration certificate and configuration record are included with each shipment. In-stock units are available for same-week dispatch to minimize procurement lead time.
